| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-ST230C16C0SCR 1.6KV 780A A-PUK |
3,394 | 82.70 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.69 V | 410 A | 780 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-ST230S12P1VPBFSCR 1.2KV 360A TO209AB |
3,301 | 113.94 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 150 mA | 1.55 V | 230 A | 360 A | 600 mA | 30 mA | 4800A, 5000A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|

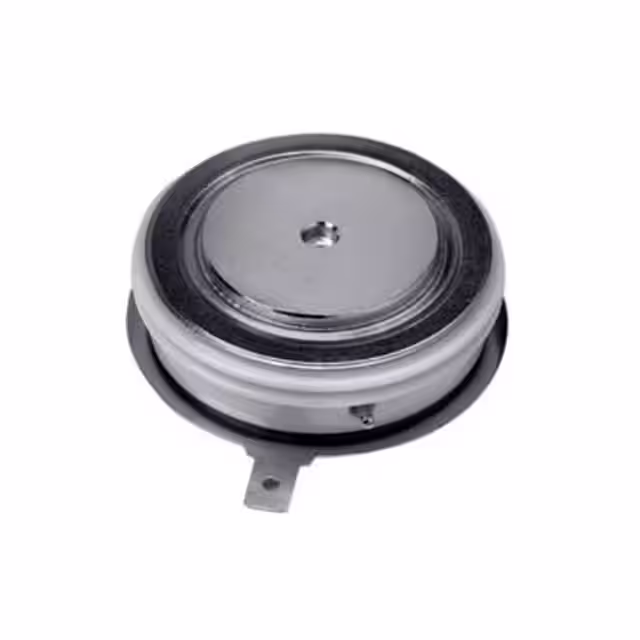

VS-ST330C14C0LSCR 1.4KV 1420A TO200AB |
2,341 | 117.83 |
RFQ |
Datasheet |
Bulk | - | Active | 1.4 kV | 3 V | 200 mA | 1.96 V | 720 A | 1420 A | 600 mA | 50 mA | 7570A, 7920A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST110S16P0SCR 1.6KV 175A TO209AC |
3,524 | 134.08 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 150 mA | 1.52 V | 110 A | 175 A | 600 mA | 20 mA | 2700A, 2830A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
;K.jpg)
|
VS-ST1230C16K0SCR 1.6KV 3200A A24 |
2,594 | 351.83 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.62 V | 1745 A | 3200 A | 600 mA | 100 mA | 33500A, 35100A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-12TTS08SLHM3SCR 800V 12.5A TO263 |
2,904 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 800 V | 1 V | 15 mA | 1.2 V | 8 A | 12.5 A | 30 mA | 5 mA | 110A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|
VS-12TTS08HM3SCR 800V 12.5A TO220AB |
3,830 | 1.65 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 800 V | 1 V | 15 mA | 1.2 V | 8 A | 12.5 A | 30 mA | 50 µA | 110A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
VS-10TTS08-M3SCR 800V 10A TO220AB |
3,844 | 2.05 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1 V | 15 mA | 1.15 V | 6.5 A | 10 A | 30 mA | 1 mA | 95A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
VS-25TTS08STRL-M3SCR 800V 25A TO263AB |
3,500 | 2.16 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 10 mA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
VS-25TTS12S-M3SCR 1.2KV 25A TO263AB |
2,080 | 2.17 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 10 mA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
VS-25TTS08S-M3SCR 800V 25A TO263AB |
3,903 | 2.18 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 10 mA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
VS-16TTS12STRL-M3SCR 1.2KV 16A TO263AB |
3,273 | 2.20 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 150 mA | 10 mA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Surface Mount |
|
|
VS-40TTS12-M3SCR 1.2KV 40A TO220AB |
3,468 | 3.09 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.3 V | 35 mA | 1.6 V | 25 A | 40 A | 100 mA | 500 µA | 300A @ 50Hz | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
VS-16TTS08-M3SCR 800V 16A TO220AB |
2,049 | 3.78 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 150 mA | 10 mA | 170A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
VS-40TPS12AL-M3SCR 1.2KV 55A TO247AD |
2,300 | 4.07 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.7 V | 150 mA | 1.85 V | 35 A | 55 A | 300 mA | 500 µA | 600A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
VS-40TPS12L-M3SCR 1.2KV 55A TO247AD |
3,599 | 4.11 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.7 V | 150 mA | 1.85 V | 35 A | 55 A | 300 mA | 500 µA | 600A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole |
|
|
VS-16TTS12-M3SCR 1.2KV 16A TO220AB |
3,094 | 4.68 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 150 mA | 10 mA | 170A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
VS-30TPS16-M3SCR 1.6KV 30A TO247AC |
2,674 | 4.81 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 2 V | 45 mA | 1.3 V | 20 A | 30 A | 150 mA | 10 mA | 250A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
VS-25TTS08FP-M3SCR 800V 25A TO220AB FP |
2,413 | 5.31 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 500 µA | 270A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
VS-40TPS08A-M3SCR 800V 55A TO247AC |
3,490 | 6.80 |
RFQ |
Tube | - | Active | 800 V | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
