| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

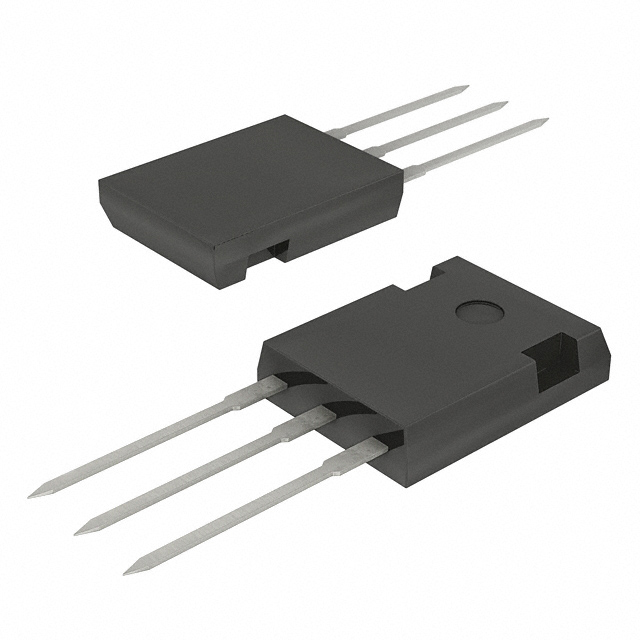

VS-40TPS16-M3SCR 1.6KV 55A TO247AC |
2,890 | 8.67 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
VS-16RIA40SCR 400V 35A TO208AA |
2,710 | 14.37 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 2 V | 60 mA | 1.75 V | 16 A | 35 A | 130 mA | 10 mA | 340A, 360A | Standard Recovery | -65°C ~ 125°C | Chassis, Stud Mount |
|
VS-22RIA120SCR 1.2KV 35A TO208AA |
3,529 | 20.88 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 2 V | 60 mA | 1.7 V | 22 A | 35 A | 130 mA | 10 mA | 400A, 420A | Standard Recovery | -65°C ~ 125°C | Chassis, Stud Mount |
|
VS-80RIA120PBFSCR 1.2KV 125A TO209AC |
3,697 | 44.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 2.5 V | 120 mA | 1.6 V | 80 A | 125 A | 200 mA | 15 mA | 1900A, 1990A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-110RKI40SCR 400V 172A TO209AC |
2,054 | 50.61 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 2 V | 120 mA | 1.57 V | 110 A | 172 A | 200 mA | 20 mA | 2080A, 2180A | Standard Recovery | -40°C ~ 140°C | Chassis, Stud Mount |
|

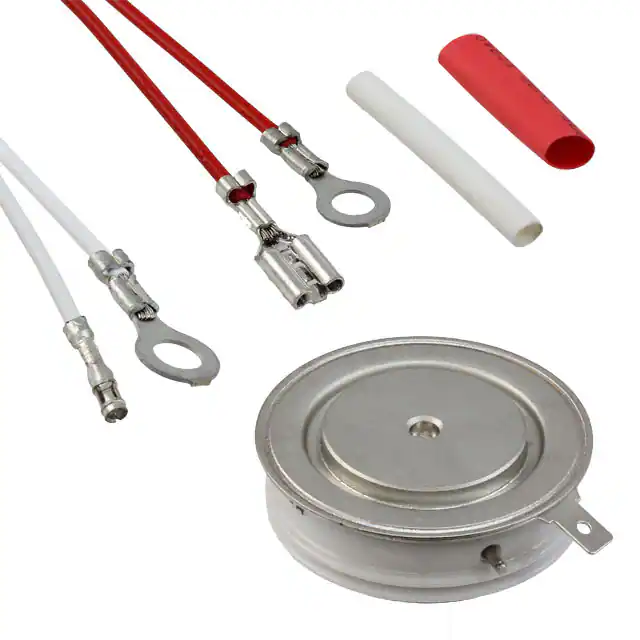

VS-ST330C16C0SCR 1.6KV 1420A TO200AB |
2,573 | 123.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.96 V | 720 A | 1420 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-ST303C12CFK0SCR 1.2KV 1180A TO200AB |
2,602 | 135.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 2.16 V | 620 A | 1180 A | 600 mA | 50 mA | 7950A, 8320A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-ST730C16L0LSCR 1.6KV 2000A B-PUK |
3,920 | 150.25 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 15000A, 15700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST330C16L0SCR 1.6KV 1230A TO200AB |
2,204 | 158.07 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.9 V | 650 A | 1230 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-ST230C12C0SCR 1.2KV 780A A-PUK |
2,526 | 70.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 150 mA | 1.69 V | 410 A | 780 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-ST330S08P0SCR 800V 520A TO209AE |
3,794 | 182.63 |
RFQ |
Datasheet |
Bulk | - | Active | 800 V | 3 V | 200 mA | 1.52 V | 330 A | 520 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-ST330S12P0SCR 1.2KV 520A TO209AE |
3,209 | 215.19 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 1.52 V | 330 A | 520 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
VS-ST1280C04K0SCR 400V 4150A A24 |
2,662 | 261.36 |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 200 mA | 1.44 V | 2310 A | 4150 A | 600 mA | 100 mA | 42500A, 44500A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
|
VS-ST730C16L0SCR 1.6KV 2000A B-PUK |
2,137 | 150.25 |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 17800A, 18700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
|
VS-25TTS16SLHM3SCR 1.6KV 25A TO263 |
2,234 | 3.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1.6 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 10 mA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|
VS-50TPS12L-M3SCR 1.2KV 79A TO247L |
3,223 | 4.28 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 100 mA | 1.32 V | 50 A | 79 A | 300 mA | 50 µA | 530A @ 100Hz | Standard Recovery | -40°C ~ 150°C | Through Hole |
|
VS-50RIA20SCR 200V 80A TO208AC |
2,295 | 15.65 |
RFQ |
Datasheet |
Bulk | - | Active | 200 V | 2.5 V | 100 mA | 1.6 V | 50 A | 80 A | 200 mA | 15 mA | 1430A, 1490A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-2N5206SCR 1KV 35A TO208AA |
2,999 | 20.47 |
RFQ |
Datasheet |
Bulk | - | Active | 1 kV | 2 V | 40 mA | 2.3 V | 22 A | 35 A | 200 mA | 2 mA | 285A, 300A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
|
|
VS-25RIA120SCR 1.2KV 40A TO208AA |
2,108 | 21.62 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 2 V | 60 mA | 1.7 V | 25 A | 40 A | 130 mA | 10 mA | 420A, 440A | Standard Recovery | -65°C ~ 125°C | Chassis, Stud Mount |
|

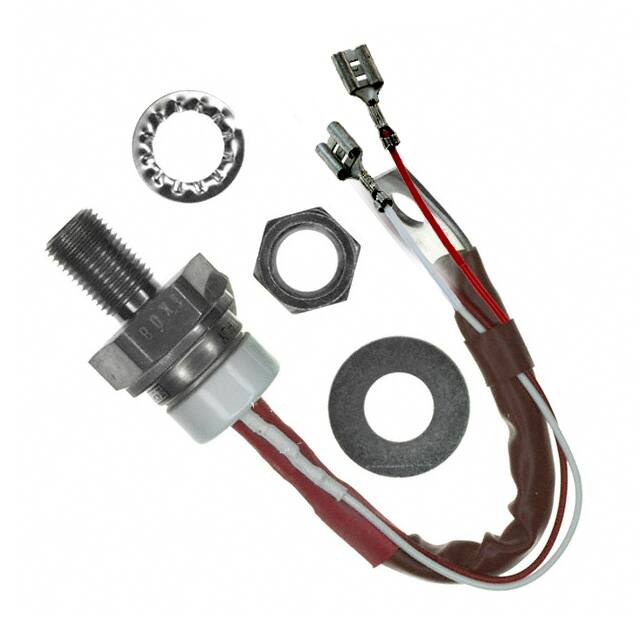

VS-111RKI120PBFSCR 1.2KV 172A TO209AC |
3,544 | 49.40 |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 2 V | 120 mA | 1.57 V | 110 A | 172 A | 200 mA | 20 mA | 1750A, 1830A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount |
