| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWW20JR56ERES 0.56 OHM 5% 20W RADIAL |
3,873 | 2.97 |
RFQ |
Datasheet |
Radial | Box | TWW | Active | 560 mOhms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787 L x 0.512 W (20.00mm x 13.00mm) | 1.811 (46.00mm) |
|
|
TWW20J270ERES 270 OHM 5% 20W RADIAL |
3,554 | 2.97 |
RFQ |
Datasheet |
Radial | Box | TWW | Active | 270 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787 L x 0.512 W (20.00mm x 13.00mm) | 1.811 (46.00mm) |
|
|
TWW20J100ERES 10 OHM 5% 20W RADIAL |
2,068 | 2.97 |
RFQ |
Datasheet |
Radial | Box | TWW | Active | 100 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787 L x 0.512 W (20.00mm x 13.00mm) | 1.811 (46.00mm) |
|
|
TWW20J150ERES 15 OHM 5% 20W RADIAL |
2,191 | 2.97 |
RFQ |
Datasheet |
Radial | Box | TWW | Active | 150 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787 L x 0.512 W (20.00mm x 13.00mm) | 1.811 (46.00mm) |
|

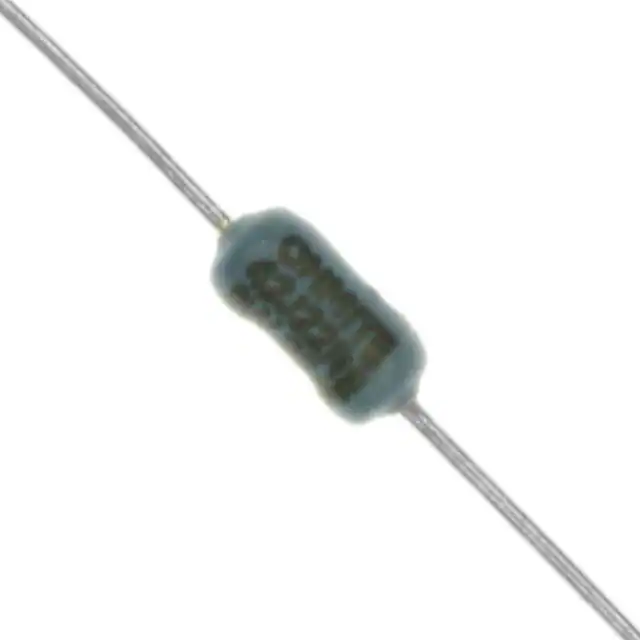

42J22RERES 22 OHM 5% 2W AXIAL |
3,145 | 3.05 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 22 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220 Dia x 0.406 L (5.60mm x 10.30mm) | - |
|
42J3R0ERES 3 OHM 5% 2W AXIAL |
122 | 3.08 |
RFQ |
Datasheet |
Axial | Bulk | Ohmicone® 40 | Active | 3 Ohms | ±5% | 2W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220 Dia x 0.406 L (5.60mm x 10.30mm) | - |
|
23J8K0ERES 8K OHM 5% 3W AXIAL |
2,731 | 3.14 |
RFQ |
Datasheet |
Axial | Bulk | 20 | Active | 8 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220 Dia x 0.516 L (5.60mm x 13.10mm) | - |
|
TA205PA2R40JERES 2.4 OHM 5% 5W POWERCHIP |
3,473 | 4.27 |
RFQ |
Datasheet |
Radial | Bulk | Power Chip® TA | Active | 2.4 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.020 (25.91mm) |
|
|
TA205PA1R50JERES 1.5 OHM 5% 5W POWERCHIP |
2,309 | 4.74 |
RFQ |
Datasheet |
Radial | Bulk | Power Chip® TA | Active | 1.5 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.020 (25.91mm) |
|

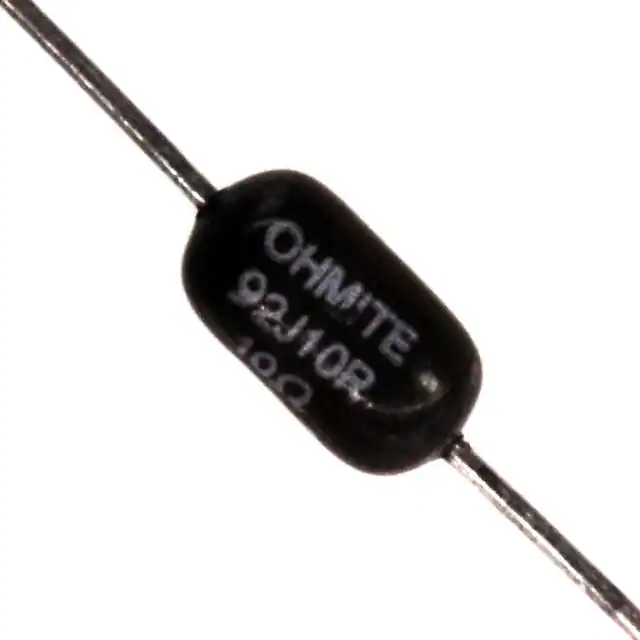

92J10RRES 10 OHM 5% 2.25W AXIAL |
3,850 | 4.91 |
RFQ |
Datasheet |
Axial | Bulk | 90 | Active | 10 Ohms | ±5% | 2.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220 Dia x 0.406 L (5.60mm x 10.30mm) | - |
|
|
TA205PA51R0JERES 51 OHM 5% 5W POWERCHIP |
3,274 | 4.93 |
RFQ |
Datasheet |
Radial | Bulk | Power Chip® TA | Active | 51 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500 L x 0.100 W (12.70mm x 2.54mm) | 1.020 (25.91mm) |
|

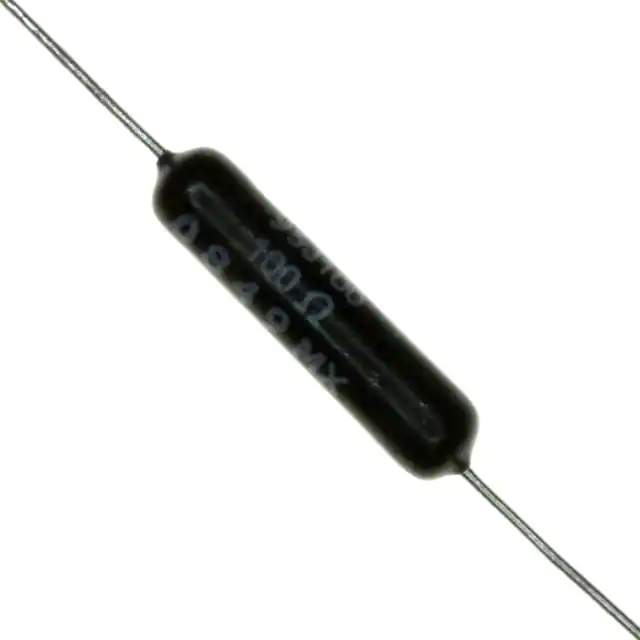

95J100RES 100 OHM 5% 5W AXIAL |
3,606 | 5.41 |
RFQ |
Datasheet |
Axial | Bulk | 90 | Active | 100 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264 Dia x 0.969 L (6.70mm x 24.60mm) | - |
|

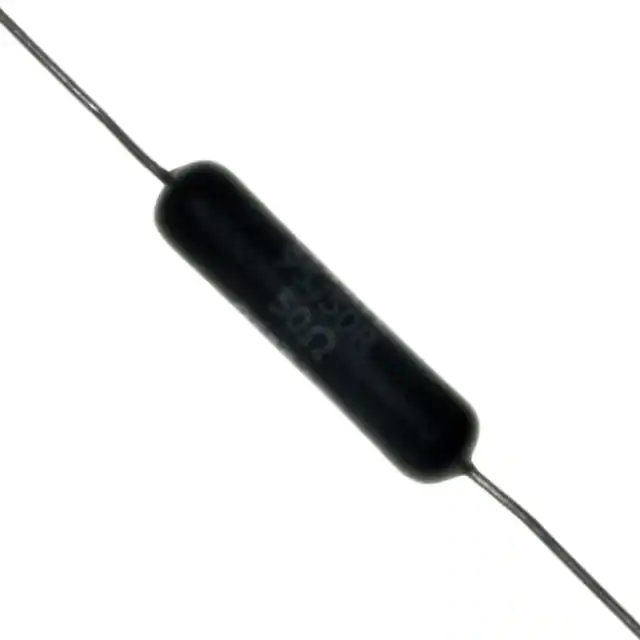

95J50RRES 50 OHM 5% 5W AXIAL |
3,445 | 5.41 |
RFQ |
Datasheet |
Axial | Bulk | 90 | Active | 50 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264 Dia x 0.969 L (6.70mm x 24.60mm) | - |
|
B12J500ERES 500 OHM 5% 12W AXIAL |
100 | 5.70 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 500 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
|
B12J10RERES 10 OHM 5% 12W AXIAL |
2,100 | 5.70 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 10 Ohms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
|
B8J6K0ERES 6K OHM 5% 8W AXIAL |
3,344 | 6.09 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 6 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.000 L (7.94mm x 25.40mm) | - |
|
TBH25P1K50JERES 1.5K OHM 5% 25W TO220 |
3,772 | 6.11 |
RFQ |
Datasheet |
TO-220-2 | Bulk | TBH | Active | 1.5 kOhms | ±5% | 25W | Thick Film | Current Sense, Moisture Resistant, Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | TO-220 | 0.402 L x 0.187 W (10.20mm x 4.75mm) | 0.630 (16.00mm) |
|
|
B12J7K5ERES 7.5K OHM 5% 12W AXIAL |
3,332 | 6.16 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 7.5 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
|
B8J20RERES 20 OHM 5% 8W AXIAL |
3,180 | 6.43 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 20 Ohms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.000 L (7.94mm x 25.40mm) | - |
|
AP101 2K7 JRES 2.7K OHM 5% 100W TO247 |
3,143 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 2.7 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
