| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP851 4R7 JRES 4.7 OHM 5% 50W TO220 |
2,467 | 6.53 |
RFQ |
Datasheet |
TO-220-2 Full Pack | Tray | ARCOL, AP851 | Active | 4.7 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.410 L x 0.125 W (10.41mm x 3.18mm) | 0.650 (16.52mm) |
|
|
AP851 3R9 JRES 3.9 OHM 5% 50W TO220 |
3,625 | 6.53 |
RFQ |
Datasheet |
TO-220-2 Full Pack | Tray | ARCOL, AP851 | Active | 3.9 Ohms | ±5% | 50W | Thick Film | Non-Inductive | ±100ppm/°C | -60°C ~ 150°C | TO-220 | 0.410 L x 0.125 W (10.41mm x 3.18mm) | 0.650 (16.52mm) |
|
B12J40KERES 40K OHM 5% 12W AXIAL |
2,678 | 6.54 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 40 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
|
AP101 220R JRES 220 OHM 5% 100W TO247 |
3,636 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 220 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 82R JRES 82 OHM 5% 100W TO247 |
3,216 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 82 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 470R JRES 470 OHM 5% 100W TO247 |
3,974 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tube | ARCOL, AP101 | Active | 470 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 4R3 JRES 4.3 OHM 5% 100W TO247 |
2,212 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 4.3 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
AP101 120R JRES 120 OHM 5% 100W TO247 |
2,386 | 6.63 |
RFQ |
Datasheet |
TO-247-2 | Tray | ARCOL, AP101 | Active | 120 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620 L x 0.195 W (15.75mm x 4.95mm) | 0.825 (20.96mm) |
|
|
B8J50RERES 50 OHM 5% 8W AXIAL |
3,914 | 6.67 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 50 Ohms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.000 L (7.94mm x 25.40mm) | - |
|

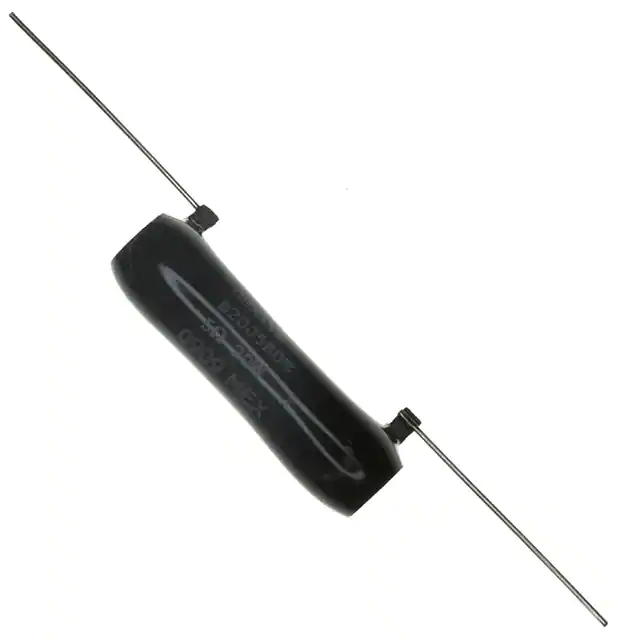

B20J5R0ERES 5 OHM 5% 20W AXIAL |
2,492 | 7.49 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 5 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|

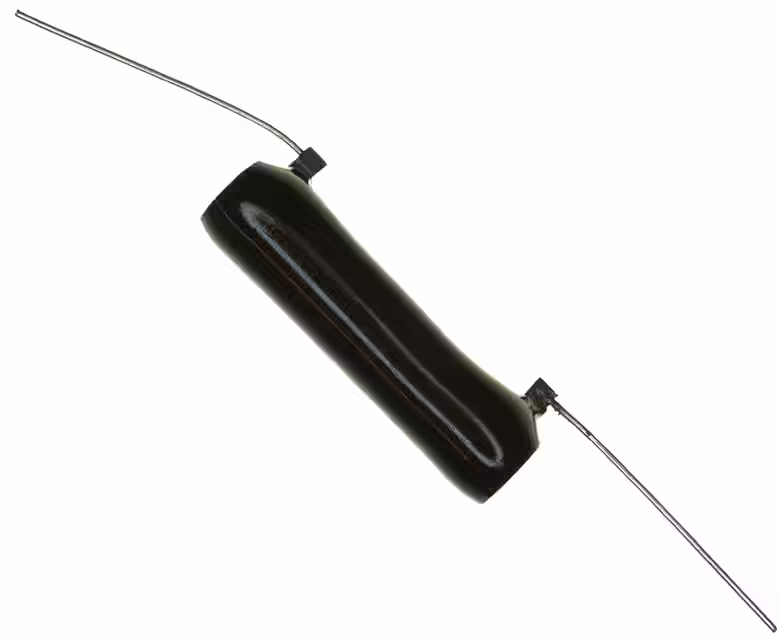

B20J100RES 100 OHM 5% 20W AXIAL |
3,264 | 7.61 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 100 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
13FPR020ERES 0.02 OHM 1% 3W AXIAL |
2,856 | 7.88 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 20 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200 Dia x 0.626 L (5.08mm x 15.90mm) | - |
|
|
13FPR050ERES 0.05 OHM 1% 3W AXIAL |
3,232 | 7.88 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 50 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200 Dia x 0.626 L (5.08mm x 15.90mm) | - |
|
|
13FPR025ERES 0.025 OHM 1% 3W AXIAL |
3,488 | 7.88 |
RFQ |
Datasheet |
Axial | Bulk | 10 | Active | 25 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200 Dia x 0.626 L (5.08mm x 15.90mm) | - |
|

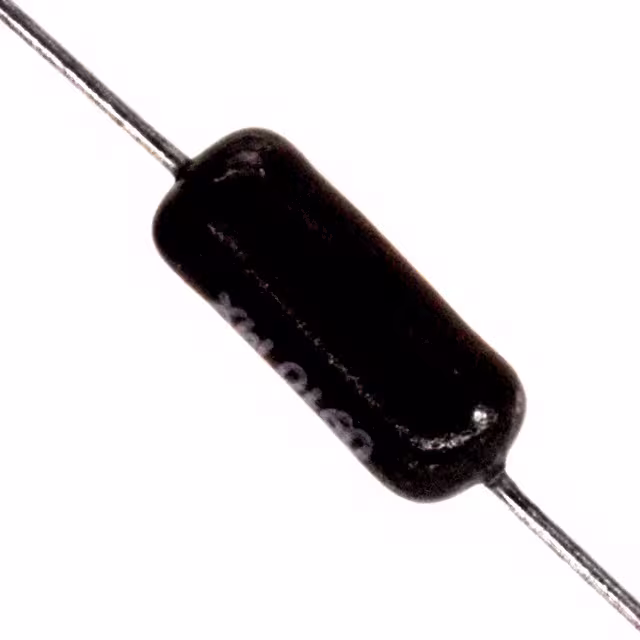

93J10KRES 10K OHM 5% 3.25W AXIAL |
2,425 | 8.02 |
RFQ |
Datasheet |
Axial | Bulk | 90 | Active | 10 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233 Dia x 0.579 L (5.90mm x 14.70mm) | - |
|

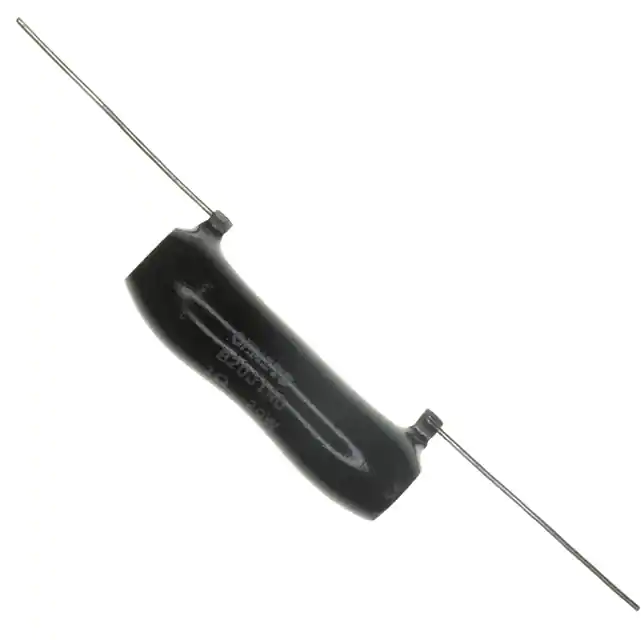

B20J1R0RES 1 OHM 5% 20W AXIAL |
3,232 | 8.14 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 1 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
B20J10RRES 10 OHM 5% 20W AXIAL |
2,784 | 8.14 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 10 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|
|
B12J50KERES 50K OHM 5% 12W AXIAL |
2,028 | 8.22 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 50 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313 Dia x 1.750 L (7.94mm x 44.45mm) | - |
|
B20J25KERES 25K OHM 5% 20W AXIAL |
2,935 | 8.68 |
RFQ |
Datasheet |
Axial | Bulk | Brown Devil® 200 | Active | 25 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437 Dia x 2.000 L (11.11mm x 50.80mm) | - |
|

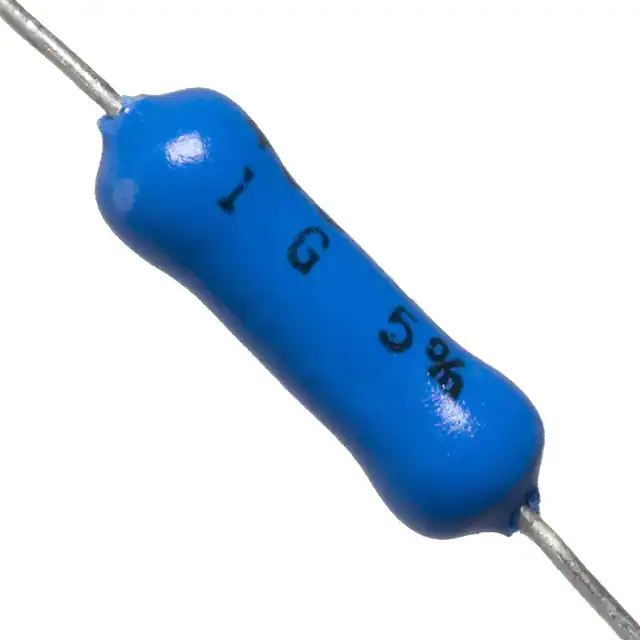

MOX-400231007JERES 1 GOHM 5% 3/4W AXIAL |
2,570 | 8.90 |
RFQ |
Datasheet |
Axial | Bulk | Mini-Mox | Active | 1 GOhms | ±5% | 0.75W, 3/4W | Thick Film | High Voltage | 100ppm/°C | -55°C ~ 110°C | Axial | 0.165 Dia x 0.581 L (4.19mm x 14.78mm) | - |
