Springs - Extension, Drawbar(2791)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | WireDiameter | Material | Diameter-Outside | Diameter-Inside | Rate | Load | LoopStyle | DrawbarWireSize |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

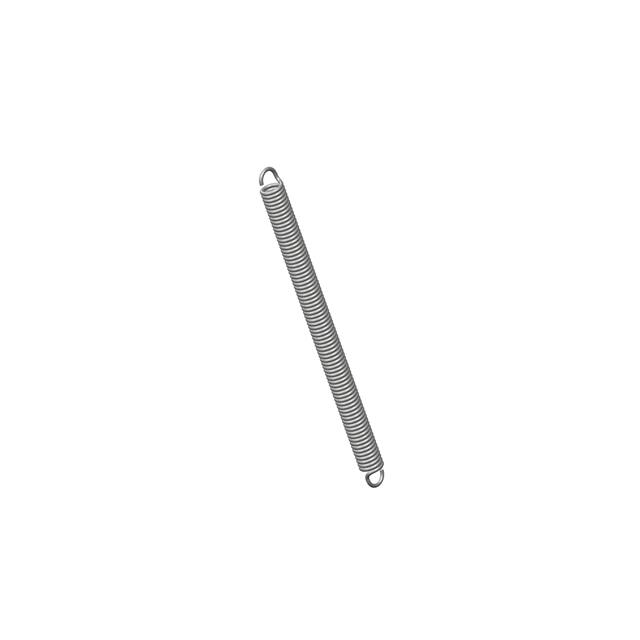

221CSEXT O= .375,L= 5.50,W=.0625 |
3,914 | 4.19 |
RFQ |
Datasheet |
Box | - | Active | 0.062 (1.57mm) | Hard Drawn | 0.380 (9.65mm) | - | 8.9 lbs/in | 23.0 lbs | - | - |
|
ZZ3-26CSEXT O= .250,L= .97,W= .026 |
3,801 | 4.59 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - |
|

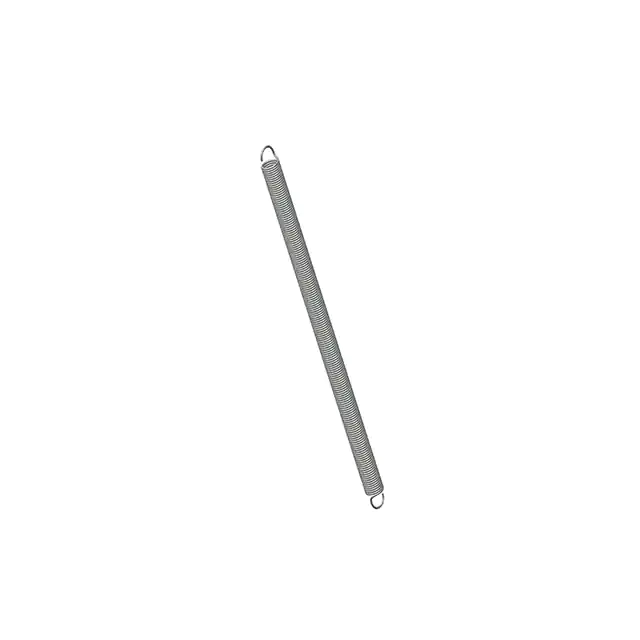

119CSEXT O= .437,L= 8.50,W=.0475 |
2,234 | 4.64 |
RFQ |
Datasheet |
Box | - | Active | 0.047 (1.19mm) | Hard Drawn | 0.440 (11.78mm) | - | 0.73 lbs/in | 8.4 lbs | - | - |
|
96CSEXT O= .687,L= 5.00,W=.072 |
3,431 | 4.74 |
RFQ |
Datasheet |
Box | - | Active | 0.072 (1.83mm) | Hard Drawn | 0.690 (17.53mm) | - | 2.9 lbs/in | 17.0 lbs | - | - |
|
S-533CSEXT O= .250,L= 1.63,W=.032 HD |
2,452 | 4.76 |
RFQ |
Datasheet |
Box | - | Active | 0.032 (0.81mm) | Stainless Steel | 0.250 (6.35mm) | - | 3.2 lbs/in | 4.7 lbs | - | - |
|

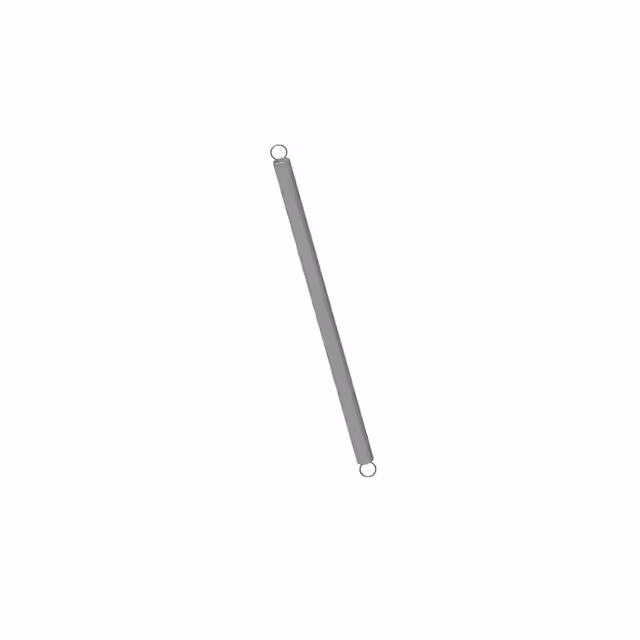

225CSEXT O= .375,L= 8.00,W= .031 |
3,969 | 4.85 |
RFQ |
Datasheet |
Box | - | Active | 0.031 (0.79mm) | Music Wire | 0.380 (9.65mm) | - | 0.14 lbs/in | 4.0 lbs | - | - |
|

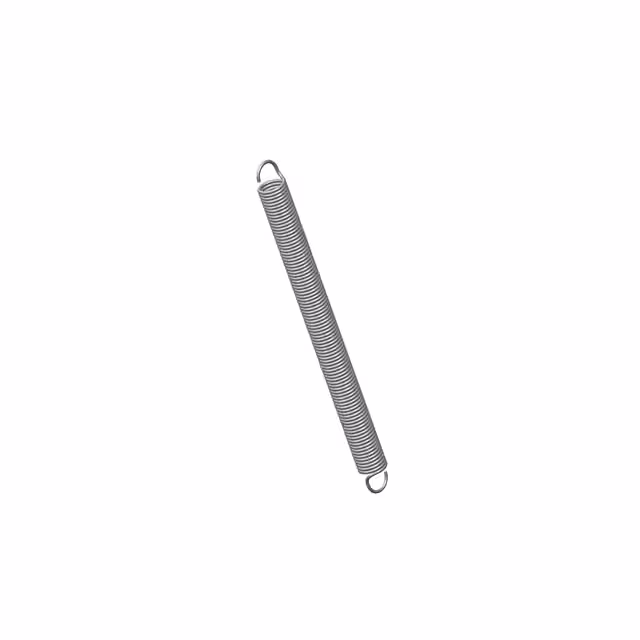

12355CSEXT O= .625,L= 7.94,W= .073 |
3,876 | 4.89 |
RFQ |
Datasheet |
Box | - | Active | 0.073 (1.85mm) | Spring Steel | 0.630 (16.00mm) | - | 2.4 lbs/in | 20.0 lbs | - | - |
|

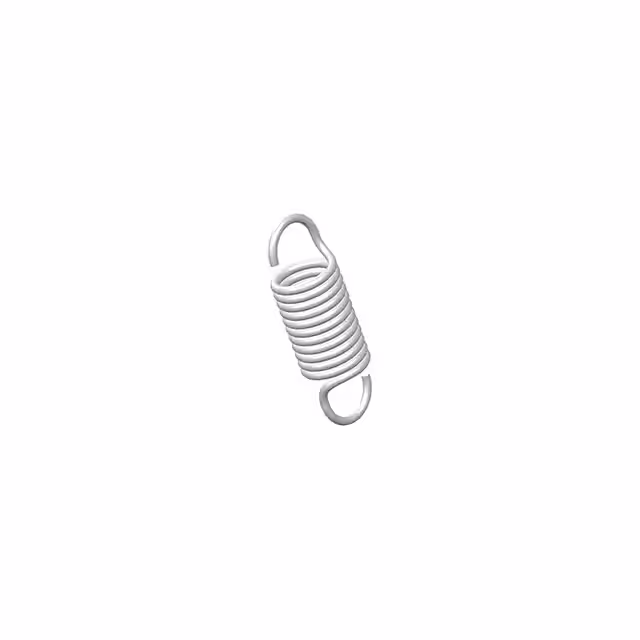

ZZ1-32CSEXT O= .312,L= 1.06,W= .041 |
2,061 | 5.31 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - |
|
5306CSEXT O= .500,L= 9.63,W= .062 |
2,486 | 5.43 |
RFQ |
Datasheet |
Box | - | Active | 0.062 (1.57mm) | Spring Steel | 0.500 (12.70mm) | - | 1.8 lbs/in | 16.0 lbs | - | - |
|

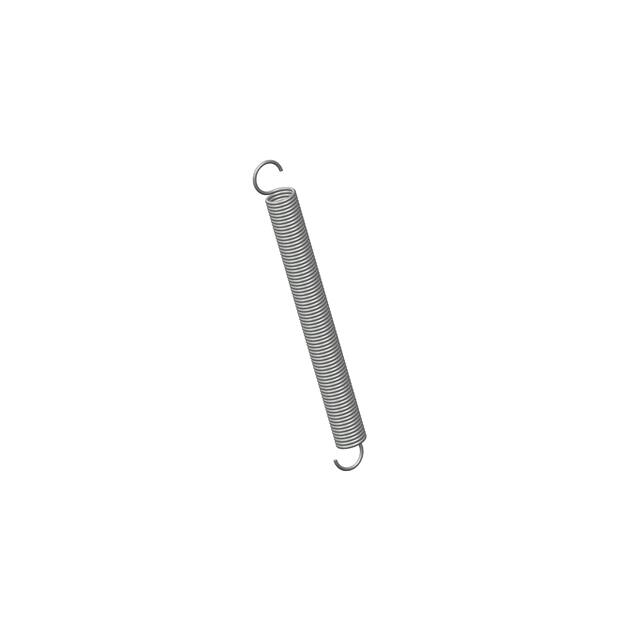

136CSEXT O= .812,L= 8.50,W= .091 |
2,525 | 5.98 |
RFQ |
Datasheet |
Box | - | Active | 0.091 (2.31mm) | Hard Drawn | 0.810 (20.57mm) | - | 3.2 lbs/in | 29.0 lbs | - | - |
|

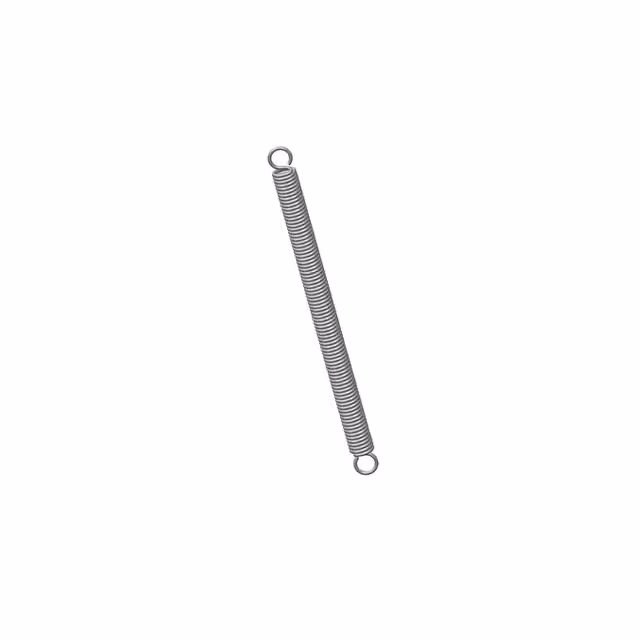

6074CSEXT O= .500,L= 7.13,W= .074 |
3,166 | 5.98 |
RFQ |
Datasheet |
Box | - | Active | 0.074 (1.88mm) | Spring Steel | 0.500 (12.70mm) | - | 6.8 lbs/in | 27.0 lbs | - | - |
|

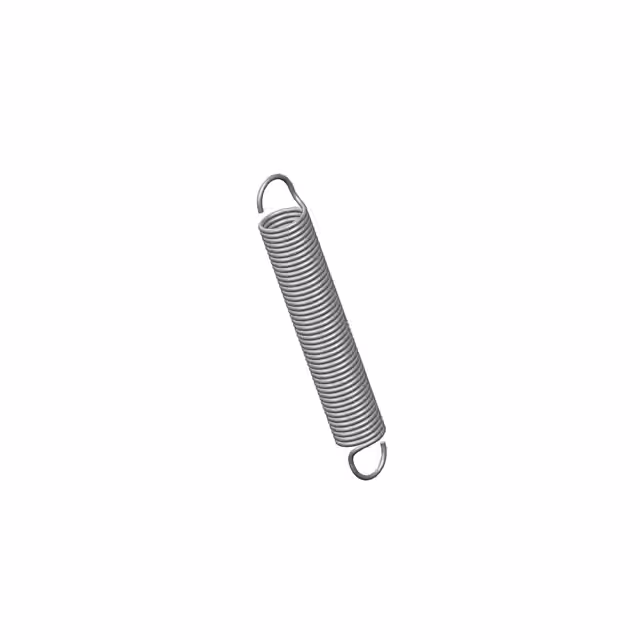

5555CSEXT O= .875,L= 5.88,W= .092 |
2,434 | 6.08 |
RFQ |
Datasheet |
Box | - | Active | 0.092 (2.34mm) | Spring Steel | 0.880 (22.35mm) | - | 4.1 lbs/in | 27.0 lbs | - | - |
|

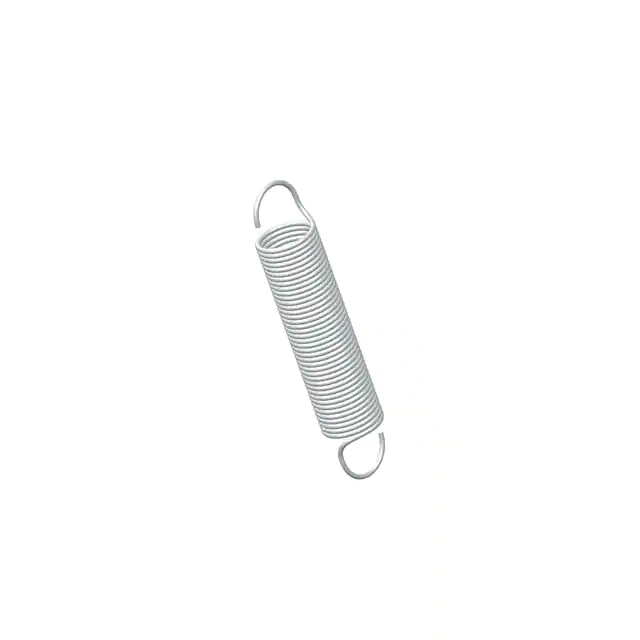

S-565CSEXT O= .375,L= 2.00,W= .032 |
3,154 | 6.10 |
RFQ |
Datasheet |
Box | - | Active | 0.032 (0.81mm) | Stainless Steel | 0.380 (9.65mm) | - | 0.68 lbs/in | 3.0 lbs | - | - |
|

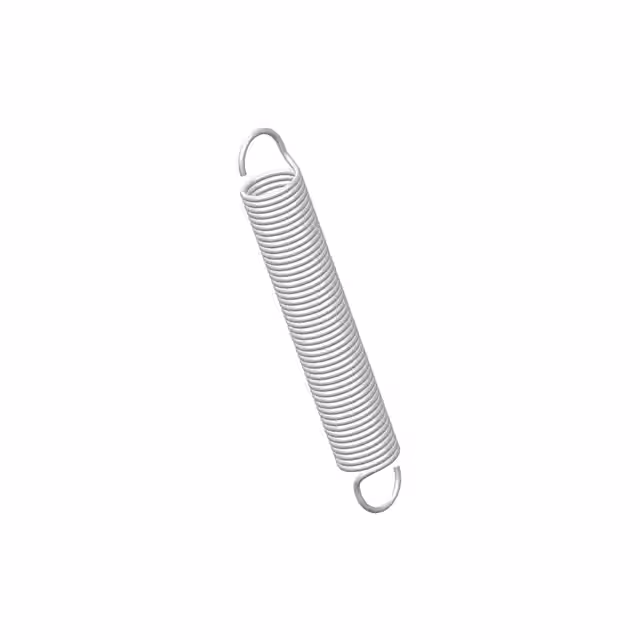

S-557CSEXT O= .312,L= 2.13,W= .032 |
2,254 | 6.39 |
RFQ |
Datasheet |
Box | - | Active | 0.032 (0.81mm) | Stainless Steel | 0.310 (7.87mm) | - | 1.1 lbs/in | 3.6 lbs | - | - |
|

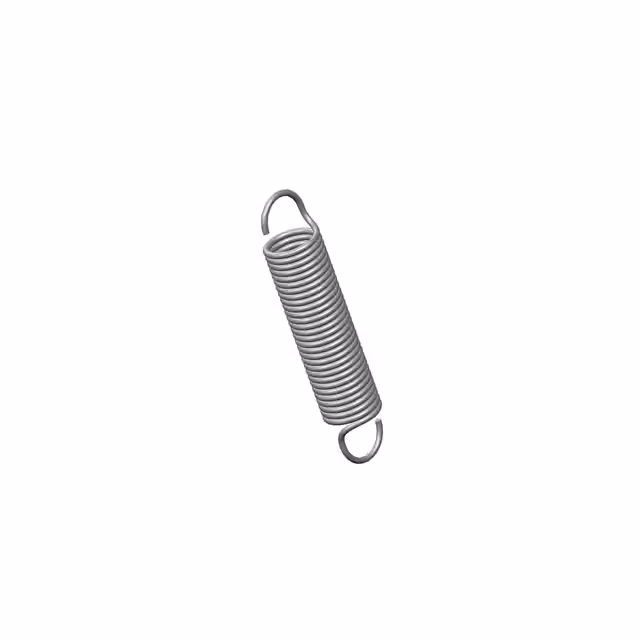

5273CSEXT O=1.062,L= 5.50,W=.120 |
3,773 | 7.34 |
RFQ |
Datasheet |
Box | - | Active | 0.120 (3.05mm) | Hard Drawn | 1.060 (26.92mm) | - | 9.5 lbs/in | 49.0 lbs | - | - |
|

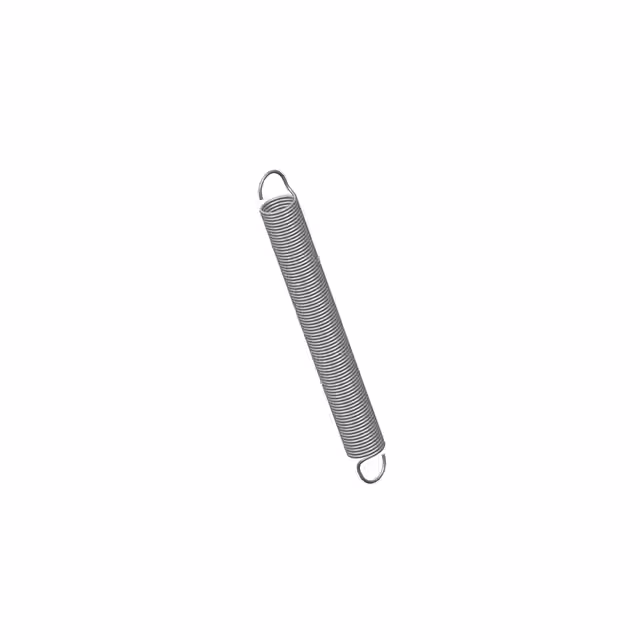

141CSEXT O= .938,L= 8.50,W= .080 |
3,674 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | 0.080 (2.03mm) | Hard Drawn | 0.940 (23.88mm) | - | 1.1 lbs/in | 17.0 lbs | - | - |
|

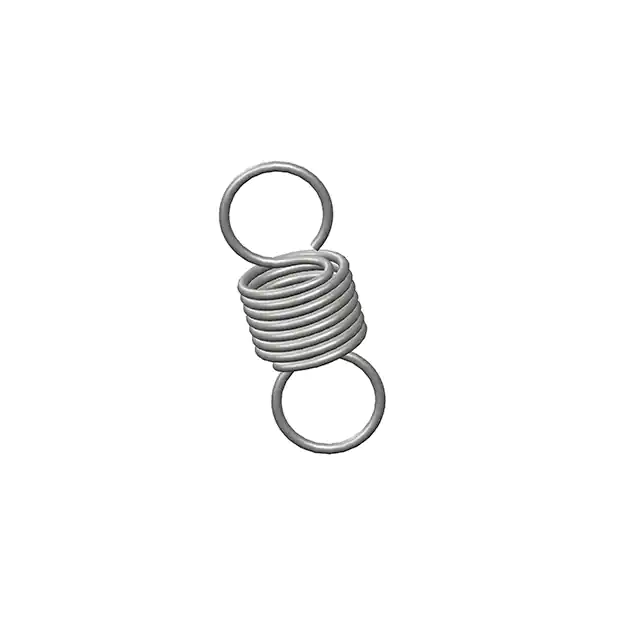

80249CSEXT O= .240,L= .63,W= .022 |
2,248 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.022 (0.56mm) | Music Wire | 0.240 (6.10mm) | - | 3.8 lbs/in | 2.3 lbs | - | - |
|

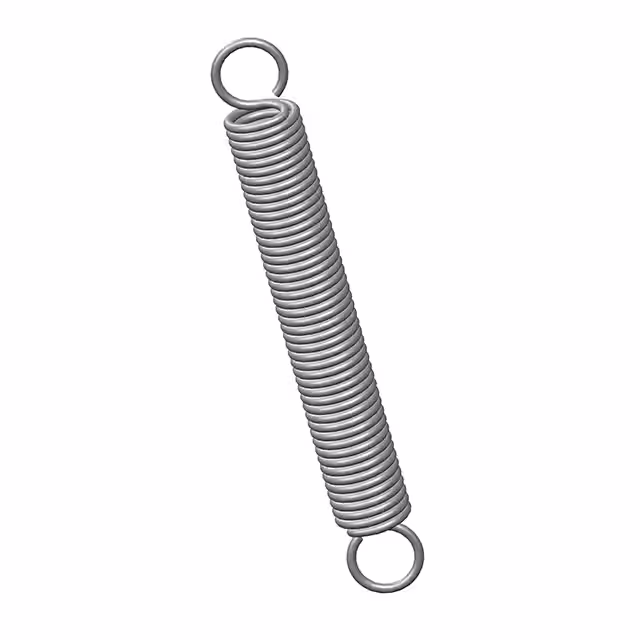

80525CSEXT O= .359,L= 2.75,W= .045 |
2,060 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.045 (1.14mm) | Music Wire | 0.360 (9.14mm) | - | 3.9 lbs/in | 12.0 lbs | - | - |
|

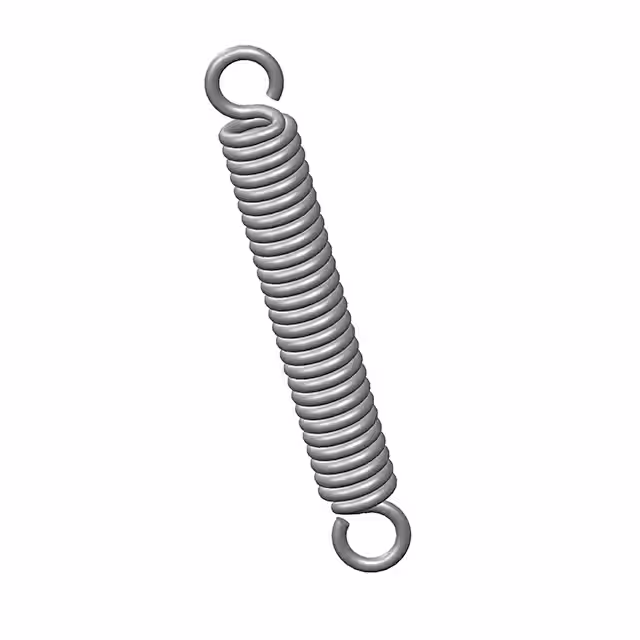

80228CSEXT O= .180,L= 1.25,W= .034 |
2,151 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.034 (0.86mm) | Music Wire | 0.180 (4.57mm) | - | 20.0 lbs/in | 9.9 lbs | - | - |
|

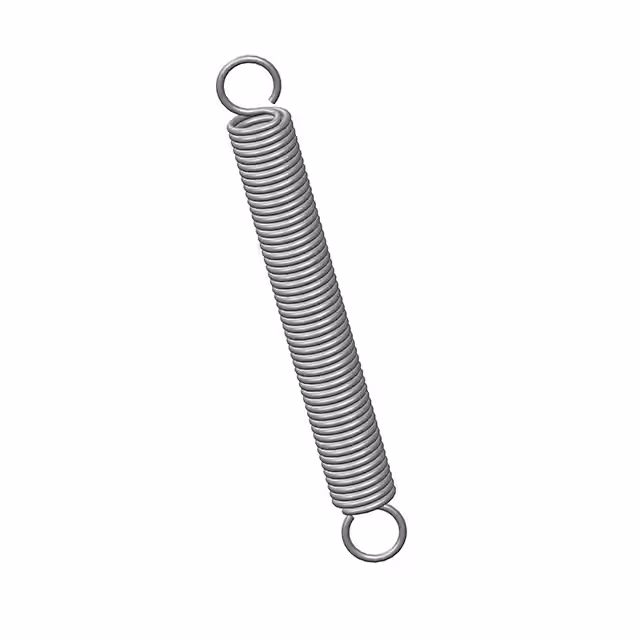

80167CSEXT O= .180,L= 1.50,W= .022 |
2,987 | 8.56 |
RFQ |
Datasheet |
Box | - | Active | 0.022 (0.56mm) | Music Wire | 0.180 (4.57mm) | - | 1.5 lbs/in | 3.0 lbs | - | - |
