Springs - Extension, Drawbar(2791)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | WireDiameter | Material | Diameter-Outside | Diameter-Inside | Rate | Load | LoopStyle | DrawbarWireSize |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

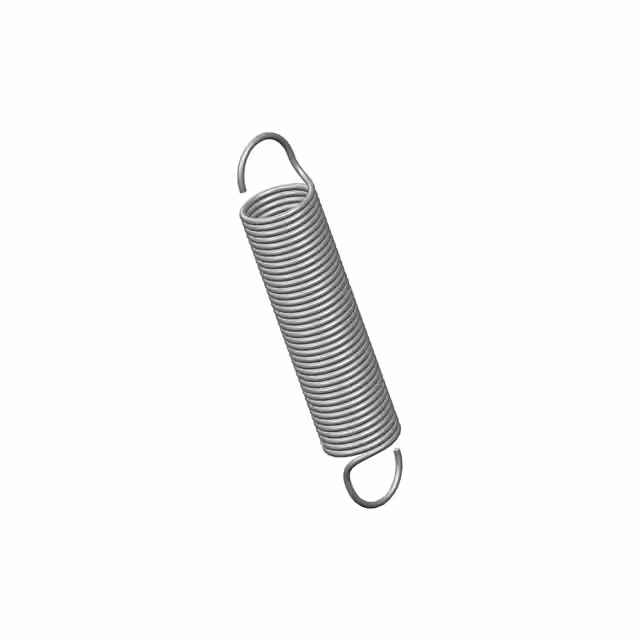

175-ACSEXT O= .281,L= 1.50,W= .025 |
3,805 | 2.30 |
RFQ |
Datasheet |
Box | - | Active | 0.025 (0.64mm) | Music Wire | 0.280 (7.11mm) | - | 0.74 lbs/in | 2.8 lbs | - | - |
|
582CSEXT O= .375,L= 2.00,W= .031 |
2,945 | 2.34 |
RFQ |
Datasheet |
Box | - | Active | 0.031 (0.79mm) | Music Wire | 0.380 (9.65mm) | - | 0.9 lbs/in | 4.0 lbs | - | - |
|

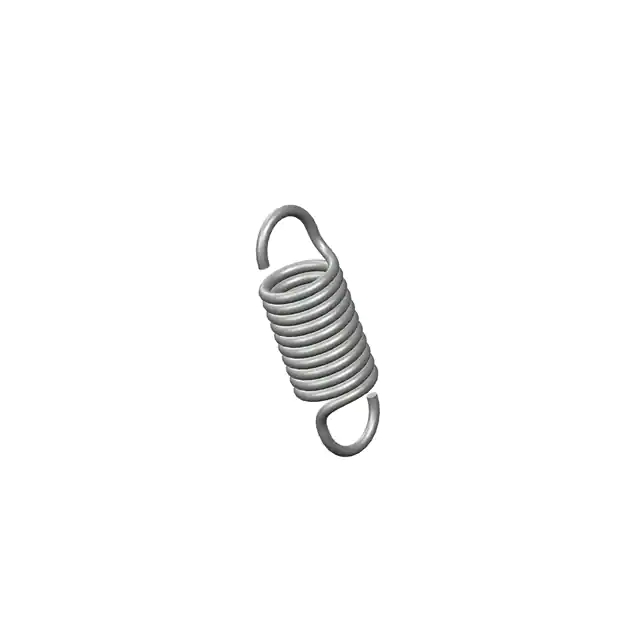

5491CSEXT O= .375,L= 1.25,W= .051 |
3,311 | 2.34 |
RFQ |
Datasheet |
Box | - | Active | 0.051 (1.30mm) | Spring Steel | 0.380 (9.65mm) | - | 26.0 lbs/in | 12.0 lbs | - | - |
|

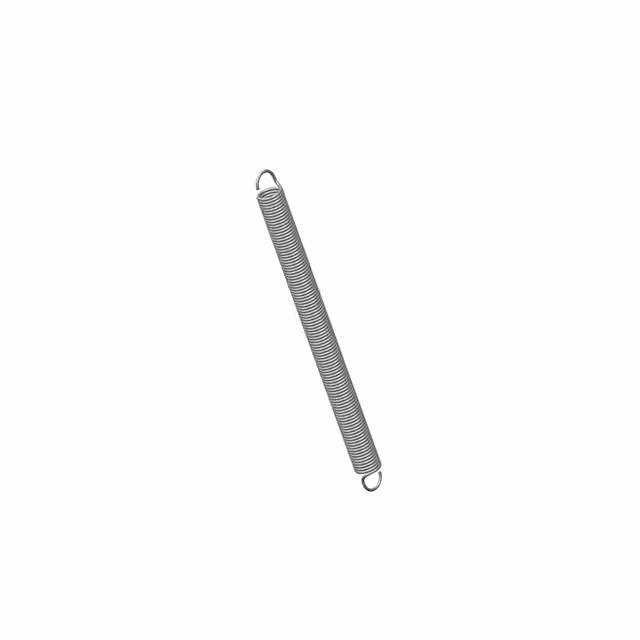

163-BCSEXT O= .140,L= 1.88,W= .016 |
2,027 | 2.44 |
RFQ |
Datasheet |
Box | - | Active | 0.016 (0.41mm) | Music Wire | 0.140 (3.56mm) | - | 0.47 lbs/in | 1.6 lbs | - | - |
|
5045CSEXT O= .312,L= 1.75,W= .038 |
2,878 | 2.45 |
RFQ |
Datasheet |
Box | - | Active | 0.038 (0.97mm) | Spring Steel | 0.310 (7.87mm) | - | 4.1 lbs/in | 6.3 lbs | - | - |
|

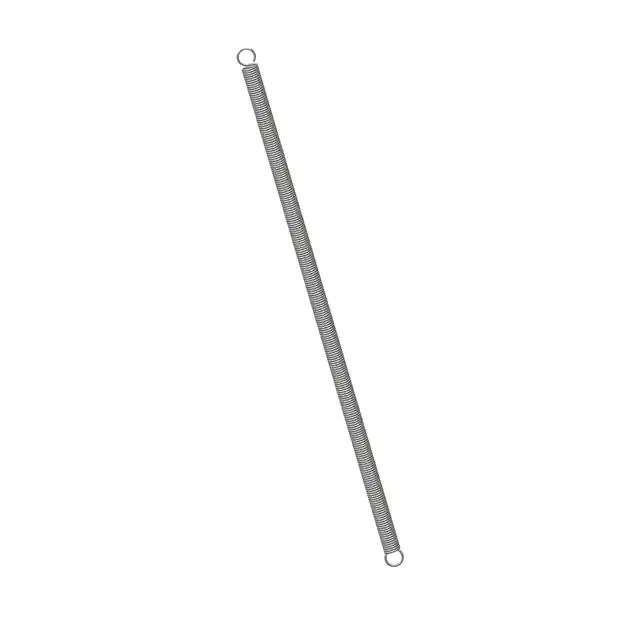

5225CSEXT O= .125,L= 4.00,W= .016 |
3,718 | 2.53 |
RFQ |
Datasheet |
Box | - | Active | 0.016 (0.41mm) | Music Wire | 0.130 (3.30mm) | - | 0.3 lbs/in | 1.8 lbs | - | - |
|
186-CCSEXT O= .437,L= 2.50,W= .0475 |
3,498 | 2.71 |
RFQ |
Datasheet |
Box | - | Active | 0.047 (1.19mm) | Music Wire | 0.440 (11.78mm) | - | 3.0 lbs/in | 11.0 lbs | - | - |
|

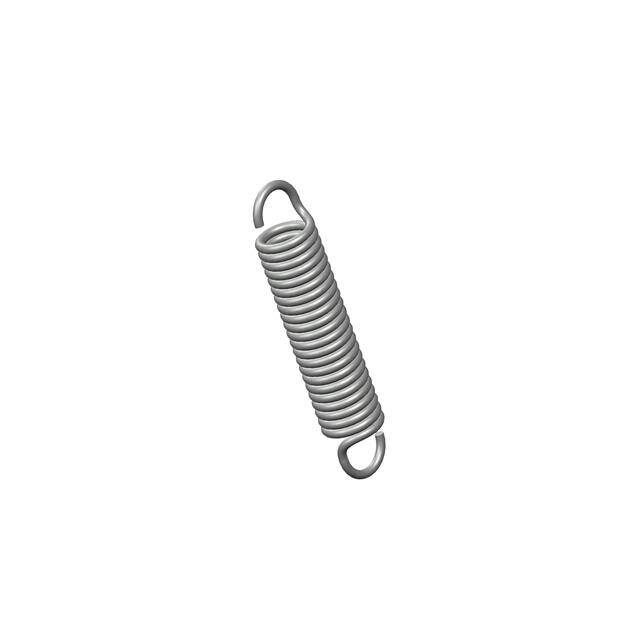

488CSEXT O= .375,L= 2.00,W= .058 |
2,244 | 2.81 |
RFQ |
Datasheet |
Box | - | Active | 0.058 (1.47mm) | Spring Steel | 0.380 (9.65mm) | - | 19.0 lbs/in | 18.0 lbs | - | - |
|

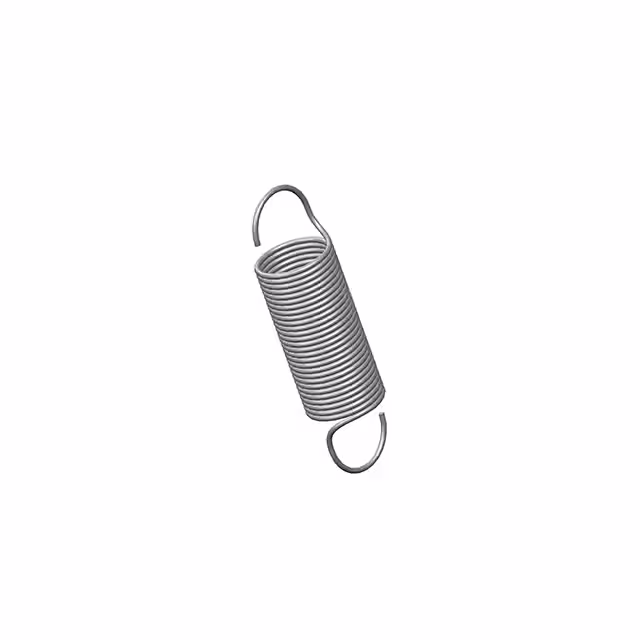

ZZ3-44CSEXT O= .500,L= 2.00,W= .037 |
2,278 | 3.15 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - |
|

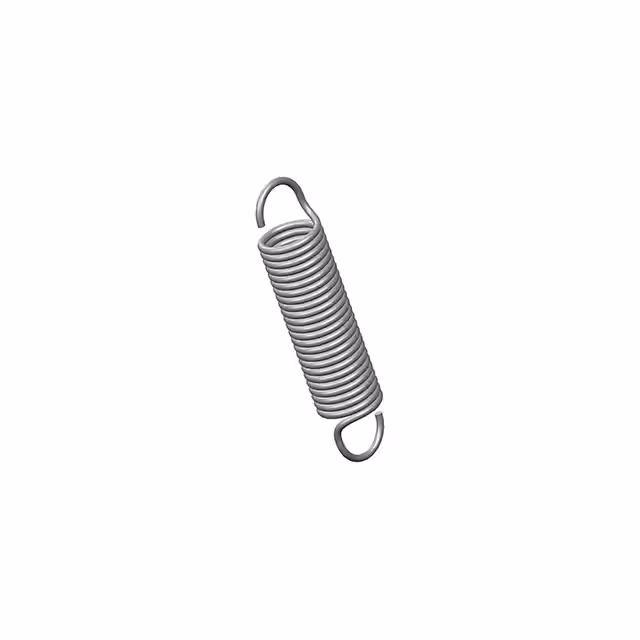

ZZ4-3CSEXT O= .312,L= 1.50,W= .037 |
2,656 | 3.22 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - |
|

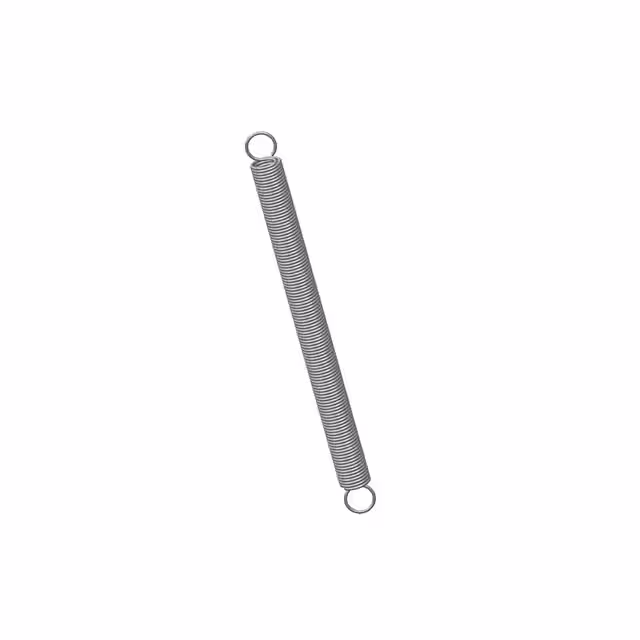

309CSEXT O= .250,L= 3.25,W=.025 |
2,125 | 3.33 |
RFQ |
Datasheet |
Box | - | Active | 0.025 (0.64mm) | Music Wire | 0.250 (6.35mm) | - | 0.44 lbs/in | 3.1 lbs | - | - |
|

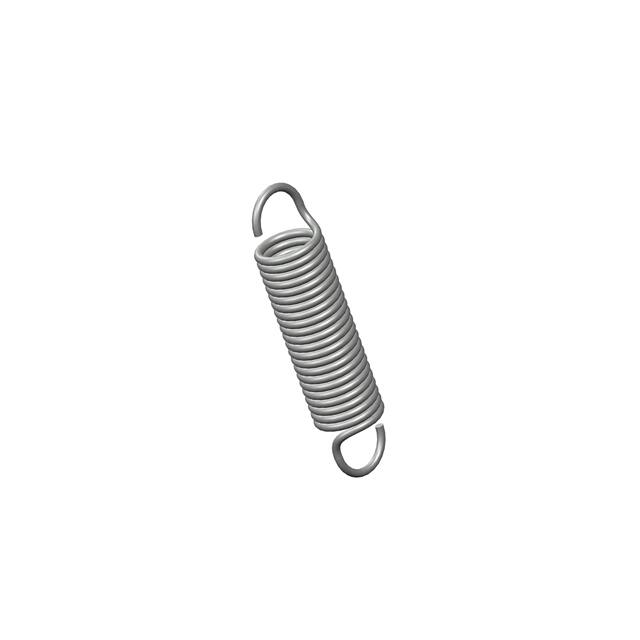

5041CSEXT O= .375,L= 1.75,W= .047 |
2,659 | 3.45 |
RFQ |
Datasheet |
Box | - | Active | 0.047 (1.19mm) | Spring Steel | 0.380 (9.65mm) | - | 9.4 lbs/in | 10.0 lbs | - | - |
|
N-92CSEXT O= .188,L= .56,W= .023 |
2,918 | 3.58 |
RFQ |
Datasheet |
Box | - | Active | 0.023 (0.58mm) | Stainless Steel | 0.190 (4.83mm) | - | 6.5 lbs/in | 2.4 lbs | - | - |
|

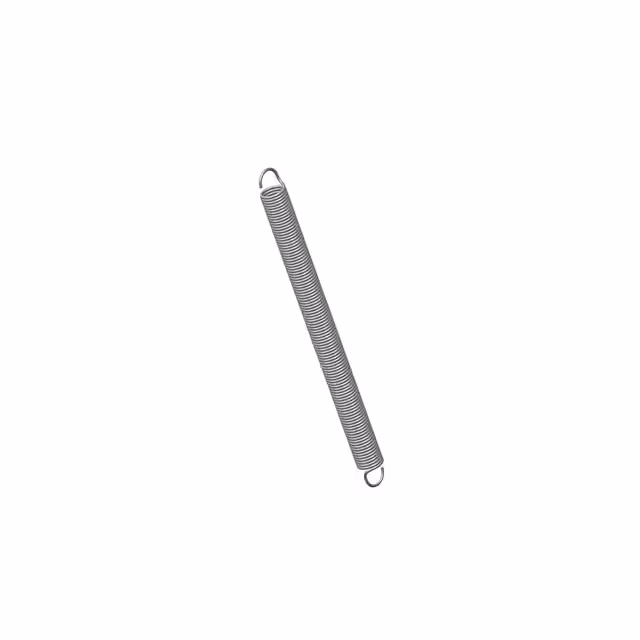

569CSEXT O= .375,L= 5.00,W= .041 |
2,893 | 3.70 |
RFQ |
Datasheet |
Box | - | Active | 0.041 (1.04mm) | Spring Steel | 0.380 (9.65mm) | - | 1.0 lbs/in | 6.5 lbs | - | - |
|

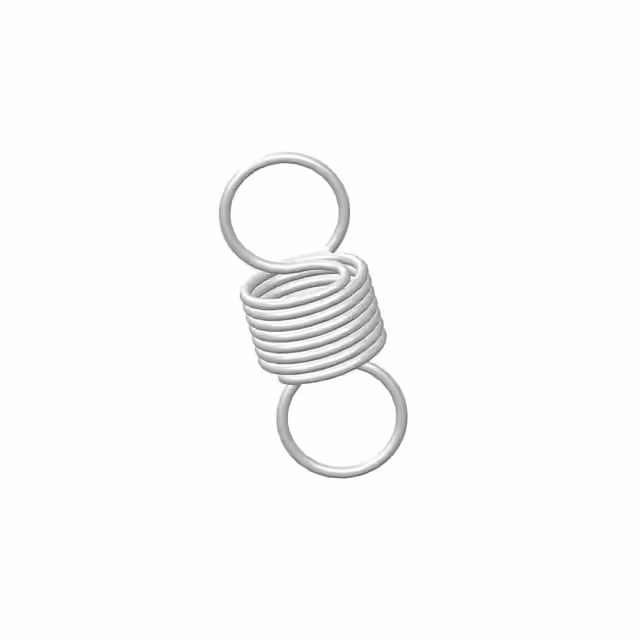

O-10CSEXT O= .172,L= .44,W= .015 |
3,513 | 3.81 |
RFQ |
Datasheet |
Box | - | Active | 0.015 (0.38mm) | Stainless Steel | 0.170 (4.32mm) | - | 1.4 lbs/in | 0.71 lbs | - | - |
|

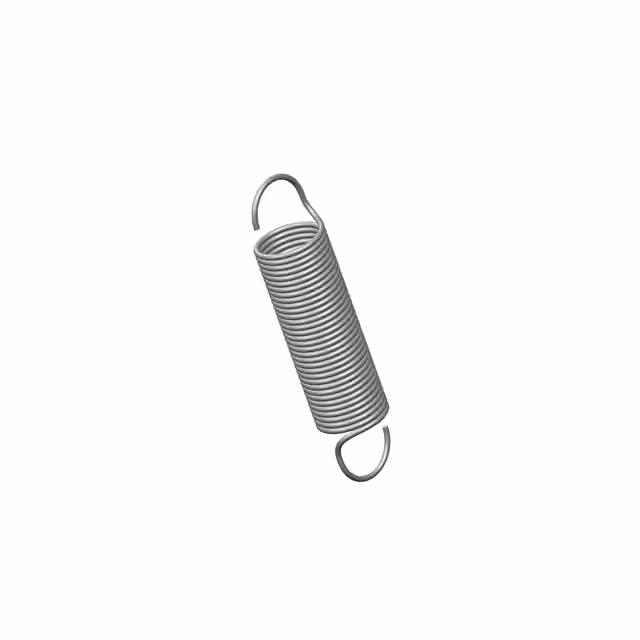

79CSEXT O= .750,L= 3.50,W=.0625 |
2,616 | 3.81 |
RFQ |
Datasheet |
Box | - | Active | 0.062 (1.57mm) | Hard Drawn | 0.750 (19.05mm) | - | 1.7 lbs/in | 10.0 lbs | - | - |
|

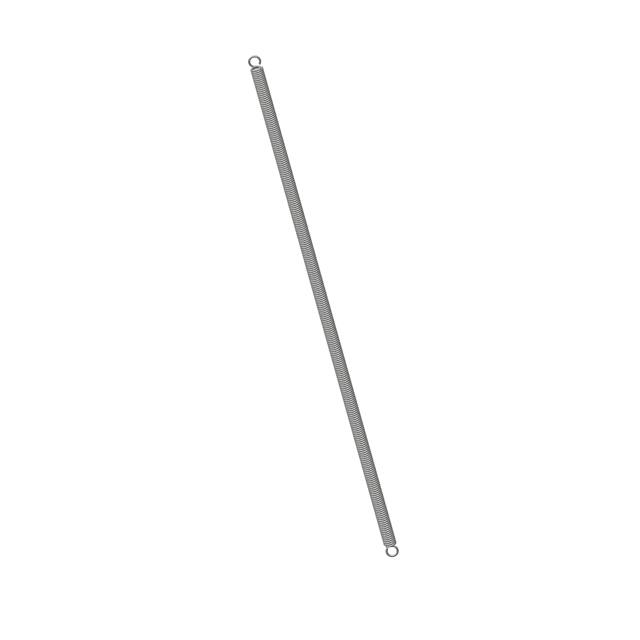

5213CSEXT O= .140,L= 5.94,W= .022 |
2,955 | 3.85 |
RFQ |
Datasheet |
Box | - | Active | 0.022 (0.56mm) | Music Wire | 0.140 (3.56mm) | - | 0.78 lbs/in | 4.1 lbs | - | - |
|

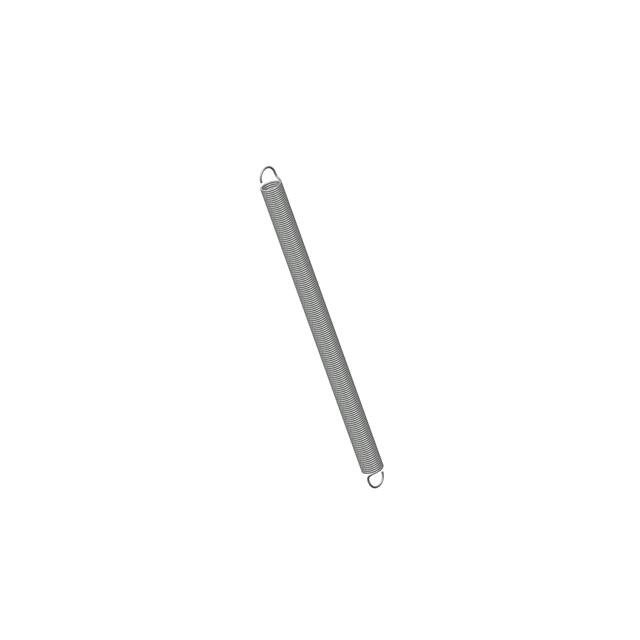

5820CSEXT O=.375, L=6.130, W= .035 |
3,578 | 3.89 |
RFQ |
Datasheet |
Box | - | Active | 0.035 (0.89mm) | Music Wire | 0.380 (9.65mm) | - | 0.34 lbs/in | 5.4 lbs | - | - |
|

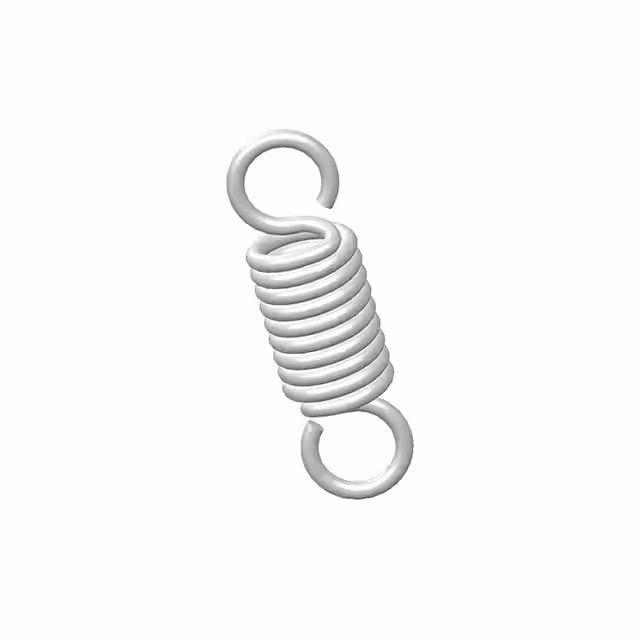

ZZ4-49CSEXT O= .125,L= .41,W= .020 |
2,325 | 4.11 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - |
|

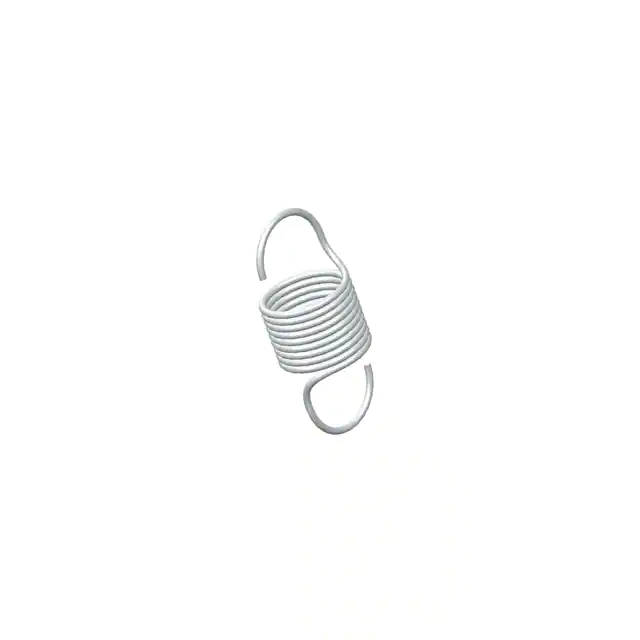

S-515CSEXT O= .188,L= .50,W=.015 |
3,778 | 4.12 |
RFQ |
Datasheet |
Box | - | Active | 0.015 (0.38mm) | Stainless Steel | 0.190 (4.83mm) | - | 0.74 lbs/in | 0.64 lbs | - | - |
