Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

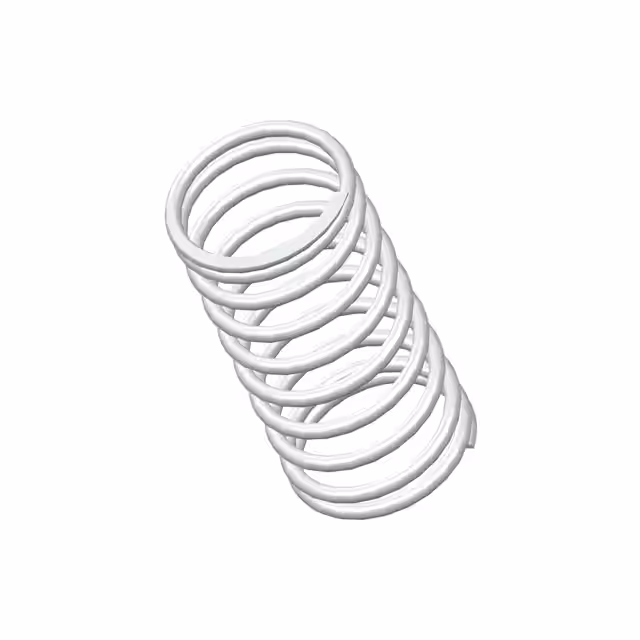

BB-71CSCOMP O= .360,L= .75,W= .030 |
655 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.360 (9.14mm) | 0.300 (7.62mm) | - | - | 0.750 (19.05mm) | - | 3.6 lbs/in | Closed & Ground |
|
72382CSCOMP O= .975,L= 1.50,W= .085 |
645 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.975 (24.77mm) | 0.805 (20.45mm) | - | - | 1.500 (38.10mm) | - | 32.0 lbs/in | Closed & Ground |
|

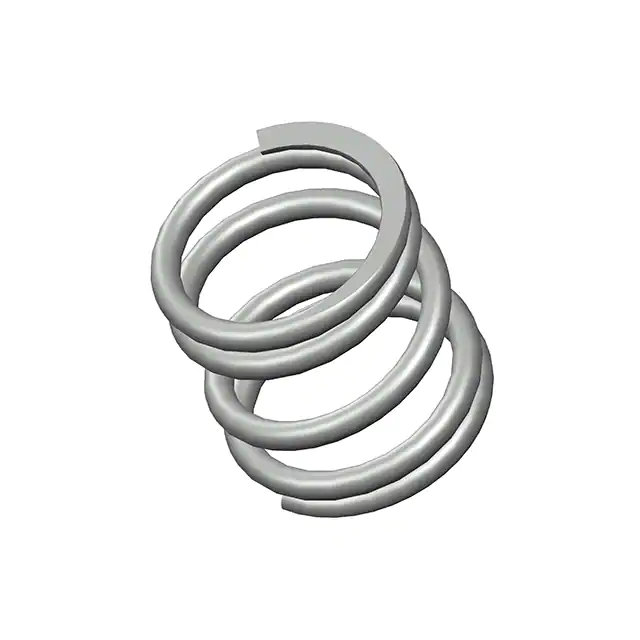

72276CSCOMP O= .850,L= .88,W= .0915 |
627 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.850 (21.59mm) | 0.666 (16.92mm) | - | - | 0.880 (22.35mm) | - | 90.0 lbs/in | Closed & Ground |
|

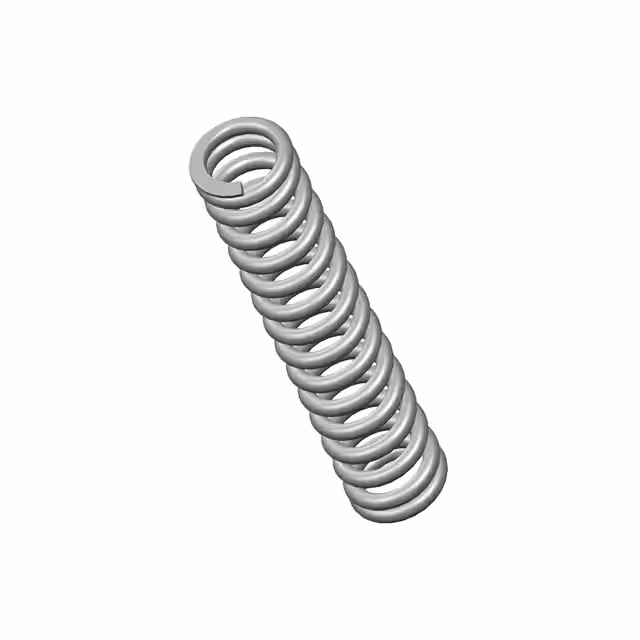

71860CSCOMP O= .600,L= 3.00,W= .098 |
589 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.600 (15.24mm) | 0.404 (10.26mm) | - | - | 3.000 (76.20mm) | - | 77.0 lbs/in | Closed & Ground |
|

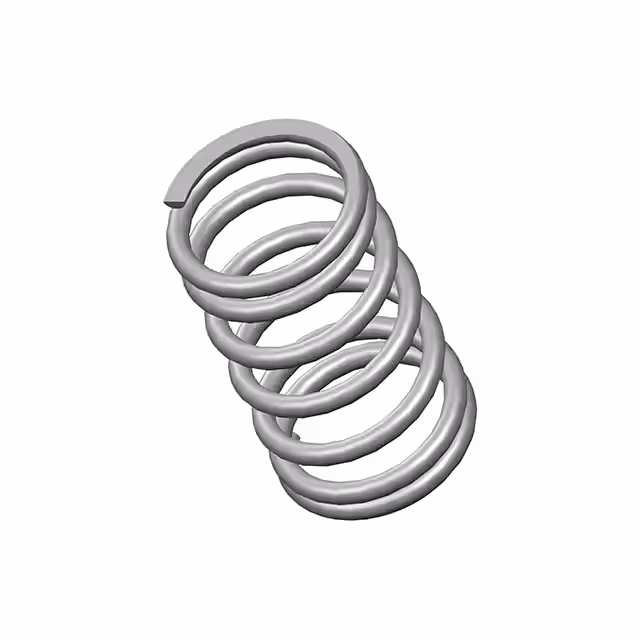

72279CSCOMP O= .850,L= 1.50,W= .0915 |
550 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.850 (21.59mm) | 0.666 (16.92mm) | - | - | 1.500 (38.10mm) | - | 48.0 lbs/in | Closed & Ground |
|

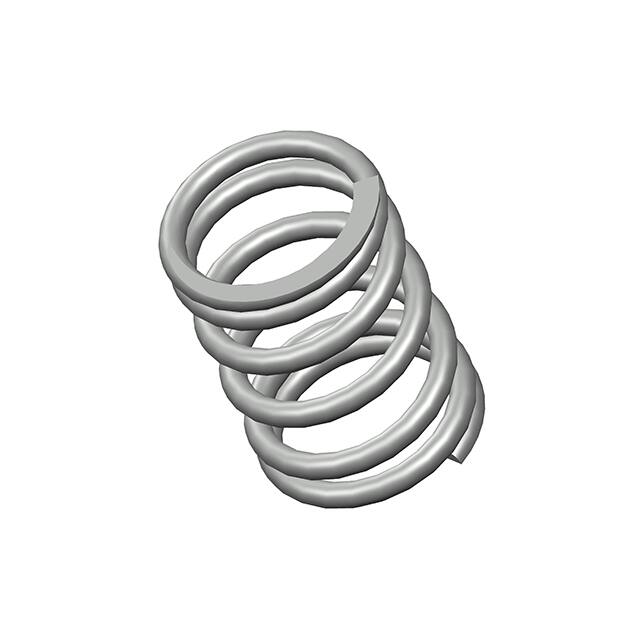

72288CSCOMP O= .850,L= 1.25,W= .098 |
544 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.850 (21.59mm) | 0.654 (16.61mm) | - | - | 1.250 (31.75mm) | - | 77.0 lbs/in | Closed & Ground |
|

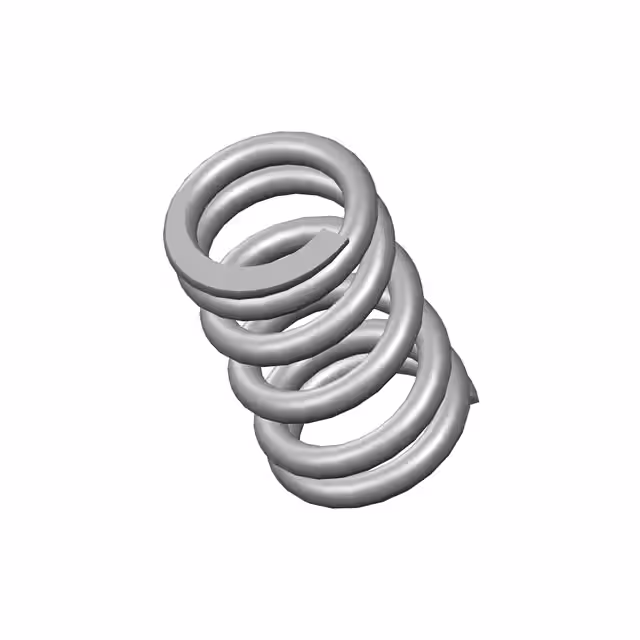

71837CSCOMP O= .600,L= 1.00,W= .0915 |
537 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 1.000 (25.40mm) | - | 202.0 lbs/in | Closed & Ground |
|

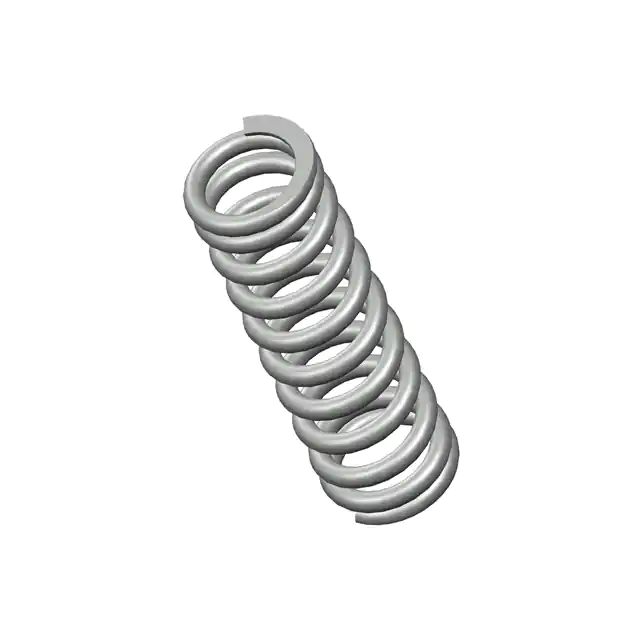

71841CSCOMP O= .600,L= 2.00,W= .092 |
448 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 2.000 (50.80mm) | - | 91.0 lbs/in | Closed & Ground |
|

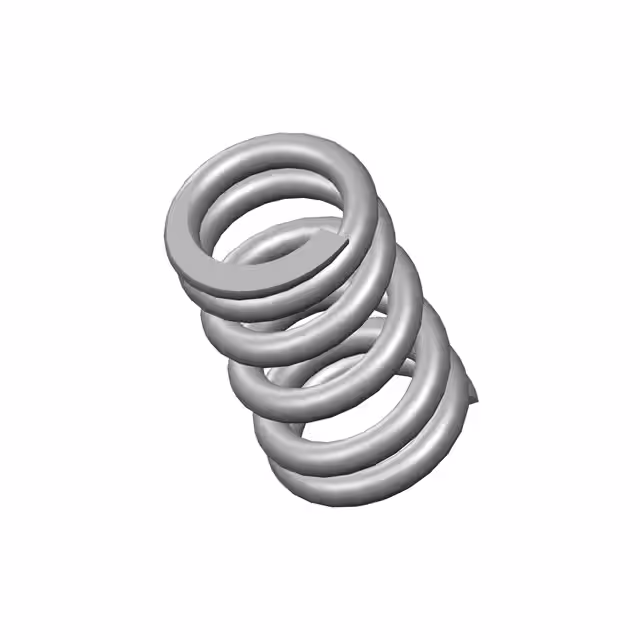

71852CSCOMP O= .600,L= 1.00,W= .098 |
438 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.600 (15.24mm) | 0.404 (10.26mm) | - | - | 1.000 (25.40mm) | - | 267.0 lbs/in | Closed & Ground |
|
71850CSCOMP O= .600,L= .75,W= .098 |
435 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.600 (15.24mm) | 0.404 (10.26mm) | - | - | 0.750 (19.05mm) | - | 388.0 lbs/in | Closed & Ground |
|

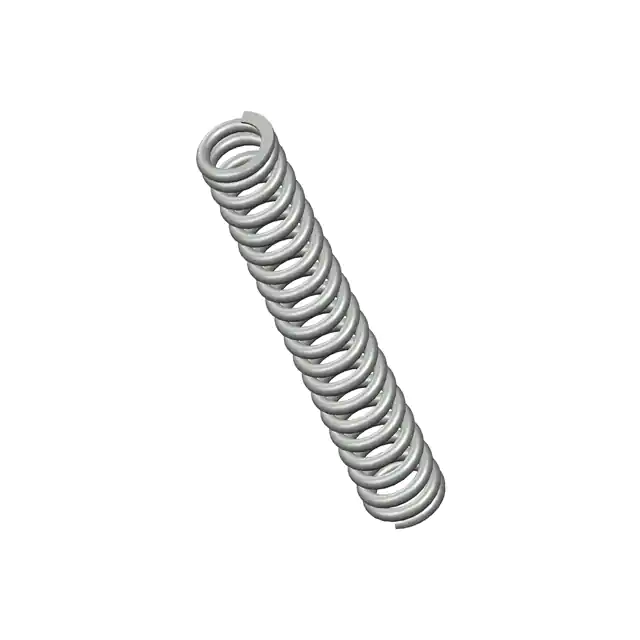

71864CSCOMP O= .600,L= 4.00,W= .098 |
431 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.600 (15.24mm) | 0.404 (10.26mm) | - | - | 4.000 (101.60mm) | - | 57.0 lbs/in | Closed & Ground |
|

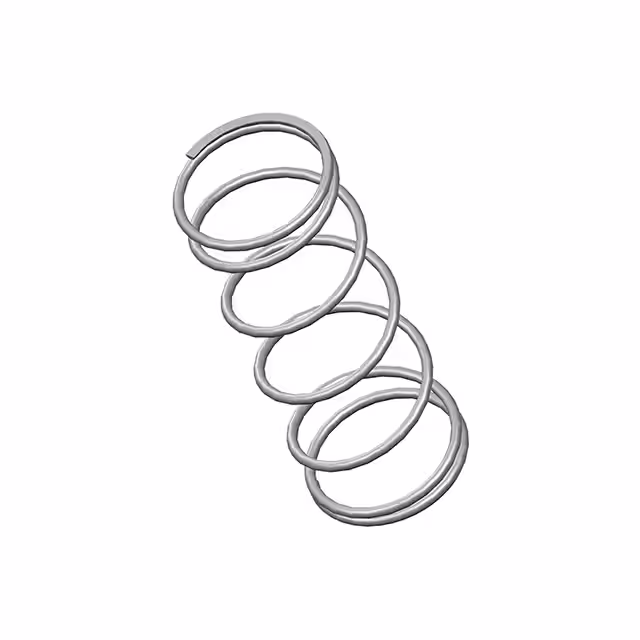

72155CSCOMP O= .850,L= 2.25,W= .055 |
421 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.850 (21.59mm) | 0.740 (18.80mm) | - | - | 2.250 (57.15mm) | - | 5.4 lbs/in | Closed & Ground |
|

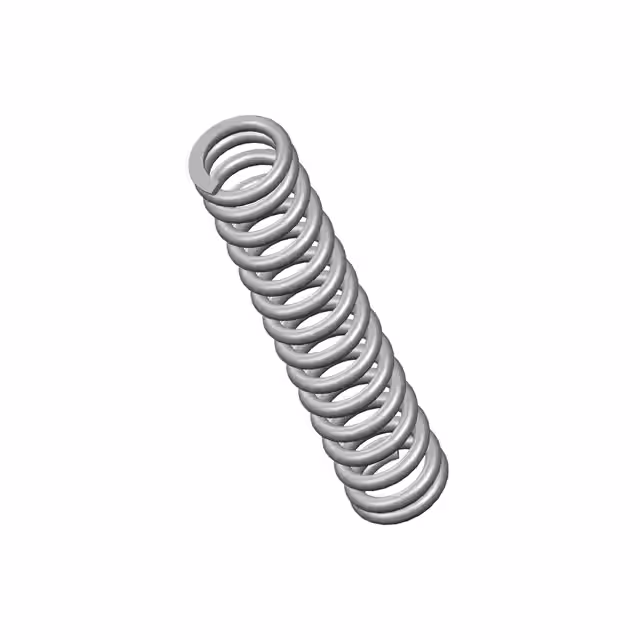

71845CSCOMP O= .600,L= 3.00,W= .092 |
382 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 3.000 (76.20mm) | - | 59.0 lbs/in | Closed & Ground |
|

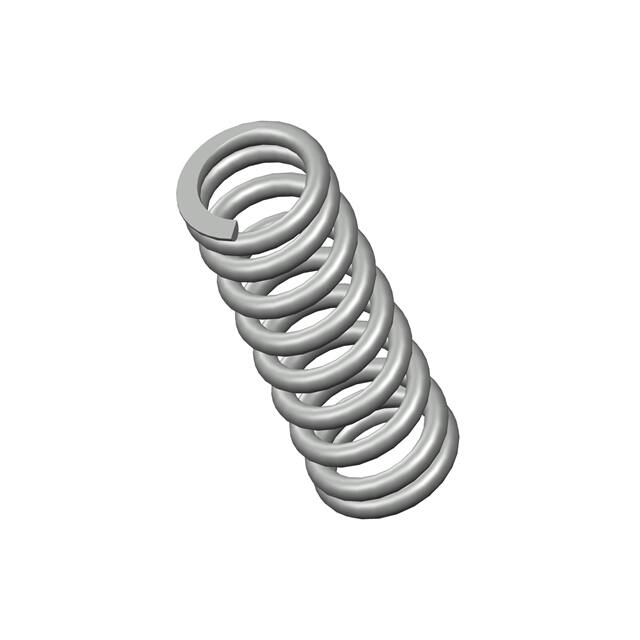

71840CSCOMP O= .600,L= 1.75,W= .092 |
283 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 1.750 (44.45mm) | - | 105.0 lbs/in | Closed & Ground |
|

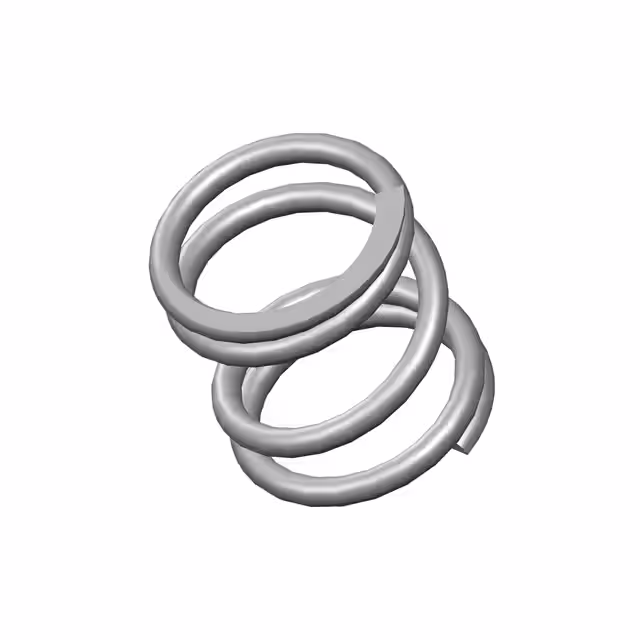

A14-4CSCOMP O= .515,L= .56,W= .057 |
240 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.057 (1.45mm) | 0.515 (13.08mm) | 0.401 (10.19mm) | - | - | 0.560 (14.22mm) | - | 74.0 lbs/in | Closed & Ground |
|

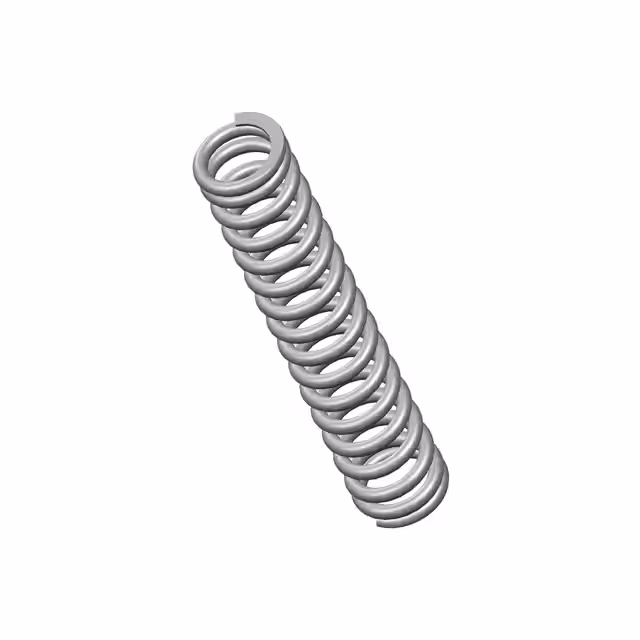

71846CSCOMP O= .600,L= 3.25,W= .092 |
240 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 3.250 (82.55mm) | - | 54.0 lbs/in | Closed & Ground |
|

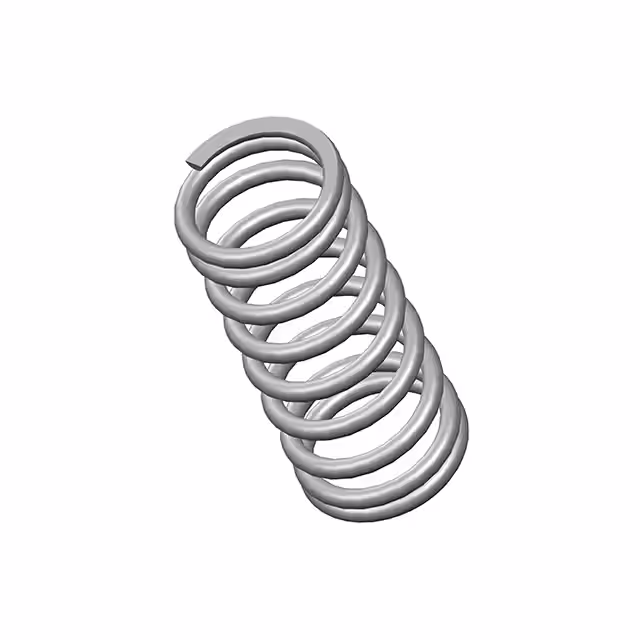

72291CSCOMP O= .850,L= 2.00,W= .098 |
240 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.850 (21.59mm) | 0.654 (16.61mm) | - | - | 2.000 (50.80mm) | - | 45.0 lbs/in | Closed & Ground |
|

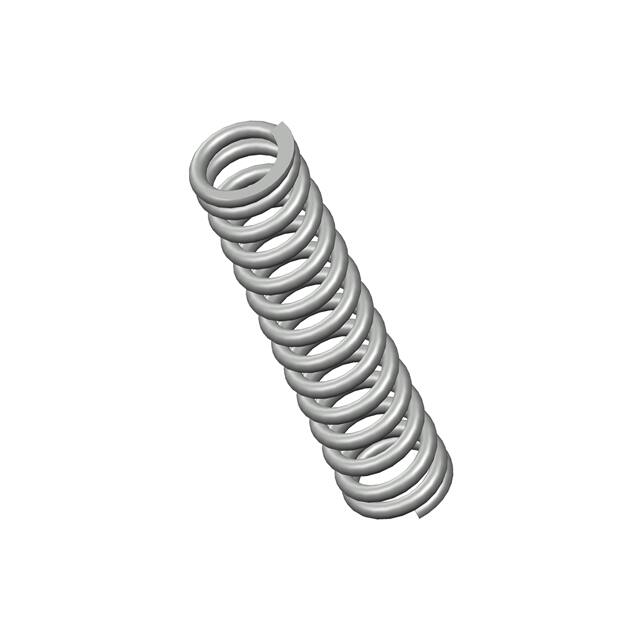

71844CSCOMP O= .600,L= 2.75,W= .0915 |
187 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 2.750 (69.85mm) | - | 64.0 lbs/in | Closed & Ground |
|

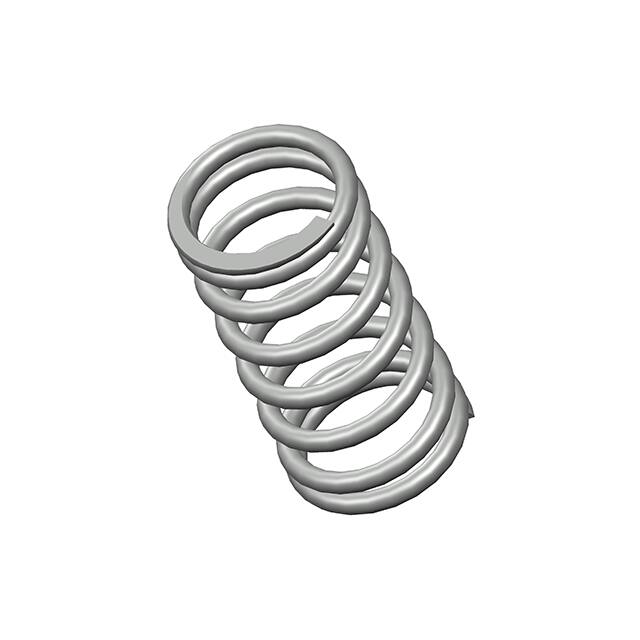

72290CSCOMP O= .850,L= 1.75,W= .098 |
142 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.850 (21.59mm) | 0.654 (16.61mm) | - | - | 1.750 (44.45mm) | - | 53.0 lbs/in | Closed & Ground |
|

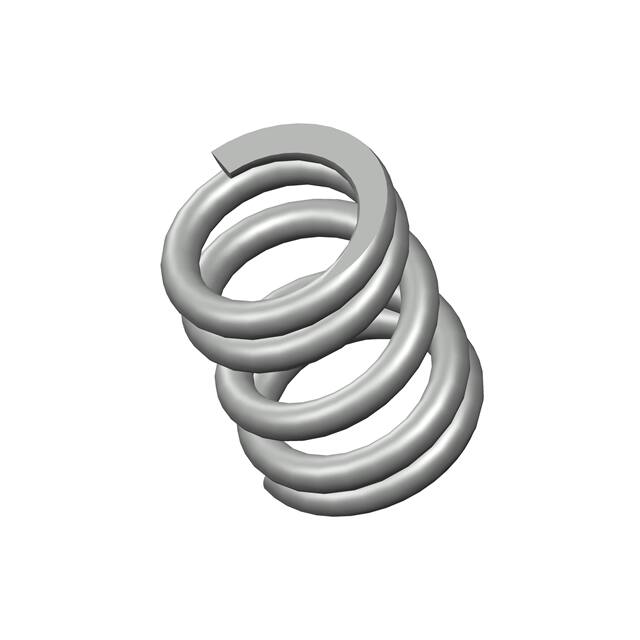

71835CSCOMP O= .600,L= .75,W= .092 |
104 | 11.18 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 0.750 (19.05mm) | - | 292.0 lbs/in | Closed & Ground |
