Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

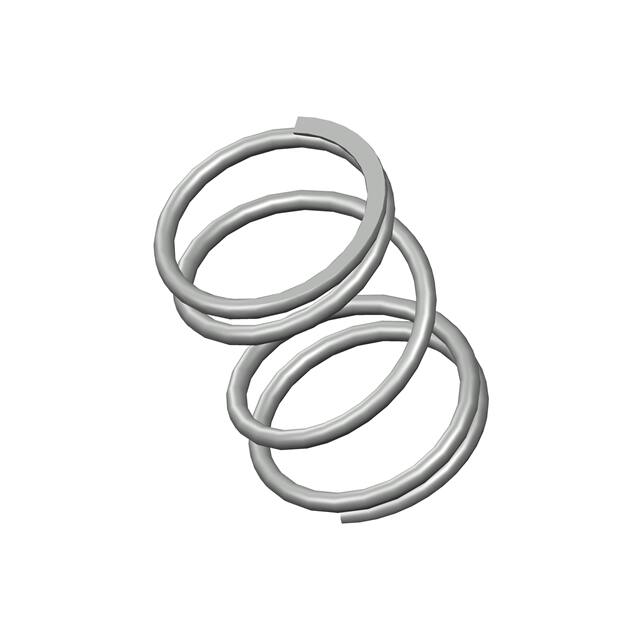

10054CSCOMP O= .546,L= .75,W= .045 |
960 | 10.78 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.045 (1.14mm) | 0.546 (13.87mm) | 0.456 (11.58mm) | - | - | 0.750 (19.05mm) | - | 19.0 lbs/in | Closed & Ground |
|

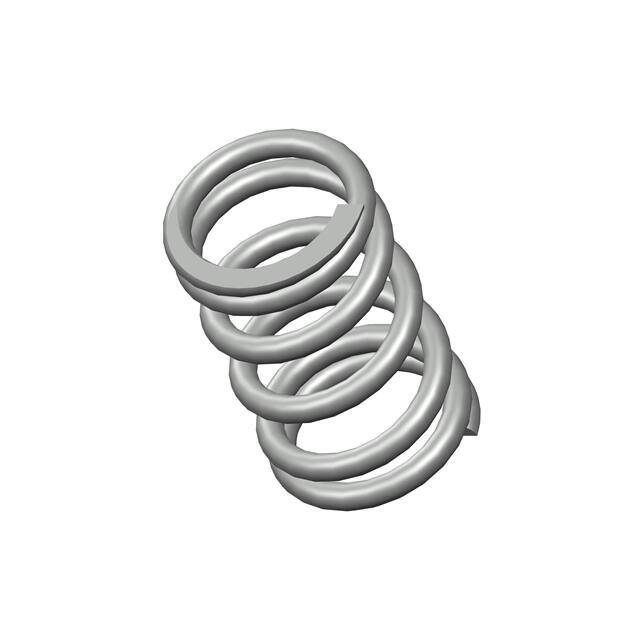

10204CSCOMP O=1.468,L= 2.50,W= .192 |
628 | 10.78 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.192 (4.88mm) | 1.468 (37.29mm) | 1.084 (27.53mm) | - | - | 2.500 (63.50mm) | - | 235.0 lbs/in | Closed & Ground |
|
S-176CSCOMP O=1.890,L= 2.00,W= .105 |
116 | 10.79 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.105 (2.67mm) | 1.890 (48.01mm) | 1.680 (42.67mm) | - | - | 2.000 (50.80mm) | - | 8.9 lbs/in | Closed & Ground |
|

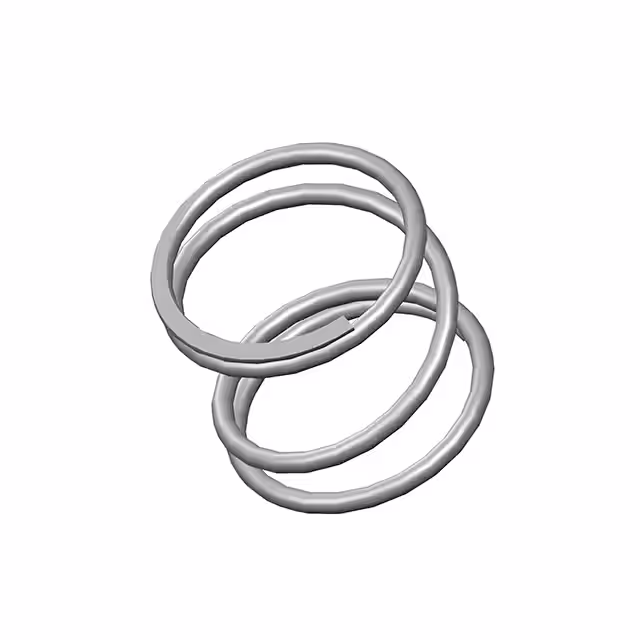

72352CSCOMP O= .975,L= .88,W= .074 |
918 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.074 (1.88mm) | 0.975 (24.77mm) | 0.827 (21.01mm) | - | - | 0.880 (22.35mm) | - | 33.0 lbs/in | Closed & Ground |
|

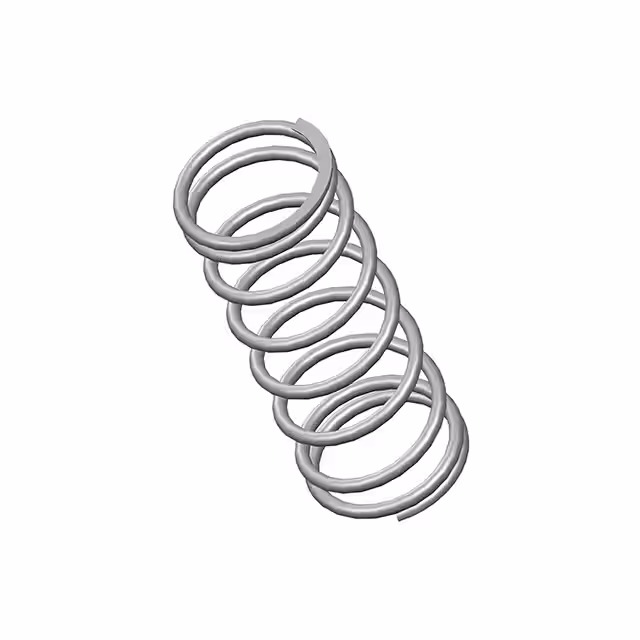

72203CSCOMP O= .850,L= 2.25,W= .074 |
806 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.074 (1.88mm) | 0.850 (21.59mm) | 0.702 (17.83mm) | - | - | 2.250 (57.15mm) | - | 14.0 lbs/in | Closed & Ground |
|

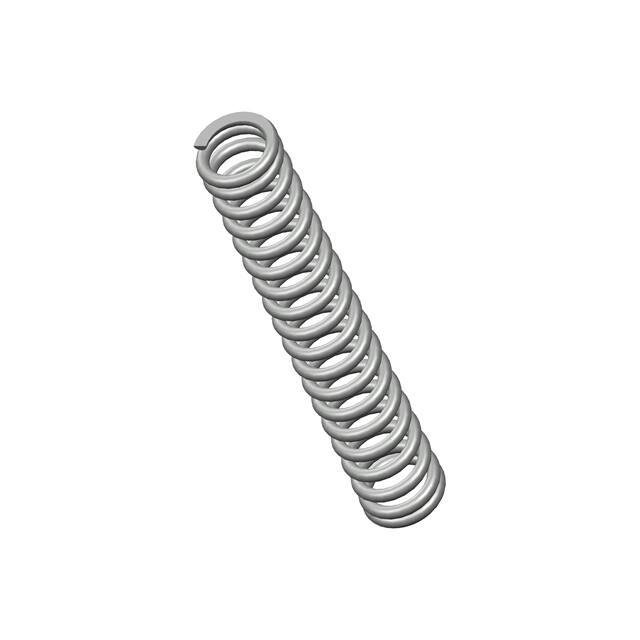

71848CSCOMP O= .600,L= 3.75,W= .0915 |
797 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 3.750 (95.25mm) | - | 46.0 lbs/in | Closed & Ground |
|

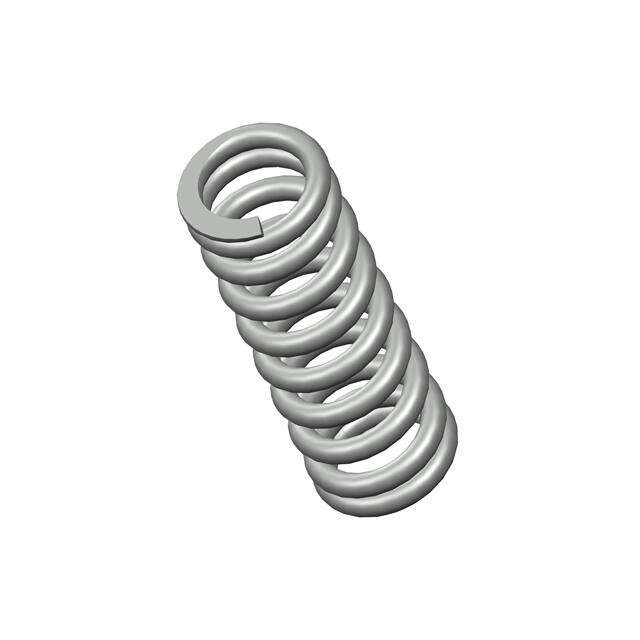

71855CSCOMP O= .600,L= 1.75,W= .098 |
725 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.098 (2.49mm) | 0.600 (15.24mm) | 0.404 (10.26mm) | - | - | 1.750 (44.45mm) | - | 138.0 lbs/in | Closed & Ground |
|

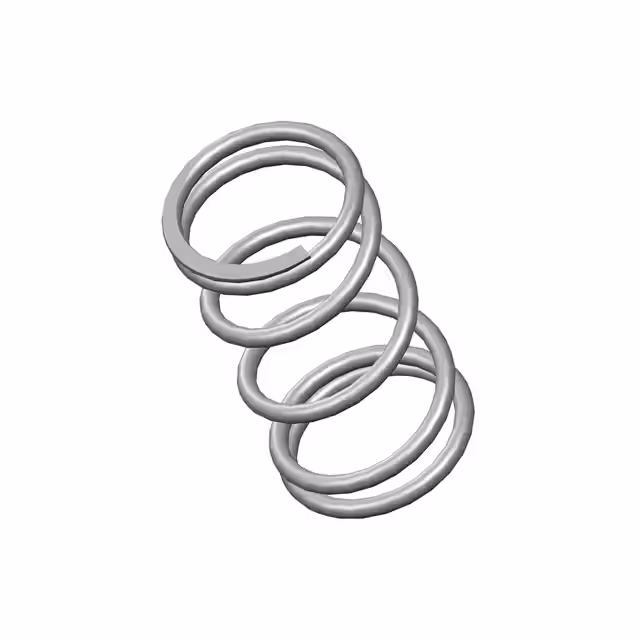

A14-61CSCOMP O= .500,L= .94,W= .047 |
505 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.500 (13.97mm) | 0.406 (10.31mm) | - | - | 0.940 (23.88mm) | - | 21.0 lbs/in | Closed & Ground |
|

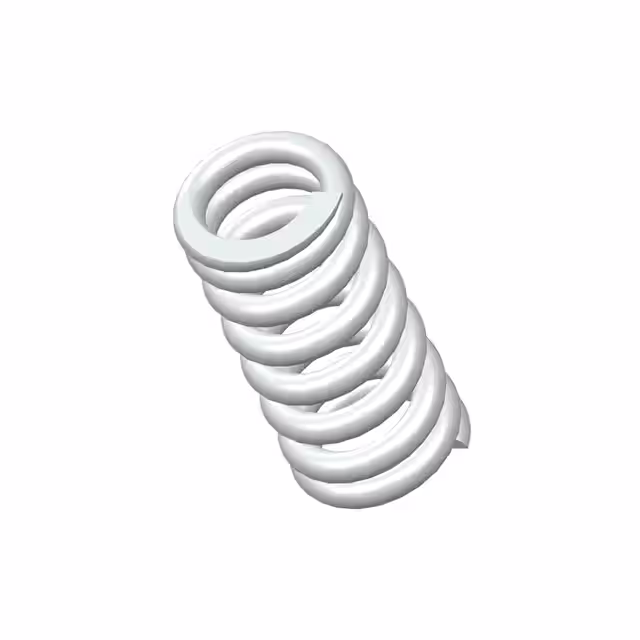

JJ-32CSCOMP O= .296,L= .66,W= .052 |
416 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.052 (1.32mm) | 0.296 (7.52mm) | 0.192 (4.88mm) | - | - | 0.660 (16.76mm) | - | 104.0 lbs/in | Closed & Ground |
|

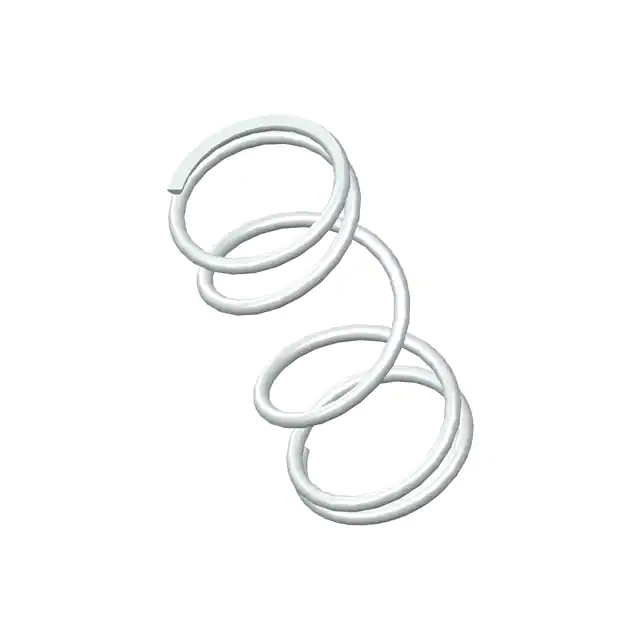

BB-52CSCOMP O= .360,L= .78,W= .030 |
371 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.030 (0.76mm) | 0.360 (9.14mm) | 0.300 (7.62mm) | - | - | 0.780 (19.81mm) | - | 9.7 lbs/in | Closed & Ground |
|

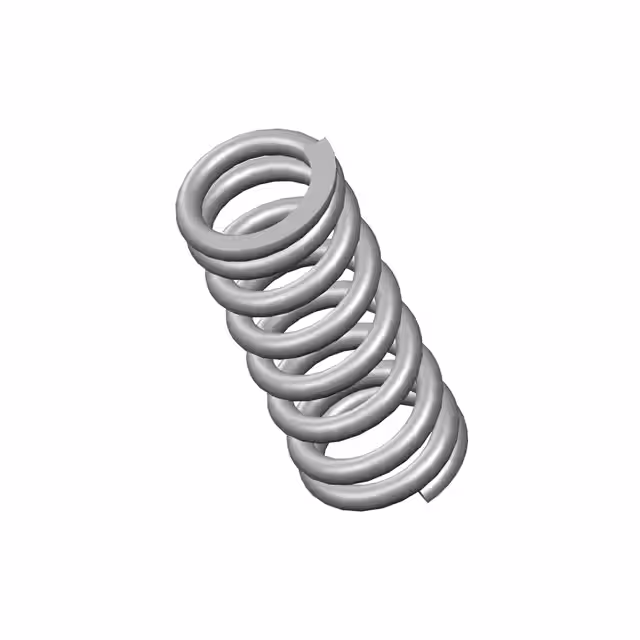

71839CSCOMP O= .600,L= 1.50,W= .092 |
147 | 10.81 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.092 (2.34mm) | 0.600 (15.24mm) | 0.416 (10.57mm) | - | - | 1.500 (38.10mm) | - | 125.0 lbs/in | Closed & Ground |
|

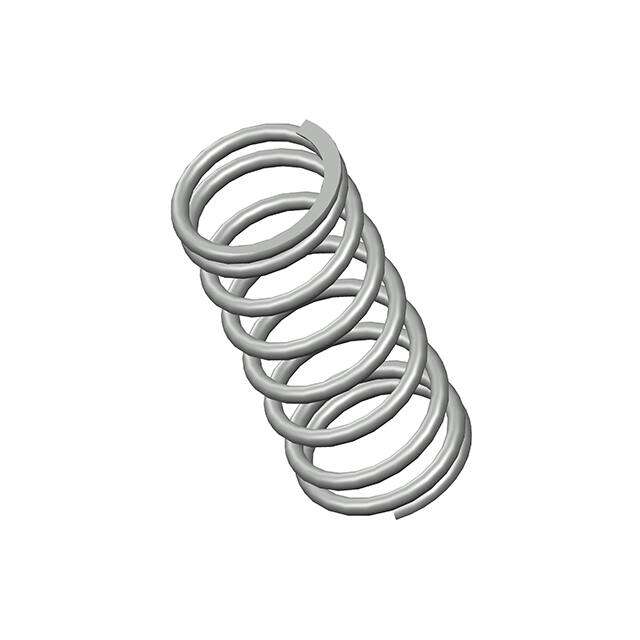

72253CSCOMP O= .850,L= 2.00,W= .085 |
3,985 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.850 (21.59mm) | 0.680 (17.27mm) | - | - | 2.000 (50.80mm) | - | 26.0 lbs/in | Closed & Ground |
|

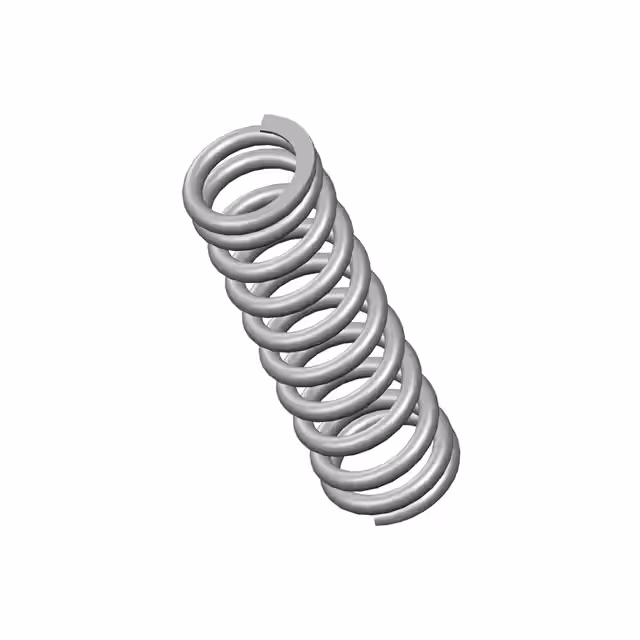

71826CSCOMP O= .600,L= 2.00,W= .085 |
2,412 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.600 (15.24mm) | 0.430 (10.92mm) | - | - | 2.000 (50.80mm) | - | 65.0 lbs/in | Closed & Ground |
|

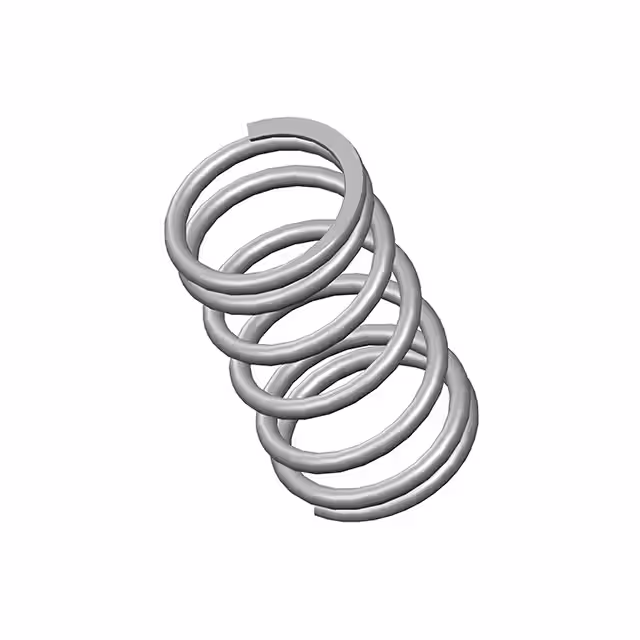

72251CSCOMP O= .850,L= 1.50,W= .085 |
2,107 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.850 (21.59mm) | 0.680 (17.27mm) | - | - | 1.500 (38.10mm) | - | 37.0 lbs/in | Closed & Ground |
|

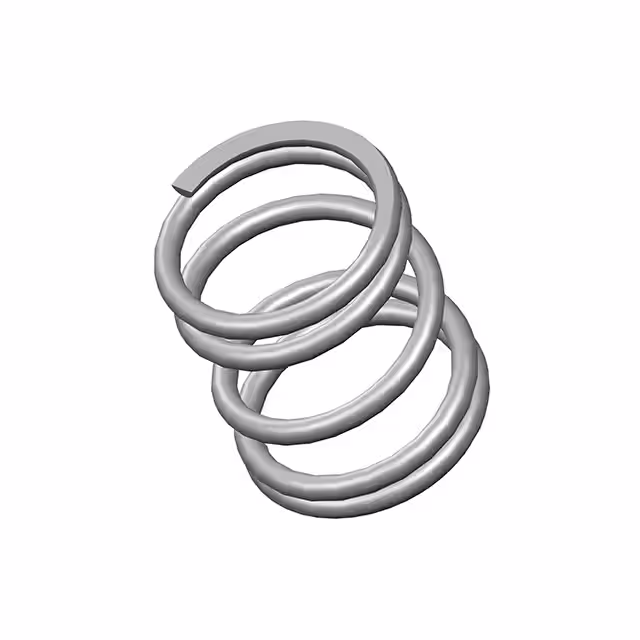

72248CSCOMP O= .850,L= 1.00,W= .085 |
3,297 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.850 (21.59mm) | 0.680 (17.27mm) | - | - | 1.000 (25.40mm) | - | 59.0 lbs/in | Closed & Ground |
|

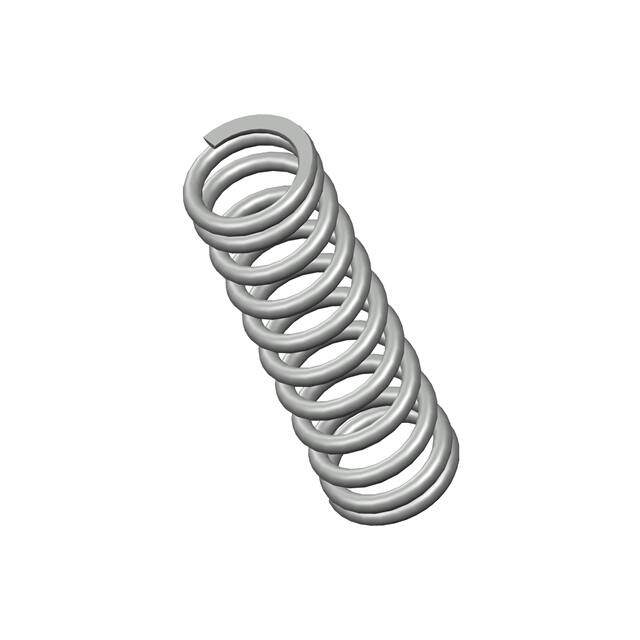

71810CSCOMP O= .600,L= 2.00,W= .081 |
2,164 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.081 (2.06mm) | 0.600 (15.24mm) | 0.438 (11.13mm) | - | - | 2.000 (50.80mm) | - | 51.0 lbs/in | Closed & Ground |
|

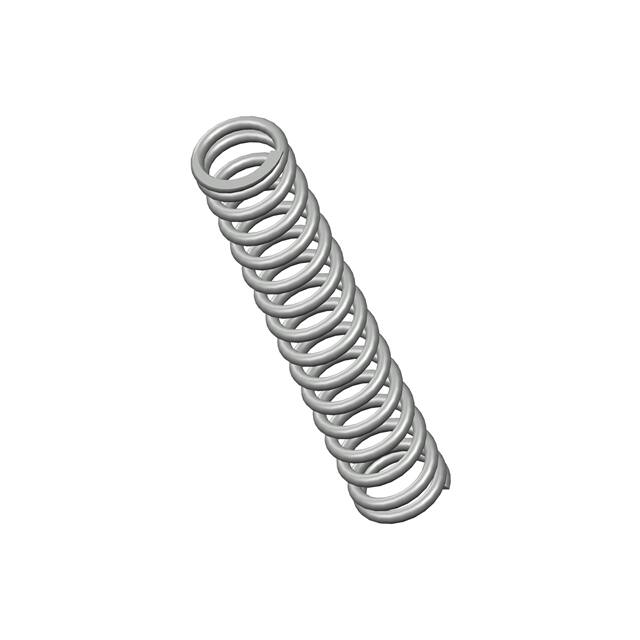

71815CSCOMP O= .600,L= 3.25,W= .080 |
2,930 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.081 (2.06mm) | 0.600 (15.24mm) | 0.438 (11.13mm) | - | - | 3.250 (82.55mm) | - | 32.0 lbs/in | Closed & Ground |
|

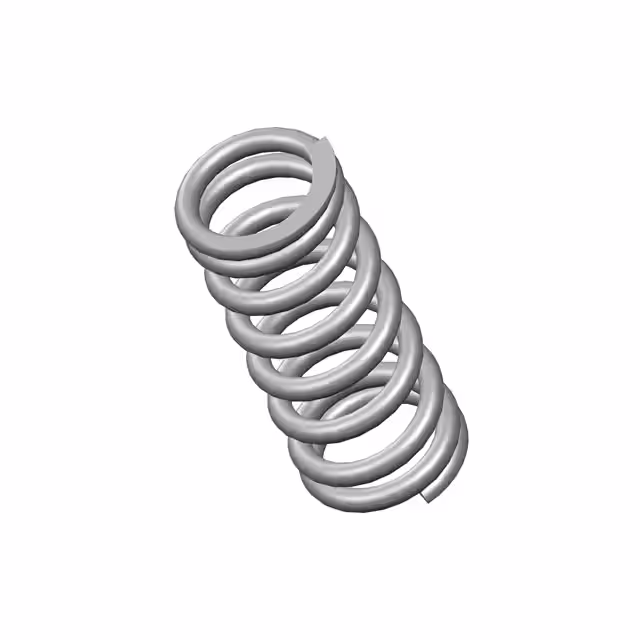

71824CSCOMP O= .600,L= 1.50,W= .085 |
2,160 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.600 (15.24mm) | 0.430 (10.92mm) | - | - | 1.500 (38.10mm) | - | 89.0 lbs/in | Closed & Ground |
|

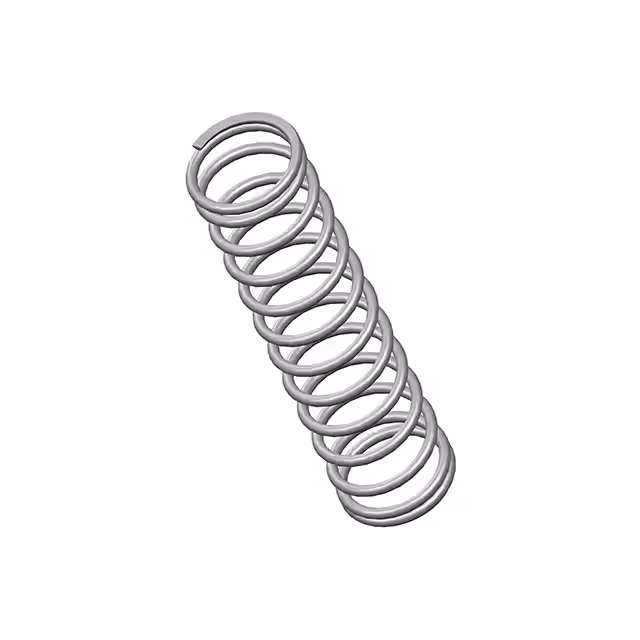

72232CSCOMP O= .850,L= 3.50,W= .080 |
2,007 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.080 (2.03mm) | 0.850 (21.59mm) | 0.690 (17.53mm) | - | - | 3.500 (88.90mm) | - | 12.0 lbs/in | Closed & Ground |
|

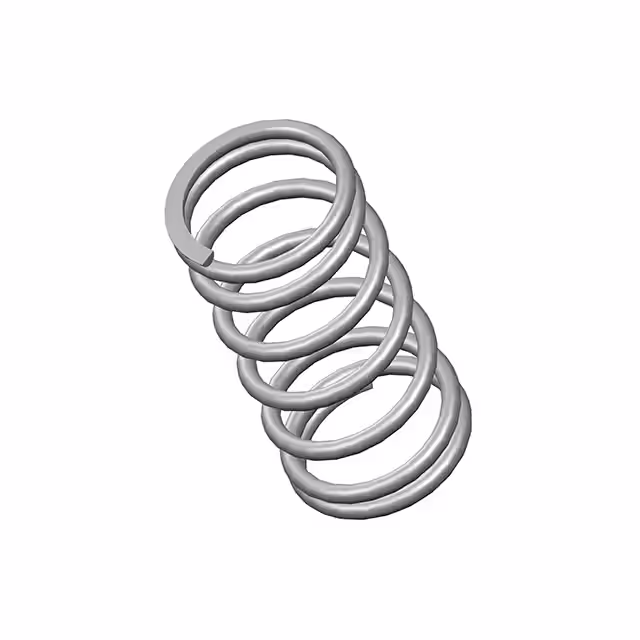

72252CSCOMP O= .850,L= 1.75,W= .085 |
3,557 | 10.83 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.085 (2.16mm) | 0.850 (21.59mm) | 0.680 (17.27mm) | - | - | 1.750 (44.45mm) | - | 31.0 lbs/in | Closed & Ground |
