Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

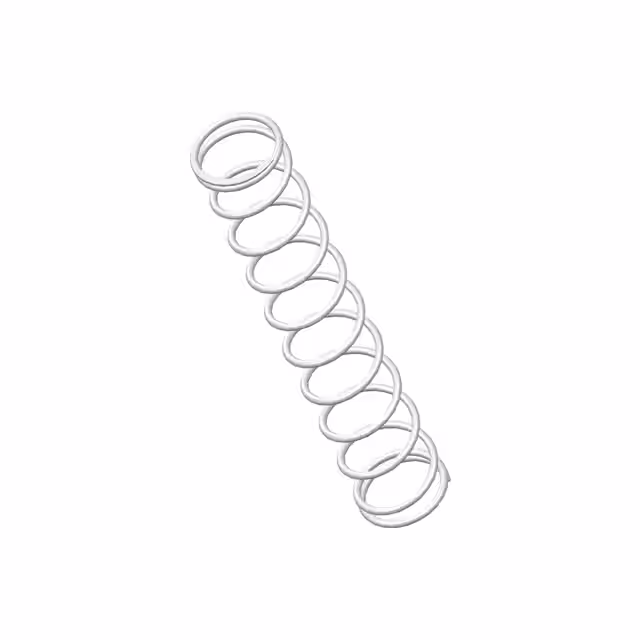

70065SCSCOMP O= .120,L= .69,W= .010 |
3,072 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.690 (17.53mm) | - | 0.95 lbs/in | Closed & Ground |
|

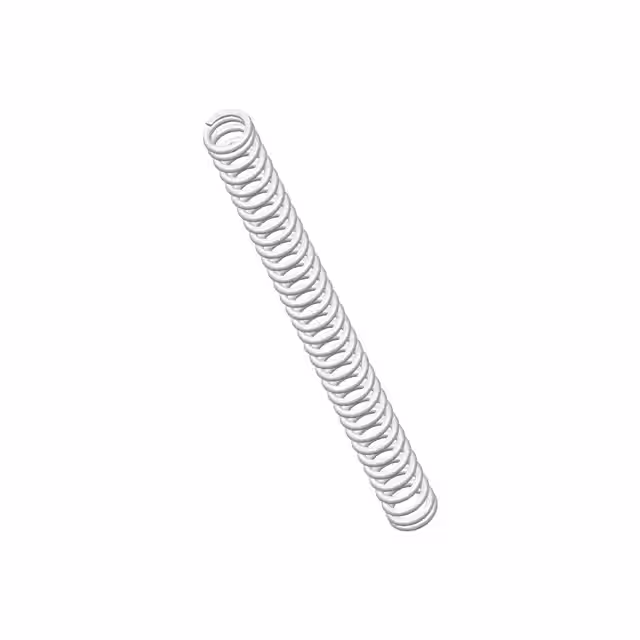

70151SCSCOMP O= .120,L= 1.38,W= .018 |
2,885 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 1.380 (35.05mm) | - | 4.0 lbs/in | Closed & Ground |
|

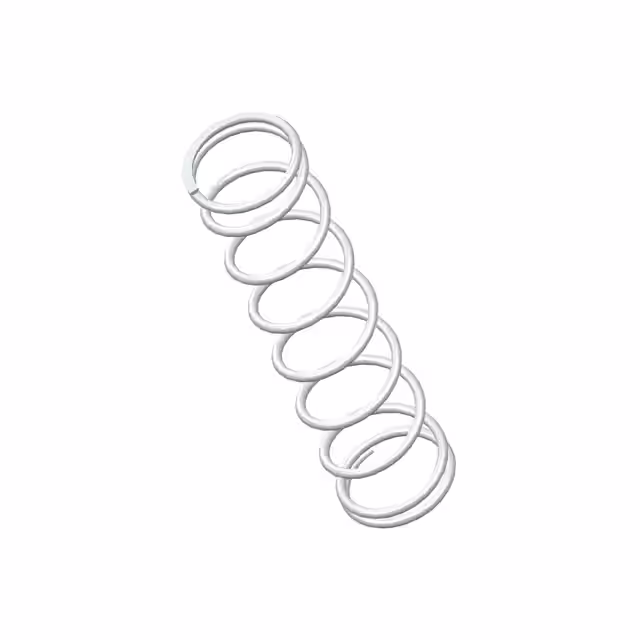

70062SCSCOMP O= .120,L= .50,W= .010 |
3,208 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.500 (12.70mm) | - | 1.3 lbs/in | Closed & Ground |
|

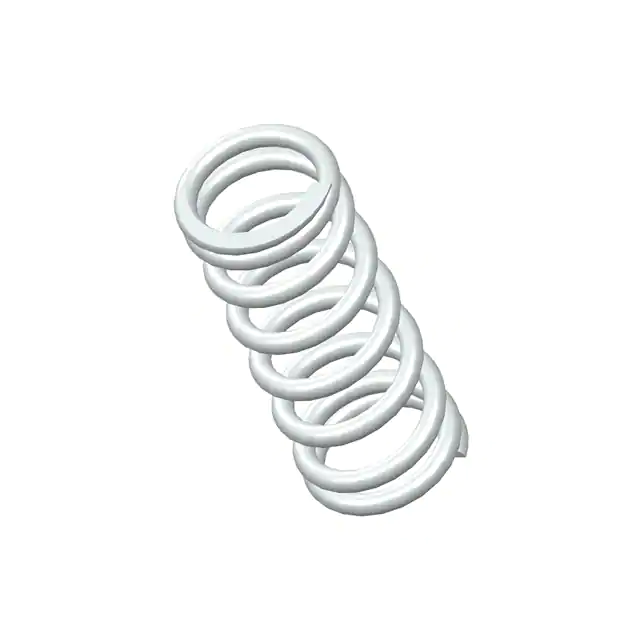

70111SCSCOMP O= .120,L= .31,W= .016 |
3,389 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.310 (7.87mm) | - | 12.0 lbs/in | Closed & Ground |
|
70122SCSCOMP O= .120,L= .88,W= .016 |
3,317 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.880 (22.35mm) | - | 4.0 lbs/in | Closed & Ground |
|

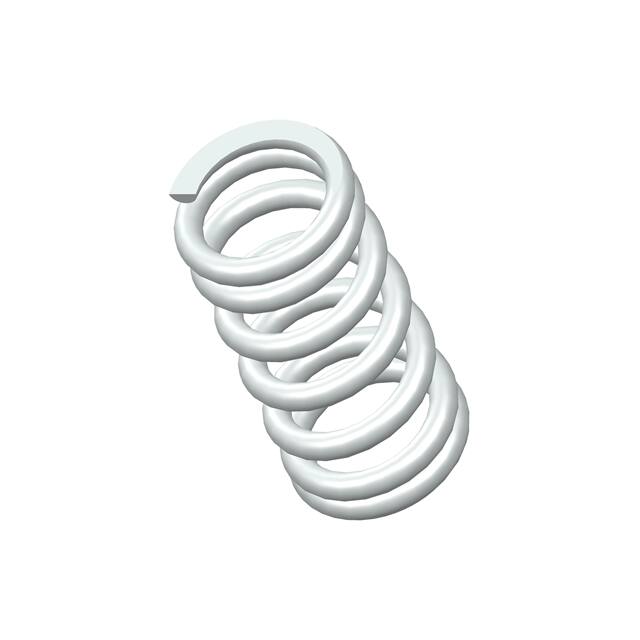

70132SCSCOMP O= .120,L= .25,W= .018 |
2,420 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.250 (6.35mm) | - | 25.0 lbs/in | Closed & Ground |
|

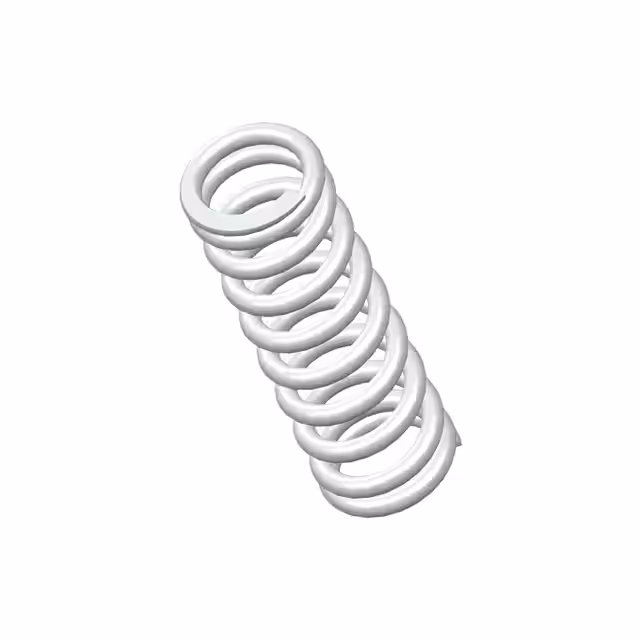

70134SCSCOMP O= .120,L= .38,W= .018 |
2,147 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.380 (9.65mm) | - | 16.0 lbs/in | Closed & Ground |
|

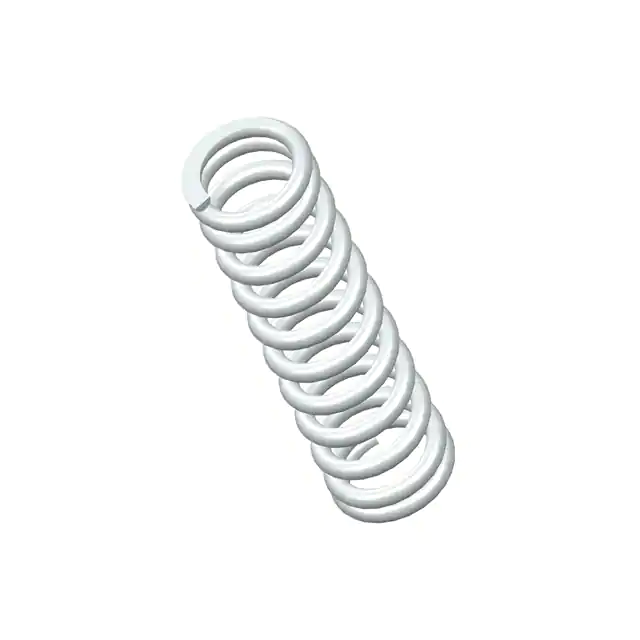

70135SCSCOMP O= .120,L= .44,W= .018 |
3,478 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.440 (11.18mm) | - | 13.0 lbs/in | Closed & Ground |
|

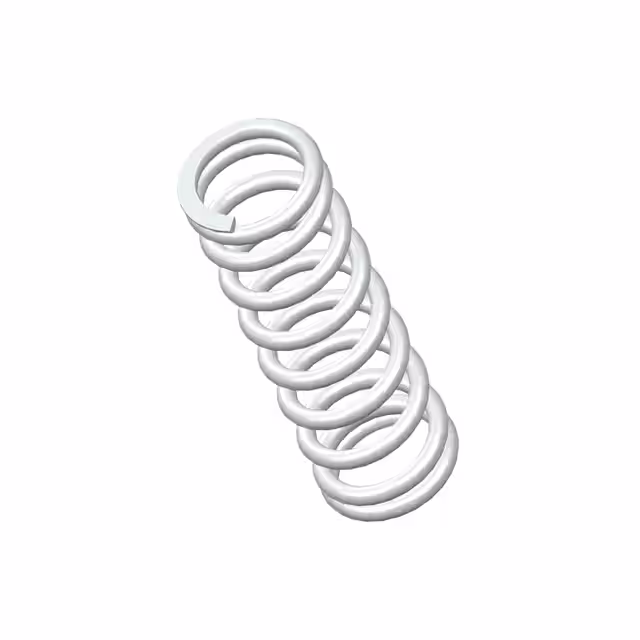

70112SCSCOMP O= .120,L= .38,W= .016 |
2,946 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.380 (9.65mm) | - | 9.7 lbs/in | Closed & Ground |
|

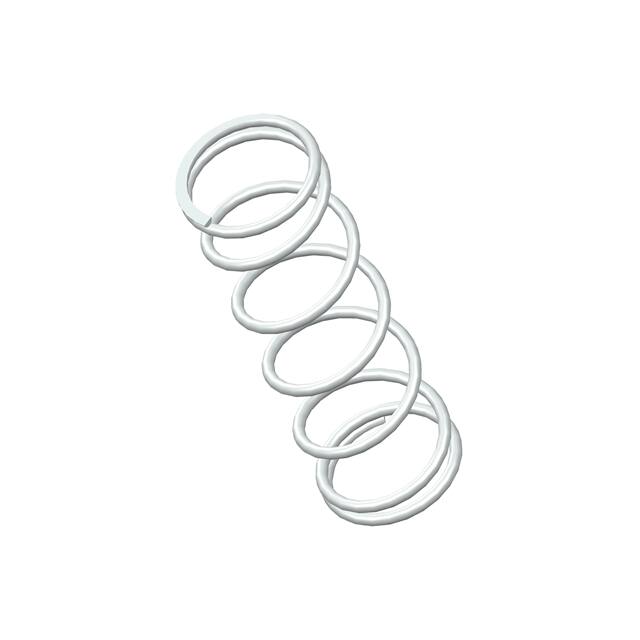

70060SCSCOMP O= .120,L= .38,W= .010 |
2,298 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.380 (9.65mm) | - | 1.7 lbs/in | Closed & Ground |
|

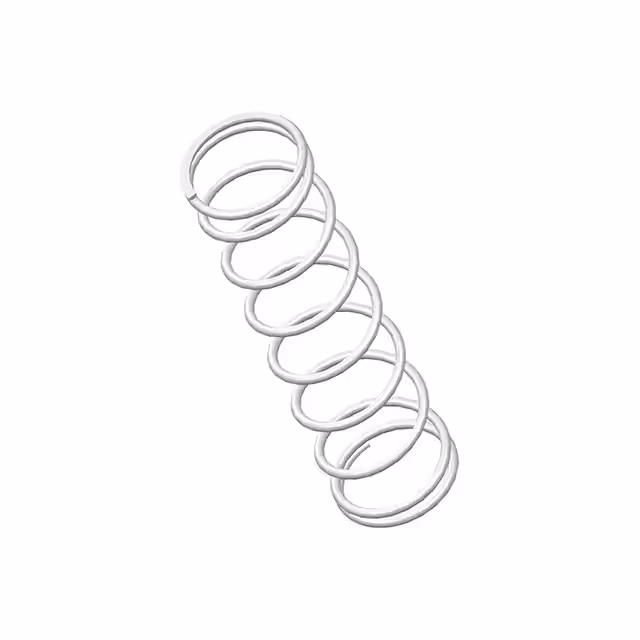

71936SCSCOMP O= .720,L= 2.75,W= .055 |
860 | 9.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.055 (1.40mm) | 0.720 (18.29mm) | 0.610 (15.49mm) | - | - | 2.750 (69.85mm) | - | 5.2 lbs/in | Closed & Ground |
|
10841CSCOMP O=1.750,L= 2.38,W= .145 |
187 | 9.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.145 (3.68mm) | 1.750 (44.45mm) | 1.460 (37.08mm) | - | - | 2.380 (60.45mm) | - | 35.0 lbs/in | Closed & Ground |
|

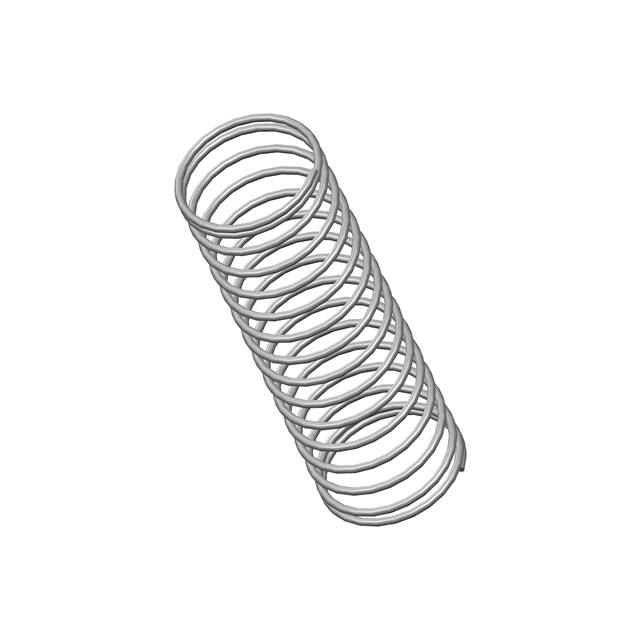

O-96CSCOMP O= .484,L= 1.53,W= .026 |
2,652 | 9.22 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.026 (0.66mm) | 0.484 (12.29mm) | 0.432 (10.97mm) | - | - | 1.530 (38.86mm) | - | 0.49 lbs/in | Closed |
|

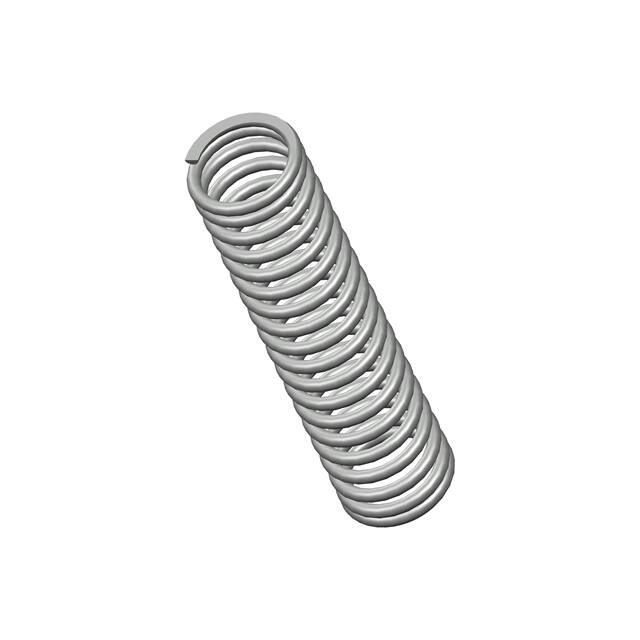

H-45CSCOMP O= .406,L= 1.69,W= .047 |
993 | 9.22 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.047 (1.19mm) | 0.406 (10.31mm) | 0.312 (7.92mm) | - | - | 1.690 (42.93mm) | - | 8.9 lbs/in | Closed & Ground |
|

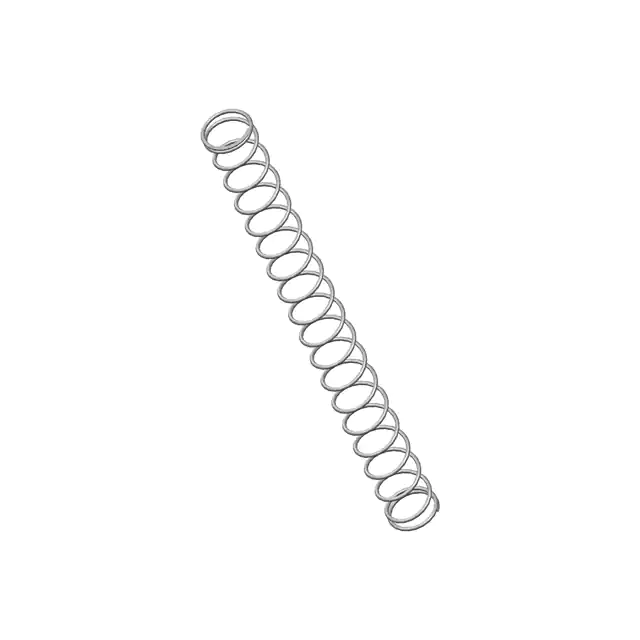

3054CSCOMP O= .796,L= 9.00,W= .062 |
218 | 9.22 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.062 (1.57mm) | 0.796 (20.22mm) | 0.672 (17.07mm) | - | - | 9.000 (228.60mm) | - | 3.0 lbs/in | Closed |
|

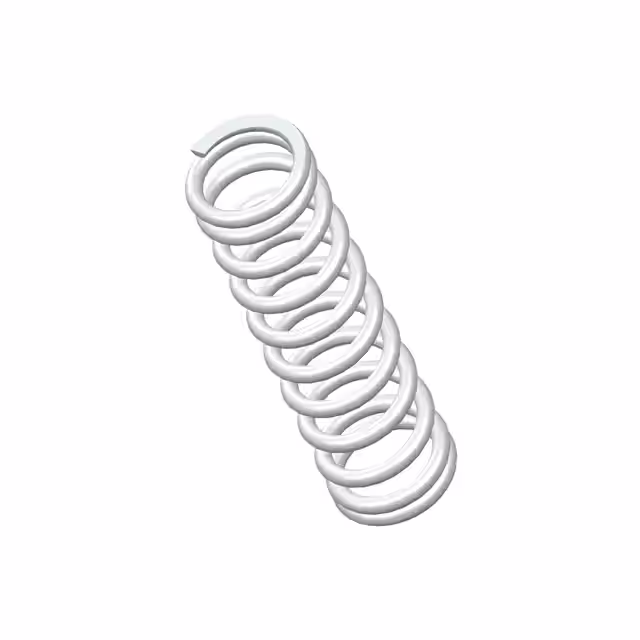

70113SCSCOMP O= .120,L= .44,W= .016 |
2,367 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.440 (11.18mm) | - | 8.2 lbs/in | Closed & Ground |
|
70127SCSCOMP O= .120,L= 1.25,W= .016 |
3,877 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 1.250 (31.75mm) | - | 2.8 lbs/in | Closed & Ground |
|

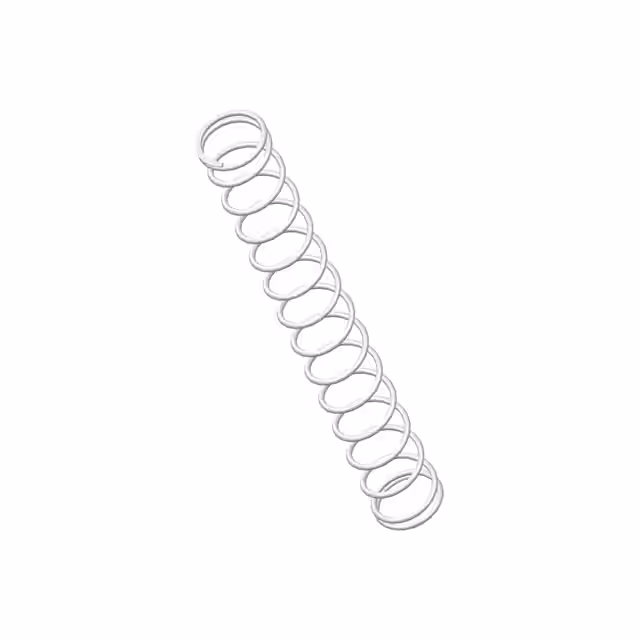

70069SCSCOMP O= .120,L= .94,W= .010 |
2,286 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.940 (23.88mm) | - | 0.7 lbs/in | Closed & Ground |
|

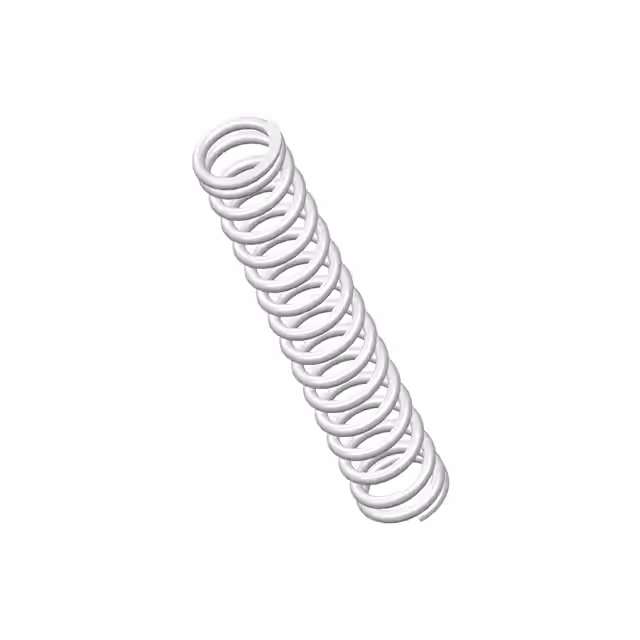

70117SCSCOMP O= .120,L= .69,W= .016 |
3,799 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.690 (17.53mm) | - | 5.1 lbs/in | Closed & Ground |
|

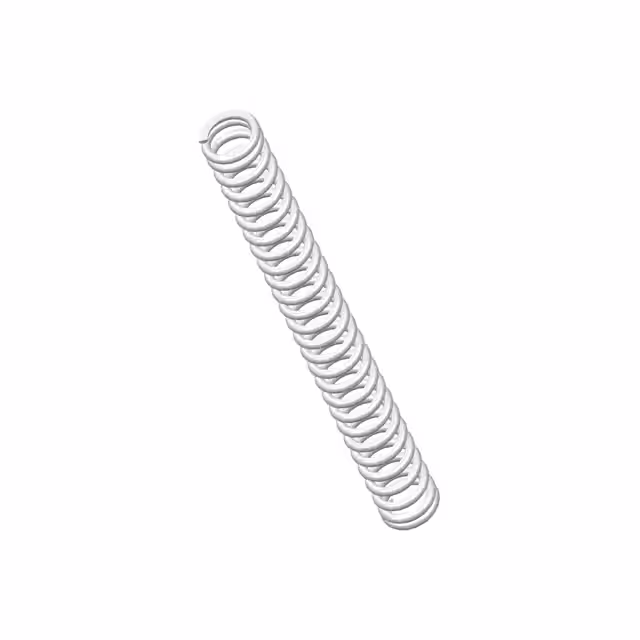

70148SCSCOMP O= .120,L= 1.13,W= .018 |
2,135 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 1.130 (28.70mm) | - | 4.9 lbs/in | Closed & Ground |
