Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

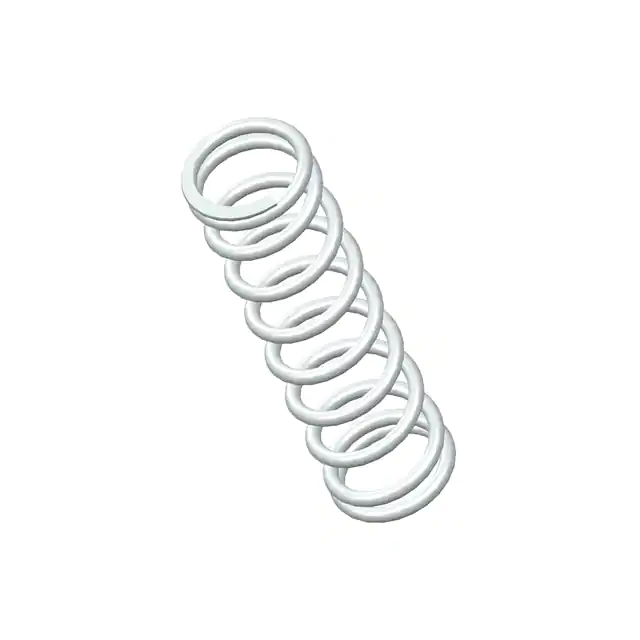

70093SCSCOMP O= .120,L= .44,W= .014 |
2,027 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.440 (11.18mm) | - | 5.2 lbs/in | Closed & Ground |
|

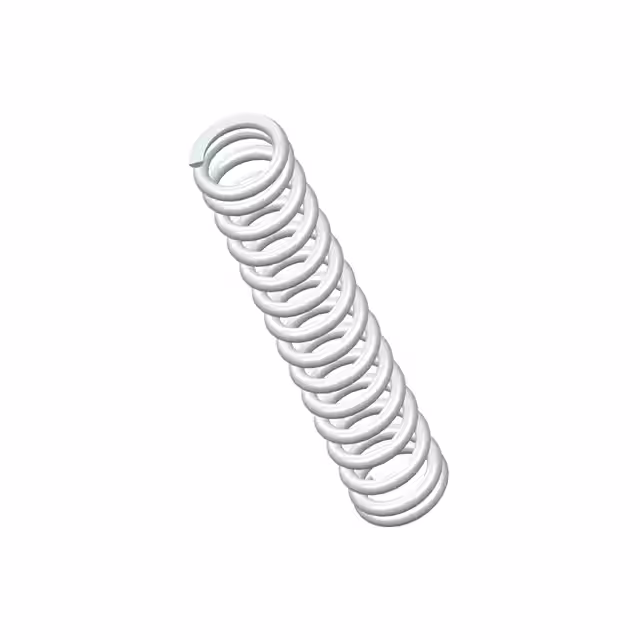

70138SCSCOMP O= .120,L= .63,W= .018 |
3,994 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.630 (16.00mm) | - | 9.4 lbs/in | Closed & Ground |
|

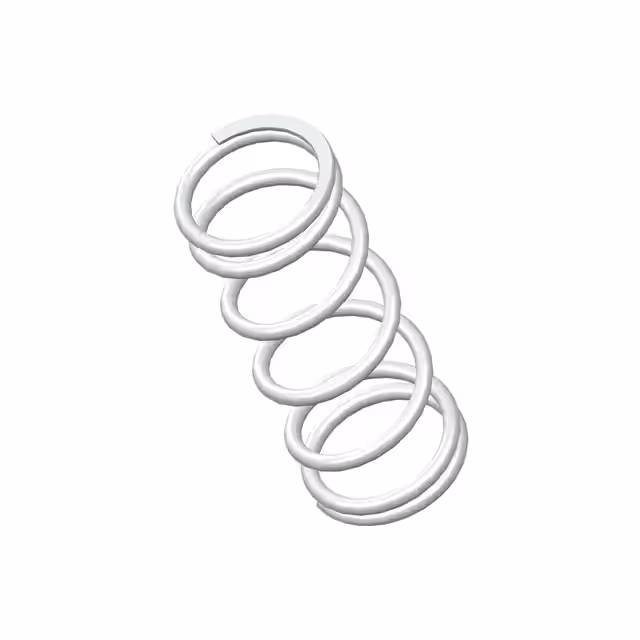

70075SCSCOMP O= .120,L= .31,W= .012 |
3,888 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.310 (7.87mm) | - | 4.3 lbs/in | Closed & Ground |
|

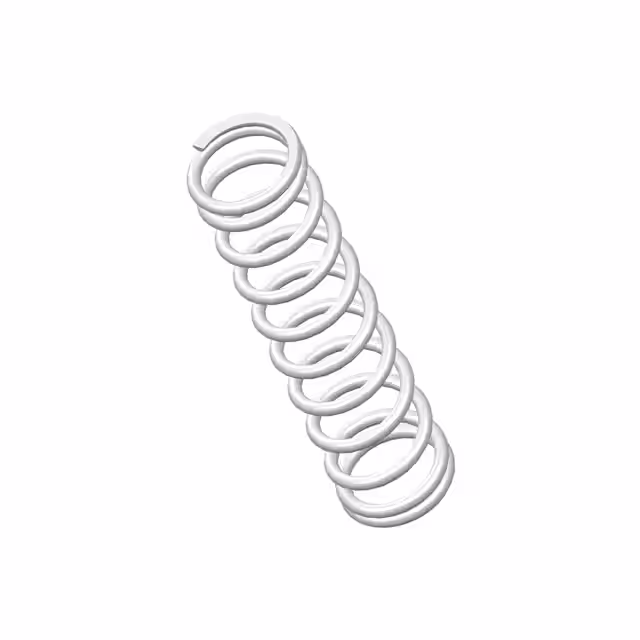

70094SCSCOMP O= .120,L= .50,W= .014 |
3,457 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.500 (12.70mm) | - | 4.5 lbs/in | Closed & Ground |
|

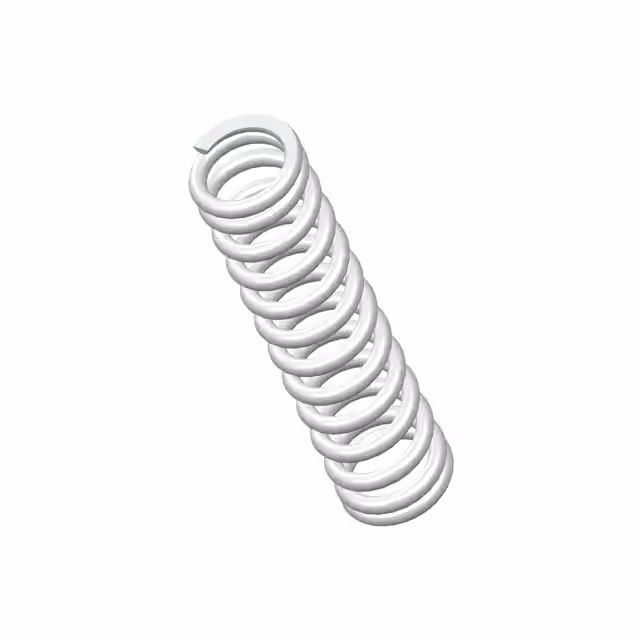

70136SCSCOMP O= .120,L= .50,W= .018 |
3,624 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.500 (12.70mm) | - | 11.0 lbs/in | Closed & Ground |
|

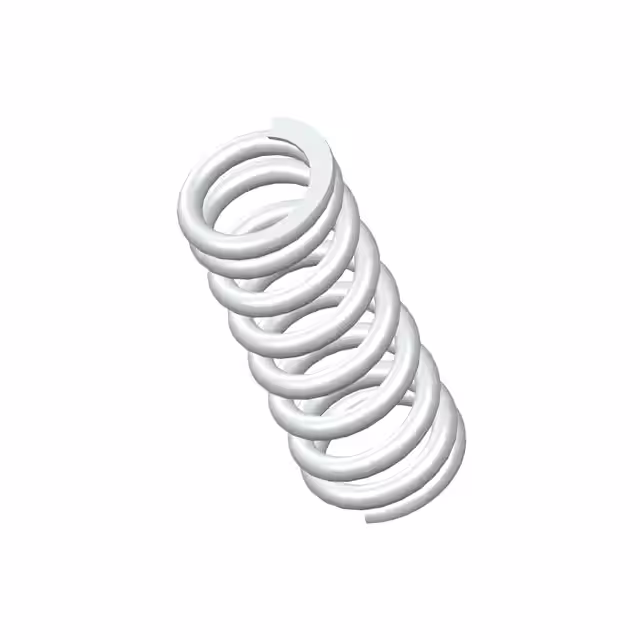

70133SCSCOMP O= .120,L= .31,W= .018 |
3,747 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.310 (7.87mm) | - | 19.0 lbs/in | Closed & Ground |
|

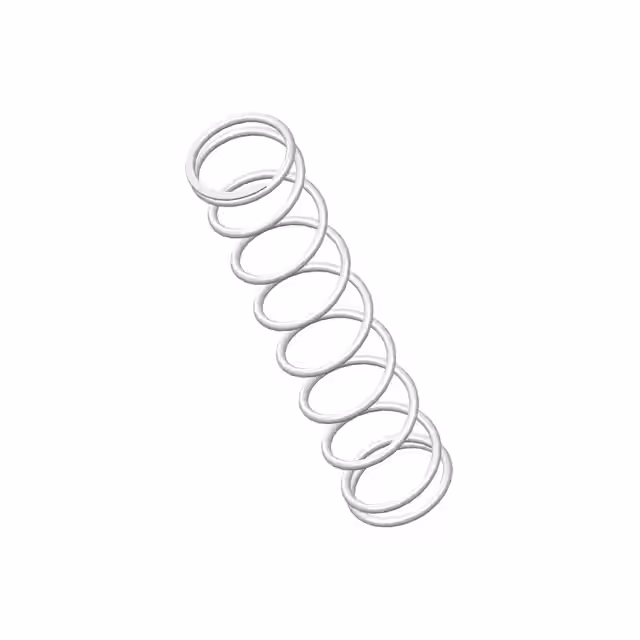

70063SCSCOMP O= .120,L= .56,W= .010 |
3,862 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.560 (14.22mm) | - | 1.2 lbs/in | Closed & Ground |
|

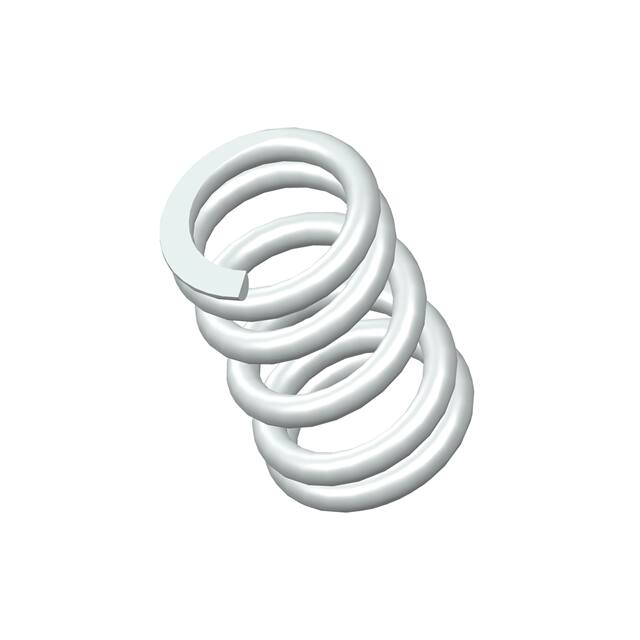

70131SCSCOMP O= .120,L= .19,W= .018 |
2,071 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.190 (4.83mm) | - | 35.0 lbs/in | Closed & Ground |
|

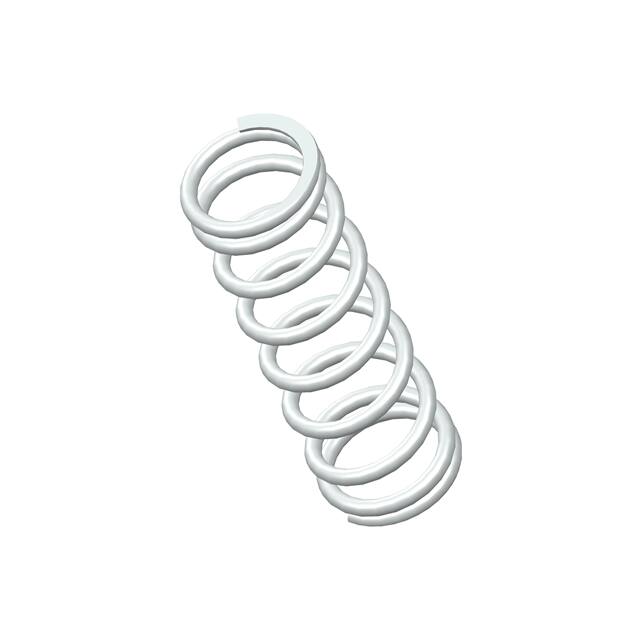

70092SCSCOMP O= .120,L= .38,W= .014 |
2,770 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.380 (9.65mm) | - | 6.1 lbs/in | Closed & Ground |
|

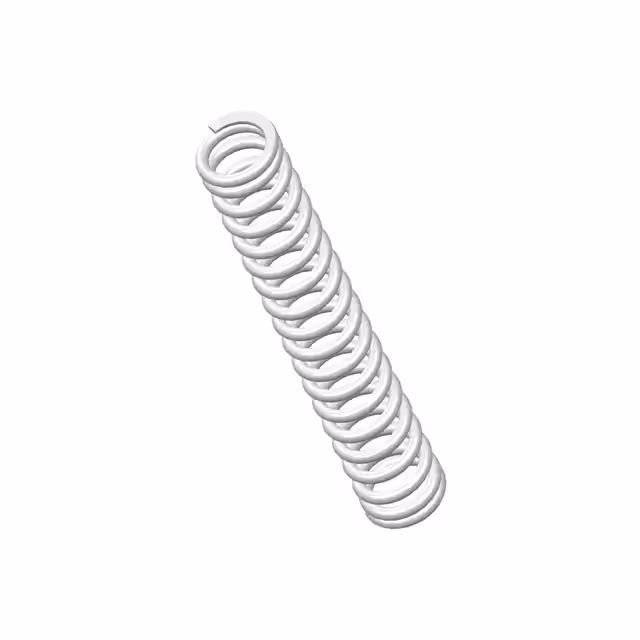

70140SCSCOMP O= .120,L= .75,W= .018 |
3,637 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.750 (19.05mm) | - | 7.4 lbs/in | Closed & Ground |
|

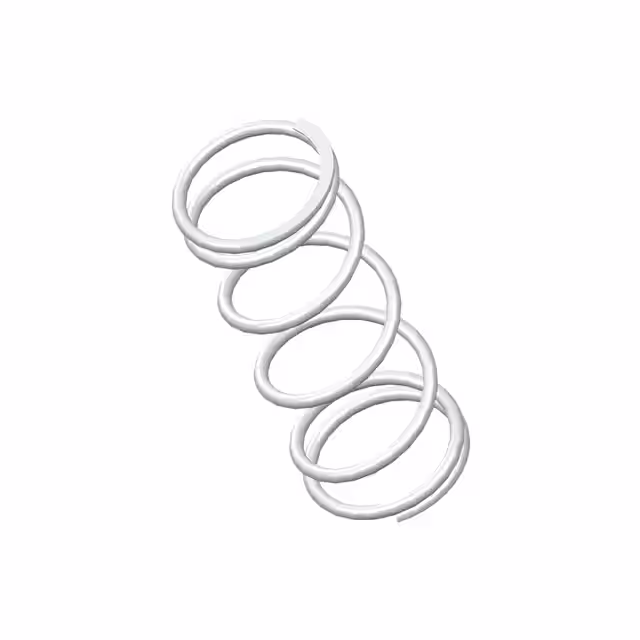

70059SCSCOMP O= .120,L= .31,W= .010 |
3,875 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.310 (7.87mm) | - | 2.1 lbs/in | Closed & Ground |
|

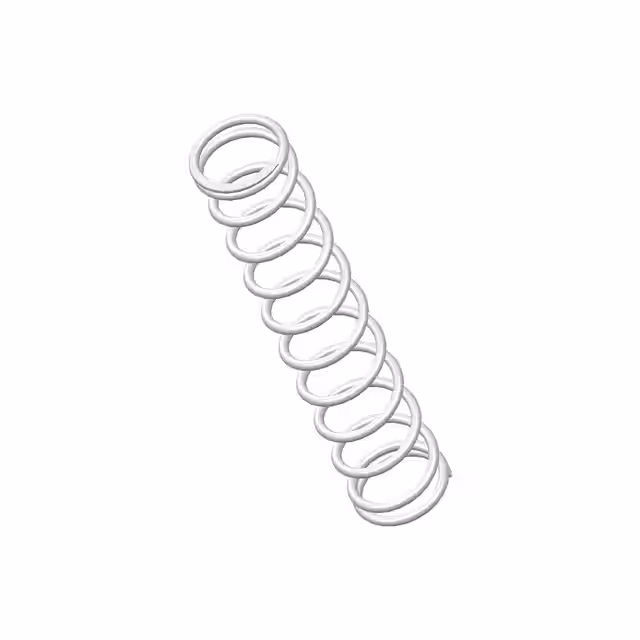

70080SCSCOMP O= .120,L= .63,W= .012 |
2,462 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.630 (16.00mm) | - | 2.1 lbs/in | Closed & Ground |
|

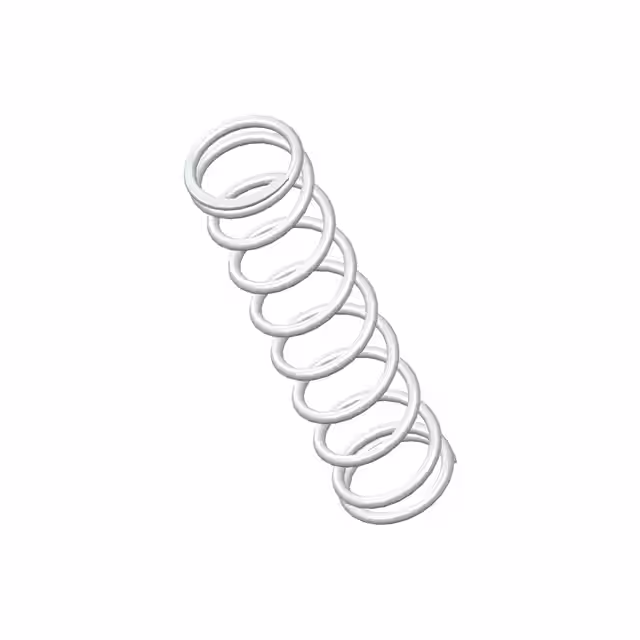

70078SCSCOMP O= .120,L= .50,W= .012 |
2,685 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.500 (12.70mm) | - | 2.6 lbs/in | Closed & Ground |
|

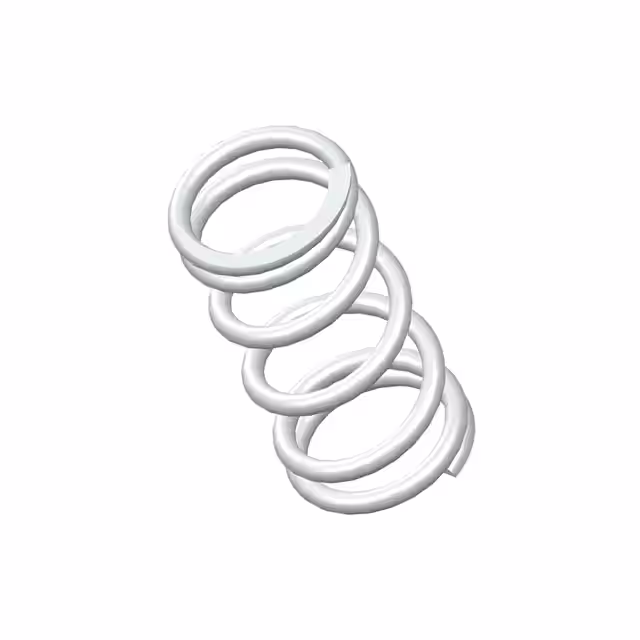

70090SCSCOMP O= .120,L= .25,W= .014 |
2,038 | 9.18 |
RFQ |
Box | - | Active | Stainless Steel | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.250 (6.35mm) | - | 9.8 lbs/in | Closed & Ground | |
|

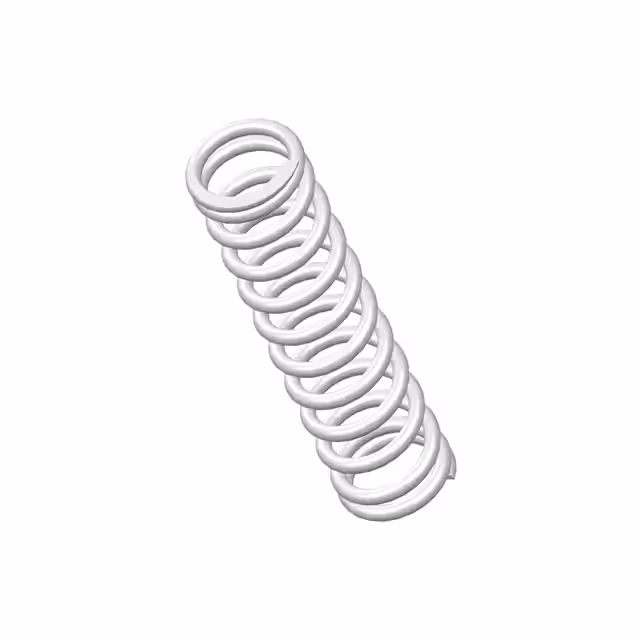

70114SCSCOMP O= .120,L= .50,W= .016 |
2,135 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.500 (12.70mm) | - | 7.3 lbs/in | Closed & Ground |
|

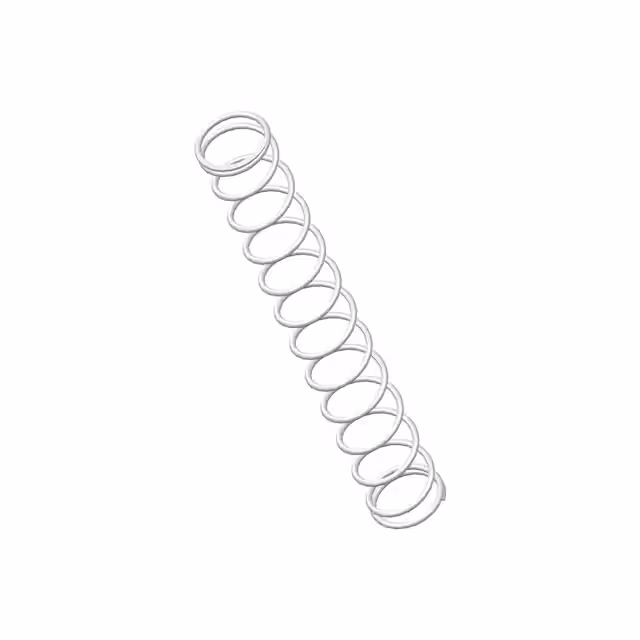

70068SCSCOMP O= .120,L= .88,W= .010 |
2,560 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.880 (22.35mm) | - | 0.78 lbs/in | Closed & Ground |
|

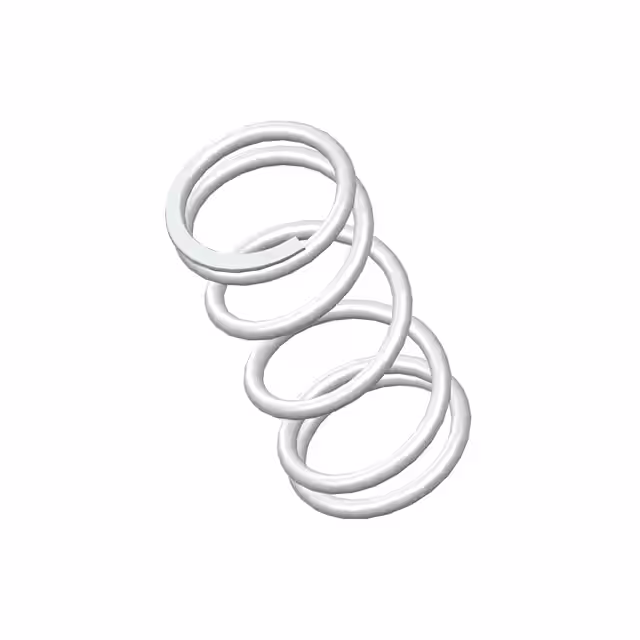

70074SCSCOMP O= .120,L= .25,W= .012 |
2,398 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.250 (6.35mm) | - | 5.5 lbs/in | Closed & Ground |
|

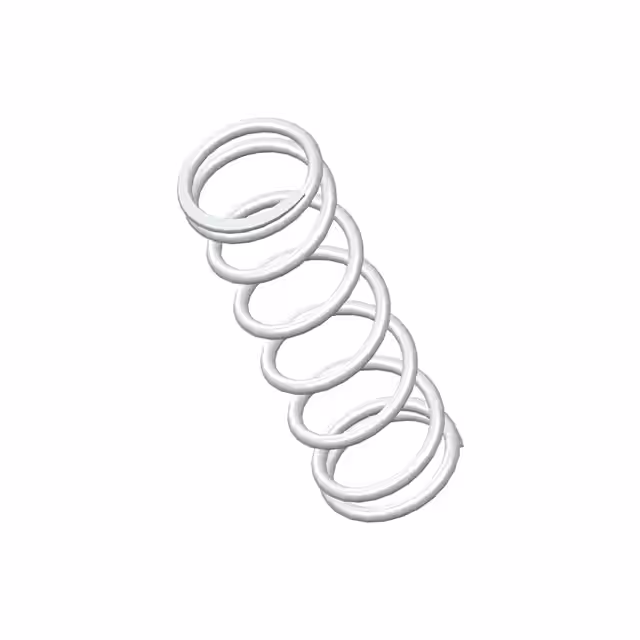

70076SCSCOMP O= .120,L= .38,W= .012 |
2,309 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.380 (9.65mm) | - | 3.5 lbs/in | Closed & Ground |
|

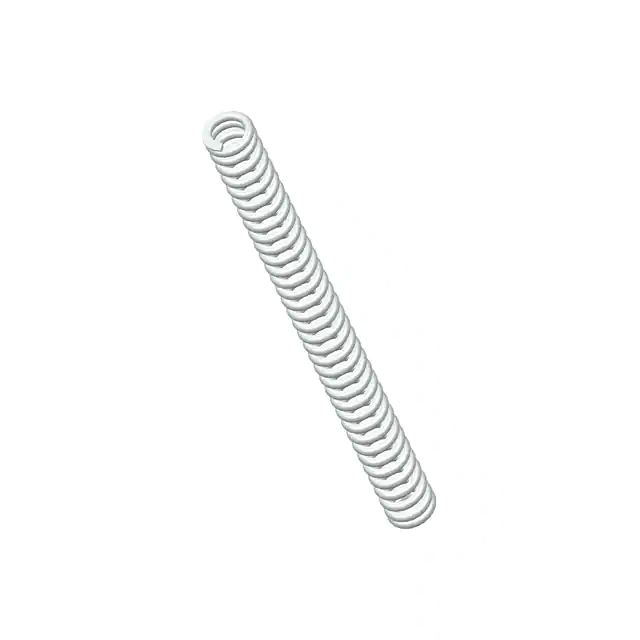

70188SCSCOMP O= .120,L= 1.38,W= .022 |
2,350 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.120 (3.05mm) | 0.076 (1.93mm) | - | - | 1.380 (35.05mm) | - | 9.3 lbs/in | Closed & Ground |
|

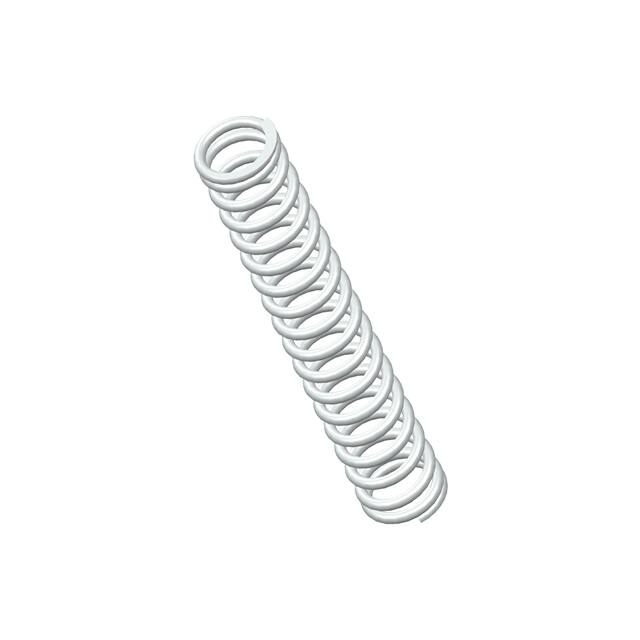

70118SCSCOMP O= .120,L= .75,W= .016 |
2,824 | 9.18 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.750 (19.05mm) | - | 4.5 lbs/in | Closed & Ground |
