Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

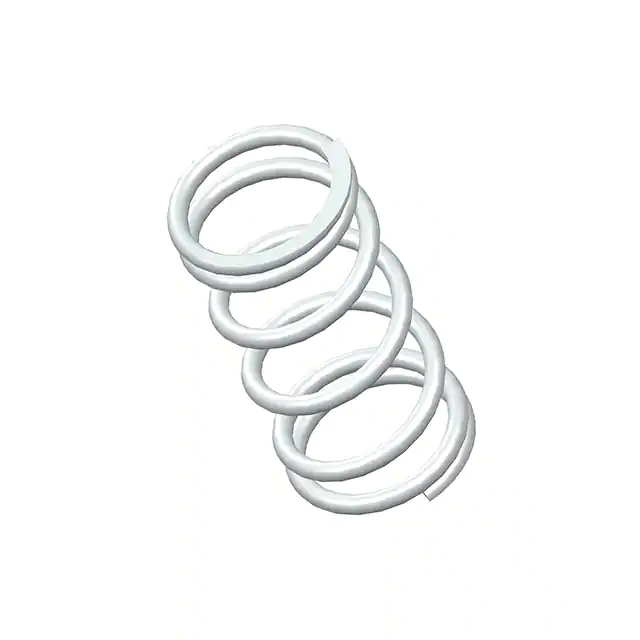

71106SCSCOMP O= .360,L= .75,W= .038 |
3,710 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.750 (19.05mm) | 15.0 lbs | 18.0 lbs/in | Closed & Ground |
|

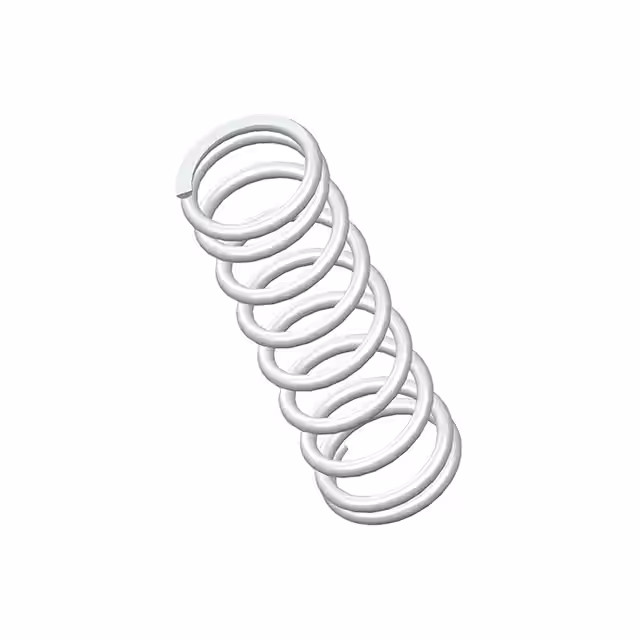

71129SCSCOMP O= .360,L= 1.13,W= .040 |
2,840 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 1.130 (28.70mm) | - | 13.0 lbs/in | Closed & Ground |
|
70129CSCOMP O= .120,L= 1.38,W= .016 |
3,070 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 1.380 (35.05mm) | - | 2.9 lbs/in | Closed & Ground |
|

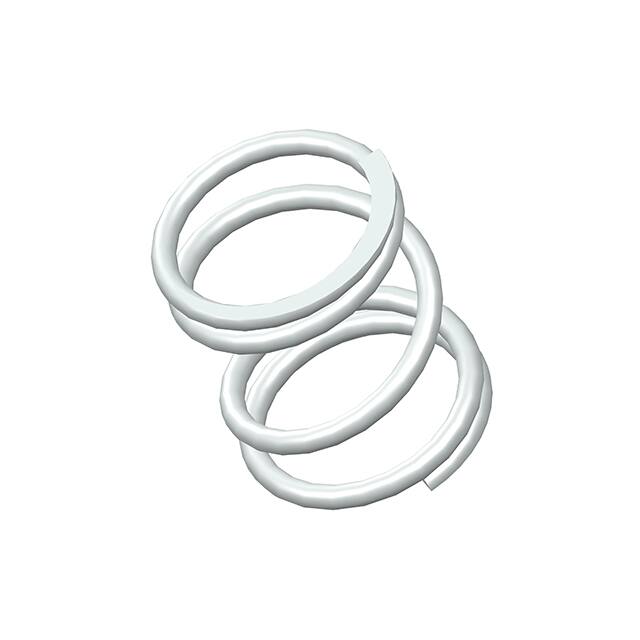

71083SCSCOMP O= .360,L= .44,W= .035 |
2,833 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 0.440 (11.18mm) | - | 24.0 lbs/in | Closed & Ground |
|

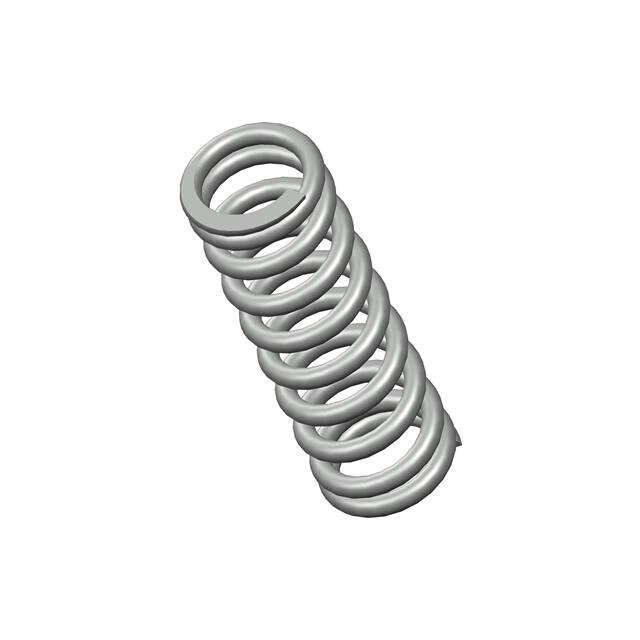

70134CSCOMP O= .120,L= .38,W= .018 |
2,952 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.380 (9.65mm) | - | 18.0 lbs/in | Closed & Ground |
|

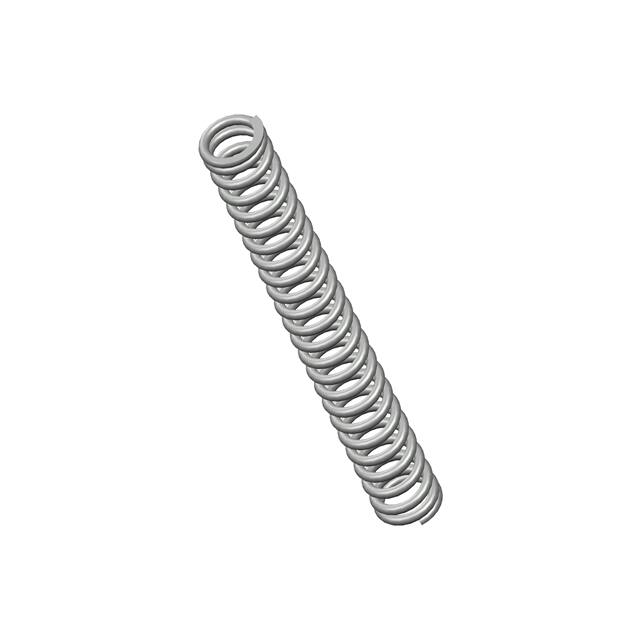

70147CSCOMP O= .120,L= 1.00,W= .018 |
2,263 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 1.000 (25.40mm) | - | 6.4 lbs/in | Closed & Ground |
|

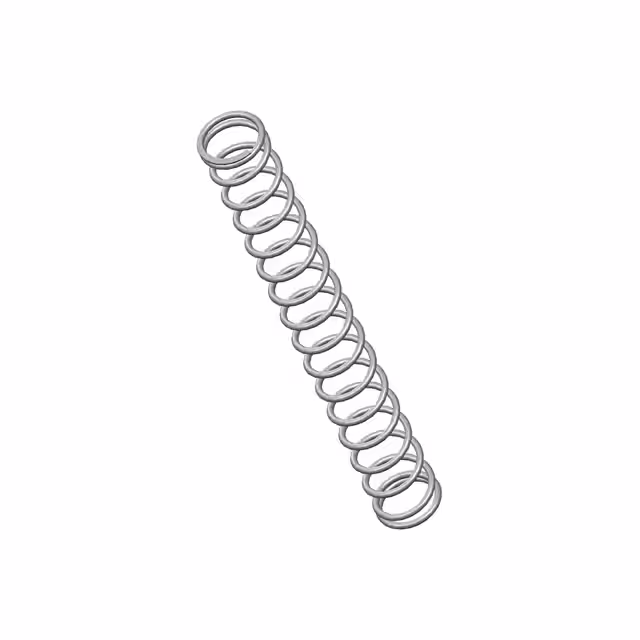

70086CSCOMP O= .120,L= 1.00,W= .012 |
2,456 | 7.94 |
RFQ |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 1.000 (25.40mm) | - | 1.5 lbs/in | Closed & Ground | |
|

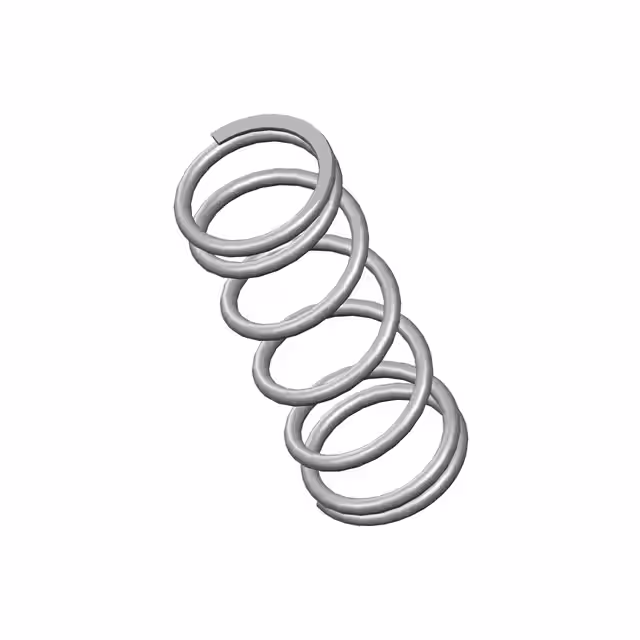

70075CSCOMP O= .120,L= .31,W= .012 |
3,494 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.310 (7.87mm) | - | 5.0 lbs/in | Closed & Ground |
|

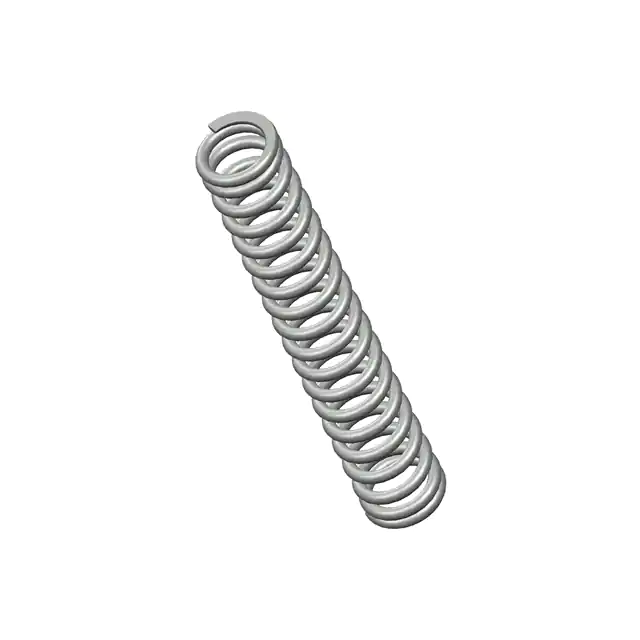

70140CSCOMP O= .120,L= .75,W= .018 |
2,101 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.750 (19.05mm) | - | 8.5 lbs/in | Closed & Ground |
|
70152CSCOMP O= .120,L= 1.50,W= .018 |
2,024 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 1.500 (38.10mm) | - | 4.2 lbs/in | Closed & Ground |
|

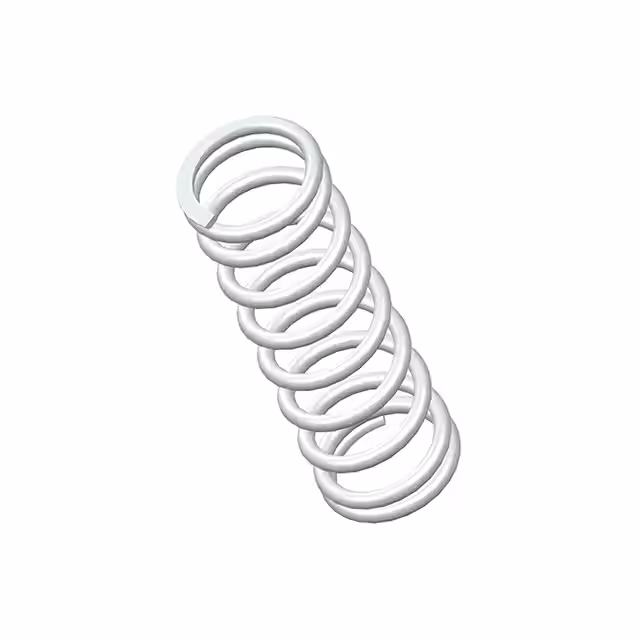

71147SCSCOMP O= .360,L= 1.13,W= .042 |
3,816 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 1.130 (28.70mm) | - | 16.0 lbs/in | Closed & Ground |
|

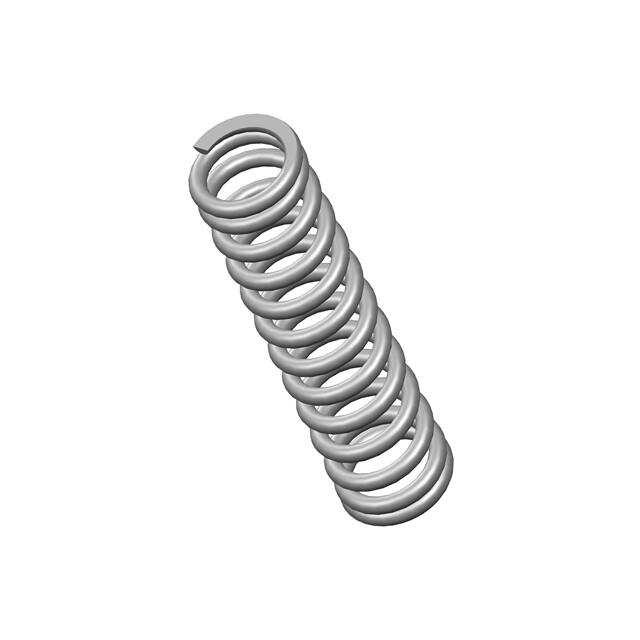

70136CSCOMP O= .120,L= .50,W= .018 |
3,006 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.500 (12.70mm) | - | 13.0 lbs/in | Closed & Ground |
|

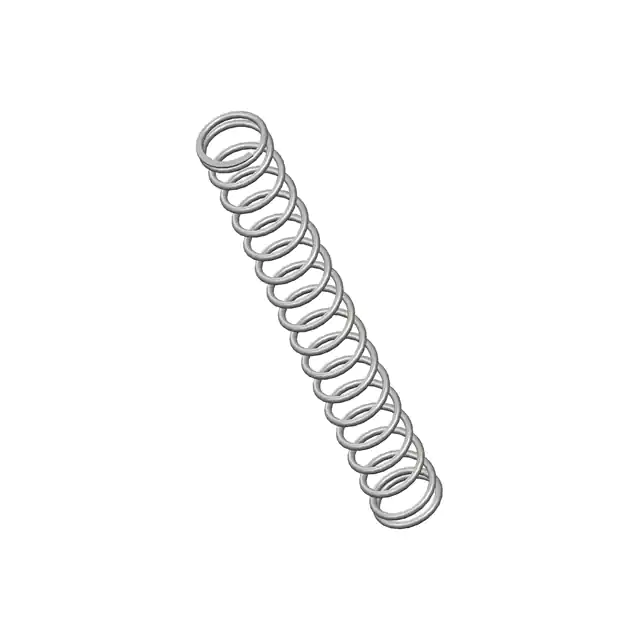

70085CSCOMP O= .120,L= .94,W= .012 |
3,585 | 7.94 |
RFQ |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.940 (23.88mm) | - | 1.5 lbs/in | Closed & Ground | |
|

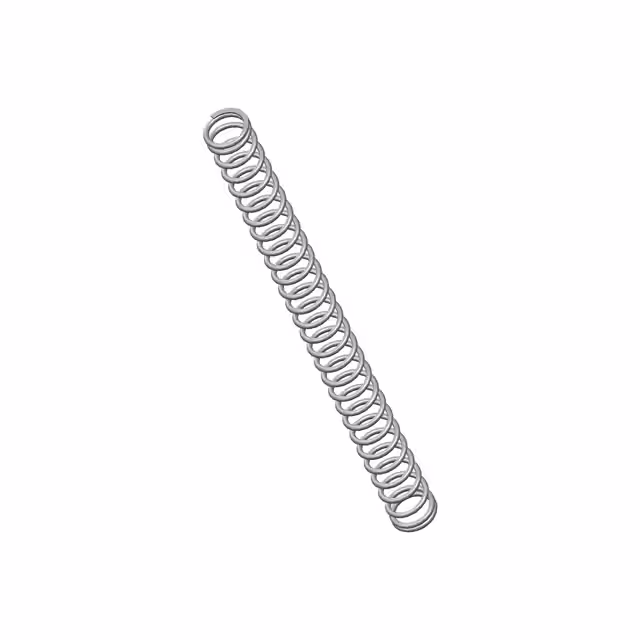

70108CSCOMP O= .120,L= 1.50,W= .014 |
2,905 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 1.500 (38.10mm) | - | 1.7 lbs/in | Closed & Ground |
|
71090SCSCOMP O= .360,L= .88,W= .035 |
3,771 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 0.880 (22.35mm) | - | 11.0 lbs/in | Closed & Ground |
|

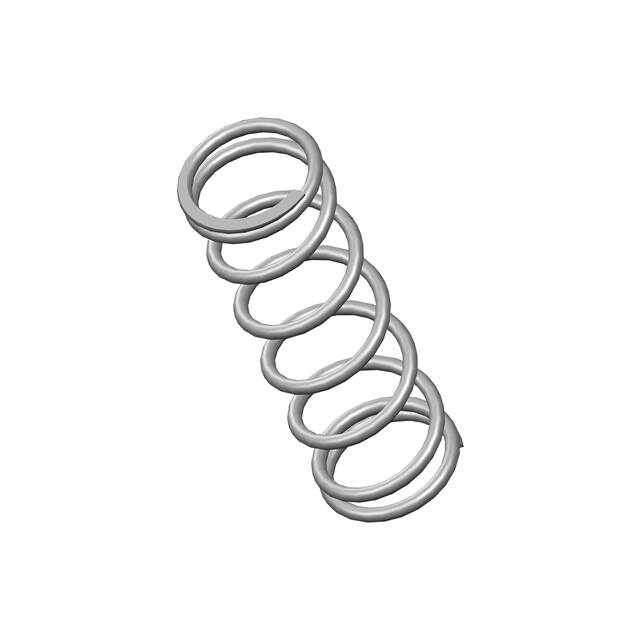

70076CSCOMP O= .120,L= .38,W= .012 |
2,138 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.380 (9.65mm) | - | 4.0 lbs/in | Closed & Ground |
|

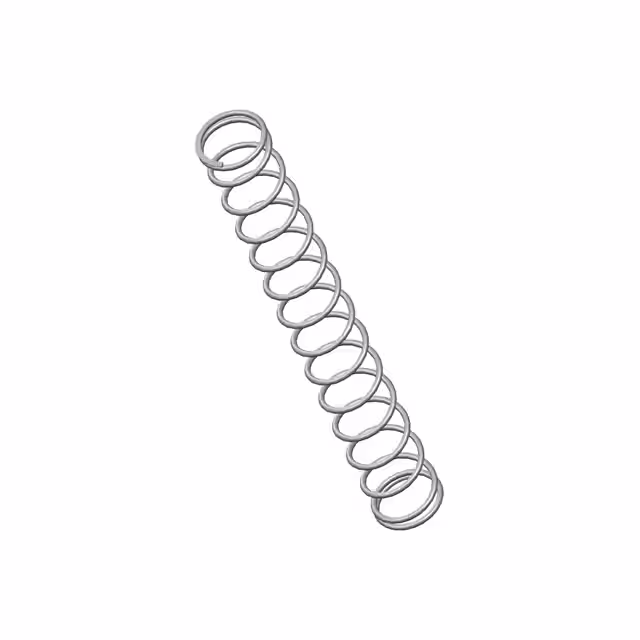

70069CSCOMP O= .120,L= .94,W= .010 |
3,378 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.940 (23.88mm) | - | 0.8 lbs/in | Closed & Ground |
|

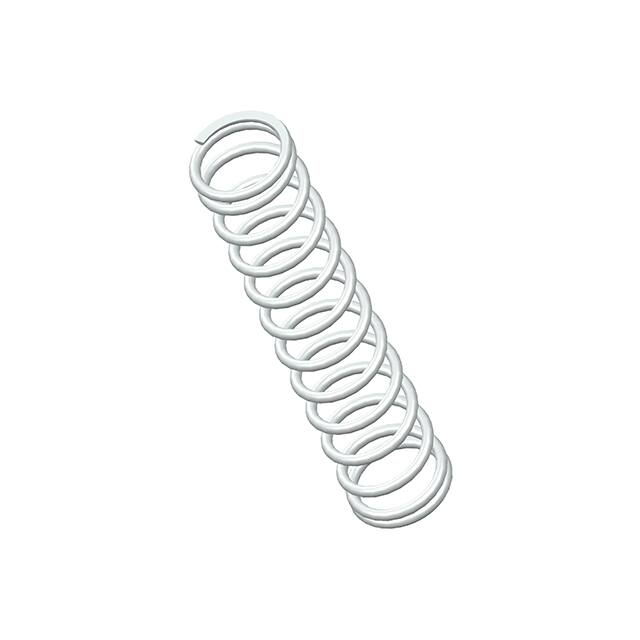

71115SCSCOMP O= .360,L= 1.75,W= .038 |
981 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 1.750 (44.45mm) | - | 7.0 lbs/in | Closed & Ground |
|

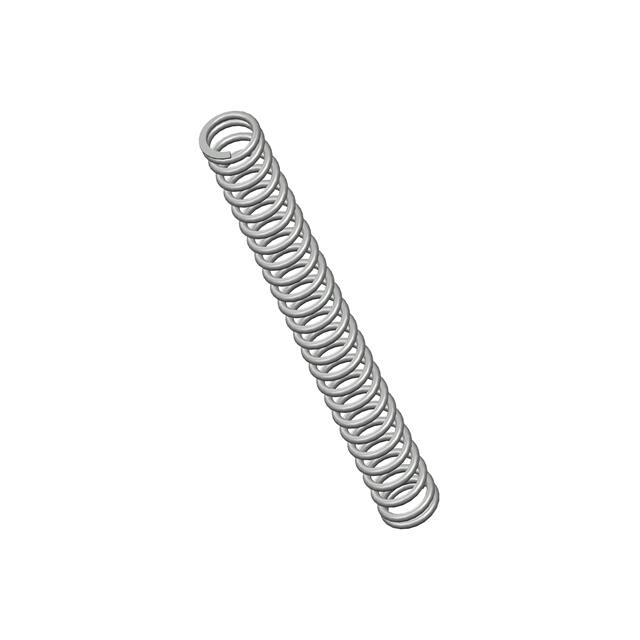

70126CSCOMP O= .120,L= 1.13,W= .016 |
943 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 1.130 (28.70mm) | - | 3.5 lbs/in | Closed & Ground |
|

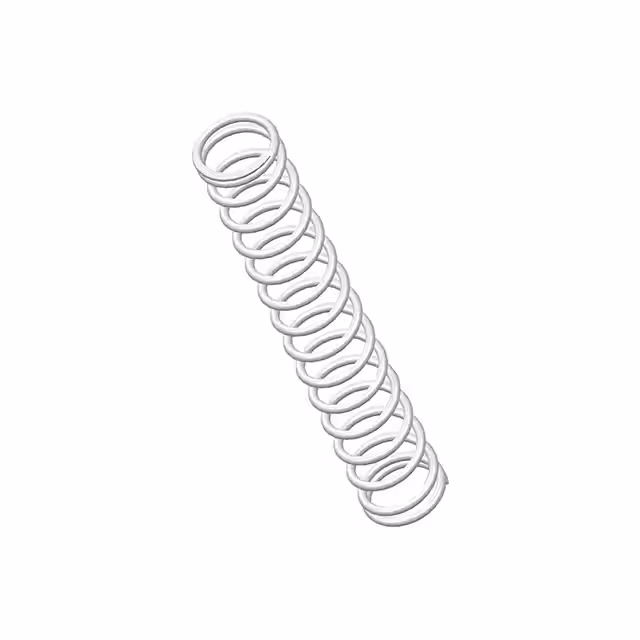

71117SCSCOMP O= .360,L= 2.25,W= .038 |
927 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 2.250 (57.15mm) | - | 5.5 lbs/in | Closed & Ground |
