Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

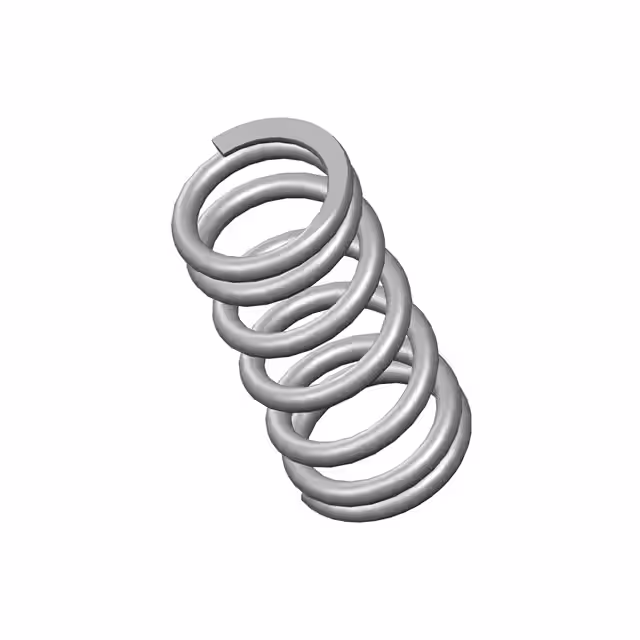

70110CSCOMP O= .120,L= .25,W= .016 |
2,528 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.016 (0.41mm) | 0.120 (3.05mm) | 0.088 (2.24mm) | - | - | 0.250 (6.35mm) | - | 18.0 lbs/in | Closed & Ground |
|

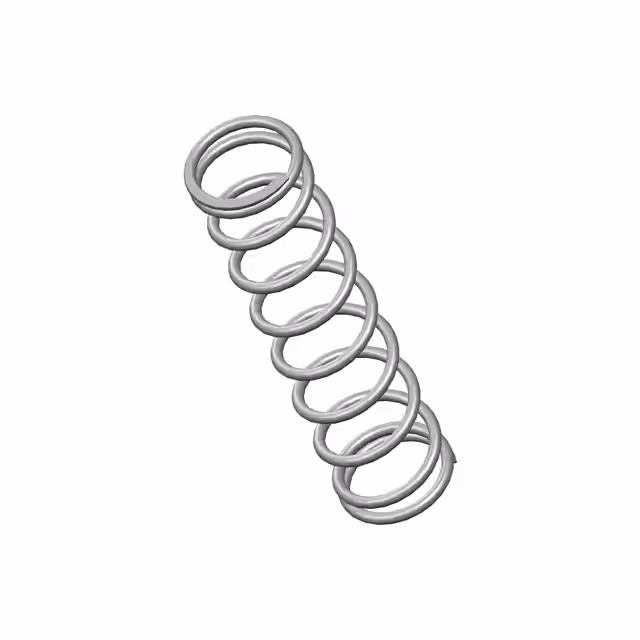

70078CSCOMP O= .120,L= .50,W= .012 |
2,300 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.500 (12.70mm) | - | 3.0 lbs/in | Closed & Ground |
|

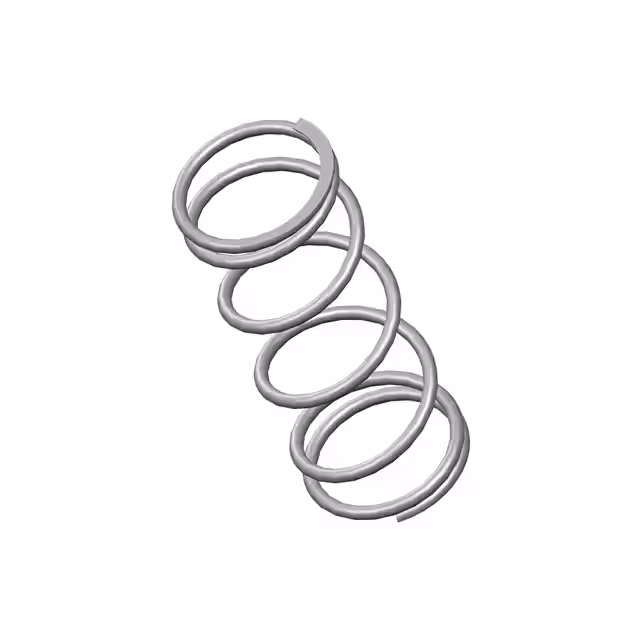

70059CSCOMP O= .120,L= .31,W= .010 |
3,919 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.310 (7.87mm) | - | 2.5 lbs/in | Closed & Ground |
|
70063CSCOMP O= .120,L= .56,W= .010 |
2,696 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.560 (14.22mm) | - | 1.4 lbs/in | Closed & Ground |
|

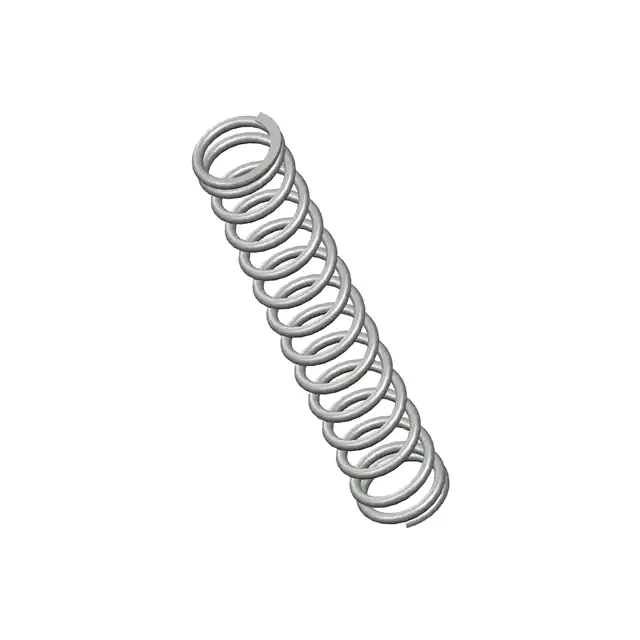

70097CSCOMP O= .120,L= .69,W= .014 |
3,721 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.690 (17.53mm) | - | 3.7 lbs/in | Closed & Ground |
|

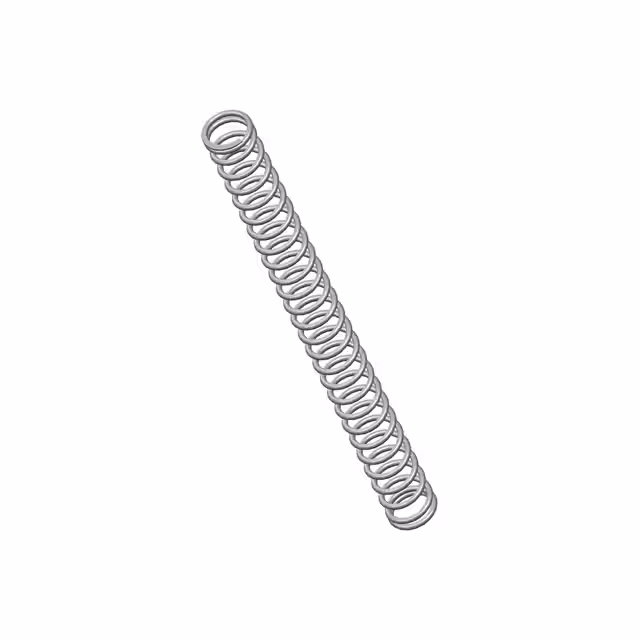

70107CSCOMP O= .120,L= 1.38,W= .014 |
2,516 | 7.94 |
RFQ |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 1.380 (35.05mm) | - | 1.8 lbs/in | Closed & Ground | |
|

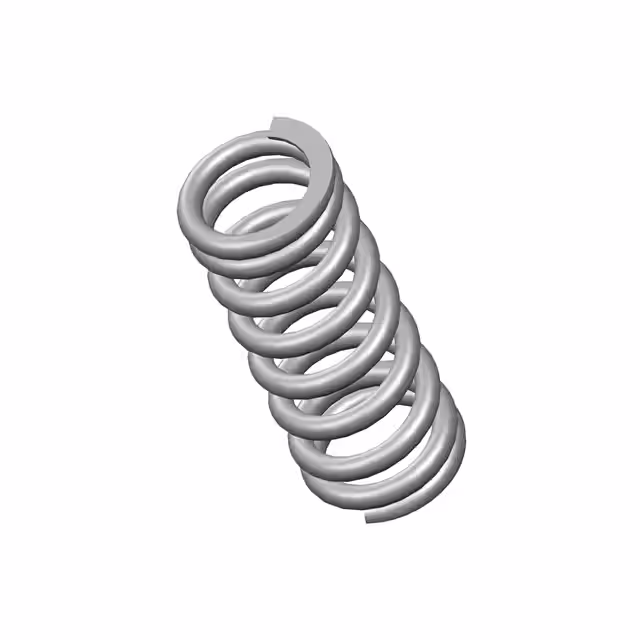

70133CSCOMP O= .120,L= .31,W= .018 |
3,420 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.310 (7.87mm) | - | 22.0 lbs/in | Closed & Ground |
|

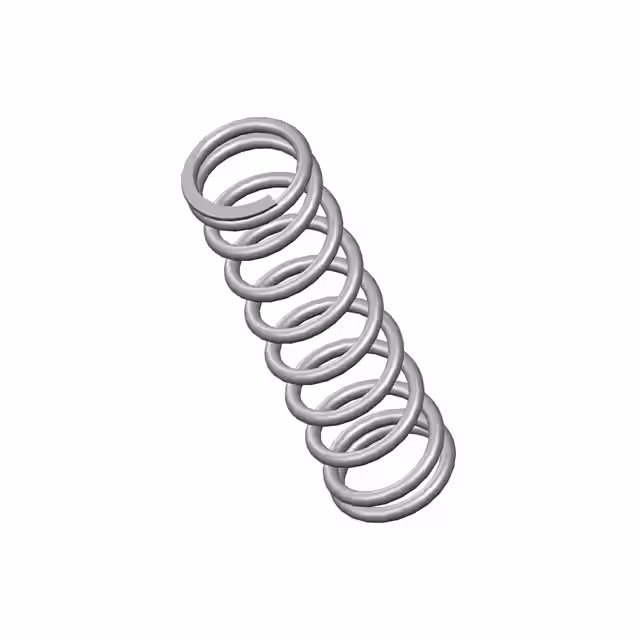

70093CSCOMP O= .120,L= .44,W= .014 |
3,551 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.440 (11.18mm) | - | 6.0 lbs/in | Closed & Ground |
|

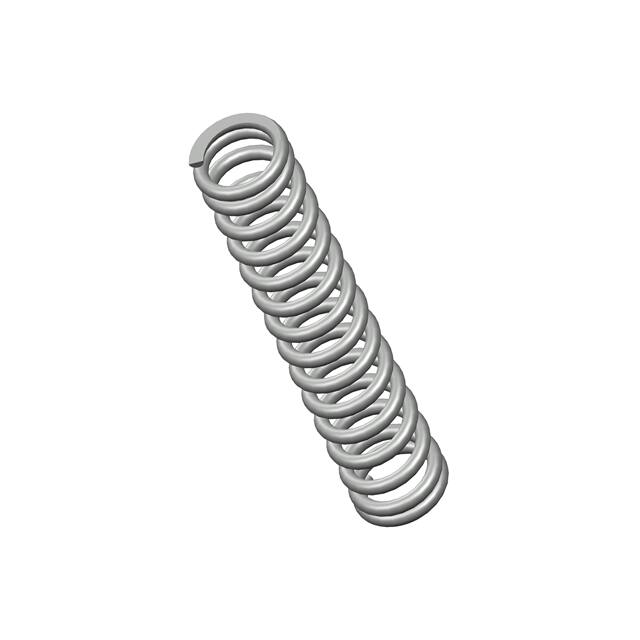

70138CSCOMP O= .120,L= .63,W= .018 |
3,494 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.630 (16.00mm) | - | 11.0 lbs/in | Closed & Ground |
|

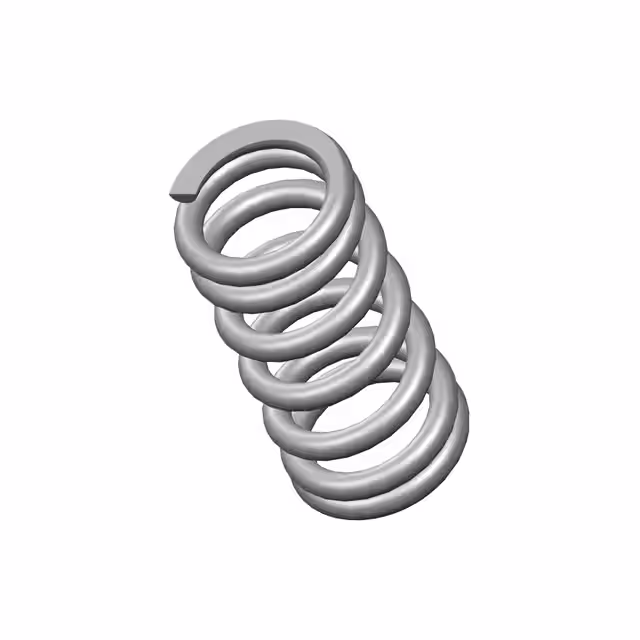

70132CSCOMP O= .120,L= .25,W= .018 |
2,819 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.250 (6.35mm) | - | 28.0 lbs/in | Closed & Ground |
|

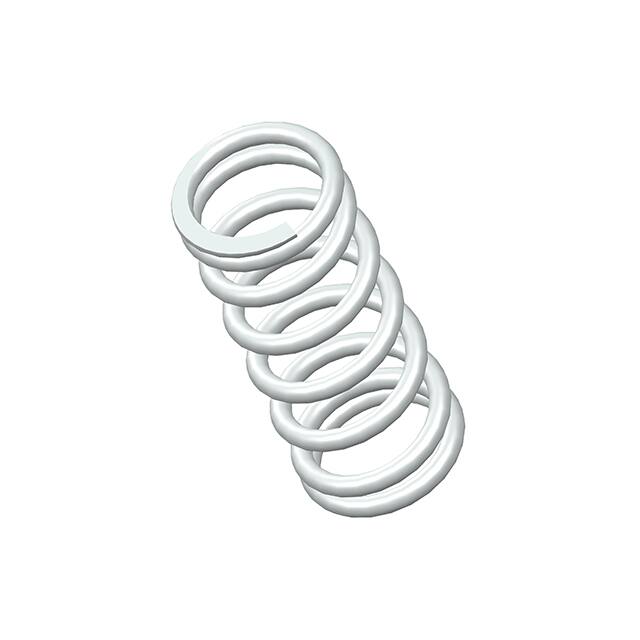

71162SCSCOMP O= .360,L= .88,W= .045 |
3,610 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 0.880 (22.35mm) | - | 28.0 lbs/in | Closed & Ground |
|
70077CSCOMP O= .120,L= .44,W= .012 |
3,595 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.440 (11.18mm) | - | 3.4 lbs/in | Closed & Ground |
|
70060CSCOMP O= .120,L= .38,W= .010 |
3,146 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.380 (9.65mm) | - | 2.0 lbs/in | Closed & Ground |
|

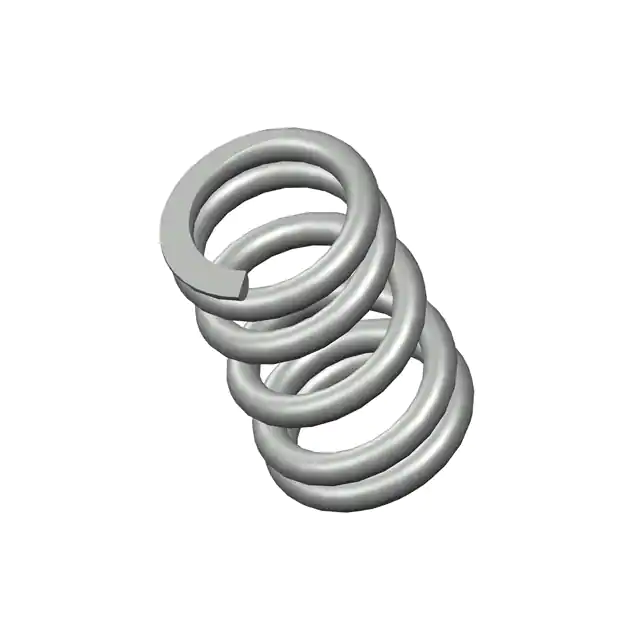

70131CSCOMP O= .120,L= .19,W= .018 |
2,944 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.018 (0.46mm) | 0.120 (3.05mm) | 0.084 (2.13mm) | - | - | 0.190 (4.83mm) | - | 41.0 lbs/in | Closed & Ground |
|

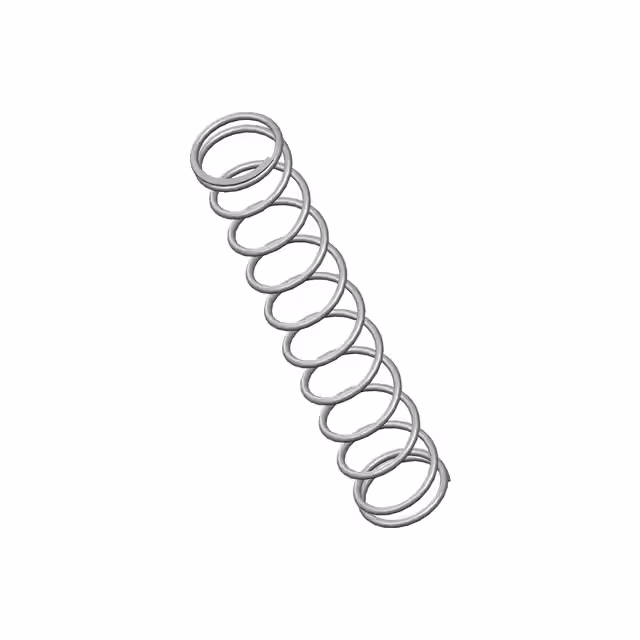

70065CSCOMP O= .120,L= .69,W= .010 |
3,282 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.120 (3.05mm) | 0.100 (2.54mm) | - | - | 0.690 (17.53mm) | - | 1.1 lbs/in | Closed & Ground |
|

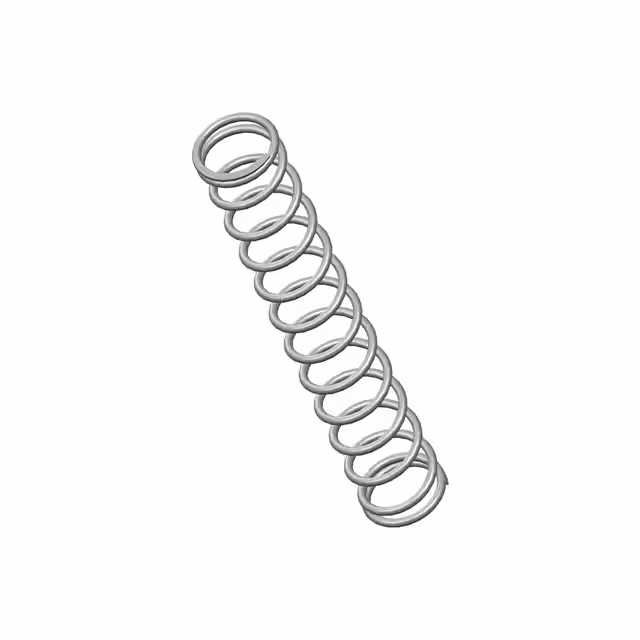

70082CSCOMP O= .120,L= .75,W= .012 |
3,578 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.750 (19.05mm) | - | 2.0 lbs/in | Closed & Ground |
|

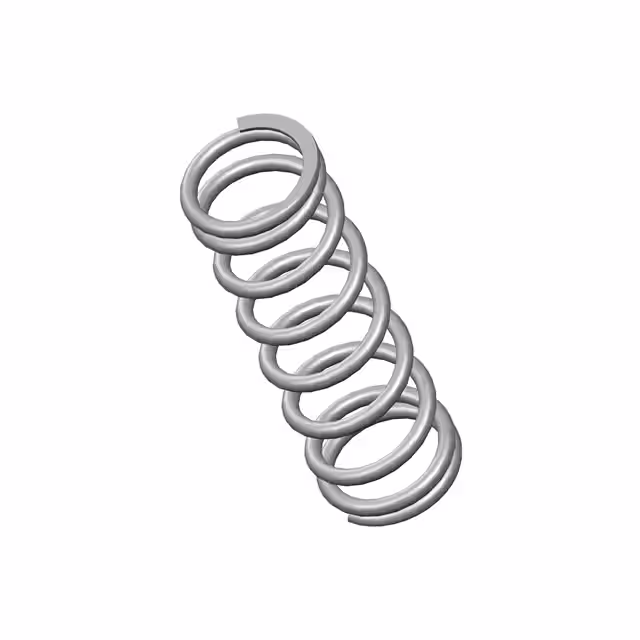

70092CSCOMP O= .120,L= .38,W= .014 |
2,042 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.380 (9.65mm) | - | 7.0 lbs/in | Closed & Ground |
|

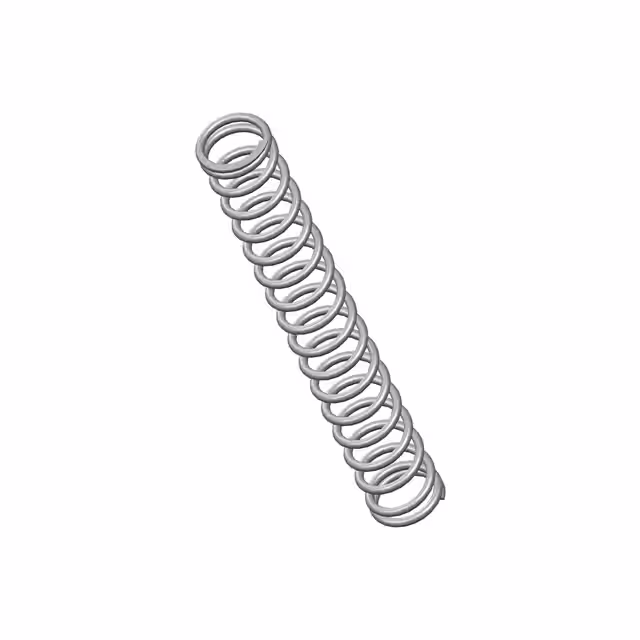

70100CSCOMP O= .120,L= .88,W= .014 |
3,479 | 7.94 |
RFQ |
Box | - | Active | Music Wire | 0.014 (0.36mm) | 0.120 (3.05mm) | 0.092 (2.34mm) | - | - | 0.880 (22.35mm) | - | 2.9 lbs/in | Closed & Ground | |
|

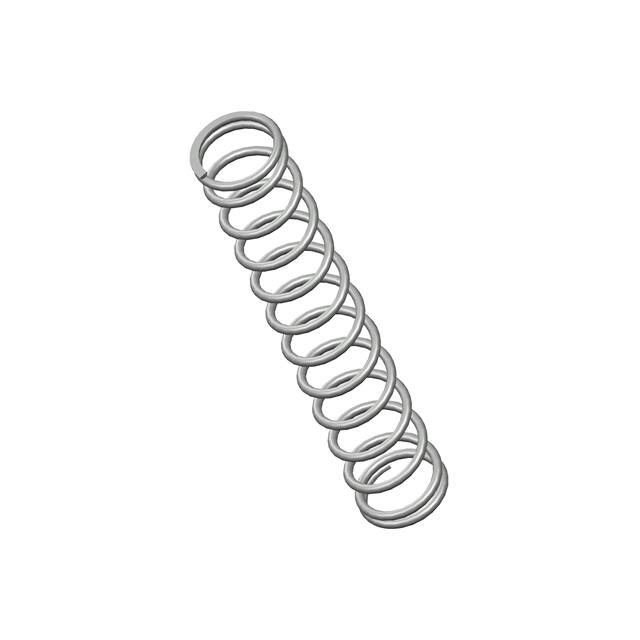

70081CSCOMP O= .120,L= .69,W= .012 |
3,268 | 7.94 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 0.690 (17.53mm) | - | 2.1 lbs/in | Closed & Ground |
|

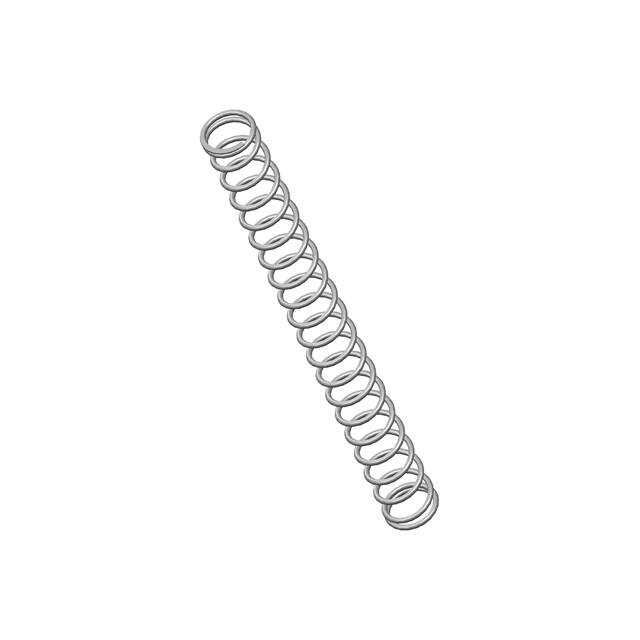

70088CSCOMP O= .120,L= 1.25,W= .012 |
3,903 | 7.94 |
RFQ |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.120 (3.05mm) | 0.096 (2.44mm) | - | - | 1.250 (31.75mm) | - | 1.2 lbs/in | Closed & Ground |
