Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

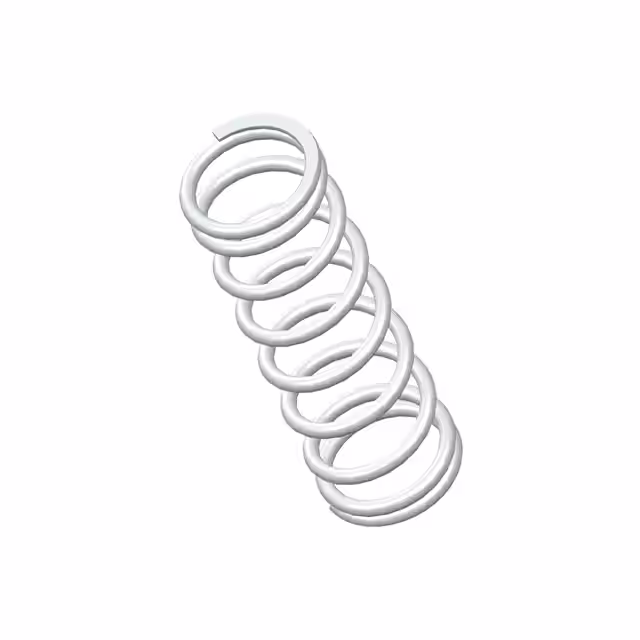

70627SCSCOMP O= .240,L= .75,W= .026 |
2,944 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.240 (6.10mm) | 0.188 (4.78mm) | - | - | 0.750 (19.05mm) | - | 8.5 lbs/in | Closed & Ground |
|

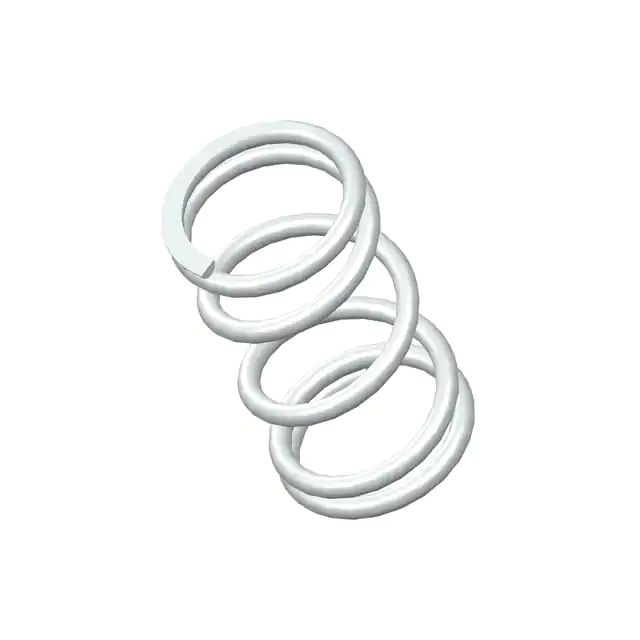

70622SCSCOMP O= .240,L= .44,W= .026 |
3,424 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.240 (6.10mm) | 0.188 (4.78mm) | - | - | 0.440 (11.18mm) | - | 17.0 lbs/in | Closed & Ground |
|

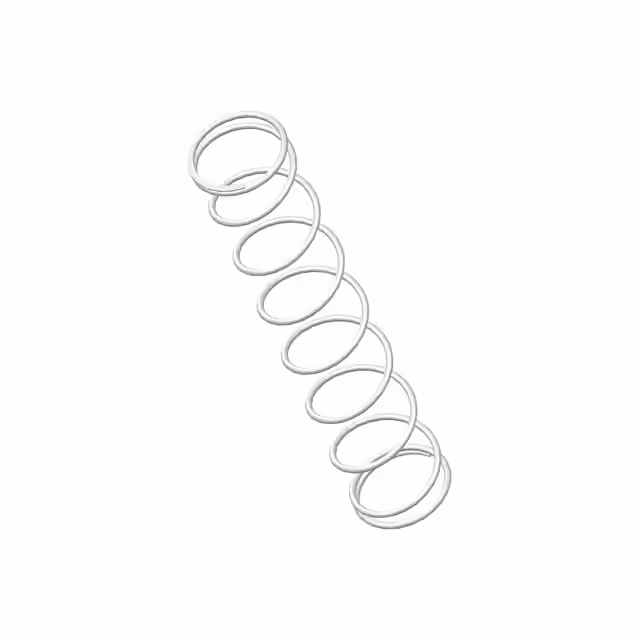

70532SCSCOMP O= .240,L= 1.25,W= .016 |
2,287 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 1.250 (31.75mm) | - | 0.94 lbs/in | Closed & Ground |
|

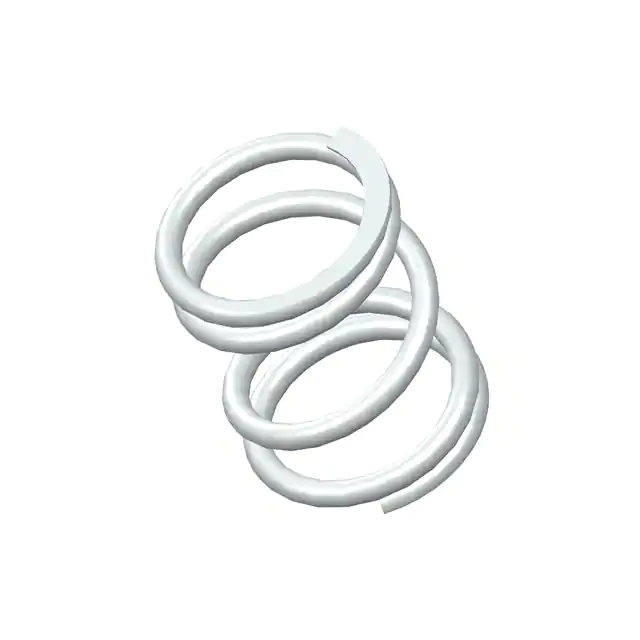

70620SCSCOMP O= .240,L= .31,W= .026 |
3,163 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.240 (6.10mm) | 0.188 (4.78mm) | - | - | 0.310 (7.87mm) | - | 24.0 lbs/in | Closed & Ground |
|

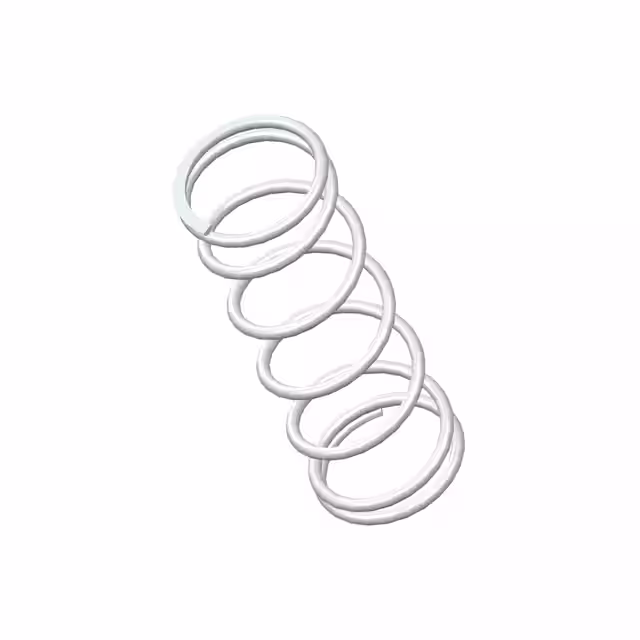

70562SCSCOMP O= .240,L= .69,W= .020 |
2,956 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 0.690 (17.53mm) | - | 3.4 lbs/in | Closed & Ground |
|

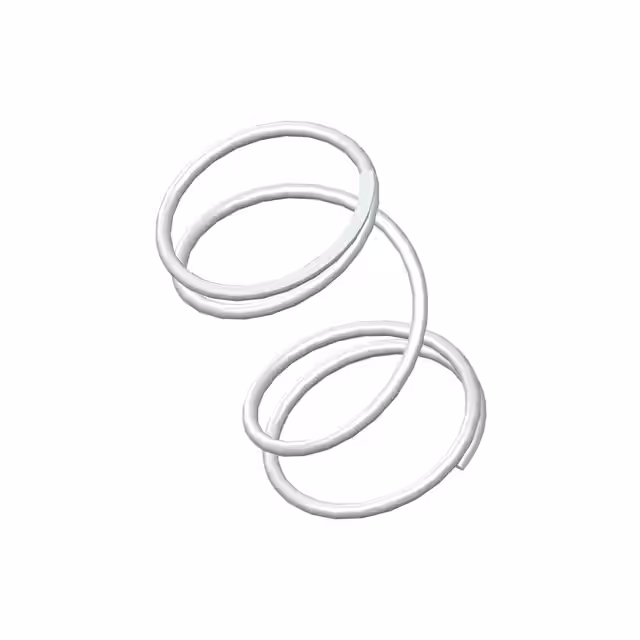

70522SCSCOMP O= .240,L= .38,W= .016 |
3,289 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.380 (9.65mm) | - | 3.3 lbs/in | Closed & Ground |
|

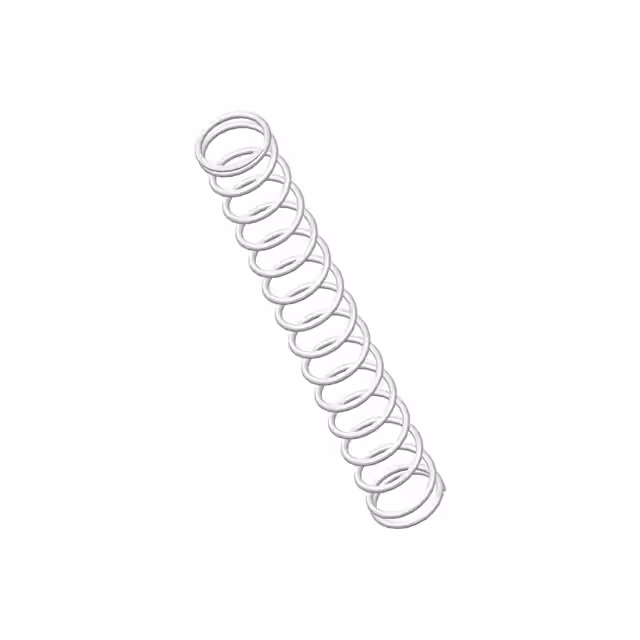

70598SCSCOMP O= .240,L= 1.75,W= .022 |
3,577 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 1.750 (44.45mm) | - | 2.0 lbs/in | Closed & Ground |
|

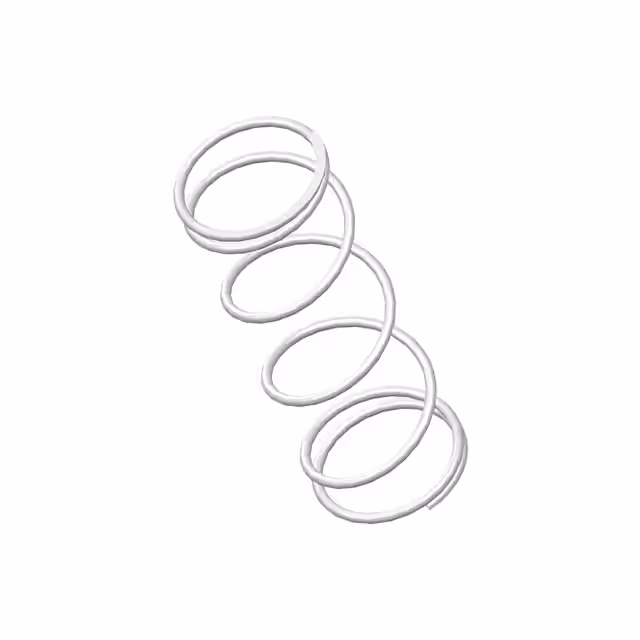

70527SCSCOMP O= .240,L= .69,W= .016 |
2,020 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.690 (17.53mm) | - | 1.7 lbs/in | Closed & Ground |
|

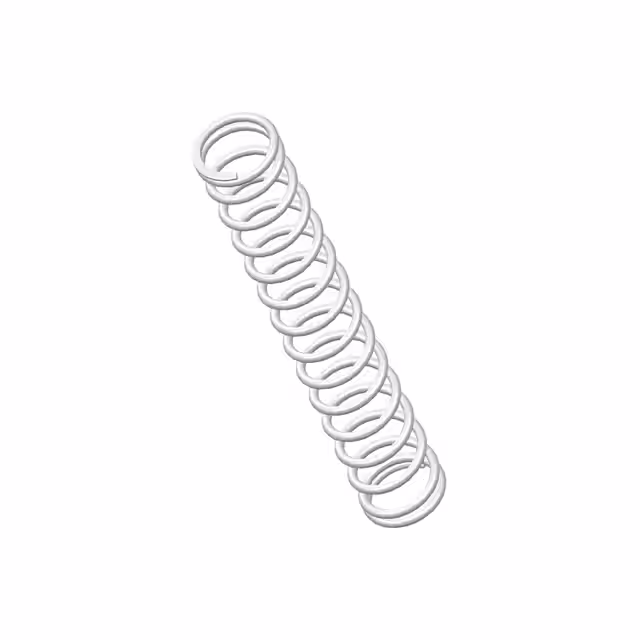

70638SCSCOMP O= .240,L= 1.50,W= .026 |
3,367 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.240 (6.10mm) | 0.188 (4.78mm) | - | - | 1.500 (38.10mm) | - | 4.2 lbs/in | Closed & Ground |
|

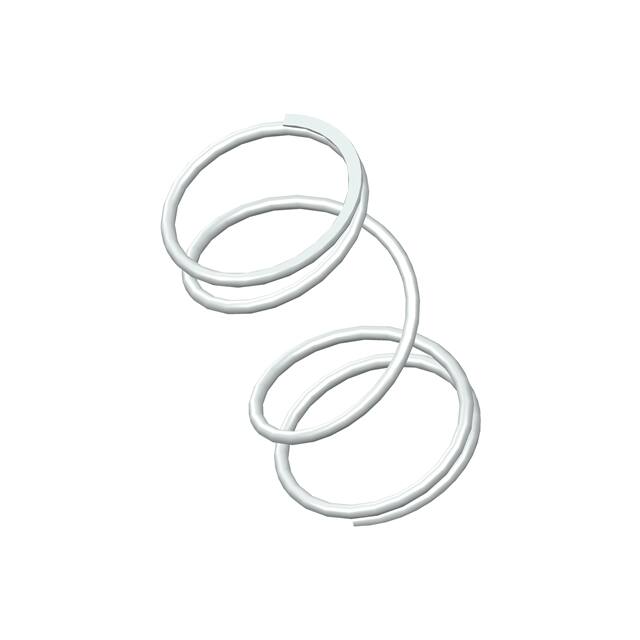

70523SCSCOMP O= .240,L= .44,W= .016 |
2,776 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.440 (11.18mm) | - | 2.8 lbs/in | Closed & Ground |
|

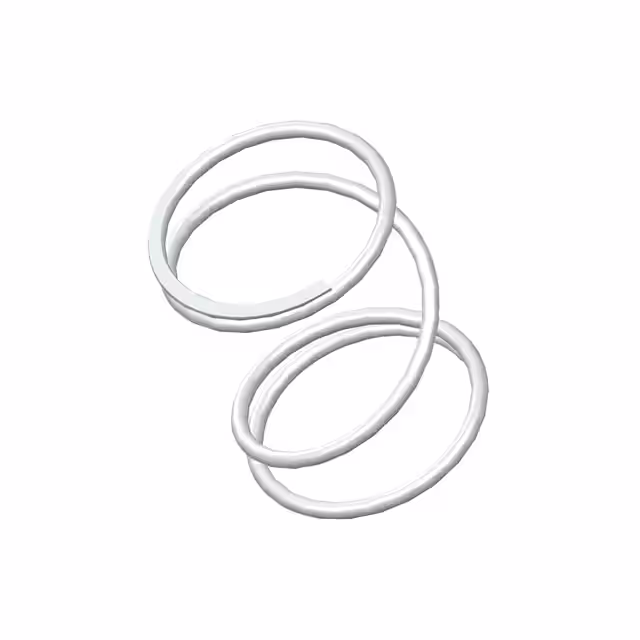

70521SCSCOMP O= .240,L= .31,W= .016 |
3,779 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.310 (7.87mm) | - | 4.1 lbs/in | Closed & Ground |
|

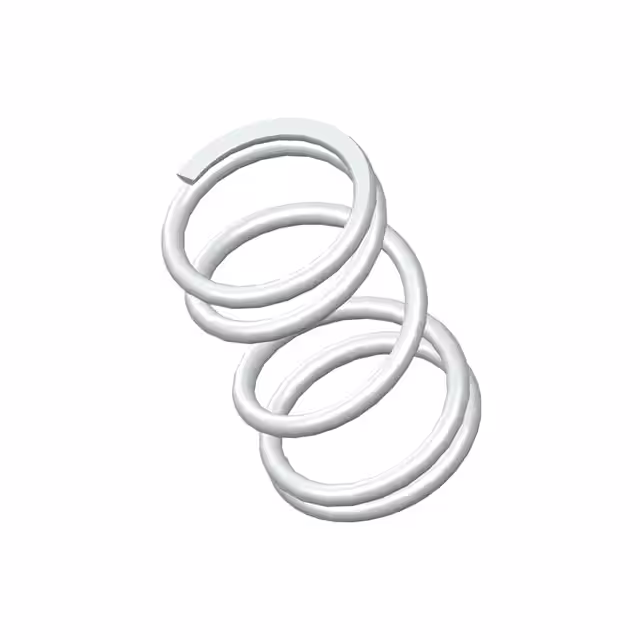

70600SCSCOMP O= .240,L= .38,W= .024 |
2,568 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.240 (6.10mm) | 0.192 (4.88mm) | - | - | 0.380 (9.65mm) | - | 14.0 lbs/in | Closed & Ground |
|

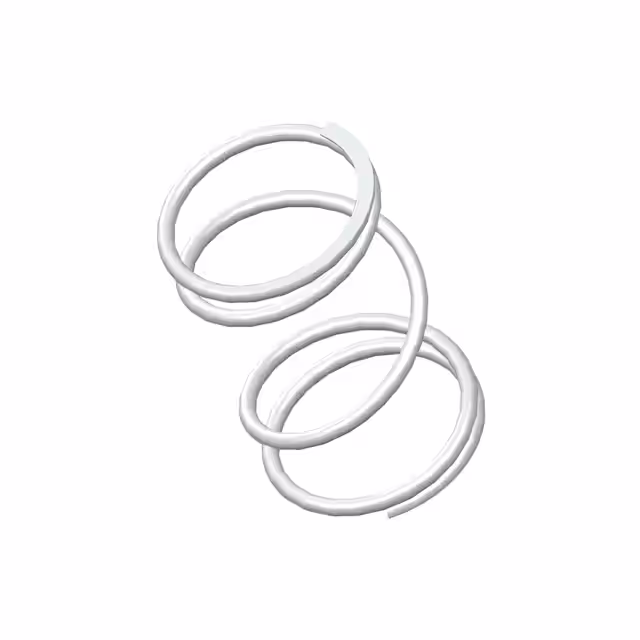

70538SCSCOMP O= .240,L= .38,W= .018 |
3,502 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.240 (6.10mm) | 0.204 (5.18mm) | - | - | 0.380 (9.65mm) | - | 5.0 lbs/in | Closed & Ground |
|

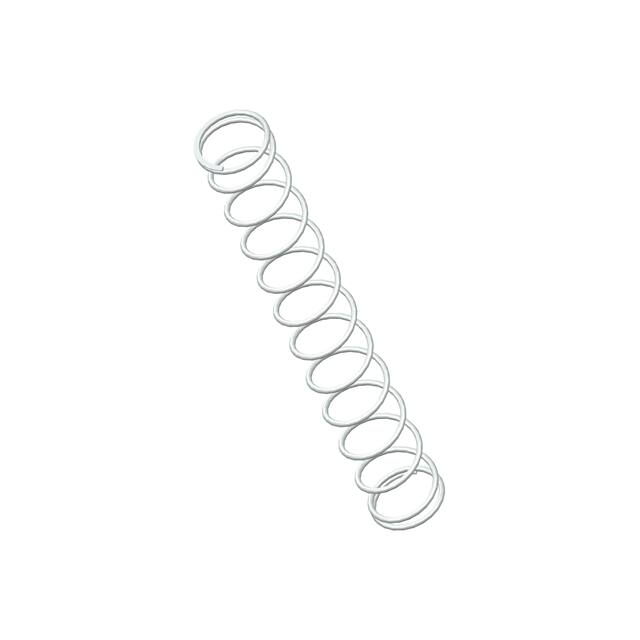

70551SCSCOMP O= .240,L= 1.75,W= .018 |
3,806 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.240 (6.10mm) | 0.204 (5.18mm) | - | - | 1.750 (44.45mm) | - | 1.0 lbs/in | Closed & Ground |
|

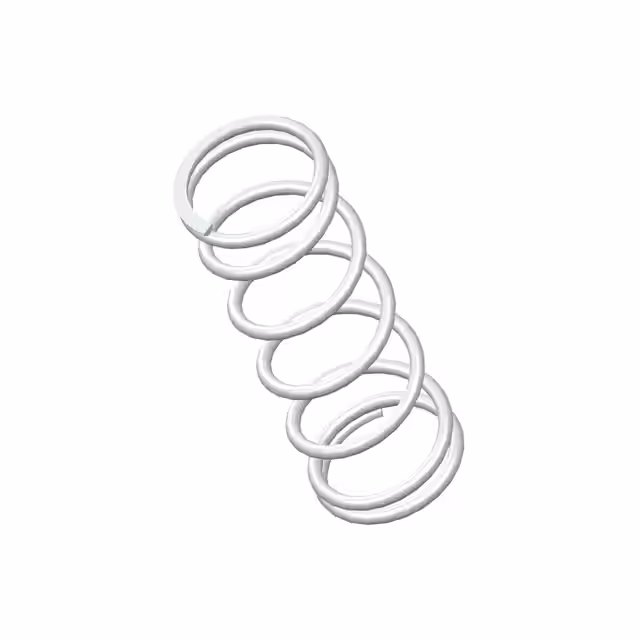

70584SCSCOMP O= .240,L= .69,W= .022 |
2,526 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 0.690 (17.53mm) | - | 5.2 lbs/in | Closed & Ground |
|
70576SCSCOMP O= .240,L= 2.00,W= .020 |
3,211 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 2.000 (50.80mm) | - | 1.1 lbs/in | Closed & Ground |
|

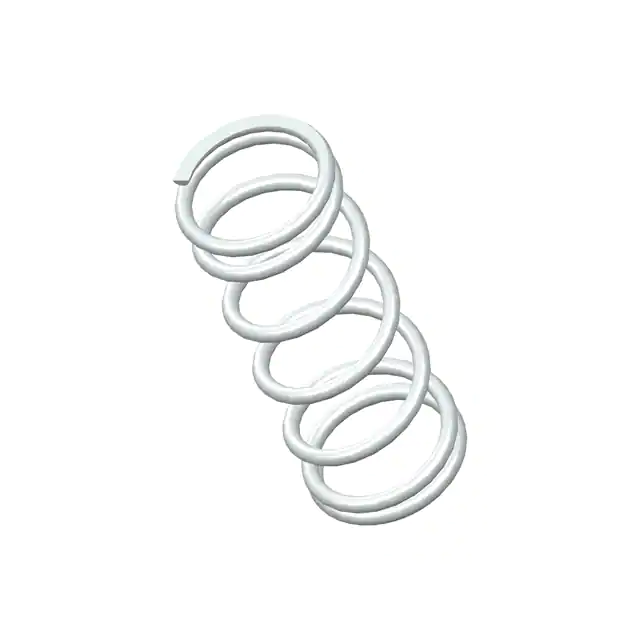

70604SCSCOMP O= .240,L= .63,W= .024 |
965 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.240 (6.10mm) | 0.192 (4.88mm) | - | - | 0.630 (16.00mm) | - | 8.1 lbs/in | Closed & Ground |
|

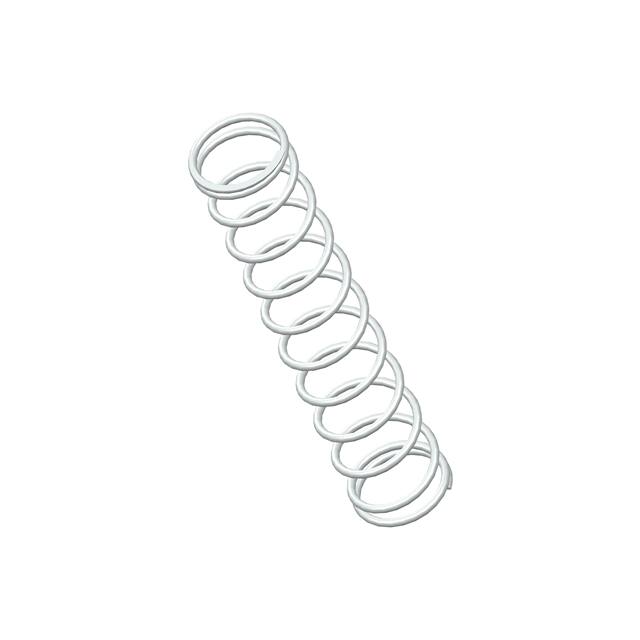

70571SCSCOMP O= .240,L= 1.25,W= .020 |
955 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 1.250 (31.75mm) | - | 1.8 lbs/in | Closed & Ground |
|

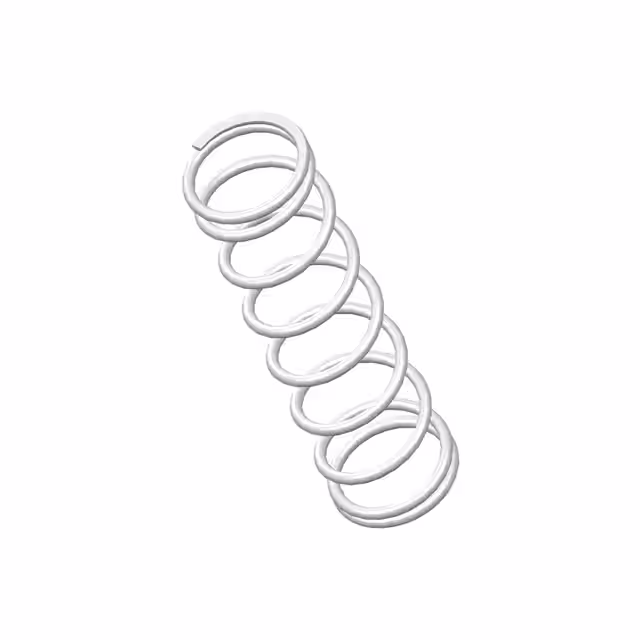

70588SCSCOMP O= .240,L= .88,W= .022 |
880 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 0.880 (22.35mm) | - | 4.0 lbs/in | Closed & Ground |
|

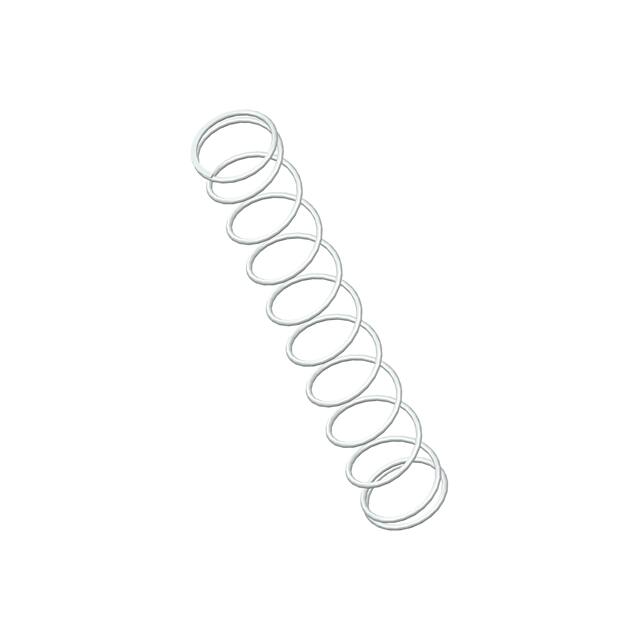

70533SCSCOMP O= .240,L= 1.50,W= .016 |
855 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 1.500 (38.10mm) | - | 0.77 lbs/in | Closed & Ground |
