Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

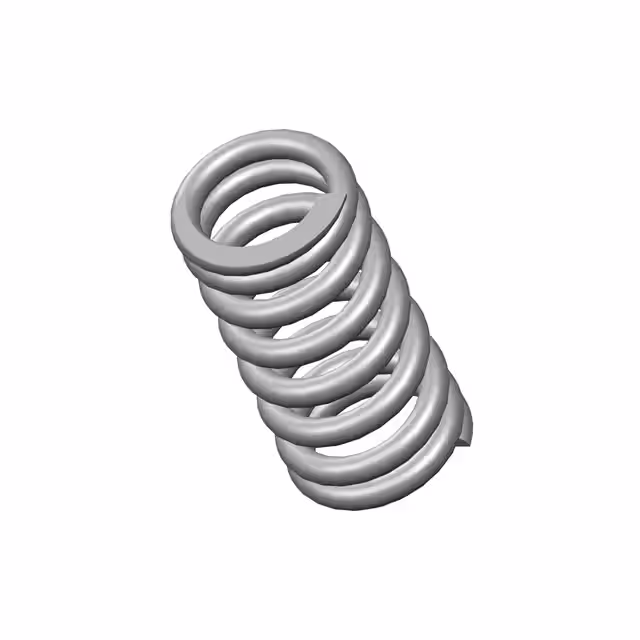

A14-9CSCOMP O= .250,L= .53,W= .039 |
250 | 7.41 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.039 (0.99mm) | 0.250 (6.35mm) | 0.172 (4.37mm) | - | - | 0.530 (13.46mm) | - | 59.0 lbs/in | Closed & Ground |
|

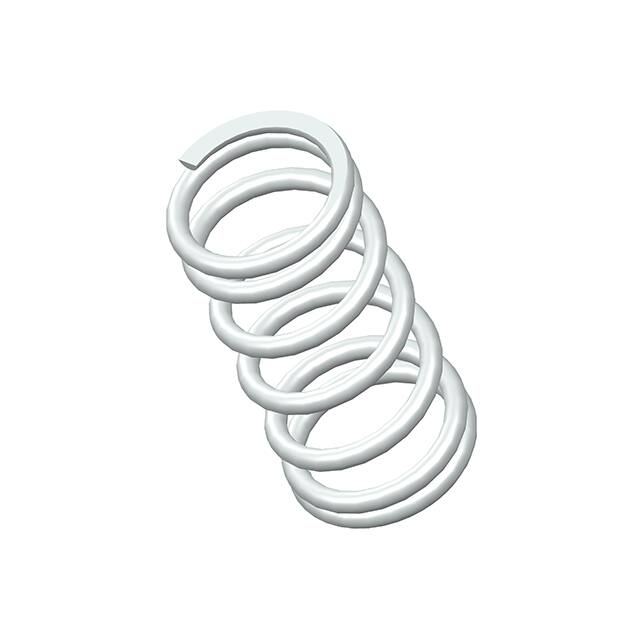

71376SCSCOMP O=.420 L= .88, W= .048 |
630 | 7.42 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.048 (1.22mm) | 0.420 (10.67mm) | 0.324 (8.23mm) | - | - | 0.880 (22.35mm) | - | 26.0 lbs/in | Closed & Ground |
|

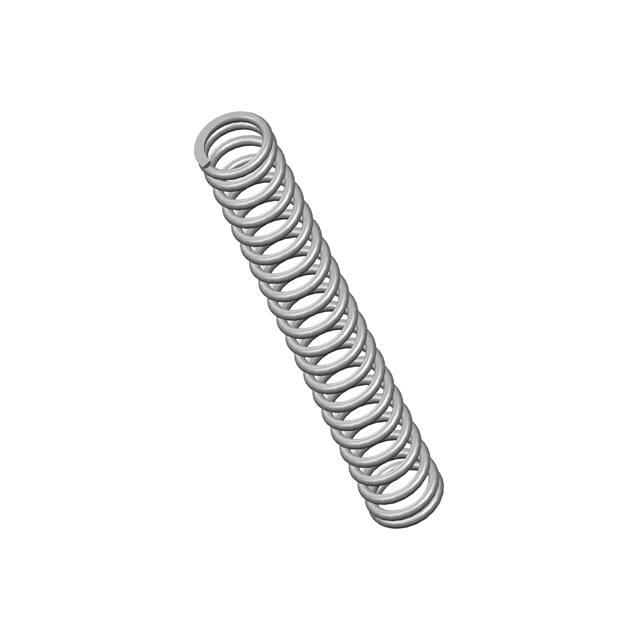

B10-7CSCOMP O= .296,L= 2.09,W= .039 |
499 | 7.42 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.039 (0.99mm) | 0.296 (7.52mm) | 0.218 (5.54mm) | - | - | 2.090 (53.09mm) | - | 10.0 lbs/in | Closed & Ground |
|

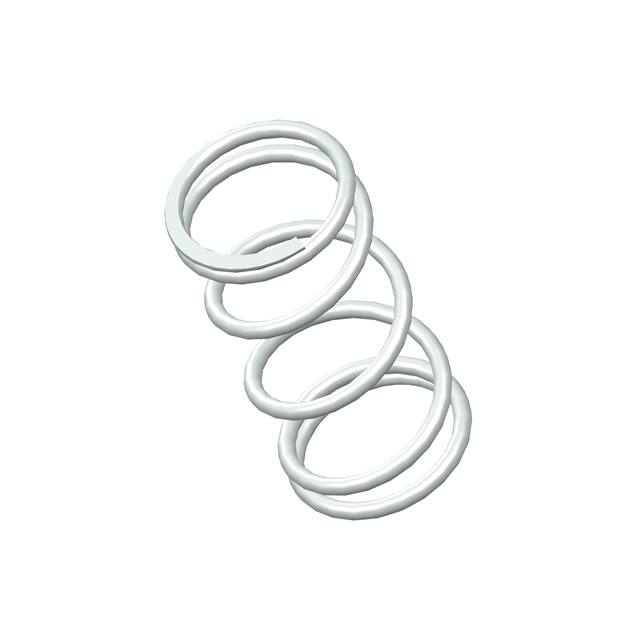

70581SCSCOMP O= .240,L= .50,W=.022 |
3,656 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 0.500 (12.70mm) | - | 7.4 lbs/in | Closed & Ground |
|

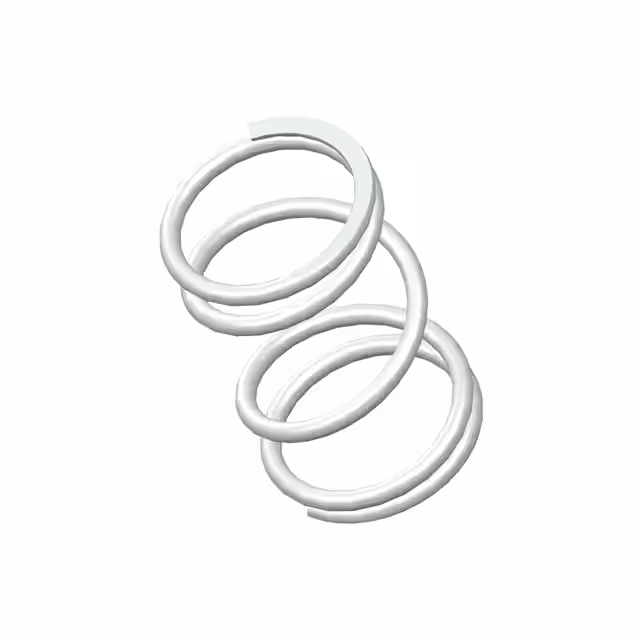

70579SCSCOMP O= .240,L= .38,W= .022 |
3,620 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 0.380 (9.65mm) | - | 10.0 lbs/in | Closed & Ground |
|

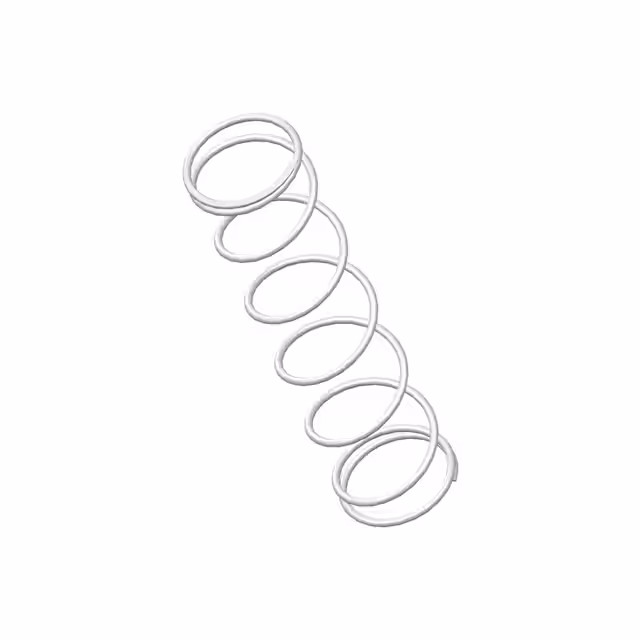

70531SCSCOMP O= .240,L= 1.00,W= .016 |
3,132 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 1.000 (25.40mm) | - | 1.2 lbs/in | Closed & Ground |
|

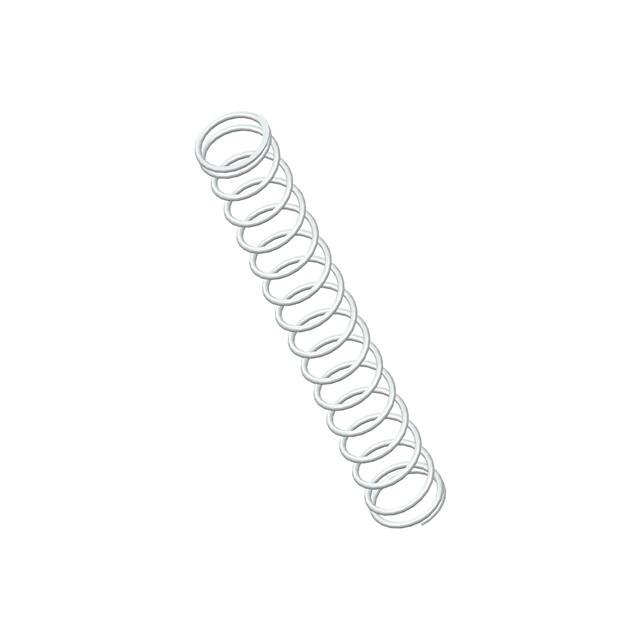

70575SCSCOMP O= .240,L= 1.75,W= .020 |
2,799 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 1.750 (44.45mm) | - | 1.3 lbs/in | Closed & Ground |
|

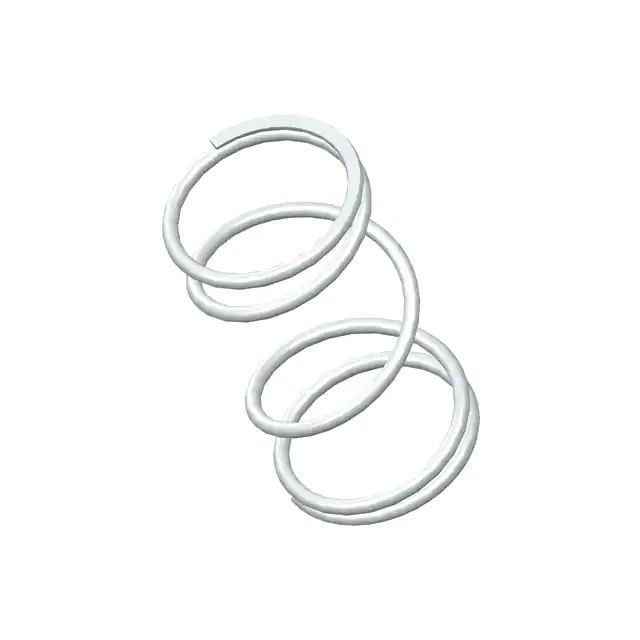

70539SCSCOMP O= .240,L= .44,W= .018 |
2,598 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.240 (6.10mm) | 0.204 (5.18mm) | - | - | 0.440 (11.18mm) | - | 4.3 lbs/in | Closed & Ground |
|

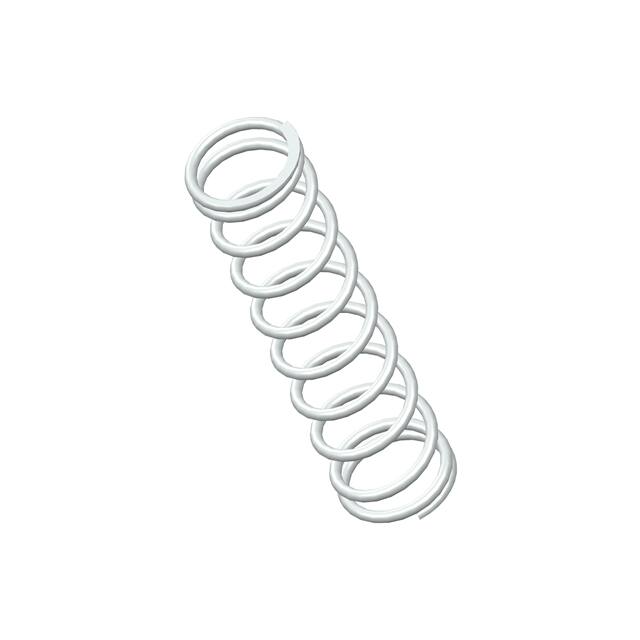

70611SCSCOMP O= .240,L= 1.00,W= .024 |
2,596 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.240 (6.10mm) | 0.192 (4.88mm) | - | - | 1.000 (25.40mm) | - | 4.9 lbs/in | Closed & Ground |
|

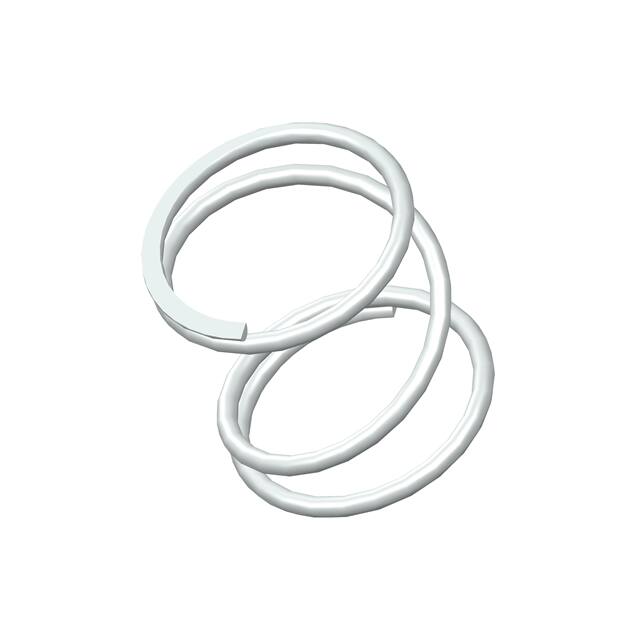

70536SCSCOMP O= .240,L= .25,W= .018 |
3,185 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.240 (6.10mm) | 0.204 (5.18mm) | - | - | 0.250 (6.35mm) | - | 8.0 lbs/in | Closed & Ground |
|

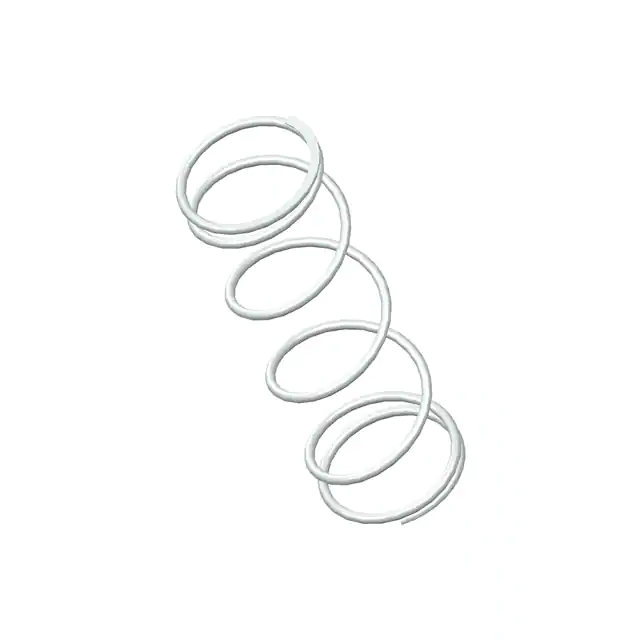

70528SCSCOMP O= .240,L= .75,W= .016 |
2,136 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.750 (19.05mm) | - | 1.6 lbs/in | Closed & Ground |
|

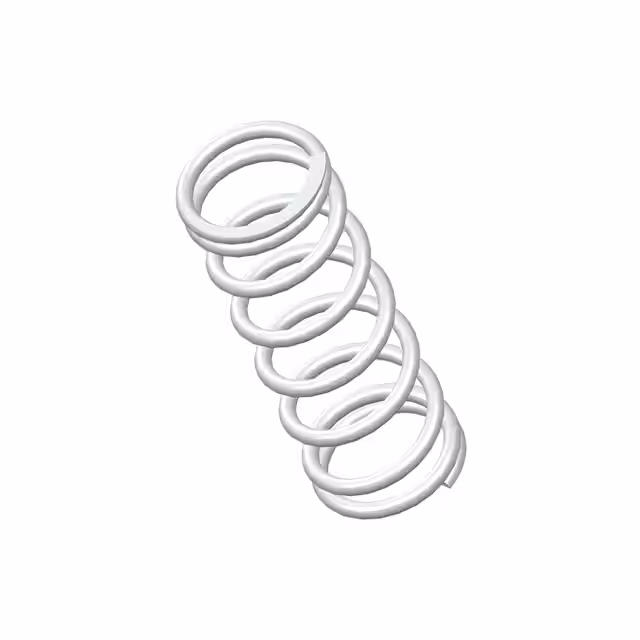

70626SCSCOMP O= .240,L= .69,W= .026 |
3,126 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.240 (6.10mm) | 0.188 (4.78mm) | - | - | 0.690 (17.53mm) | - | 9.4 lbs/in | Closed & Ground |
|

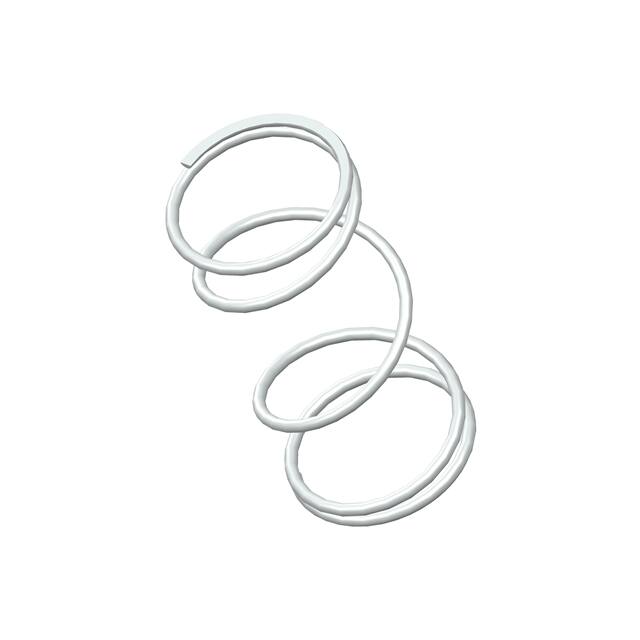

70524SCSCOMP O= .240,L= .50,W= .016 |
3,222 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.500 (12.70mm) | - | 2.5 lbs/in | Closed & Ground |
|

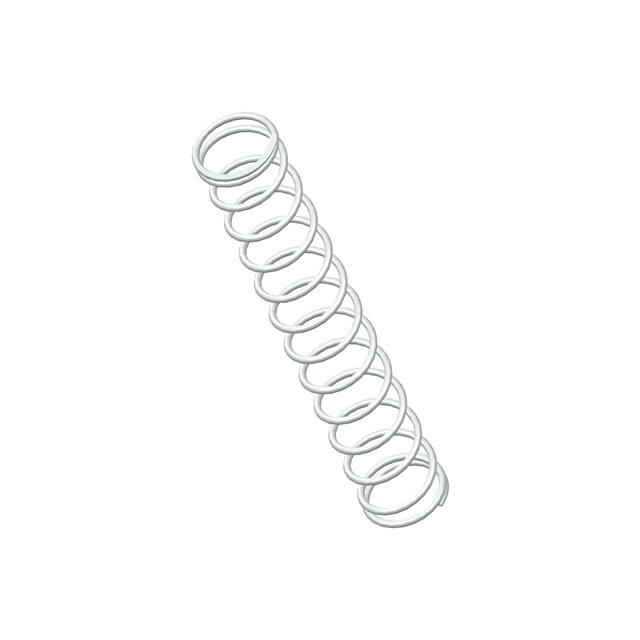

70574SCSCOMP O= .240,L= 1.50,W= .020 |
2,730 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.020 (0.51mm) | 0.240 (6.10mm) | 0.200 (5.08mm) | - | - | 1.500 (38.10mm) | - | 1.5 lbs/in | Closed & Ground |
|

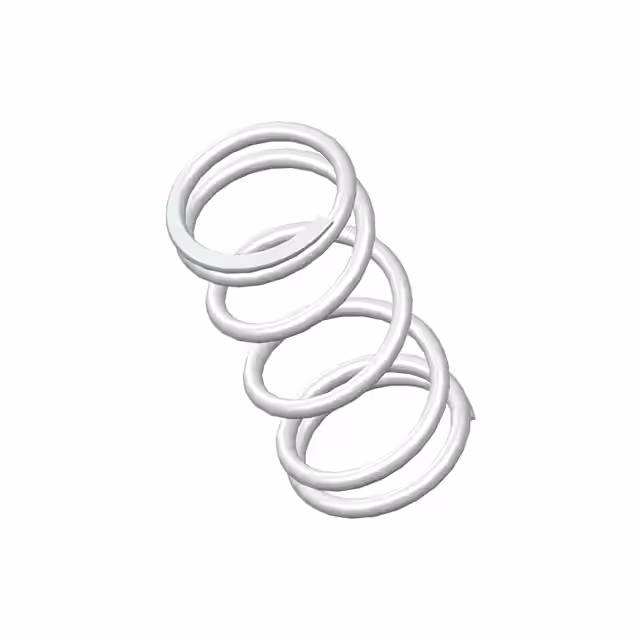

70602SCSCOMP O= .240,L= .50,W= .024 |
3,987 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.240 (6.10mm) | 0.192 (4.88mm) | - | - | 0.500 (12.70mm) | - | 10.0 lbs/in | Closed & Ground |
|

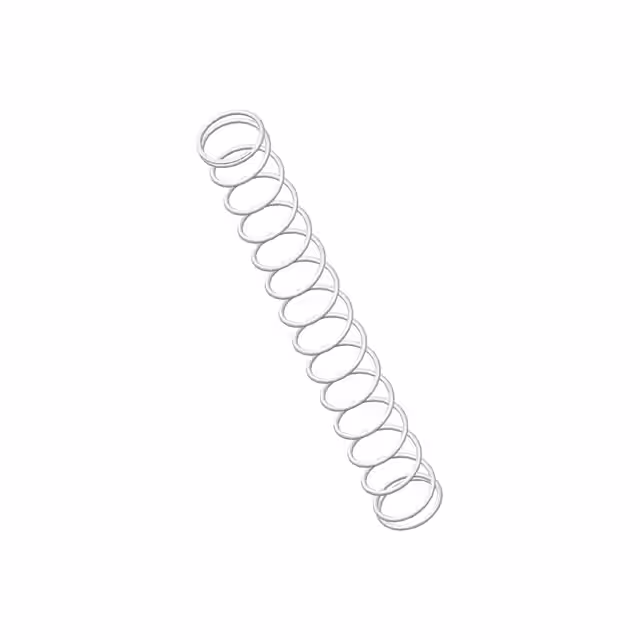

70552SCSCOMP O= .240,L= 2.00,W= .018 |
3,742 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.018 (0.46mm) | 0.240 (6.10mm) | 0.204 (5.18mm) | - | - | 2.000 (50.80mm) | - | 0.85 lbs/in | Closed & Ground |
|

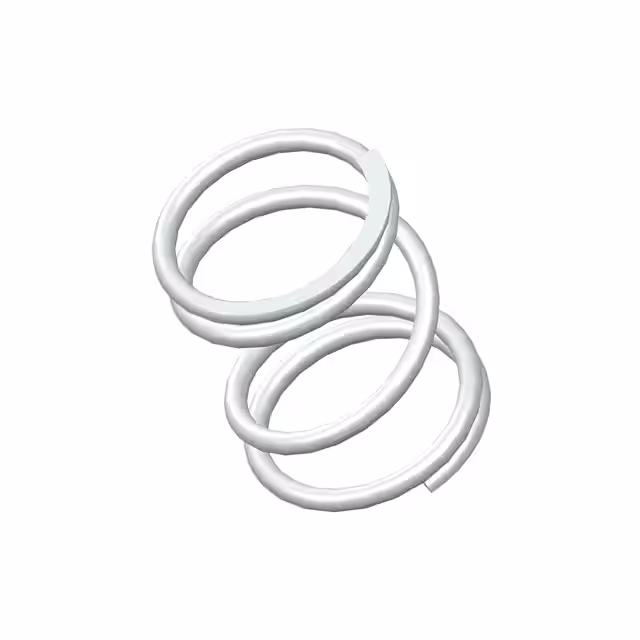

70578SCSCOMP O= .240,L= .31,W= .022 |
2,752 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 0.310 (7.87mm) | - | 12.0 lbs/in | Closed & Ground |
|

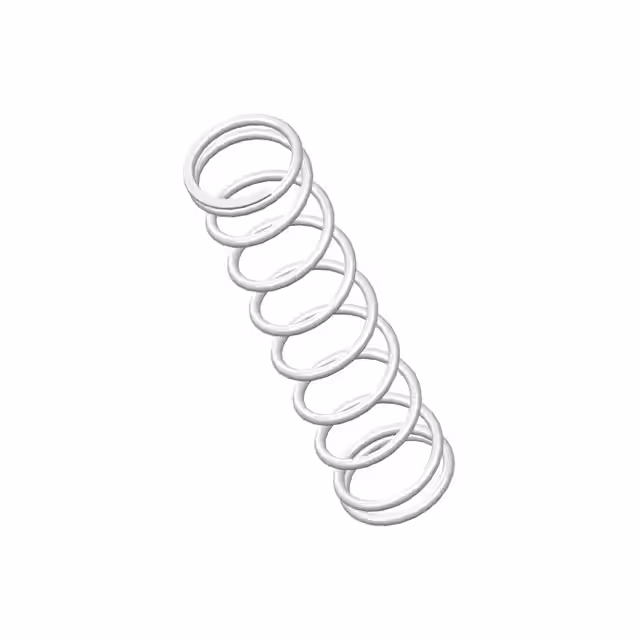

70591SCSCOMP O= .240,L= 1.00,W= .022 |
2,532 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 1.000 (25.40mm) | - | 3.6 lbs/in | Closed & Ground |
|

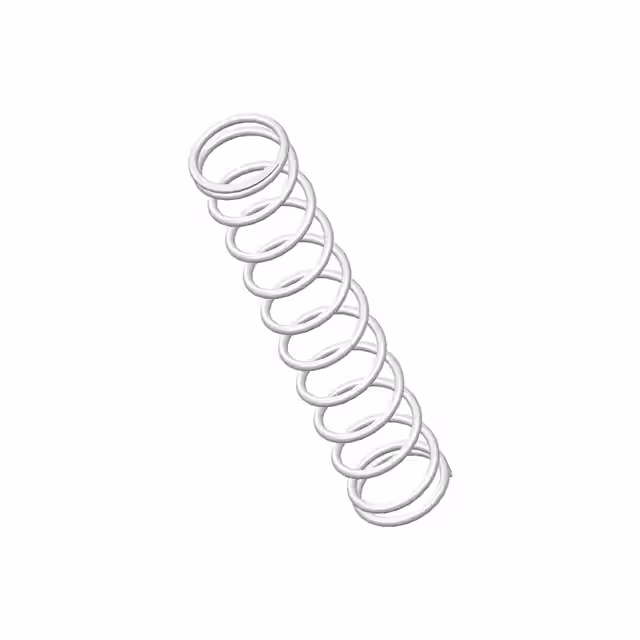

70594SCSCOMP O= .240,L= 1.25,W= .022 |
2,406 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.240 (6.10mm) | 0.196 (4.98mm) | - | - | 1.250 (31.75mm) | - | 2.8 lbs/in | Closed & Ground |
|

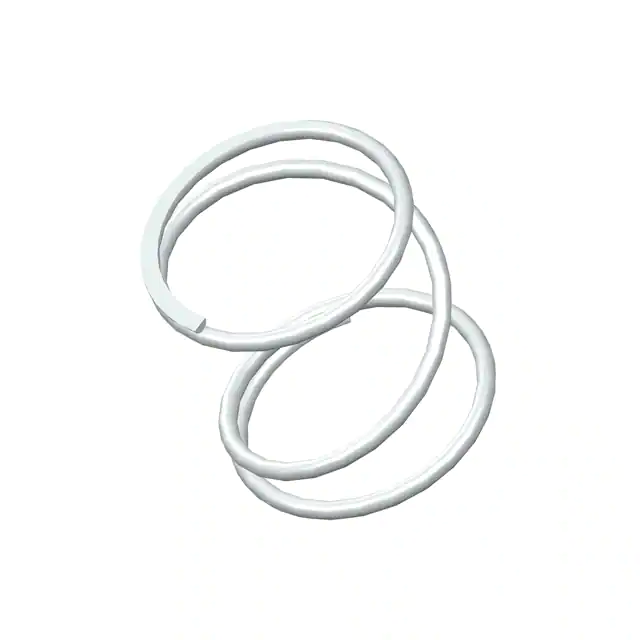

70520SCSCOMP O= .240,L= .25,W= .016 |
2,432 | 7.43 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.016 (0.41mm) | 0.240 (6.10mm) | 0.208 (5.28mm) | - | - | 0.250 (6.35mm) | - | 5.3 lbs/in | Closed & Ground |
