| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

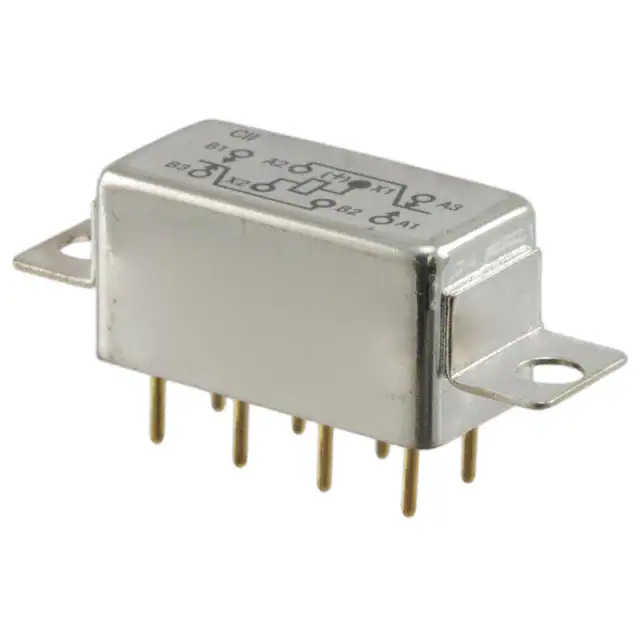

HFW1230K11MRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,392 | 129.13 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

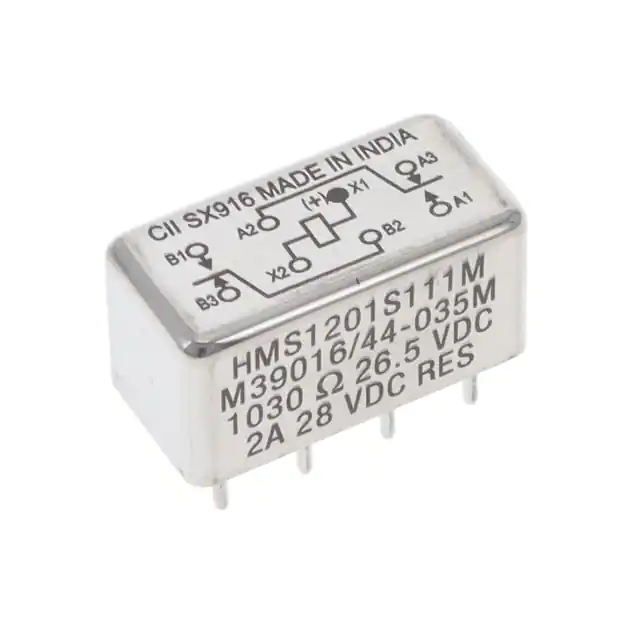

HMS1201S111MHMS1201S111M = M39016/44-035M |
3,946 | 172.31 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/44, HMS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) |
|

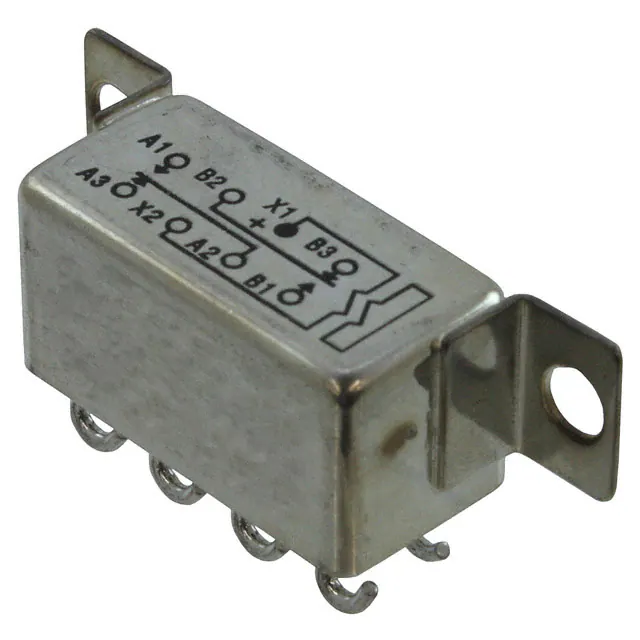

HMB1131K01MRELAY GEN PURPOS DPDT 2A 26.5VDC |
3,289 | 174.25 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/22, HMB, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|

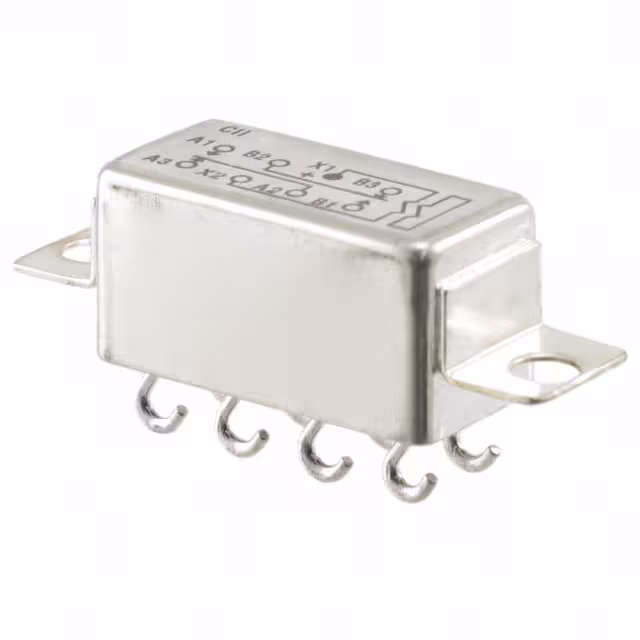

HMB1130K01MRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,528 | 174.25 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/22, HMB, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | - |
|

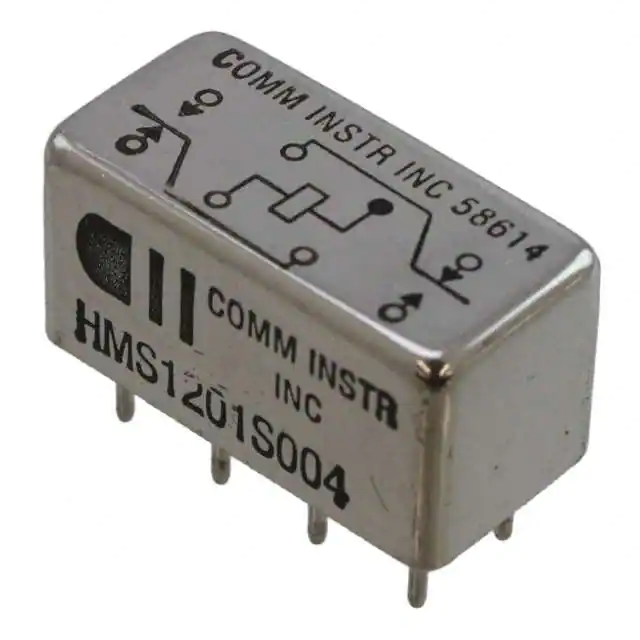

HMS1201S004RELAY GEN PURPOS DPDT 2A 26.5VDC |
3,499 | 174.53 |
RFQ |
Datasheet |
Bulk | HMS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) |
|
3SBC1517A2RELAY GEN PURPOSE DPDT 2A 12VDC |
3,905 | 234.92 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 57.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.4 VDC | 0.6 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

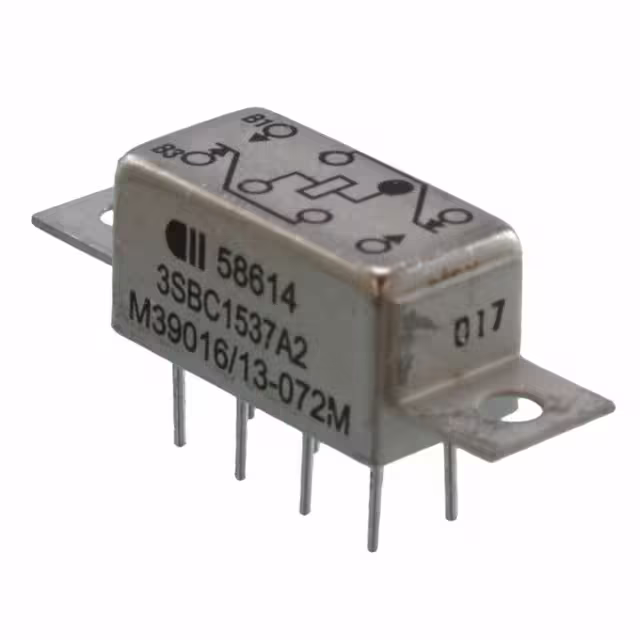

3SBC1537A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
3,445 | 234.92 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

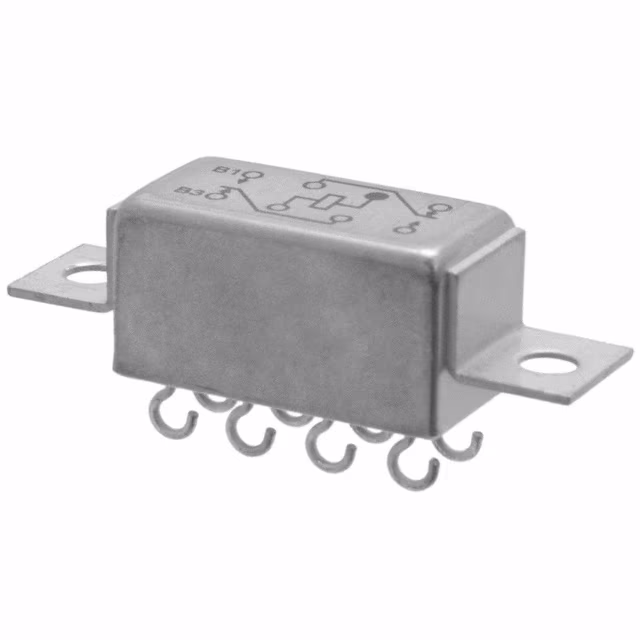

3SBC1527A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,495 | 234.92 |
RFQ |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|

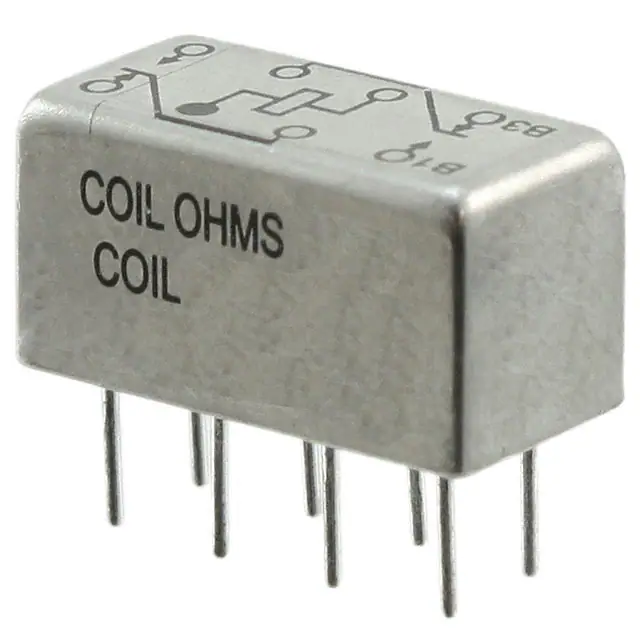

3SBC1518A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,081 | 241.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 8.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

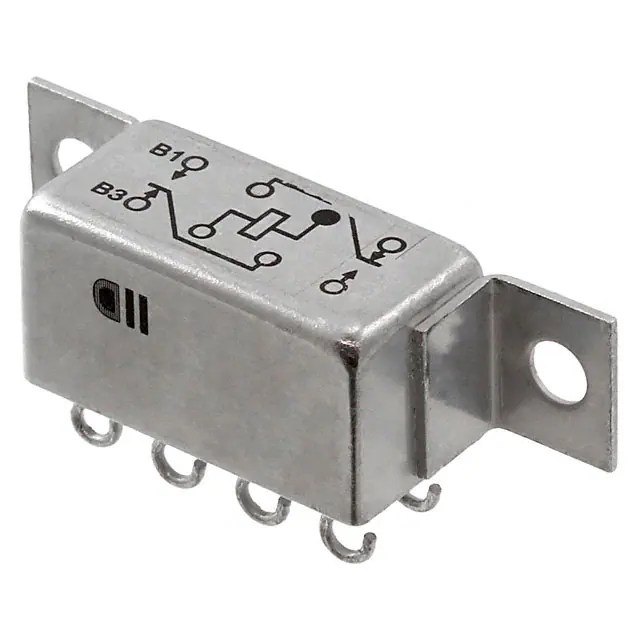

3SBC1506A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,572 | 247.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

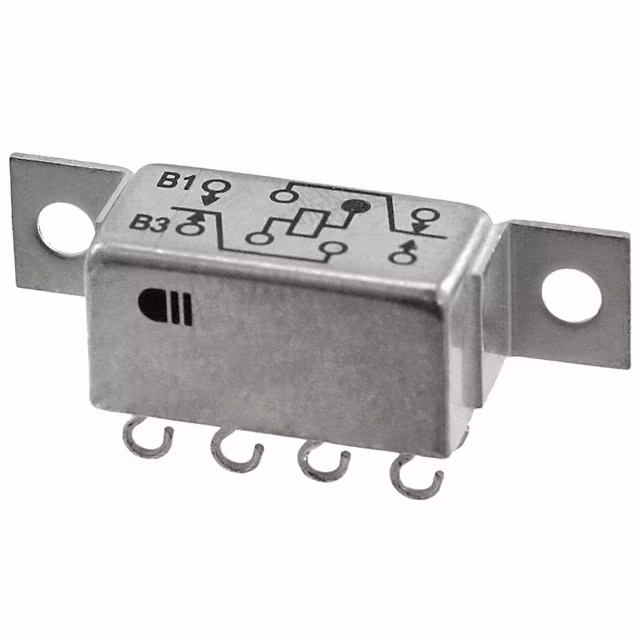

3SBC1521A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,394 | 247.96 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|
|
3SBC2022A2RELAY GEN PURPOSE DPDT 2A 18VDC |
3,680 | 258.53 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Through Hole | 18VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 27.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.5 VDC | 1 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

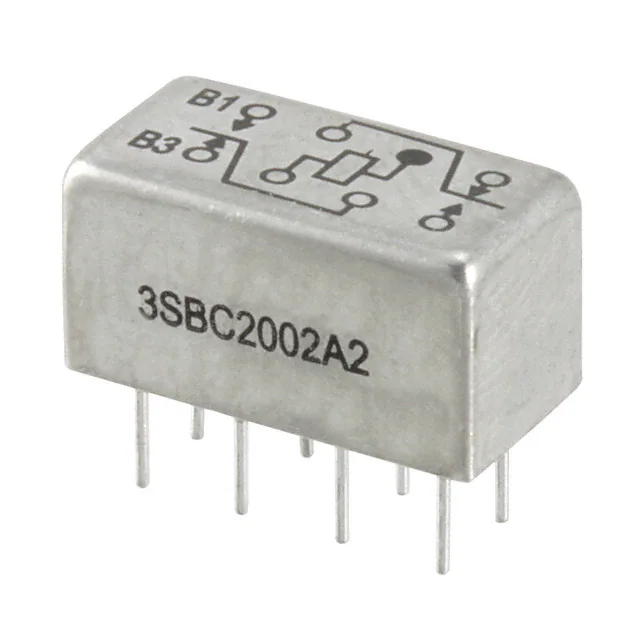

3SBC2002A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,534 | 270.29 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

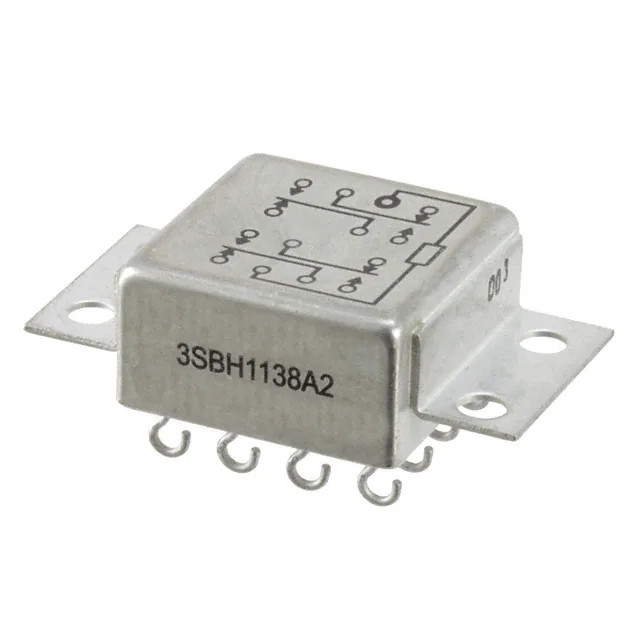

3SBH1138A2RELAY GEN PURPOS 4PDT 2A 26.5VDC |
2,564 | 657.78 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/14, 3SBH, CII | Active | Chassis Mount | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | 36.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

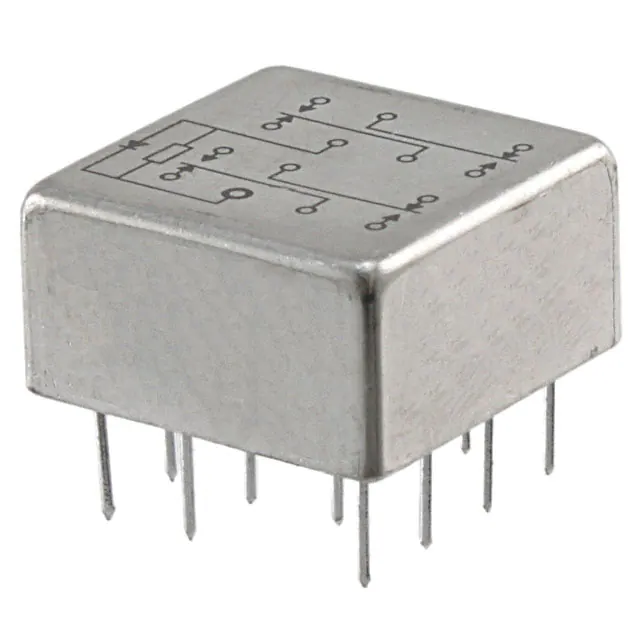

3SBH1231A2RELAY GEN PURPOS 4PDT 2A 26.5VDC |
3,118 | 724.59 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/53, 3SBH, CII | Active | Through Hole | 26.5VDC | 4PDT (4 Form C) | 2 A | 28VDC - Nom | 36.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 6 ms | -65°C ~ 125°C | - |
|
1-1617598-7PR1MSPD-5X=RELAY |
3,258 | 53.34 |
RFQ |
Datasheet |
Box | MS, CII | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 28VDC - Nom | 40 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | - |
|
4-1617118-9J1MAPD-5XL = M39016/23-019L |
2,063 | 69.39 |
RFQ |
Datasheet |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1617121-7JMAC-26XL = M39016/9-062L |
2,430 | 70.44 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1617121-6JMAC-5XM = M39016/9-057M |
2,319 | 70.44 |
RFQ |
Datasheet |
Box | Military, MIL-R-39016/9, MAC, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - |
|
|
4-1617119-7J1MSPD-12XL = M39016/25-027L |
2,861 | 70.50 |
RFQ |
Datasheet |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
