| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

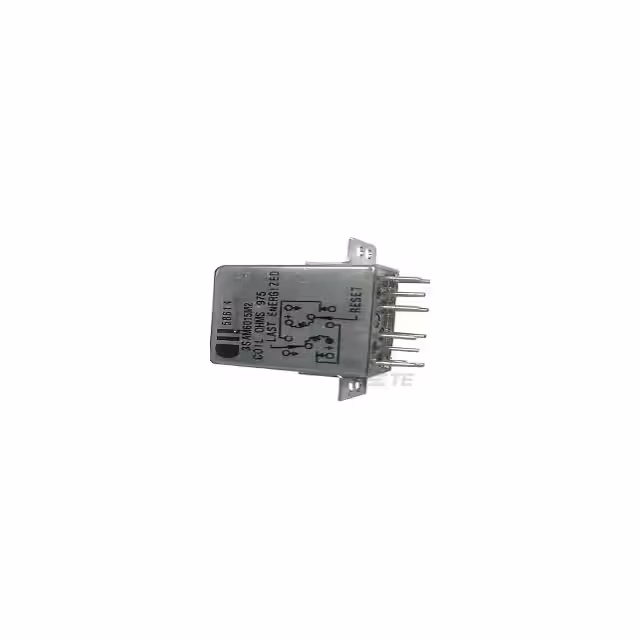

8-1617349-93SAM1821A2=M39016/32-003 |
2,602 | 1516.87 |
RFQ |
Datasheet |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

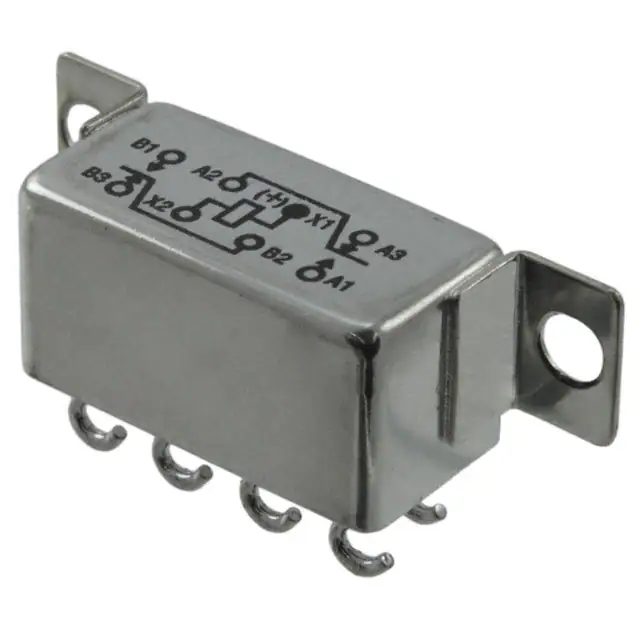

HFW1131K04MRELAY GEN PURPOS DPDT 2A 26.5VDC |
3,808 | 121.47 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|
PRMAC-26XRELAY GEN PURPOS DPDT 1A 26.5VDC |
3,424 | 58.10 |
RFQ |
Datasheet |
Bulk | PRMA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - |
|

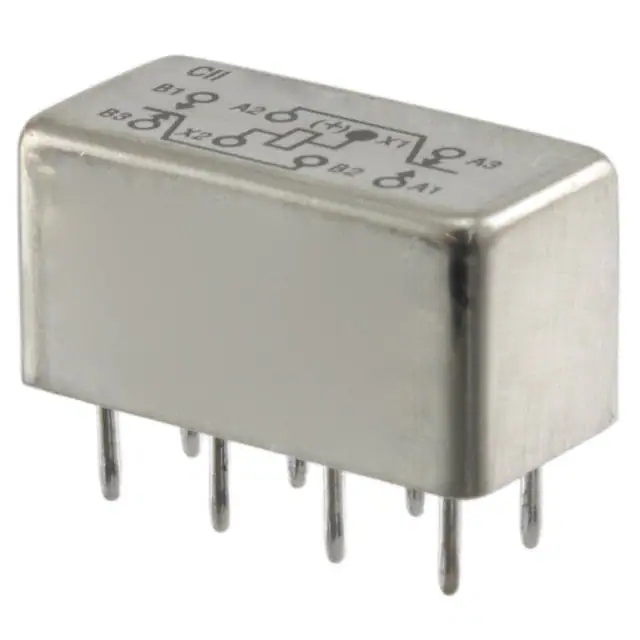

HFW1201L02MRELAY GEN PURPOSE DPDT 2A 5VDC |
2,262 | 120.26 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 185 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | - | - | -65°C ~ 125°C | - |
|

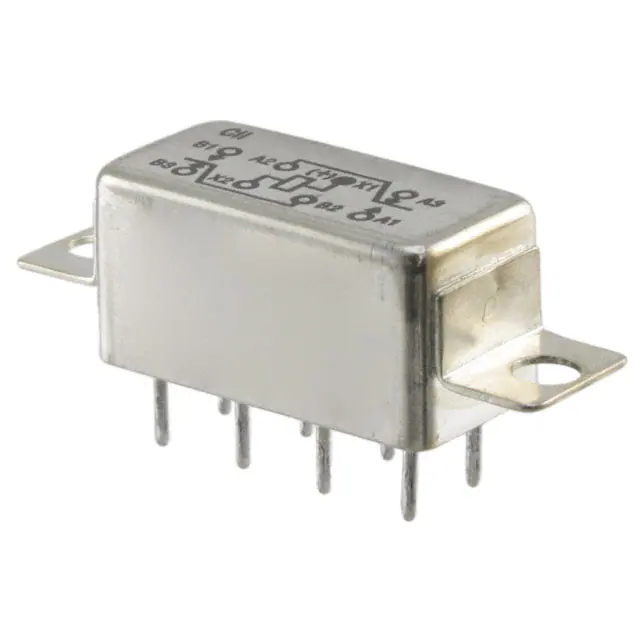

HFW1230K06MRELAY GEN PURPOS DPDT 2A 26.5VDC |
3,944 | 120.26 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

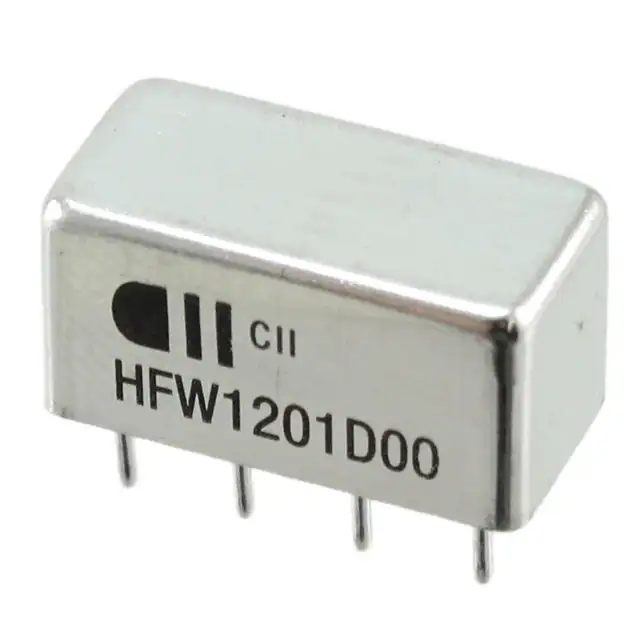

HFW1201D00RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,743 | 152.08 |
RFQ |
Datasheet |
Bulk | HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 25.8 mA | Non Latching | - | PC Pin | - | - | 14 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|
5-1617032-8RELAY GEN PURPOS DPDT 2A 26.5VDC |
100 | 162.61 |
RFQ |
Datasheet |
Bulk | HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 30VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 2 ms | -65°C ~ 125°C | - |
|

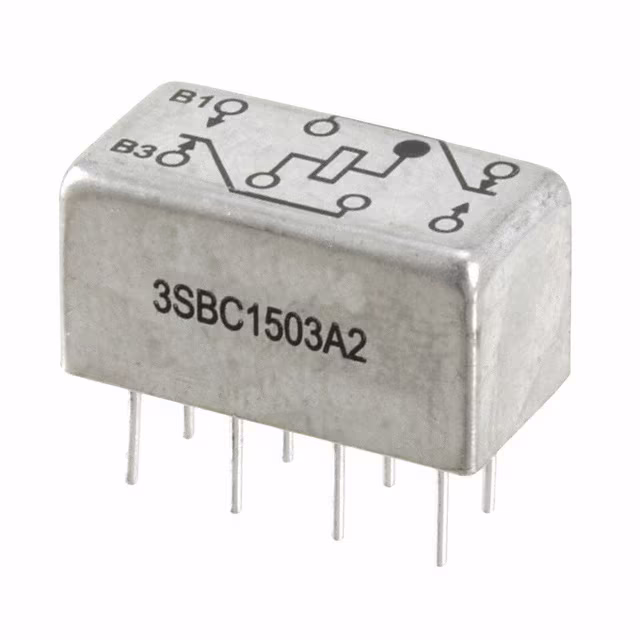

3SBC1503A2RELAY GEN PURPOS DPDT 2A 26.5VDC |
3,607 | 244.22 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/13, 3SBC, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|
JMACD-5XPRELAY GEN PURPOSE DPDT 1A 5VDC |
2,154 | 88.33 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/15, MAD, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|
|
JMACD-26XMRELAY GEN PURPOS DPDT 1A 26.5VDC |
3,472 | 107.70 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/15, MAD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|

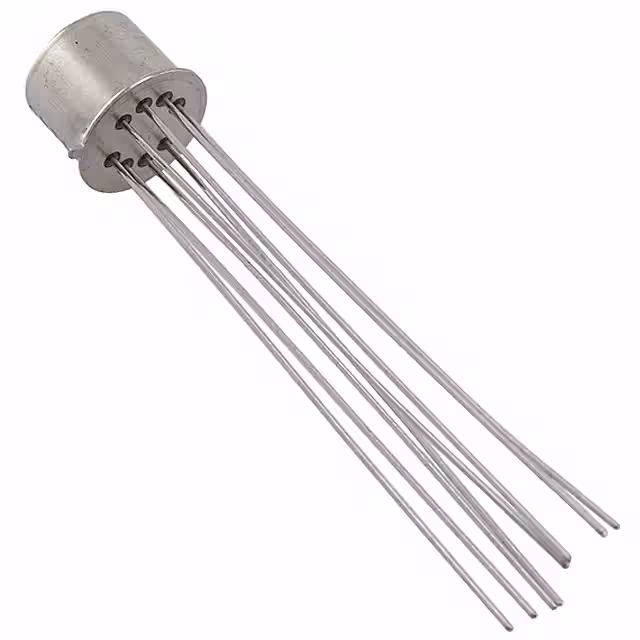

JMAW-26XLRELAY GEN PURPOS DPDT 1A 26.5VDC |
3,292 | 112.99 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/9, MA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
|

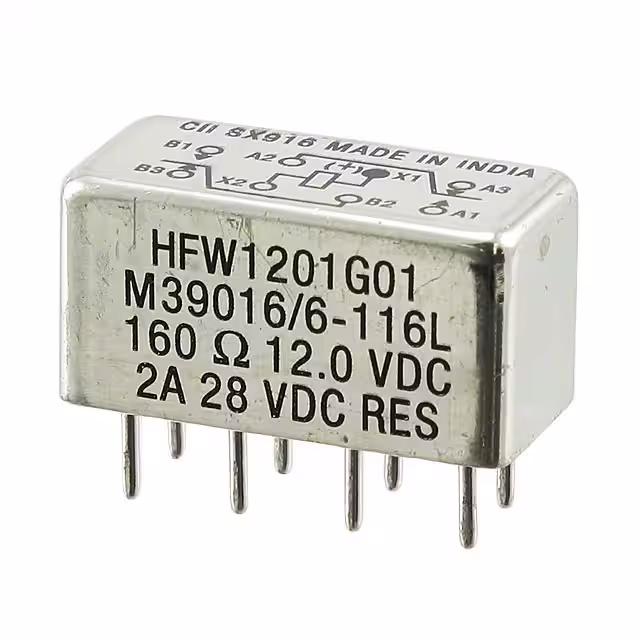

HFW1201G01RELAY GEN PURPOSE DPDT 2A 12VDC |
3,133 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

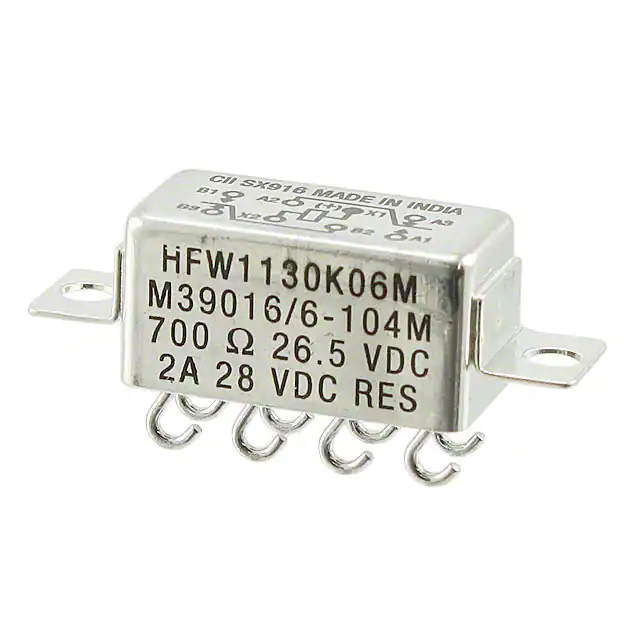

HFW1130K06MRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,020 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

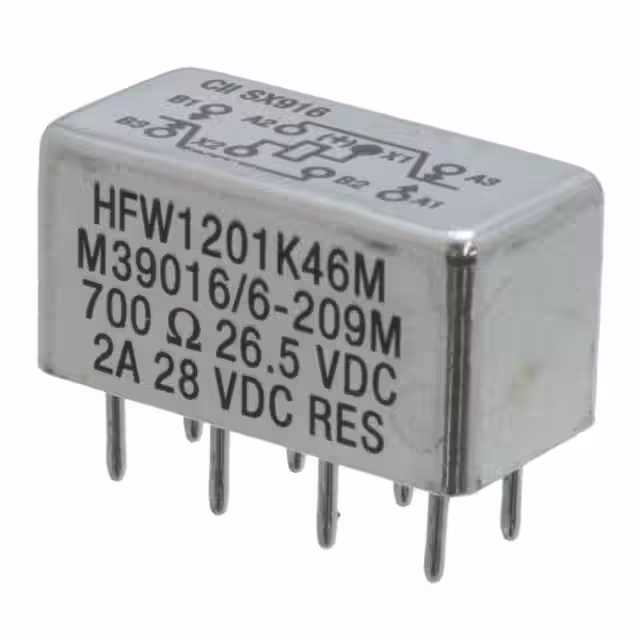

HFW1201K46MRELAY GEN PURPOS DPDT 2A 26.5VDC |
3,944 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

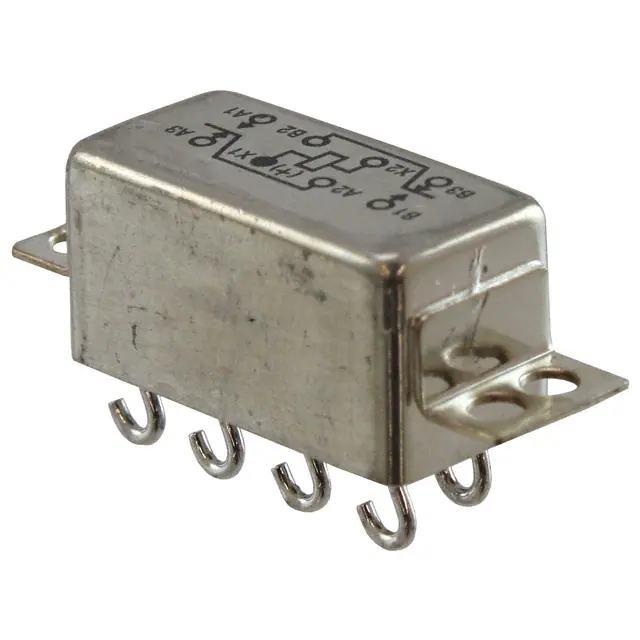

HFW1106K12RELAY GEN PURPOS DPDT 2A 26.5VDC |
3,405 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|

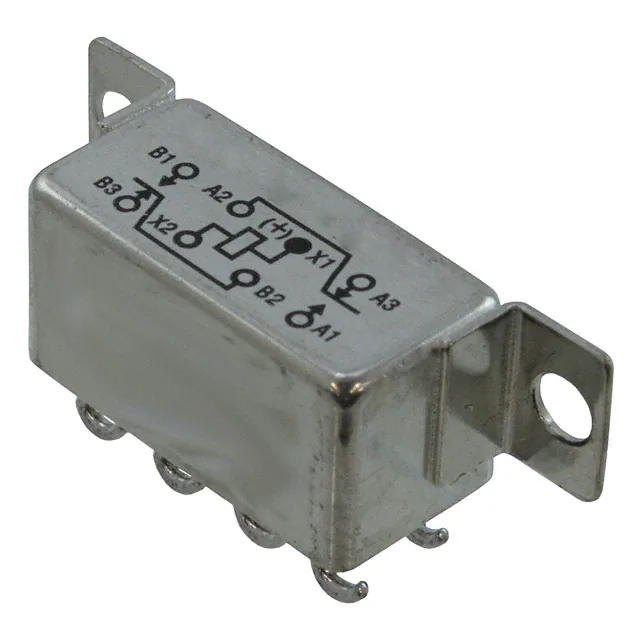

HFW1131K05MRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,035 | 115.68 |
RFQ |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | |
|

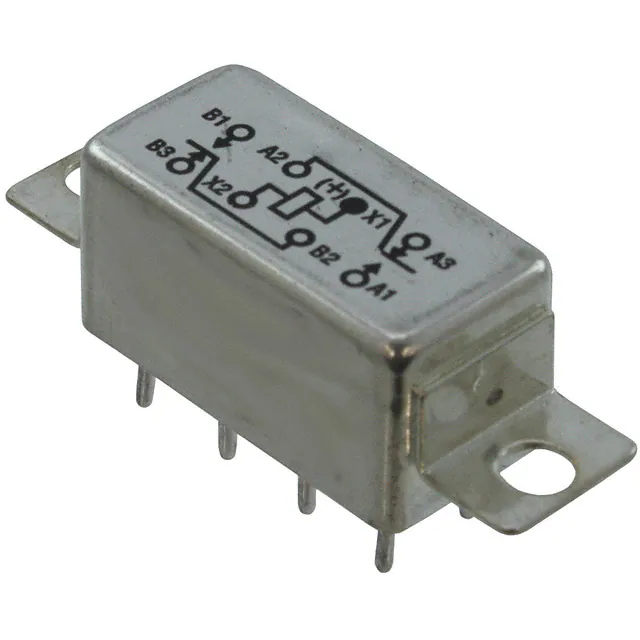

HFW1230K06RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,155 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

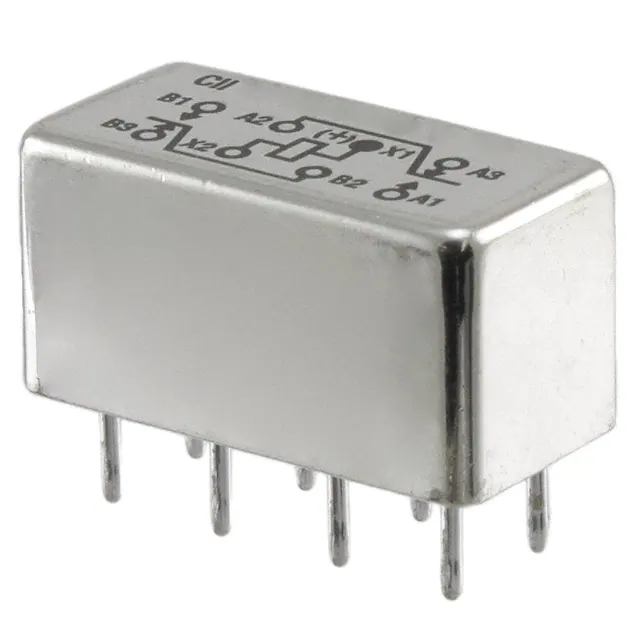

HFW1201K46RELAY GEN PURPOS DPDT 2A 26.5VDC |
2,627 | 115.68 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

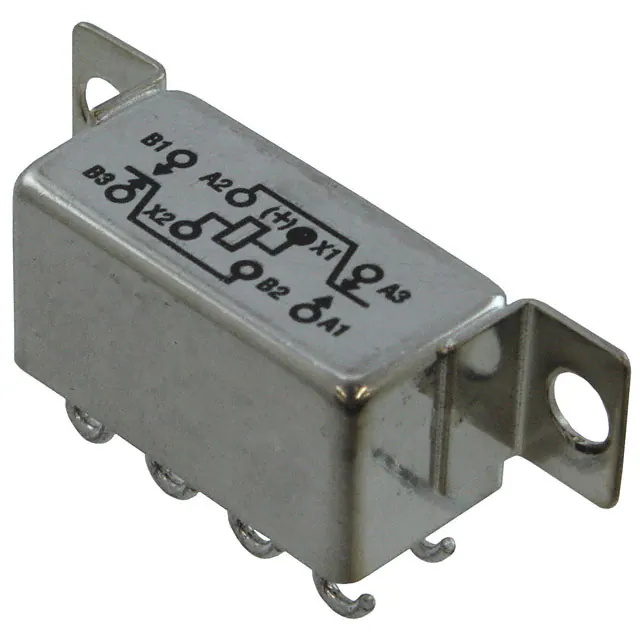

HFW1131K04PRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,330 | 127.71 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/6, HFW, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|

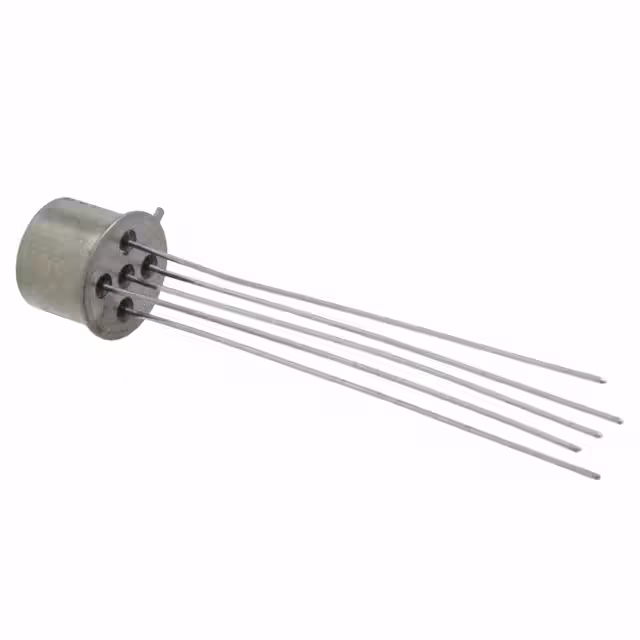

J1MACD-26XMRELAY GEN PURPOS SPDT 1A 26.5VDC |
2,188 | 128.66 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/23, 1MAD, CII | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
