| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617051-4FW1101S06 = SUPERCEDES 3SAF500 |
3,438 | 206.46 |
RFQ |
Datasheet |
Bulk | FW, CII | Active | Chassis Mount | 94 ~ 114VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 63 VDC | 12.5 VDC | 5 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) |
|

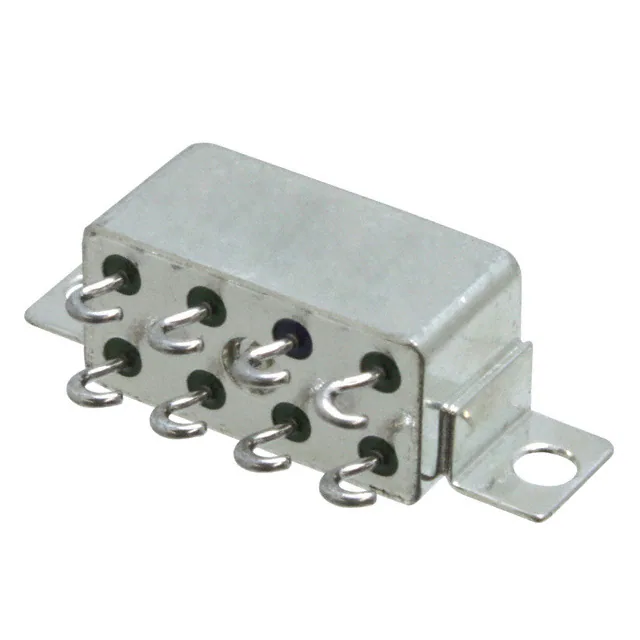

HMS1131S04PRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,997 | 206.87 |
RFQ |
Bulk | Military, MIL-R-39016/44, HMS, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
HMS1201S110PRELAY GEN PURPOSE DPDT 2A 12VDC |
2,669 | 206.87 |
RFQ |
Bulk | Military, MIL-R-39016/44, HMS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.6 VDC | 0.55 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
HMS1201S111PRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,357 | 206.87 |
RFQ |
Bulk | Military, MIL-R-39016/44, HMS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HMS1201S108PHMS1201S108P = M39016/44-008P |
3,775 | 206.87 |
RFQ |
Bulk | HMS, CII | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HMS1130S03PHMS1130S03P = M39016/44-019P |
3,806 | 206.87 |
RFQ |
Bulk | HMS, CII | Active | Chassis Mount | - | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1617039-6HMS1130S04P = M39016/44-028P |
3,703 | 206.87 |
RFQ |
Bulk | Military, MIL-R-39016/44, HMS, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
3-1617039-4HMS1201S118P = M39016/44-053P |
3,098 | 206.87 |
RFQ |
Bulk | HMS | Active | Through Hole | 30VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 18.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.3 VDC | 1.4 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
6-1617039-8HMS1230S01P = M39016/44-002P |
2,380 | 206.87 |
RFQ |
Bulk | HMS | Active | Chassis Mount | 5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 106.4 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.2 VDC | 0.21 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
HMS1201S112PHMS1201S112P = M39016/44-044P |
2,605 | 206.87 |
RFQ |
Bulk | HMS, CII | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
5-1617539-0HMS1230S03P=M39016/44-020P |
3,888 | 206.87 |
RFQ |
Bulk | HMS | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 38.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.6 VDC | 0.55 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
5-1617539-3HMS1230S04P=M39016/44-029P |
3,623 | 206.87 |
RFQ |
Bulk | HMS | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 25.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 11.4 VDC | 1.1 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1617029-1HFW1118K01 = HFW 1/2 SIZE RELA |
2,453 | 207.75 |
RFQ |
Bulk | HFW, CII | Active | - | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | - | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
3SBC5004K1RELAY GEN PURPOS DPDT 2A 26.5VDC |
3,608 | 208.95 |
RFQ |
Bulk | 3SBC, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
1-1617074-0RELAY GENERAL PURPOSE DPDT 2A |
3,860 | 208.95 |
RFQ |
Bulk | 3SBC, CII | Active | - | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | Non Latching | - | - | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | - | |
|
|
3SBC5005K13SBC5005K1 = RELAY |
2,475 | 208.95 |
RFQ |
Bulk | 3SBC, CII | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | Non Latching | - | PC Pin | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
1617343-1HFW1201S219=HFW 1/2 SIZE RELAY |
2,795 | 209.27 |
RFQ |
Bulk | HFW, CII | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
1617052-4SF5047L01 = SF5000 RELAY |
2,704 | 558.45 |
RFQ |
Bulk,Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1617073-83SBC1819A2 = RELAY |
2,551 | 209.99 |
RFQ |
Bulk | 3SBC, CII | Active | - | - | DPDT (2 Form C) | 2 A | - | - | - | - | - | - | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | |
|
|
3SBC5004K1RRELAY GEN PURPOS DPDT 2A 26.5VDC |
2,191 | 212.69 |
RFQ |
Datasheet |
Bulk | 3SBC, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
