RF Directional Coupler(2601)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CouplerType | Frequency | CouplingFactor | Applications | InsertionLoss | Power-Max | Isolation | ReturnLoss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBTC-9-4L+RF DIR COUPLER 5MHZ-1GHZ 5SMD |
3,995 | 4.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 1GHz | 9 ± 0.5dB | Cellular | - | 500mW | - | 32.7dB |
|
DBTC-17-5LX+RF DIR COUPLER 50MHZ-2GHZ 5SMD |
2,713 | 4.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 50MHz ~ 2GHz | 17.2 ± 0.9dB | Cellular, PCS | - | 2W | - | 28.07dB |
|
DCW-9-432+9 DB SMT DIRECTIONAL COUPLER, 23 |
3,581 | 4.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 2.3GHz ~ 4.3GHz | 9dB | General Purpose | - | - | - | - |
|
DCW-22-332+RF DIR CPLR 1.2GHZ-3.3GHZ 0603 |
3,767 | 4.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 1.2GHz ~ 3.3GHz | 22 ± 2dB | PCS, LTE, ISM, UMTS, WiMAX, Wi-Fi | - | 2W | - | 23dB |
|
|
DCW-30-272+RF DIR CPLR 700MHZ-2.7GHZ 0603 |
2,089 | 4.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 700MHz ~ 2.7GHz | 30 ± 1.5dB | PCS | - | 2W | - | 23dB |
|
X3C25P1-05SRF DIR COUPLER 2.3GHZ-2.7GHZ SMD |
3,145 | 5.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger III® | Active | Standard | 2.3GHz ~ 2.7GHz | 5dB | General Purpose | 0.18dB | 60W | - | - |
|

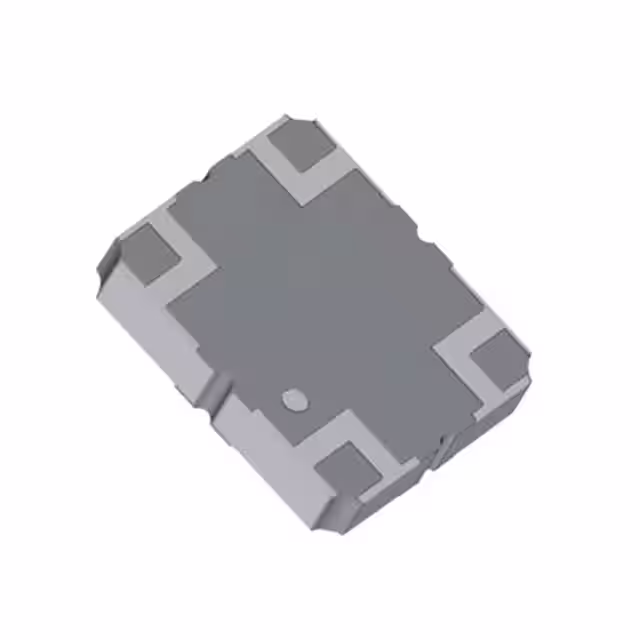

X3C21P1-05SRF DIR COUPLER 2GHZ-2.3GHZ SMD |
546 | 5.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger III® | Active | Standard | 2GHz ~ 2.3GHz | 5dB | General Purpose | 0.15dB | 60W | - | - |
|
MACPCC0001-TRTAPE AND REEL FOR MACPCC0001(COU |
3,458 | 8.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 1.7GHz ~ 2GHz | 17 ± 2dB | General Purpose | 0.3dB | 2W | - | - |
|
BDCN-20-13+RF DIR COUPLER 360MHZ-1GHZ 6SMD |
3,856 | 5.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 360MHz ~ 1GHz | 24dB | General Purpose | - | 16W | - | 35dB |
.JPG)
|
X3C26P1-30SRF DIR COUPLER 2.3GHZ-2.9GHZ SMD |
2,904 | 5.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger III® | Active | Standard | 2.3GHz ~ 2.9GHz | 30dB | LTE, WiMAX | 0.1dB | 200W | - | 24.9dB |
|
X3C09E2-20SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
2,955 | 6.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger III® | Active | Standard | 800MHz ~ 1GHz | 20dB | AMPS, CDMA, WCDMA | 0.075dB | 225W | - | 20dB |
|
X3C70F1-20SIC DIR COUPLR 5.5-8.5GHZ 20DB |
2,062 | 6.64 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5.5GHz ~ 8.5GHz | 20 ± 1.5dB | General Purpose | 0.25dB | 20W | - | 30dB | |
|

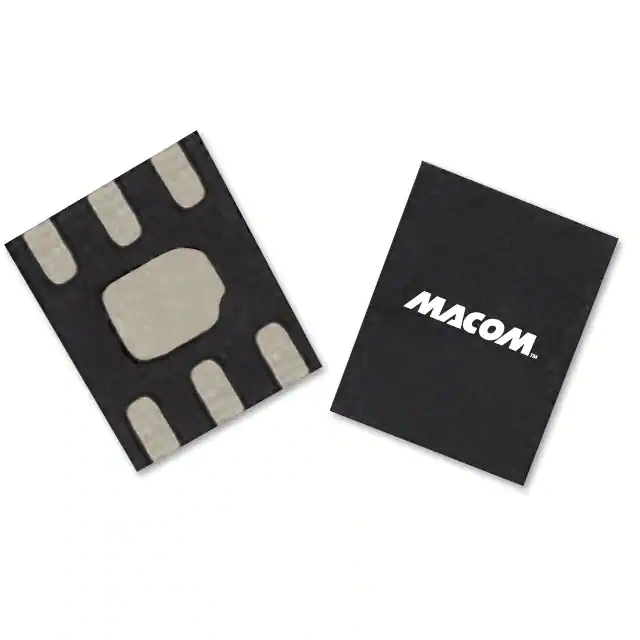

MACP-010571-TR1000RMS POWER DETECTOR 2-6 GHZ |
988 | 7.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 2GHz ~ 6GHz | - | General Purpose | 0.26dB | 30dBm | - | 30dB |
|
|
XC1500A-20SRF DIR COUPLER 1GHZ-2GHZ SMD |
3,445 | 7.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger II® | Active | Standard | 1GHz ~ 2GHz | 20dB | General Purpose | 0.19dB | 160W | - | - |
|
ADC-20-4+RF DIR COUPLER 5MHZ-1GHZ 6SMD |
988 | 9.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 1GHz | 20 ± 0.5dB | General Purpose | - | 1W | - | 36.64dB |
|
|
ADC-20-12+RF DIR CPLR 100MHZ-1.2GHZ 6SMD |
859 | 9.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 100MHz ~ 1.2GHz | 20 ± 0.75dB | General Purpose | - | 1W | - | 30.72dB |
|
|
MACPCC0002COUPLER,PB-EQUIVILENT OF CH20-00 |
500 | 10.47 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 824MHz ~ 960MHz | 17 ± 2dB | General Purpose | 0.3dB | 2W | - | - |
|
|
MACPCC0001COUPLER,DIRECTIONAL, 17 DB |
480 | 10.47 |
RFQ |
Datasheet |
Tube | - | Active | Standard | 1.7GHz ~ 2GHz | 17 ± 2dB | General Purpose | 0.3dB | 2W | - | - |
|
RBDC-20-63+20 DB SMT RF TAP COUPLER, DC |
496 | 11.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 0Hz ~ 6GHz | 20dB | LTE, PCS, WiMAX | 1.1dB | - | - | 20dB |
|
|
ADC-10-1R+RF DIR COUPLER 5MHZ-900MHZ 6SMD |
966 | 12.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 900MHz | 10.5 ± 0.5dB | General Purpose | - | 1W | - | 33.86dB |
