RF Directional Coupler(2601)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CouplerType | Frequency | CouplingFactor | Applications | InsertionLoss | Power-Max | Isolation | ReturnLoss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPC06153COUPLER |
2,651 | 32.32 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 8GHz ~ 12GHz | 21 ± 1dB | General Purpose | 0.3dB | - | - | 15dB |
|
FPC06150COUPLER |
3,794 | 32.32 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 8GHz ~ 12GHz | 11 ± 1dB | General Purpose | 0.3dB | - | - | 12dB |
|

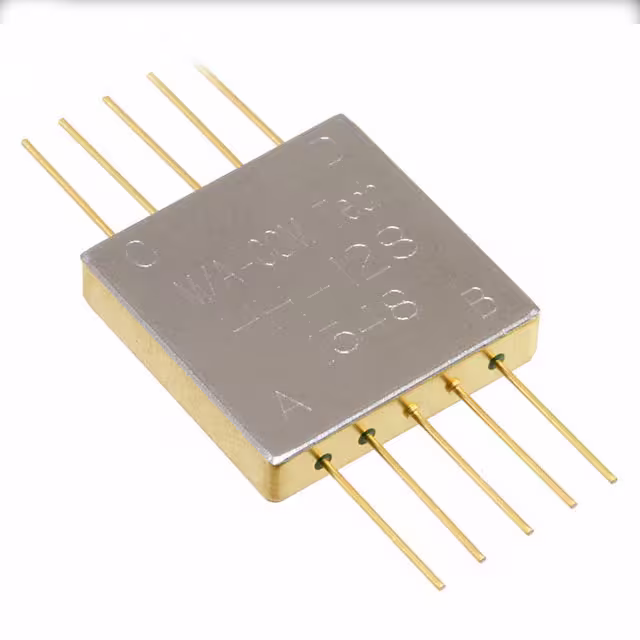

HH-128-PINRF DIR COUPLER 20MHZ-2GHZ FPCASE |
2,190 | 270.66 |
RFQ |
Datasheet |
Bulk | - | Active | Standard | 20MHz ~ 2GHz | - | - | 1.5dB | 500mW | 20dB | - |
|
ZFDC-20-50B-S+DIR COUP / SMA / BKT / ROHS |
2,471 | 99.38 |
RFQ |
Tray | - | Active | Standard | 20MHz ~ 2GHz | 19.5 ± 0.5dB | General Purpose | - | 1W | - | 32.91dB | |
|
|
ZFDC-20-5-S+DIR COUP / SMA / ROHS |
2,169 | 140.83 |
RFQ |
Tray | - | Active | Standard | 100kHz ~ 2GHz | 19.5 ± 0.5dB | General Purpose | - | 2W | - | 27.83dB | |
|
|
ZFDC-10-5-S+DIR COUP / SMA ROHS |
3,280 | 140.83 |
RFQ |
Tray | - | Active | Standard | 1MHz ~ 2GHz | 10.8 ± 0.5dB | General Purpose | - | 500mW | - | 31.26dB | |
|
ZABDC20-252H-S+BI-DIR COUP / SMA / ROHS |
3,432 | 171.55 |
RFQ |
Tray | - | Active | Standard | 800MHz ~ 2.5GHz | 23 ± 1dB | General Purpose | - | 100W | - | 49.29dB | |
|
|
EHF-4CT0835RF DIR COUPLER 835MHZ 0603 |
462 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Standard | 835MHz | 20dB | Cellular | 0.25dB | 5W | 30dB | - |
.jpg)
|
DC1722J5020AHFRF DIR COUPLER 1.7-2.2GHZ 0805 |
787 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger® | Active | Standard | 1.7GHz ~ 2.2GHz | 19.9dB | General Purpose | 0.17dB | 2W | - | 22.5dB |
|
MACP-011013RF DIR COUPLER 5MHZ-1.5GHZ 6SMD |
3,183 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 1.5GHz | 20dB | General Purpose | 1.2dB | 500mW | 27dB | 22dB |
|

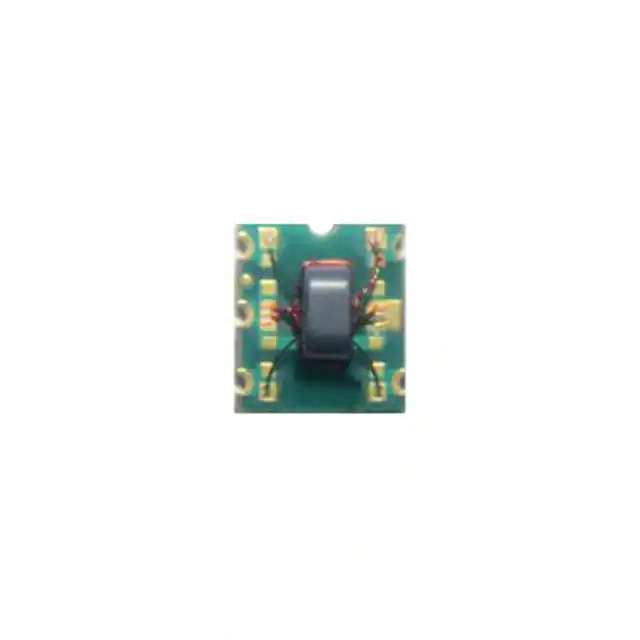

MACP-0110509DB COUPLER 5 - 1225 MHZ |
768 | 2.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 1.225GHz | 9dB | General Purpose | - | - | 42dB | - |
|
MACP-01105810 DB COUPLER 5-1225 MHZ |
3,646 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 1.25GHz | 10dB | General Purpose | - | 2W | 42dB | 25dB |
|
C3027NLTRF DIR COUPLER 5MHZ-900MHZ 6SMD |
2,536 | 4.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 5MHz ~ 900MHz | 16dB | General Purpose | 1.3dB | - | 18dB | -19dB |
|
XC1900A-03SRF DIR COUPLER 1.4GHZ-2GHZ SMD |
2,334 | 5.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Xinger II® | Active | Standard | 1.4GHz ~ 2GHz | 3dB | AMPS | 0.15dB | 150W | 25dB | 24.9dB |
|
SYD-20-33+RF DIR COUPLER 30MHZ-3GHZ 8SMD |
2,396 | 26.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 30MHz ~ 3GHz | 21.5 ± 0.5dB | General Purpose | - | 1W | - | 34.45dB |
|
SEDC-10-63+RF DIR COUPLER 50MHZ-6GHZ 24SMD |
2,494 | 89.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Standard | 50MHz ~ 6GHz | 10dB | General Purpose | - | 1W | - | 18dB |
|
|
JH-114-PINHYBRID,QUADRATURE |
2,789 | 160.35 |
RFQ |
Datasheet |
Tray | - | Active | Standard | 20MHz ~ 40MHz | - | General Purpose | 0.5dB | 5W | 20dB | - |
|

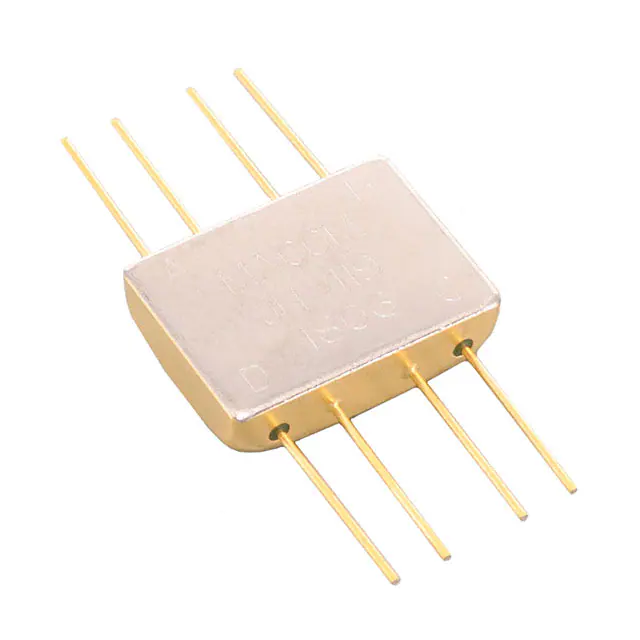

JH-119-PINHYBRID,QUADRATURE |
2,729 | 160.35 |
RFQ |
Datasheet |
Tray | - | Active | Standard | 80MHz ~ 160MHz | - | General Purpose | 0.75dB | 4W | 20dB | - |
|

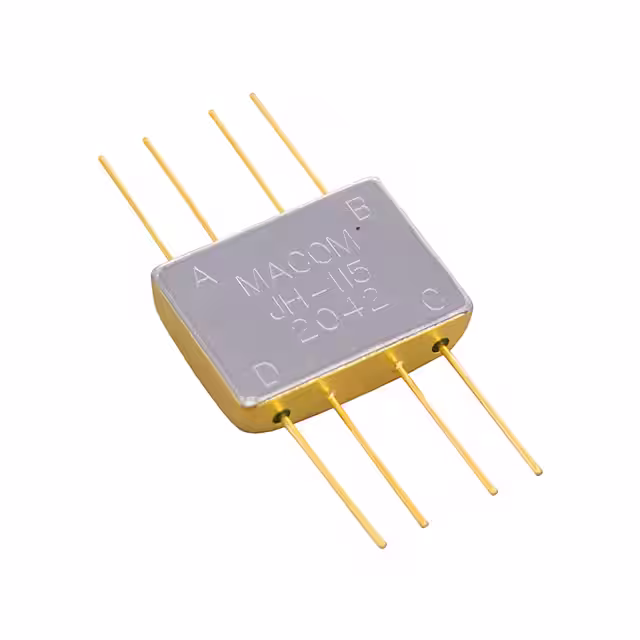

JH-115-PINHYBRID,QUADRATURE |
3,047 | 160.35 |
RFQ |
Datasheet |
Tray | - | Active | Standard | 40MHz ~ 80MHz | - | General Purpose | 0.5dB | 1W | 20dB | - |
|
HHS-109-PINHYBRID,BROAD-BAND,180_DEG |
3,037 | 22.00 |
RFQ |
Datasheet |
Tray | - | Active | Standard | 5MHz ~ 200MHz | - | General Purpose | 1.4dB | 500mW | 30dB | - |
