| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1-12-2ARELAY REED TWIN N/O 1.5KV 12V |
3,543 | 22.18 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
S1-05-2ARELAY REED TWIN N/O 1.5KV 5V |
3,471 | 22.18 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
S1-0504MRELAY REED 4KV SPST 5V SIP SCREE |
3,254 | 22.25 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-1204DRELAY REED 4KV SPST 12V SIP W/DI |
3,572 | 22.25 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-0504DMRELAY REED 4KV SPST 5V SIP W/DIO |
3,446 | 23.16 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S1-1204DMRELAY REED 4KV SPST 12V SIP W/DI |
2,516 | 23.16 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|

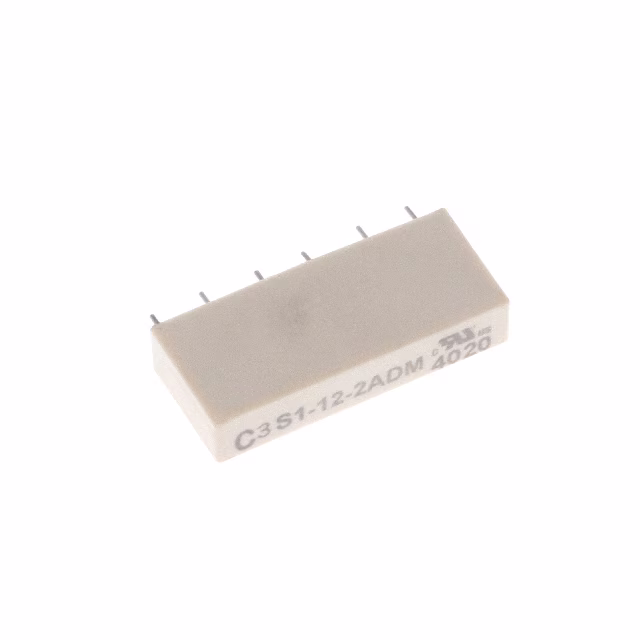

S1-12-2ADMRELAY REED TWIN N/O 1.5KV 12V |
2,899 | 24.48 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|
|
S1-05-2ADMRELAY REED TWIN N/O 1.5KV 5V |
2,602 | 24.48 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C |
|

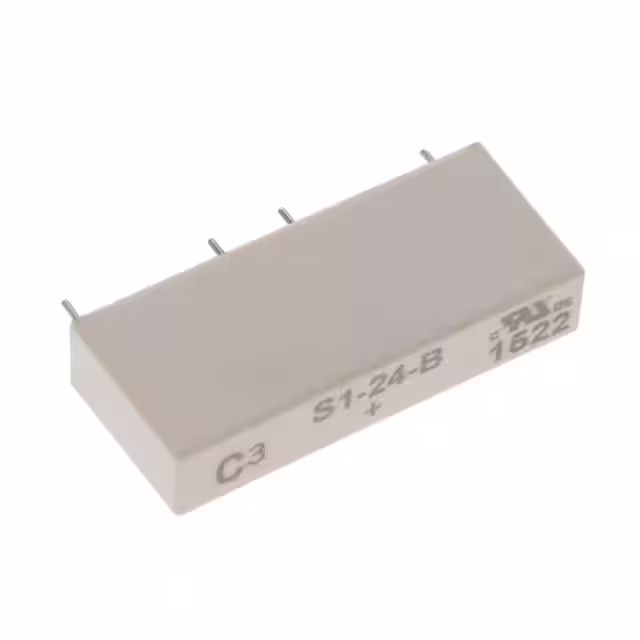

S1-24-BRELAY REED 1 N/C 1.5KV 24V |
2,997 | 25.12 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C |
|
|
S1-05-BDMRELAY REED 1 N/C 1.5KV 5V |
3,651 | 27.71 |
RFQ |
Datasheet |
Bulk | S1 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C |
|
|
DAR70505-HRRELAY REED 5KV 5V SPST-NO |
2,288 | 36.65 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
SAR91205RELAY REED SPST 500MA 12V |
3,535 | 38.28 |
RFQ |
Datasheet |
Tray | S | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C |
|

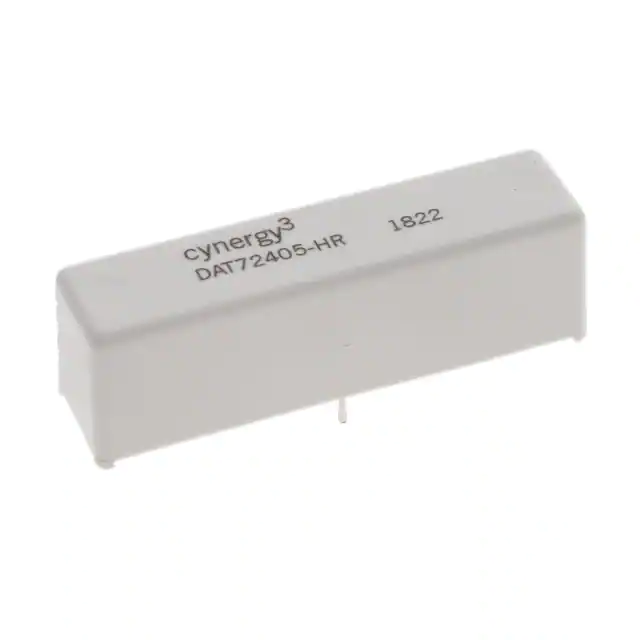

DAT72405-HRRELAY REED 5KV 24V SPST-NO |
2,449 | 38.62 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71205URELAY REED SPST-NO 5KV 12V |
2,221 | 38.62 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

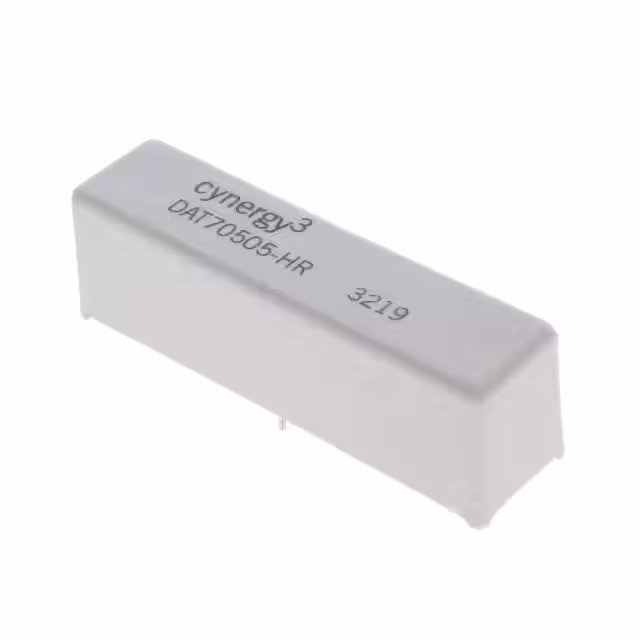

DAT70505-HRRELAY REED 5KV 5V SPST-NO |
2,721 | 38.62 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
D1-12-CMRELAY REED C/O 12V |
3,380 | 40.58 |
RFQ |
Datasheet |
Bulk | D1 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 35.3 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 65°C |
|
|
D1-24-CMRELAY REED C/O 24V |
3,301 | 40.58 |
RFQ |
Datasheet |
Bulk | D1 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 26.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 65°C |
|
|
DBR72405URELAY REED N/C 5KV 24V |
3,555 | 44.65 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DAR70505PURELAY REED SPST-NO 5KV 5V |
2,808 | 45.48 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

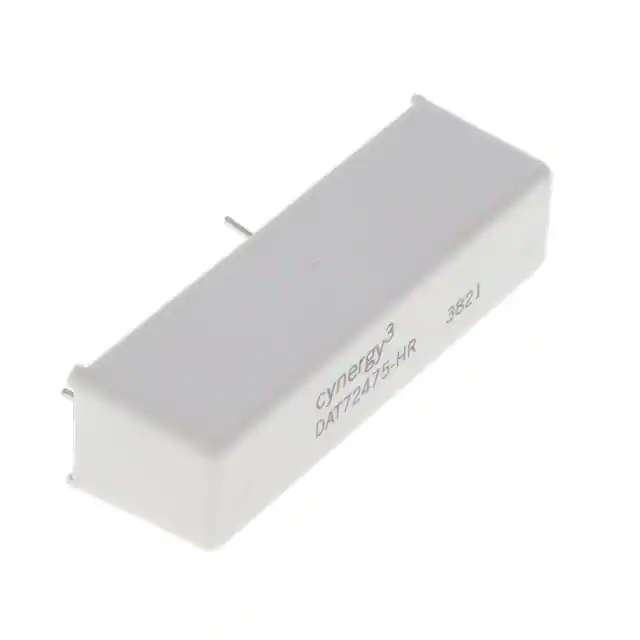

DAT72475-HRRELAY REED 7.5KV 24V SPST-NO |
3,840 | 46.89 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
