| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBR71210FRELAY REED SPST-NC 3A 12V |
3,432 | 67.83 |
RFQ |
Datasheet |
Tray | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
24HV1B100HV REED RELAY SPST NC 10KV 24V |
2,543 | 96.39 |
RFQ |
Datasheet |
Bulk | XXHV | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 5000VDC - Max | 60 mA | Non Latching | - | Solder Turret | - | 19 VDC | 2 VDC | - | - | - |
|
DBT71205PURELAY REED SPST-NC 5KV 12V |
2,581 | 55.44 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT72405SURELAY REED SPST-NC 5KV 24V |
2,055 | 55.44 |
RFQ |
Datasheet |
Bulk | DB | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT70505FURELAY REED SPST-NC 5KV 5V |
3,927 | 55.44 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 132 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
DBT71205FURELAY REED SPST-NC 5KV 12V |
2,237 | 55.44 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
D1-05-CMRELAY REED C/O 5V |
3,447 | 40.58 |
RFQ |
Datasheet |
Bulk | D1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 100 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 65°C |
|
|
DAR72405SURELAY REED SPST-NO 5KV 24V |
3,266 | 45.48 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAT71275SURELAY REED SPST-NO 7.5KV 12V |
2,427 | 57.58 |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DAR70510FRELAY REED SPST-NO 3A 5V |
2,731 | 57.62 |
RFQ |
Datasheet |
Tray | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
|
DBR71275TURELAY REED SPST-NC 7.5KV 12V |
3,794 | 65.00 |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
|
FRD12019RF N/O 25KV 6A 24V COIL |
3,260 | 184.83 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
S8-2405RELAY REED SPST 1A 24V |
2,452 | 13.54 |
RFQ |
Datasheet |
Bulk | S8 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|
|
S8-2405VURELAY REED SPST 1A 24V UL |
3,819 | 22.49 |
RFQ |
Datasheet |
Bulk | S8 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C |
|

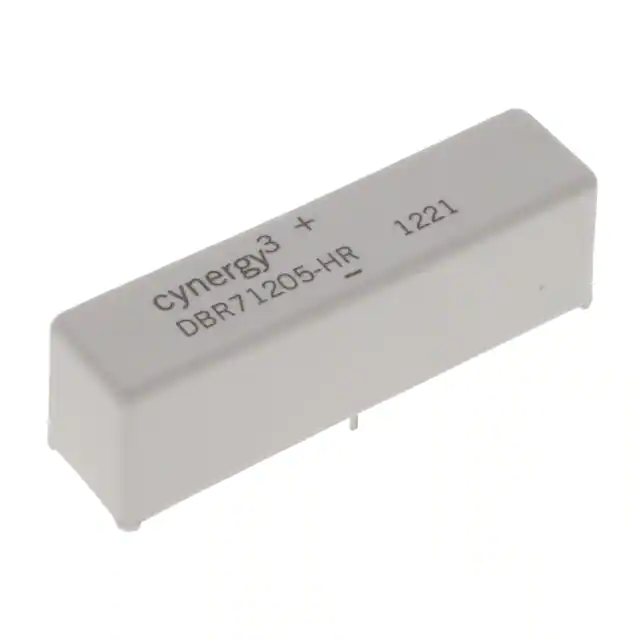

DBR71205-HRRELAY REED 5KV 12V SPST-NC |
2,605 | 44.65 |
RFQ |
Datasheet |
Bulk | D-HR | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT72410RELAY REED SPST-NO 2A 24V |
2,190 | 48.91 |
RFQ |
Datasheet |
Tray | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|
DAT200-12RELAY REED SPST-NO 3A 12V |
2,056 | 53.97 |
RFQ |
Datasheet |
Bulk | D200 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 6 ms | 1 ms | -20°C ~ 70°C |
|
|
DAT72410URELAY REED SPST-NO 2A 24V |
3,010 | 56.29 |
RFQ |
Datasheet |
Bulk | DA | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
|

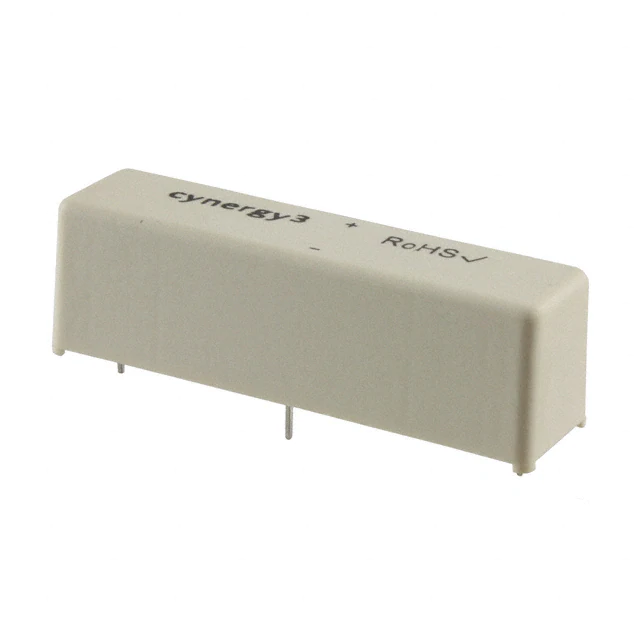

DBR72410RELAY REED SPST-NC 3A 24V |
2,880 | 56.60 |
RFQ |
Datasheet |
Tray | DB | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C |
|
DAT72410PRELAY REED SPST-NO 2A 24V |
2,533 | 60.09 |
RFQ |
Datasheet |
Tray | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C |
