Pulse Transformers(7775)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM0068ANLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
6,342 | 8.97 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.347 W (12.70mm x 8.81mm) | 0.082 (2.08mm) |
|

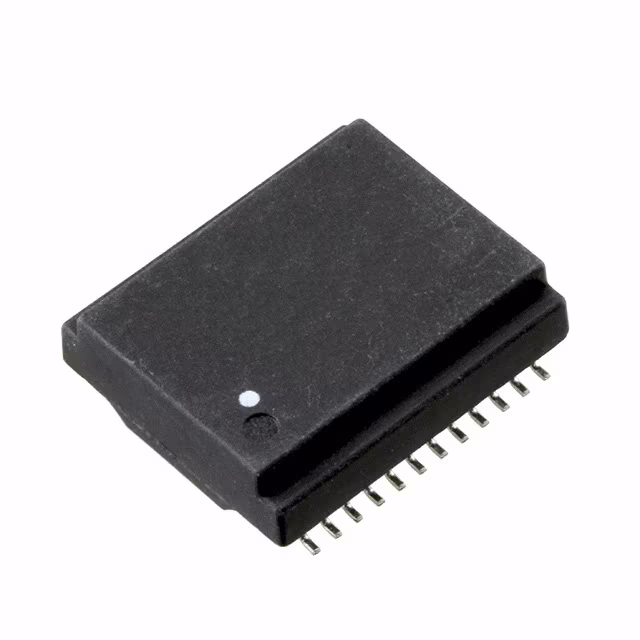

H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
610 | 9.05 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.600 W (17.50mm x 15.24mm) | 0.225 (5.72mm) |
|
HX1148NLMODULE TRANSFMR SNGL LAN 16P SMD |
1,589 | 9.13 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000 L x 0.390 W (25.40mm x 9.91mm) | 0.245 (6.22mm) |
|
HX6098NLPULSE XFMR 1 CT:1CT TX/RX 120UH |
2,234 | 9.70 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.480 W (18.16mm x 12.20mm) | 0.260 (6.60mm) |
|
|
HX6098FNLPULSE XFMR 1 CT:1CT TX/RX 120UH |
1,841 | 9.70 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.595 W (18.16mm x 15.11mm) | 0.260 (6.60mm) |
|
H5012NLTMODULE DL GIGABIT ETHER LAN 48P |
519 | 15.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095 L x 0.480 W (27.81mm x 12.19mm) | 0.295 (7.49mm) |
|
H5077NLMODULE MINI-MAG 1PORT 1000BASE-T |
731 | 10.24 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550 L x 0.495 W (13.97mm x 12.57mm) | 0.190 (4.82mm) |
|
H5120NLMODULE XFORMR SNGL GIGABIT SMD |
2,915 | 10.49 |
RFQ |
Datasheet |
Tube | - | Active | - | - | - | 1CT:1CT | Surface Mount | 0.650 L x 0.365 W (16.51mm x 9.27mm) | 0.082 (2.08mm) |
|
749020111TRANSFORMER LAN 10/100/1000 SMD |
3,684 | 17.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WE-LAN | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.655 L x 0.354 W (16.64mm x 8.99mm) | 0.090 (2.29mm) |
|
IT258XFRMR PULSE 1:1 SGL 2.5MH 1A |
3,029 | 10.82 |
RFQ |
Datasheet |
Tray | IT | Active | Data/Voice Coupling | 2.5mH | - | 1:1 | Through Hole | 0.693 L x 0.657 W (17.60mm x 16.70mm) | 0.445 (11.30mm) |
|
H5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
1,381 | 11.61 |
RFQ |
Datasheet |
Tube | - | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|
HX5120NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,108 | 19.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.650 L x 0.360 W (16.51mm x 9.14mm) | 0.082 (2.08mm) |
|
|
IT260XFRMR PULSE 3:1 SGL 12MH .1A |
1,990 | 11.70 |
RFQ |
Datasheet |
Tray | IT | Active | Data/Voice Coupling | 12mH | - | 3:1 | Through Hole | 0.693 L x 0.657 W (17.60mm x 16.70mm) | 0.445 (11.30mm) |
|
|
HX5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
5,412 | 12.15 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|
HX5004ENLPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,269 | 12.15 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.480 W (17.50mm x 12.20mm) | 0.225 (5.72mm) |
|

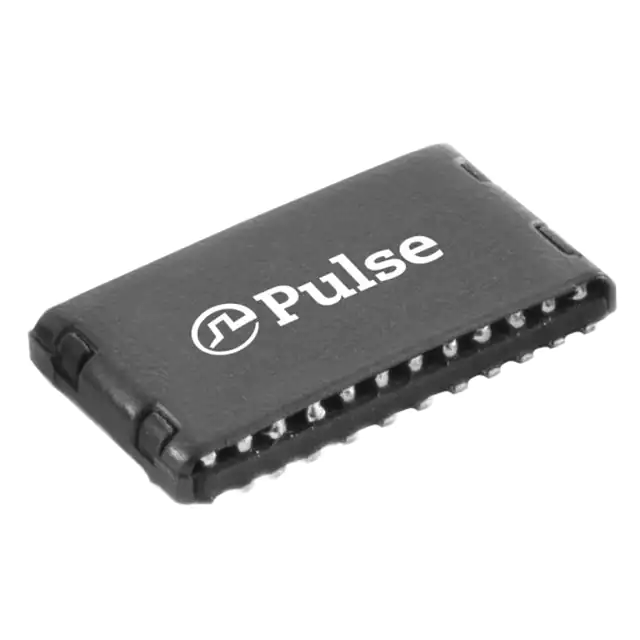

HX4110NLTRANSF MOD 2.55G 4CH 60W POE |
1,174 | 12.42 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650 L x 0.360 W (16.51mm x 9.14mm) | 0.082 (2.08mm) |
|

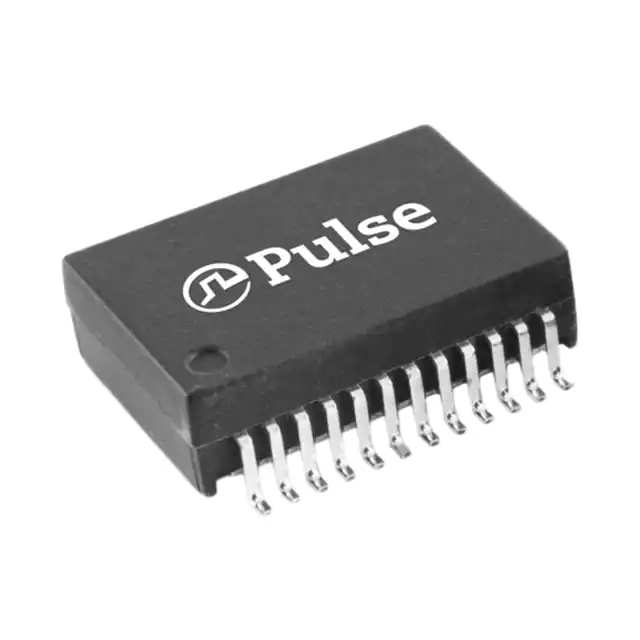

HM5004ENLXFMR MDL 1000BASE-T SMT AEC-Q200 |
3,065 | 12.69 |
RFQ |
Datasheet |
Tube | - | Active | LAN 1000 Base-T | 350µH | - | - | Surface Mount | 0.695 L x 0.480 W (17.65mm x 12.20mm) | 0.225 (5.72mm) |
|

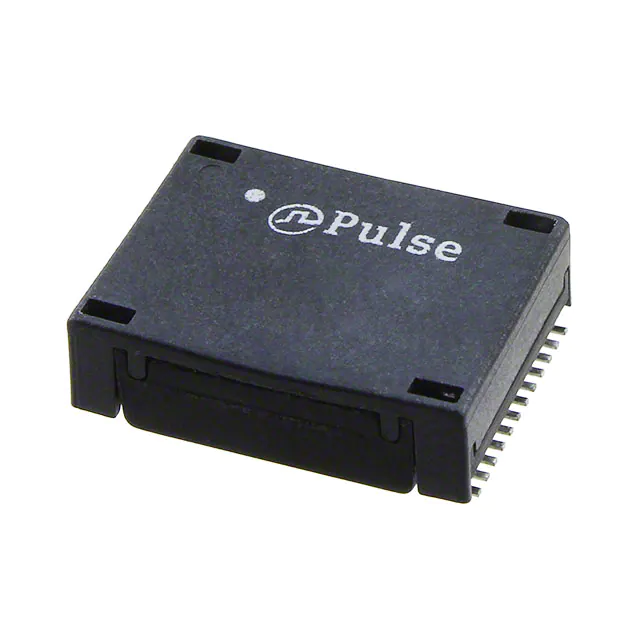

H5008FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,083 | 12.74 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743 L x 0.538 W (18.87mm x 13.67mm) | 0.231 (5.87mm) |
|
H5008NLMODULE GIGABIT LAN 24SOIC 1PORT |
2,604 | 12.74 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743 L x 0.538 W (18.87mm x 13.67mm) | 0.231 (5.87mm) |
|

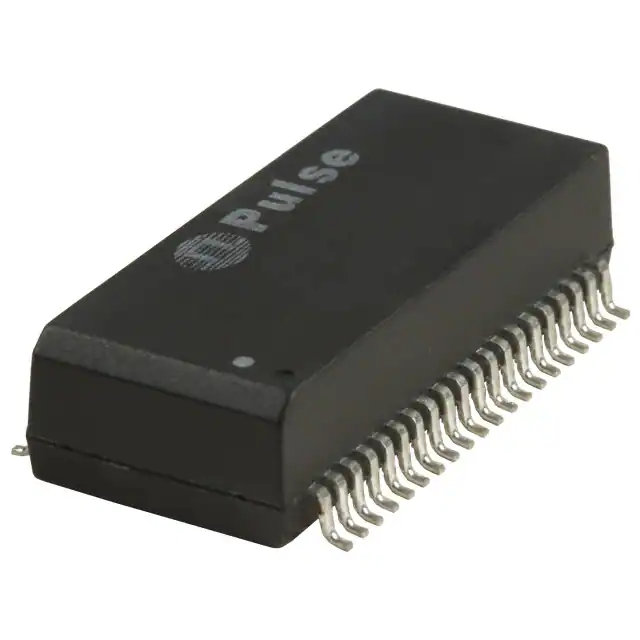

H1164NLMODULE XFRMR ETHERNET LAN 40SOIC |
4,560 | 13.12 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.125 L x 0.480 W (28.58mm x 12.19mm) | 0.230 (5.84mm) |
