Pulse Transformers(7775)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransformerType | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2649NLTRANSFMR 33-57VIN 12VOUT 2.5ASMD |
3,153 | 4.71 |
RFQ |
Datasheet |
Tray | - | Active | - | 100.5µH | - | - | Surface Mount | 17.53mm L x 13.44mm W | 12.45mm |
|

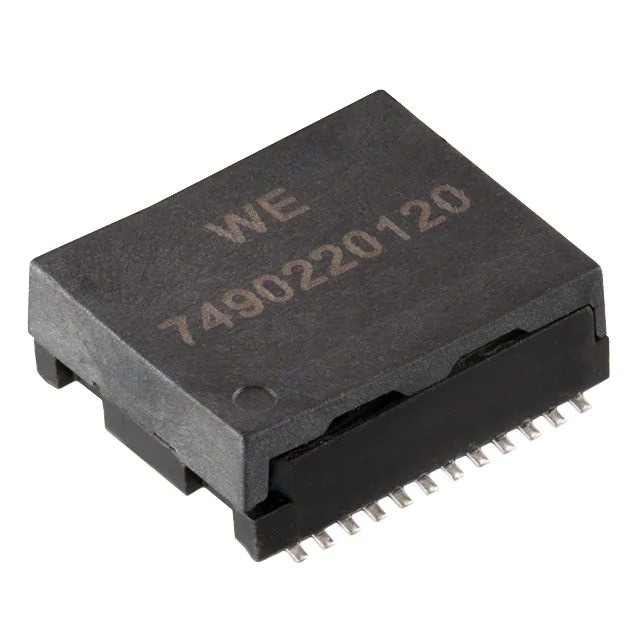

7490220120PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,945 | 5.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WE-LAN | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720 L x 0.579 W (18.29mm x 14.70mm) | 0.242 (6.15mm) |
|
HX1294NLTMODULE XFRMR LAN 10/100 SMD |
2,213 | 7.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538 L x 0.599 W (13.67mm x 15.21mm) | 0.241 (6.12mm) |
|

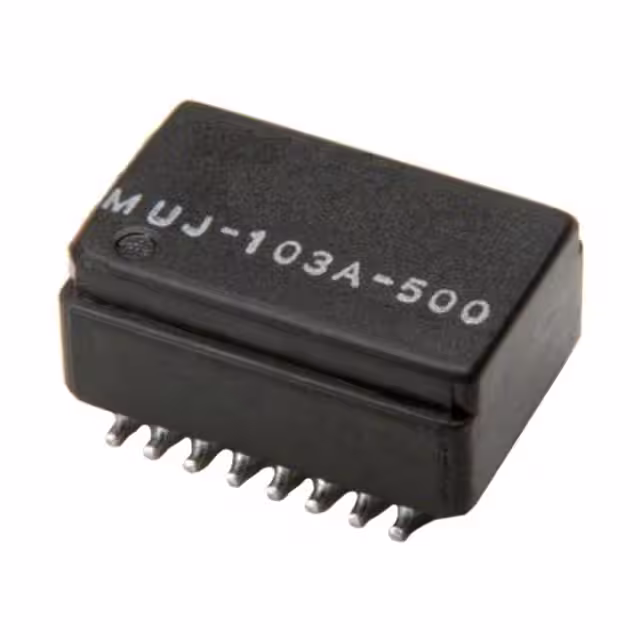

MUJ-103A-500INTERFACE MODULE 1:1:2:2 SMD |
6,393 | 8.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | 25mH | - | 1:1:2:2 | Surface Mount | 0.504 L x 0.346 W (12.80mm x 8.80mm) | 0.246 (6.25mm) |
|

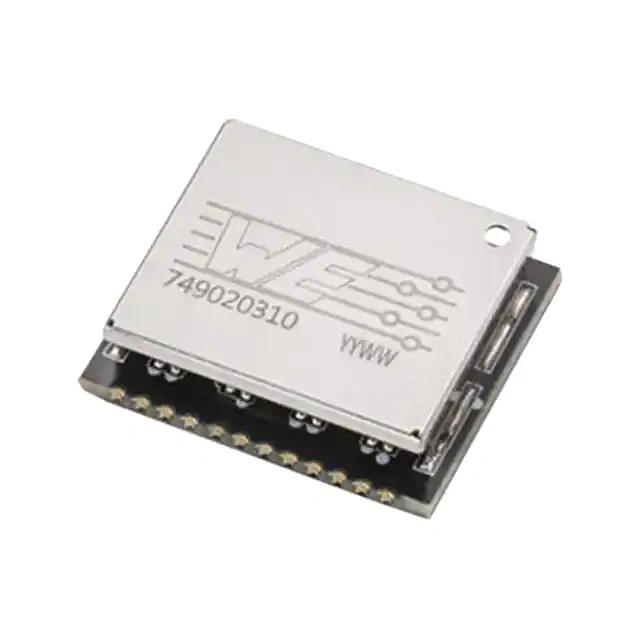

749020310WE-LAN AQ 10/100/1000 BASE-T SMD |
714 | 7.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 300µH | - | 1:1 | Surface Mount | 0.690 L x 0.575 W (17.53mm x 14.60mm) | 0.177 (4.50mm) |
|

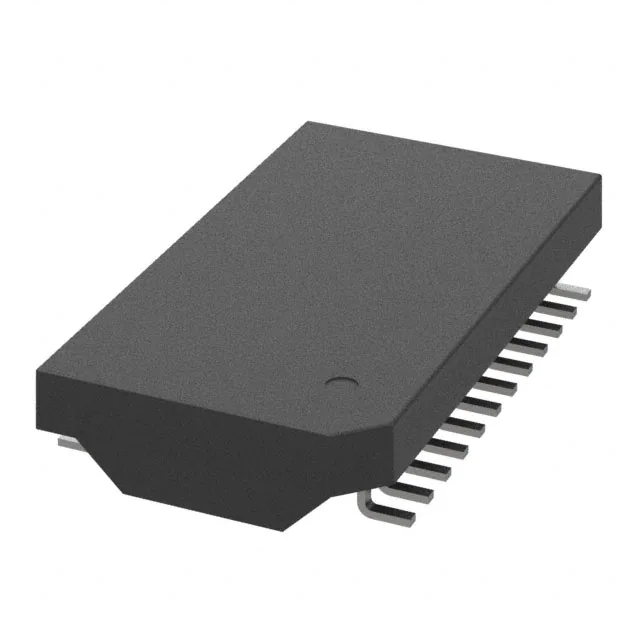

HX5149NLTPULSE XFMR 1 CT:1CT TX/RX 360UH |
5,801 | 8.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700 L x 0.390 W (17.78mm x 9.91mm) | 0.126 (3.20mm) |
|
749022011TRANSFORMER LAN 10/100/1000 POE |
13,296 | 6.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WE-LAN | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.720 L x 0.480 W (18.30mm x 12.20mm) | 0.250 (6.35mm) |
|
HX5062NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
5,824 | 8.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689 L x 0.480 W (17.50mm x 12.20mm) | 0.225 (5.72mm) |
|
H6096FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
7,622 | 8.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715 L x 0.595 W (18.16mm x 15.11mm) | 0.260 (6.60mm) |
|
HX5181NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
176 | 8.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.545 L x 0.480 W (13.84mm x 12.19mm) | 0.250 (6.35mm) |
|
7490220123PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,778 | 6.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WE-LAN | Active | LAN 10/100/1000 Base-T | 200µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720 L x 0.579 W (18.29mm x 14.70mm) | 0.346 (8.80mm) |
|
H1102NLMODULE XFRMR SGL ETHR LAN 16SOIC |
39,414 | 5.31 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|

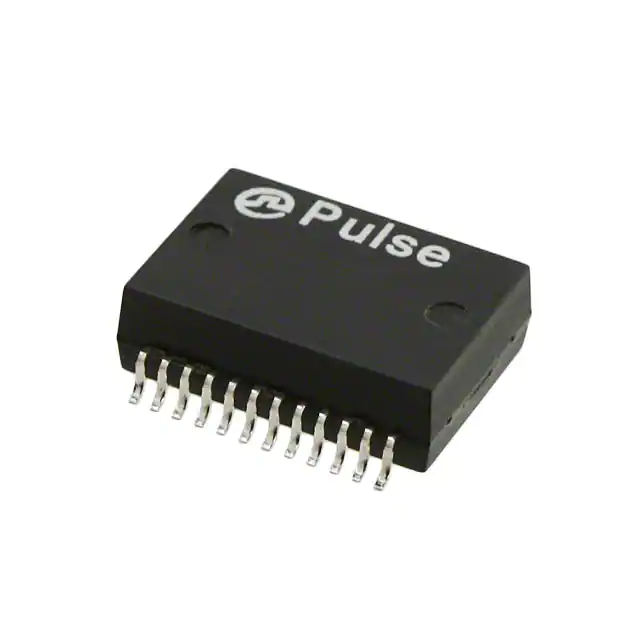

H5007NLTTRANSFORMER MODULE GIGABIT 1PORT |
23,528 | 8.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690 L x 0.480 W (17.53mm x 12.20mm) | 0.227 (5.76mm) |
|
H1102FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,499 | 5.43 |
RFQ |
Datasheet |
Bulk | - | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
P0585NLPULSE XFMR 1:1:1 450UH |
5,660 | 5.44 |
RFQ |
Datasheet |
Tube | - | Active | - | 450µH | 95VµS | 1:1:1:1:1 | Through Hole | 0.810 L x 0.480 W (20.57mm x 12.19mm) | 0.750 (19.05mm) |
|

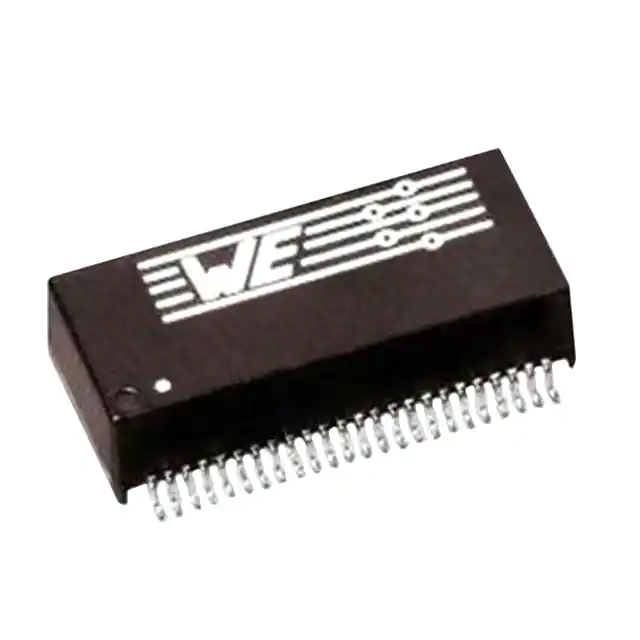

749020010ATRANSFORMER LAN 10/100/1000 SMD |
1,910 | 6.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WE-LAN | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689 L x 0.559 W (17.50mm x 14.20mm) | 0.236 (6.00mm) |
|

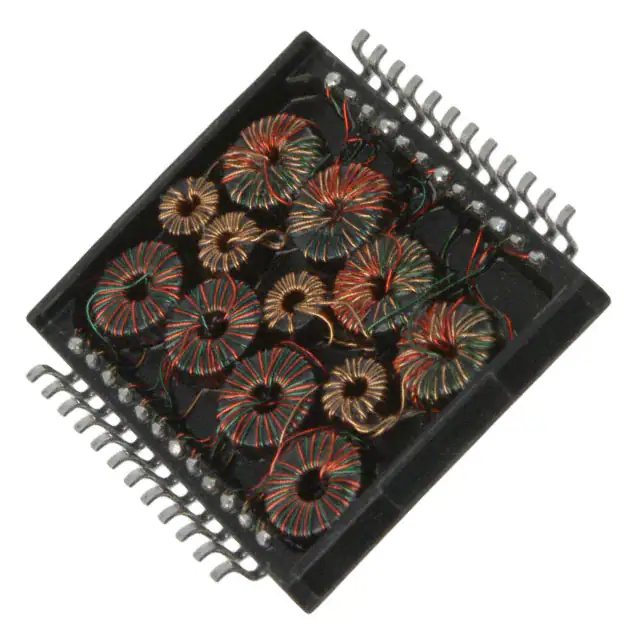

H5019NLTTRANSFORMER MODULE GIGABIT 1PORT |
3,935 | 9.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.780 L x 0.655 W (19.81mm x 16.64mm) | 0.100 (2.54mm) |
|
HX2326FNLPULSE XFMR 1CT:1CT TX/RX |
10,918 | 5.53 |
RFQ |
Datasheet |
Tube | - | Active | LAN 10/100 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500 L x 0.358 W (12.70mm x 9.09mm) | 0.236 (5.99mm) |
|
HX2326NLMODULE 10/100B-T POE SMD |
838 | 5.53 |
RFQ |
Datasheet |
Tube | - | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500 L x 0.280 W (12.70mm x 7.11mm) | 0.245 (6.22mm) |
|
P0584NLPULSE XFMR 1:1:1 450UH |
7,413 | 5.57 |
RFQ |
Datasheet |
Tray | - | Active | - | 450µH | 95VµS | 1:1:1 | Through Hole | 0.810 L x 0.480 W (20.57mm x 12.19mm) | 0.750 (19.05mm) |
