| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFRA.090.009PTC RESET FUSE 30V 900MA RADIAL |
230 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.461 Dia x 0.122 T (11.70mm x 3.10mm) | 0.657 (16.70mm) | - |
|
PFRA.135PTC RESET FUSE 30V 1.35A RADIAL |
283 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 1.35 A | 2.7 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 Dia x 0.118 T (8.90mm x 3.00mm) | 0.744 (18.90mm) | - |
|
PFRA.020PTC RESET FUSE 60V 200MA RADIAL |
898 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 200 mA | 400 mA | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
PFRA.075PTC RESET FUSE 60V 750MA RADIAL |
247 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 750 mA | 1.5 A | 6.3 s | 180 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.409 Dia x 0.122 T (10.40mm x 3.10mm) | 0.630 (16.00mm) | - |
|
PFRA.1100PTC RESET FUSE 16V 11A RADIAL |
133 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 16V | 100 A | 11 A | 22 A | 20 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.953 L x 0.118 W (24.20mm x 3.00mm) | 1.295 (32.90mm) | - |
|
PFUF.150.2PTC RESET FUSE 6V 1.5A 1210 |
839 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 6V | 40 A | 1.5 A | 3 A | 5 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.025 (0.63mm) |
|
PFNF.110.2PTC RESET FUSE 6V 1.1A 1206 |
479 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 6V | 100 A | 1.1 A | 2.2 A | 300 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.028 (0.70mm) |
|
|
PFUF.075.2PTC RESET FUSE 6V 750MA 1210 |
123 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 100 ms | 70 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
PFMF.110.16.2PTC RESET FUSE 16V 1.1A 1812 |
677 | 0.39 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFMF | Active | Polymeric | 16V | 100 A | 1.1 A | 2.2 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.033 (0.85mm) |
|
|
PFMF.075.2PTC RESET FUSE 13.2V 750MA 1812 |
465 | 0.29 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFMF | Active | Polymeric | 13.2V | 100 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.033 (0.85mm) |
|
|
PFMF.260.2PTC RESET FUSE 6V 2.6A 1812 |
541 | 0.45 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFMF | Active | Polymeric | 6V | 100 A | 2.6 A | 5.2 A | 5 s | 15 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.033 (0.85mm) |
|
|
PFNF.200.2PTC RESET FUSE 6V 2A 1206 |
986 | 0.48 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 6V | 100 A | 2 A | 4 A | 1 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.043 (1.10mm) |
|
|
PFUF.020.2PTC RESET FUSE 30V 200MA 1210 |
3,285 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 30V | 10 A | 200 mA | 400 mA | 20 ms | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.093 W (3.22mm x 2.35mm) | - | 0.037 (0.95mm) |
|
|

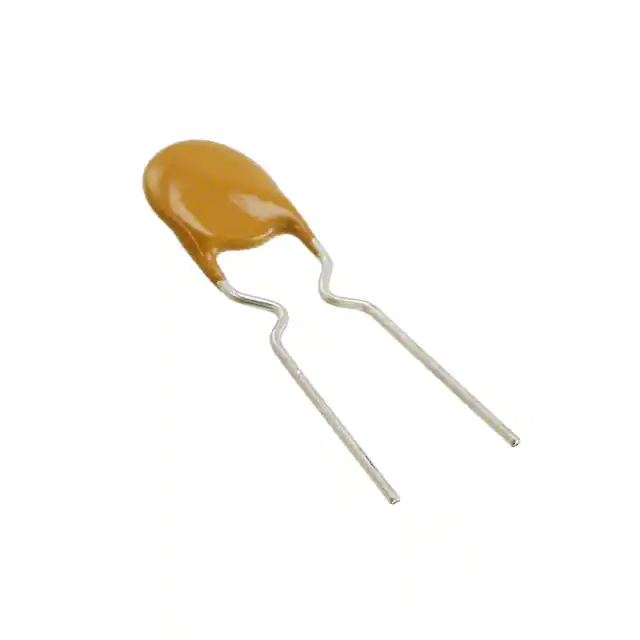

PFRA.050PTC RESET FUSE 60V 500MA RADIAL |
3,743 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 500 mA | 1 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.122 T (7.90mm x 3.10mm) | 0.539 (13.70mm) | - |
|
|
PFRA.250PTC RESET FUSE 30V 2.5A RADIAL |
2,273 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.472 L x 0.118 W (12.00mm x 3.00mm) | 0.720 (18.30mm) | - |
|
PFSM.075.2PTC RESET FUSE 30V 750MA 2SMD |
2,432 | 0.36 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PFSM | Active | Polymeric | 30V | 80 A | 750 mA | 1.5 A | 300 ms | 230 mOhms | 1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.289 L x 0.214 W (7.36mm x 5.44mm) | - | 0.125 (3.18mm) |
|
|
PFMF.160.2PTC RESET FUSE 8V 1.6A 1812 |
2,636 | 0.21 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFMF | Active | Polymeric | 8V | 100 A | 1.6 A | 2.8 A | 2 s | 35 mOhms | 99 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.033 (0.85mm) |
|
|
PFRA.030PTC RESET FUSE 60V 300MA RADIAL |
2,927 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 300 mA | 600 mA | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.528 (13.40mm) | - |
|
PFRA.065PTC RESET FUSE 60V 650MA RADIAL |
2,290 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.382 Dia x 0.122 T (9.70mm x 3.10mm) | 0.598 (15.20mm) | - |
|
|
PFRA.010PTC RESET FUSE 60V 100MA RADIAL |
2,671 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
