| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFMF.014.2PTC RESET FUSE 60V 140MA 1812 |
1,381 | 0.29 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFMF | Active | Polymeric | 60V | 40 A | 140 mA | 340 mA | 150 ms | 400 mOhms | 6.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.043 (1.10mm) |
|
PFUF.110.2PTC RESET FUSE 6V 1.1A 1210 |
2,916 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 6V | 40 A | 1.1 A | 2.2 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
PFNF.050.2PTC RESET FUSE 13.2V 500MA 1206 |
2,795 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 13.2V | 100 A | 500 mA | 1 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) |
|
|
PFUF.035.2PTC RESET FUSE 6V 350MA 1210 |
2,560 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 6V | 40 A | 350 mA | 750 mA | 200 ms | 200 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
|
PFNF.150.2PTC RESET FUSE 6V 1.5A 1206 |
2,289 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 6V | 100 A | 1.5 A | 3 A | 1 s | 30 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.028 (0.70mm) |
|
|
PFNF.075.2PTC RESET FUSE 6V 750MA 1206 |
1,316 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 6V | 100 A | 750 mA | 1.5 A | 100 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.028 (0.70mm) |
|
|
PFUF.010.2PTC RESET FUSE 30V 100MA 1210 |
1,285 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 30V | 10 A | 100 mA | 300 mA | 600 ms | 800 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.093 W (3.22mm x 2.35mm) | - | 0.037 (0.95mm) |
|
|
PFUF.050.2PTC RESET FUSE 13.2V 500MA 1210 |
1,265 | 0.38 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFUF | Active | Polymeric | 13.2V | 40 A | 500 mA | 1 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
|
PFNF.035.2PTC RESET FUSE 6V 350MA 1206 |
1,040 | 0.38 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PFNF | Active | Polymeric | 6V | 100 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) |
|
PFSM.100.2PTC RESET FUSE 30V 1.1A 2SMD |
1,200 | 0.50 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PFSM | Active | Polymeric | 30V | 80 A | 1.1 A | 2.2 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.289 L x 0.214 W (7.36mm x 5.44mm) | - | 0.118 (3.00mm) |
|
|
PFSM.150.33.2PTC RESET FUSE 33V 1.5A 2SMD |
1,188 | 0.57 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PFSM | Active | Polymeric | 33V | 40 A | 1.5 A | 3 A | 5 s | 60 mOhms | 230 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.344 L x 0.264 W (8.75mm x 6.71mm) | - | 0.118 (3.00mm) |
|

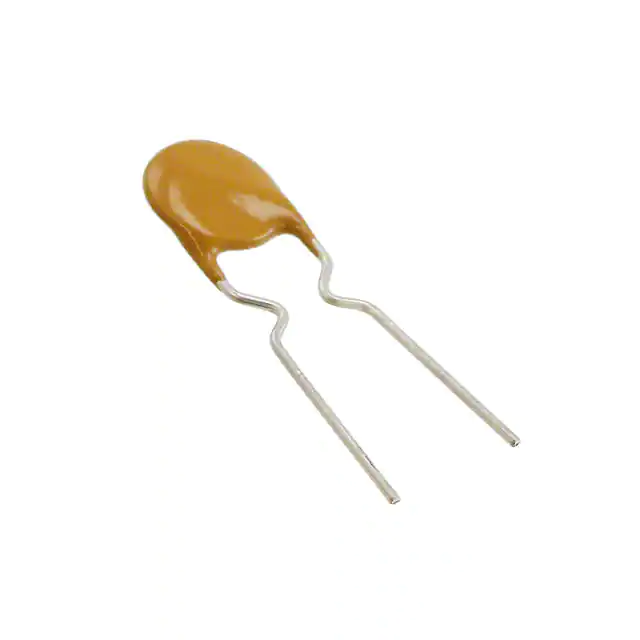

PFRA.110PTC RESET FUSE 30V 1.1A RADIAL |
385 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 1.1 A | 2.2 A | 6.6 s | 100 mOhms | 270 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 Dia x 0.118 T (8.90mm x 3.00mm) | 0.551 (14.00mm) | - |
|
|
PFRA.090PTC RESET FUSE 60V 900MA RADIAL |
571 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 900 mA | 1.8 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.461 Dia x 0.122 T (11.70mm x 3.10mm) | 0.657 (16.70mm) | - |
|
PFRA.025PTC RESET FUSE 60V 250MA RADIAL |
341 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 250 mA | 500 mA | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
PFRA.185PTC RESET FUSE 30V 1.85A RADIAL |
739 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.472 Dia x 0.118 T (12.00mm x 3.00mm) | 0.724 (18.40mm) | - |
|
PFRA.300PTC RESET FUSE 30V 3A RADIAL |
761 | 0.65 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.472 L x 0.118 W (12.00mm x 3.00mm) | 0.720 (18.30mm) | - |
|
PFRY.250PTC RESET FUSE 72V 2.5A RADIAL |
465 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRY | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.702 L x 0.118 W (17.84mm x 3.00mm) | 0.937 (23.80mm) | - |
|
PFRA.400PTC RESET FUSE 30V 4A RADIAL |
882 | 0.69 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 30V | 40 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.567 L x 0.118 W (14.40mm x 3.00mm) | 0.976 (24.80mm) | - |
|
|
PFRY.375PTC RESET FUSE 72V 3.75A RADIAL |
725 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRY | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.926 L x 0.118 W (23.51mm x 3.00mm) | 1.165 (29.60mm) | - |
|
PFRA.040PTC RESET FUSE 60V 400MA RADIAL |
441 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRA | Active | Polymeric | 60V | 40 A | 400 mA | 800 mA | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.539 (13.70mm) | - |
