| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NANOSMDM075-2POLYSWITCH 0.75A RESET FUSE SMD |
3,604 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Cut Tape (CT) | PolySwitch®, nanoSMD | Obsolete | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 200 ms | 100 mOhms | 290 mOhms | - | - | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.047 (1.20mm) |
|
|
NANOSMDC150-2PTC RESET FUSE 6V 1.5A 1206 |
3,259 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoSMD | Obsolete | Polymeric | 6V | 100 A | 1.5 A | 3 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.64mm) | - | 0.055 (1.40mm) |
|
|
MINISMDE190-2PTC RESET FUSE 16V 1.9A 4520 |
2,086 | 0.00 |
RFQ |
Datasheet |
4520 (11350 Metric), Concave | Tape & Reel (TR) | PolySwitch®, miniSMD | Obsolete | Polymeric | 16V | 100 A | 1.9 A | 3.8 A | 2 s | 24 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.446 L x 0.200 W (11.33mm x 5.08mm) | - | 0.021 (0.53mm) |
|
1206L075WRPTC RESET FUSE 8V 750MA 1206 |
3,000 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 8V | 100 A | 750 mA | 1.5 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.030 (0.75mm) |
|
|
1206L110WRPTC RESET FUSE 8V 1.1A 1206 |
3,269 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 100 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
|
1206L150PRPTC RESET FUSE 8V 1.5A 1206 |
2,545 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 8V | 100 A | 1.5 A | 3 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.055 (1.40mm) |
|

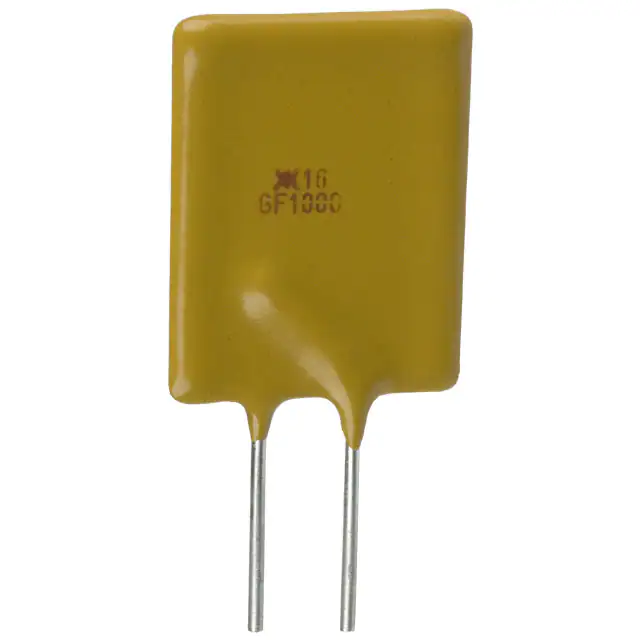

RGE1000PTC RESET FUSE 16V 10A RADIAL |
2,916 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 10 A | 17 A | 6 s | 4 mOhms | - | - | - | - | Through Hole | 0.630 L x 0.098 W (16.00mm x 2.50mm) | 0.992 (25.20mm) | - |
|

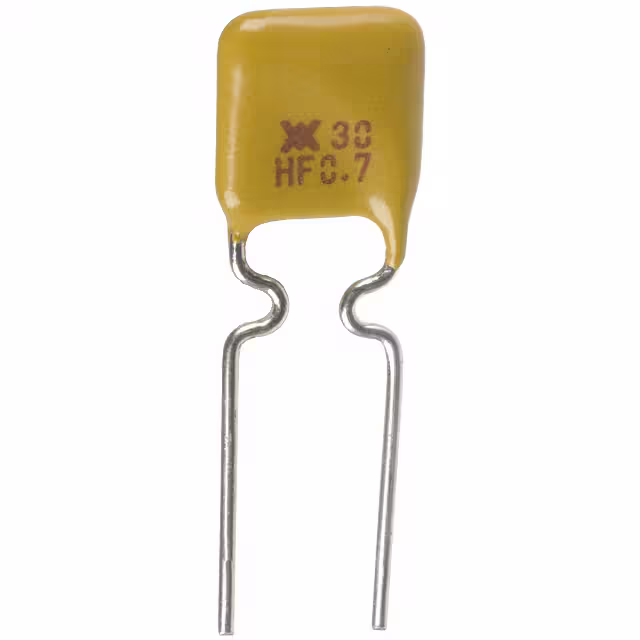

RHE070PTC RESET FUSE 16V 700MA RADIAL |
2,944 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 40 A | 700 mA | 1.4 A | 4 s | 300 mOhms | 1.4 Ohms | - | - | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|

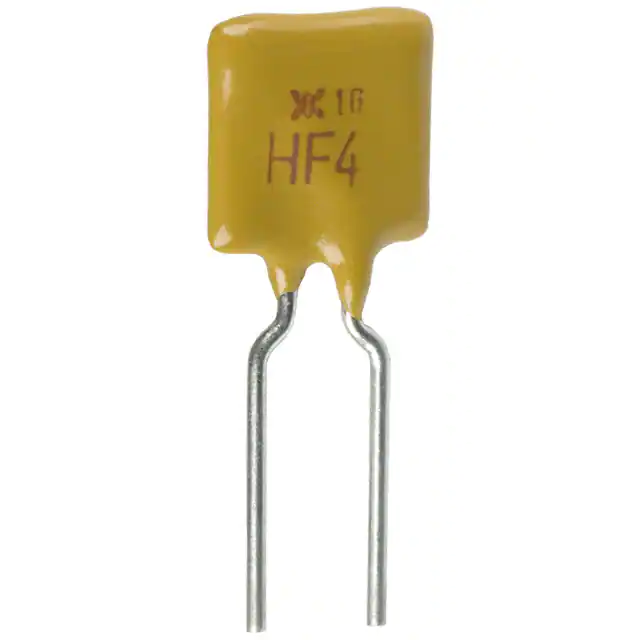

RHE400PTC RESET FUSE 16V 4A RADIAL |
3,971 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 4 A | 7 A | 8 s | 18 mOhms | 44 mOhms | - | - | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.709 (18.00mm) | - |
|
RHE650PTC RESET FUSE 16V 6.5A RADIAL |
3,024 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 6.5 A | 12 A | 5.5 s | 11 mOhms | 4.3 Ohms | - | - | - | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.874 (22.20mm) | - |
|
RHE1500PTC RESET FUSE 16V 15A RADIAL |
3,209 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | - | - | - | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - |
|
SMD0805P010TSAPTC RESET FUSE 15V 100MA 0805 |
2,973 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 15V | 40 A | 100 mA | 300 mA | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
SMD0805P020TSAPTC RESET FUSE 9V 200MA 0805 |
3,239 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 9V | 40 A | 200 mA | 500 mA | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
SMD0805P035TSAPTC RESET FUSE 6V 350MA 0805 |
3,275 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 6V | 40 A | 350 mA | 750 mA | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.024 (0.60mm) |
|
|
SMD0805P050TSAPTC RESET FUSE 6V 500MA 0805 |
2,660 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 6V | 40 A | 500 mA | 1 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
RLD30P090UFPTC RESET FUSE 30V 900MA RADIAL |
3,473 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
|
RLD30P110UFPTC RESET FUSE 30V 1.1A RADIAL |
3,384 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.1 A | 2.2 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
|
RLD30P135UFPTC RESET FUSE 30V 1.35A RADIAL |
2,501 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
|
RLD30P160UFPTC RESET FUSE 30V 1.6A RADIAL |
2,354 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.6 A | 3.2 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
|
RLD30P185UFPTC RESET FUSE 30V 1.85A RADIAL |
2,265 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
