| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

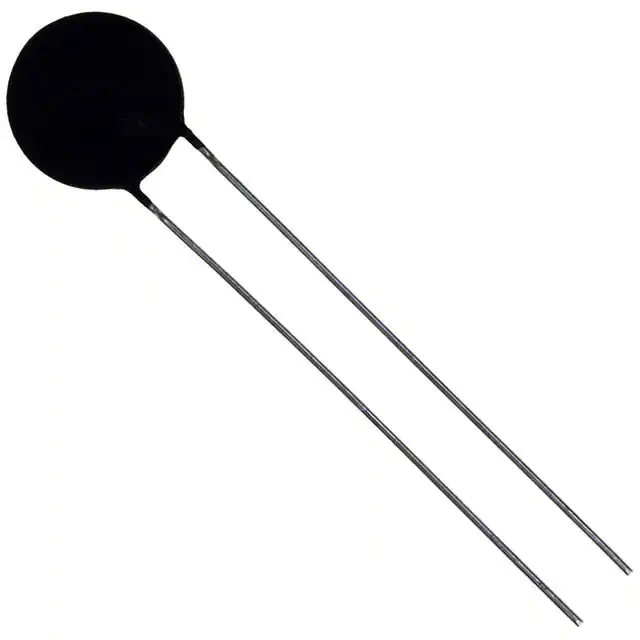

YQS8103PTC RESET FUSE 30V 120MA RADIAL |
2,357 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YP | Active | Ceramic | 30V | 700 mA | 120 mA | 240 mA | - | - | - | 13 Ohms | 0°C ~ 60°C | - | Through Hole | 0.177 Dia x 0.138 T (4.50mm x 3.50mm) | 0.394 (10.00mm) | - |
|
YS5678PTC RESET FUSE RADIAL DISC |
2,739 | 0.79 |
RFQ |
Radial, Disc | Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | Through Hole | - | - | - | |
|
|
YQD080N0025PTC RESET FUSE 265V 85MA RADIAL |
2,117 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 800 mA | 85 mA | 170 mA | - | - | - | 25 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | - | - |
|
YQD100N0600PTC RESET FUSE 265V 20MA RADIAL |
2,368 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 200 mA | 20 mA | 40 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.197 T (6.50mm x 5.00mm) | - | - |
|
|
YS5631PTC RESET FUSE RADIAL DISC |
3,489 | 0.79 |
RFQ |
Radial, Disc | Bulk | YS | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | Through Hole | - | - | - | |
|
YQD120N0010PTC RESET FUSE 265V 250MA RADIAL |
3,786 | 1.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 1.8 A | 250 mA | 500 mA | - | - | - | 10 Ohms | 0°C ~ 60°C | - | Through Hole | 0.532 Dia x 0.197 T (13.50mm x 5.00mm) | - | - |
|
YQD120N0015PTC RESET FUSE 265V 180MA RADIAL |
2,471 | 1.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 1.2 A | 180 mA | 350 mA | - | - | - | 15 Ohms | 0°C ~ 60°C | - | Through Hole | 0.433 Dia x 0.197 T (11.00mm x 5.00mm) | - | - |
|

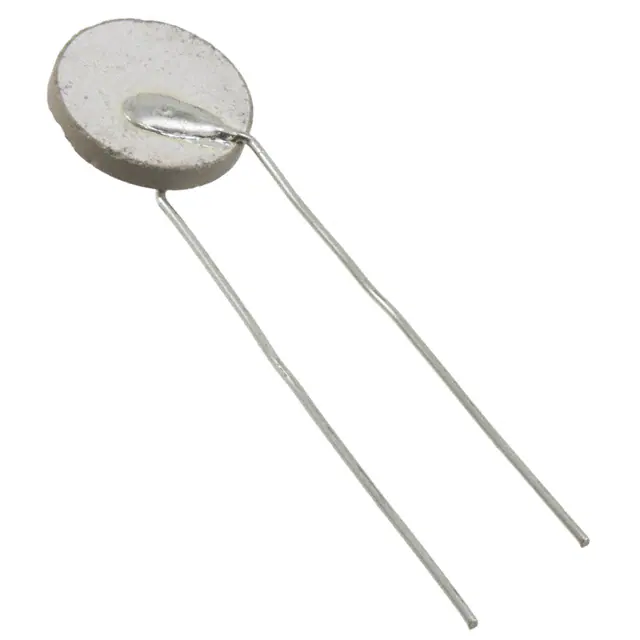

YQS5917PTOPTC RESET FUSE 120V RADIAL DISC |
2,997 | 1.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 120V | - | - | - | - | - | - | 20 Ohms | 10°C ~ 55°C | - | Through Hole | 0.650 Dia x 0.230 T (16.51mm x 5.84mm) | 0.728 (18.50mm) | - |
|
|
YQD120N0045PTC RESET FUSE 265V 105MA RADIAL |
2,741 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 800 mA | 105 mA | 200 mA | - | - | - | 45 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | - | - |
|
|
YQS5679PTC RESET FUSE |
3,135 | 0.91 |
RFQ |
- | Bulk | YQ | Active | Ceramic | - | - | - | - | - | - | - | 50 Ohms | - | - | - | - | - | - | |
|
|
YQS5920POCPTC RESET FUSE COATED 100 120V |
2,565 | 1.04 |
RFQ |
- | Bulk | YQ | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | - | - | |
|
|
YQD120N0055PTC RESET FUSE 265V 90MA RADIAL |
3,260 | 1.09 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 800 mA | 90 mA | 180 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | - | - |
|
|
YS5656PTC RESET FUSE RADIAL DISC |
2,602 | 1.11 |
RFQ |
Radial, Disc | Bulk | YS | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | Through Hole | - | - | - | |
|
YQS5846PTFPTC RESET FUSE 25V 370MA RADIAL |
3,232 | 1.21 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 25V | - | 370 mA | 740 mA | - | - | - | 3 Ohms | 10°C ~ 55°C | - | Through Hole | 0.551 Dia x 0.181 T (14.00mm x 4.60mm) | 0.630 (16.00mm) | - |
|
|
YQS5814PTC RESET FUSE |
2,354 | 1.48 |
RFQ |
- | Bulk | YQ | Active | Ceramic | - | - | - | - | - | - | - | 100 Ohms | - | - | - | - | - | - | |
|
|
YQS8066PTC RESET FUSE 265V 128MA RADIAL |
2,075 | 1.49 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 900 mA | 128 mA | 181 mA | - | - | - | 33 Ohms | 0°C ~ 55°C | - | Through Hole | 0.295 Dia x 0.177 T (7.50mm x 4.50mm) | 0.472 (12.00mm) | - |
|
YM120D170R250PTC RESET FUSE 265V 161MA RADIAL |
3,312 | 1.54 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | YM120 | Active | Ceramic | 265V | 1.1 A | 161 mA | 228 mA | - | - | - | 25 Ohms | 0°C ~ 55°C | - | Through Hole | 0.335 Dia x 0.177 T (8.50mm x 4.50mm) | 0.433 (11.00mm) | - |
|

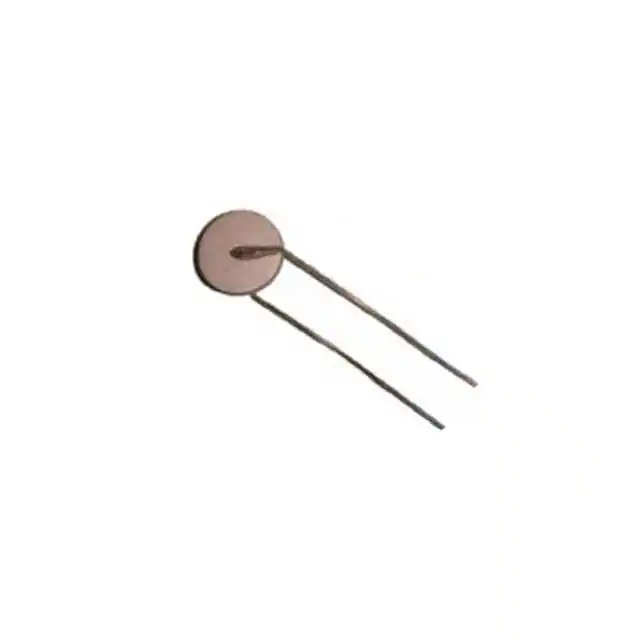

YQS5893PTOPTC RESET FUSE 12V RADIAL DISC |
2,334 | 1.59 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 12V | - | - | - | - | - | - | 2.5 Ohms | 10°C ~ 55°C | - | Through Hole | 0.600 Dia x 0.160 T (15.24mm x 4.06mm) | 0.669 (17.00mm) | - |
|
YQS5876PTFPTC RESET FUSE 240V 100MA RADIAL |
3,735 | 1.89 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 240V | - | 100 mA | 210 mA | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.650 Dia x 0.272 T (16.50mm x 6.90mm) | 0.650 (16.50mm) | - |
|

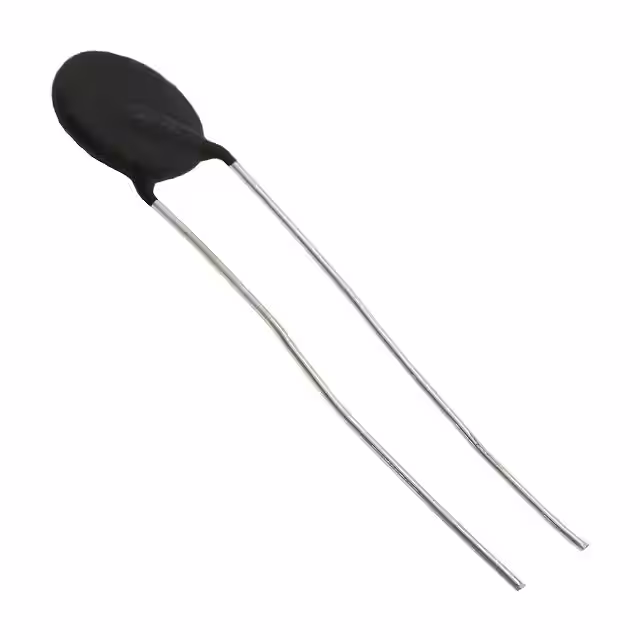

YS6176PTC RESET FUSE 75V RADIAL DISC |
2,806 | 2.13 |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 75V | - | - | - | - | - | - | 6 Ohms | - | - | Through Hole | 0.650 Dia x 0.230 T (16.51mm x 5.84mm) | 0.900 (22.86mm) | - |
