| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YQS5878PTFPTC RESET FUSE 240V 45MA RADIAL |
937 | 4.39 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 240V | - | 45 mA | 120 mA | - | - | - | 250 Ohms | 10°C ~ 55°C | - | Through Hole | 0.650 Dia x 0.272 T (16.50mm x 6.90mm) | 0.650 (16.50mm) | - |
|
YQS8069PTC RESET FUSE 265V 33MA RADIAL |
119 | 3.84 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 200 mA | 33 mA | 55 mA | - | - | - | 300 Ohms | 0°C ~ 55°C | - | Through Hole | 0.157 Dia x 0.197 T (4.00mm x 5.00mm) | 0.354 (9.00mm) | - |
|
YQD100N1000PTC RESET FUSE 265V 15MA RADIAL |
612 | 2.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 200 mA | 15 mA | 30 mA | - | - | - | 1 kOhms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.197 T (6.50mm x 5.00mm) | - | - |
|

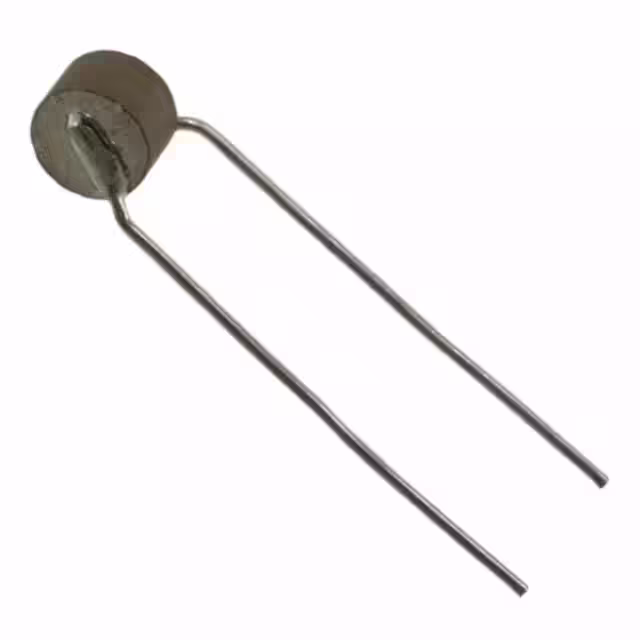

YQS5934PTOPTC RESET FUSE 480V RADIAL DISC |
2,938 | 2.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 480V | - | - | - | - | - | - | 5 kOhms | 10°C ~ 55°C | - | Through Hole | 0.350 Dia x 0.300 T (8.89mm x 7.62mm) | 0.350 (8.89mm) | - |
|

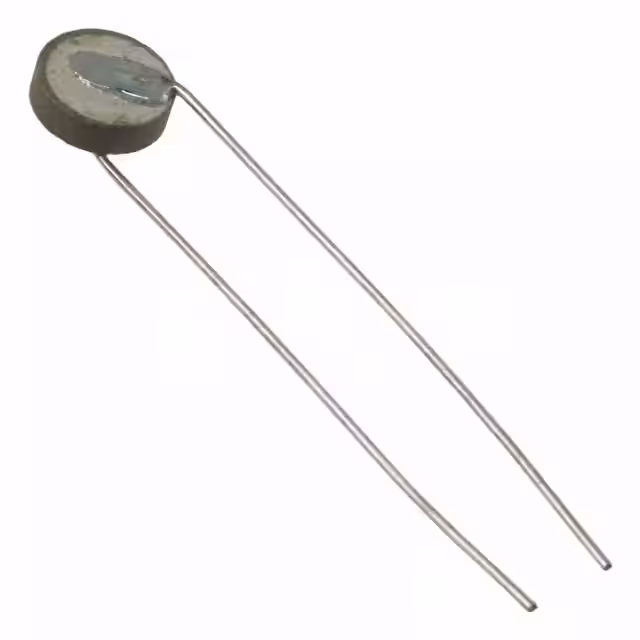

YQS5751PTOPTC RESET FUSE 25V RADIAL DISC |
412 | 1.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.350 Dia x 0.150 T (8.90mm x 3.80mm) | 0.433 (11.00mm) | - |
|
YQS8067PTC RESET FUSE 265V 85MA RADIAL |
359 | 2.43 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 600 mA | 85 mA | 131 mA | - | - | - | 60 Ohms | 0°C ~ 55°C | - | Through Hole | 0.236 Dia x 0.177 T (6.00mm x 4.50mm) | 0.472 (12.00mm) | - |
|
YS5918PTOPTC RESET FUSE 120V RADIAL DISC |
112 | 3.72 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 120V | - | - | - | - | - | - | 25 Ohms | 10°C ~ 55°C | - | Through Hole | 0.600 Dia x 0.220 T (15.24mm x 5.59mm) | 0.600 (15.24mm) | - |
|
YS5677PTC RESET FUSE 75V RADIAL DISC |
3,573 | 4.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 75V | - | - | - | - | - | - | 10 Ohms | - | - | Through Hole | 0.570 Dia x 0.160 T (14.48mm x 4.06mm) | 0.570 (14.48mm) | - |
|

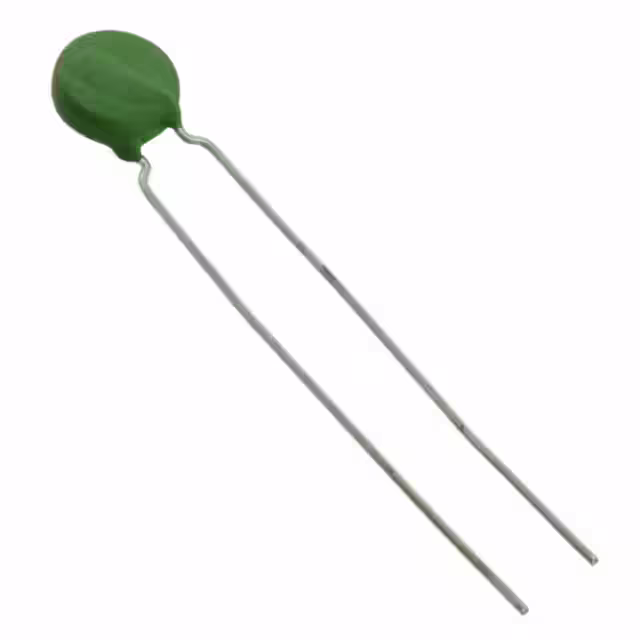

YQS8065PTC RESET FUSE 265V 168MA RADIAL |
4,230 | 3.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 1.3 A | 168 mA | 265 mA | - | - | - | 20 Ohms | 0°C ~ 55°C | - | Through Hole | 0.374 Dia x 0.177 T (9.50mm x 4.50mm) | 0.591 (15.00mm) | - |
|

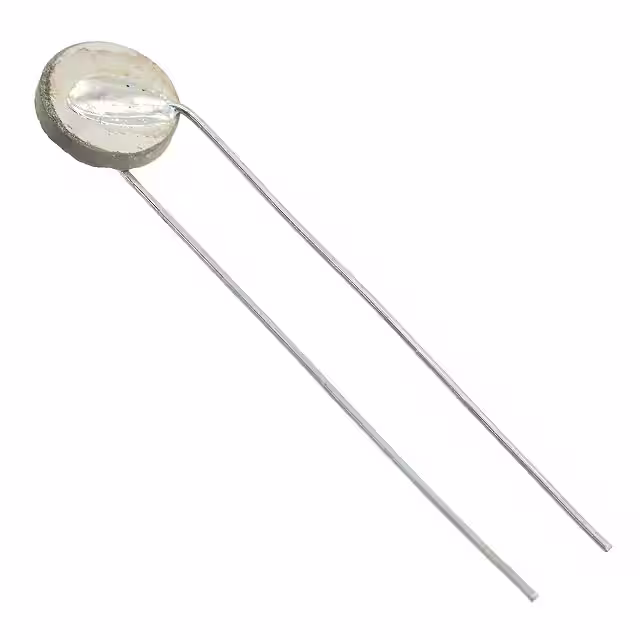

YQS5749PTOPTC RESET FUSE 25V RADIAL DISC |
3,689 | 1.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.350 Dia x 0.150 T (8.90mm x 3.80mm) | 0.472 (12.00mm) | - |
|

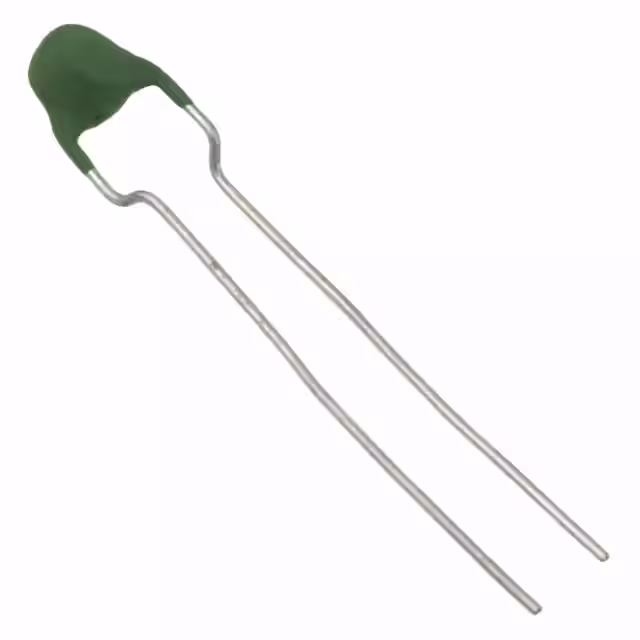

YQS8068PTC RESET FUSE 265V 65MA RADIAL |
3,036 | 2.43 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 400 mA | 65 mA | 98 mA | - | - | - | 100 Ohms | 0°C ~ 55°C | - | Through Hole | 0.217 Dia x 0.197 T (5.50mm x 5.00mm) | 0.472 (12.00mm) | - |
|
YQS8120PTC RESET FUSE 420V 21MA RADIAL |
2,863 | 1.71 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YP | Active | Ceramic | 420V | 200 mA | 21 mA | 39 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.197 T (6.50mm x 5.00mm) | 0.472 (12.00mm) | - |
|

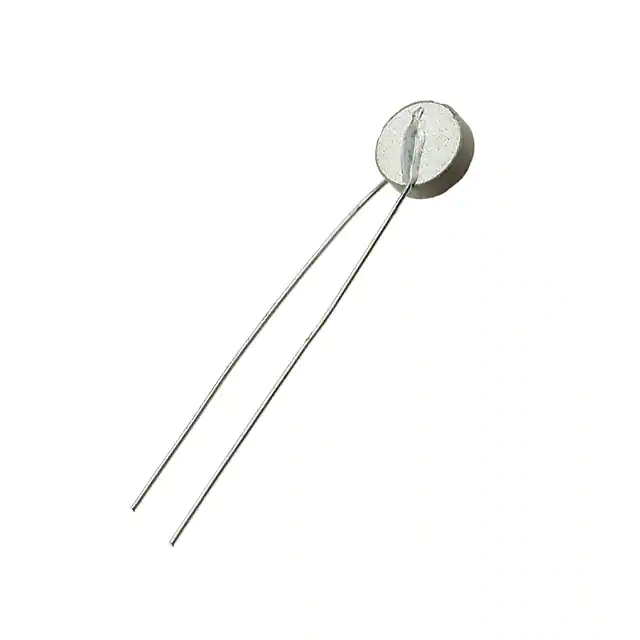

YS5869PTFPTC RESET FUSE 120V 60MA RADIAL |
2,775 | 2.11 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 120V | - | 60 mA | 110 mA | - | - | - | 100 Ohms | 10°C ~ 55°C | - | Through Hole | 0.402 Dia x 0.122 T (10.20mm x 3.10mm) | 0.402 (10.20mm) | - |
|
YQS5853PTFPTC RESET FUSE 50V 170MA RADIAL |
2,668 | 2.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 50V | - | 170 mA | 400 mA | - | - | - | 10 Ohms | 10°C ~ 55°C | - | Through Hole | 0.449 Dia x 0.169 T (11.40mm x 4.30mm) | 0.512 (13.00mm) | - |
|
|
YQS5855PTFPTC RESET FUSE 50V 80MA RADIAL |
3,295 | 3.07 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 50V | - | 80 mA | 170 mA | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.449 Dia x 0.201 T (11.40mm x 5.10mm) | 0.512 (13.00mm) | - |
|
YQD080N0050PTC RESET FUSE 265V 60MA RADIAL |
3,377 | 3.61 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 1 A | 60 mA | 120 mA | - | - | - | 50 Ohms | -0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | - | - |
|
YM120C20N122PTC RESET FUSE 265V 20MA RADIAL |
3,250 | 3.84 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 100 mA | 20 mA | 28 mA | - | - | - | 1.2 kOhms | 0°C ~ 55°C | - | Through Hole | 0.157 Dia x 0.177 T (4.00mm x 4.50mm) | 0.256 (6.50mm) | - |
|
YQS8119PTC RESET FUSE 265V 15MA RADIAL |
2,648 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YP | Active | Ceramic | 265V | 200 mA | 15 mA | 45 mA | - | - | - | 150 Ohms | 0°C ~ 60°C | - | Through Hole | 0.177 Dia x 0.197 T (4.50mm x 5.00mm) | 0.354 (9.00mm) | - |
|
YQB120N0025PTC RESET FUSE 80V 100MA RADIAL |
3,290 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 80V | 1 A | 100 mA | 200 mA | - | - | - | 25 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.157 T (6.50mm x 4.00mm) | - | - |
|
|
YQB120N0055PTC RESET FUSE 80V 60MA RADIAL |
3,246 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 80V | 700 mA | 60 mA | 120 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | Through Hole | 0.157 Dia x 0.138 T (4.00mm x 3.50mm) | - | - |
