| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

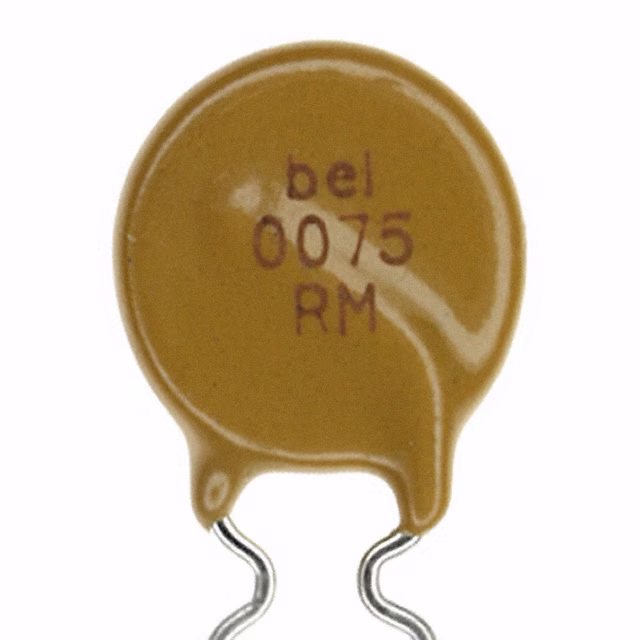

0ZRM0075FF2BPTC RESET FUSE 120V 750MA RADIAL |
3,746 | 0.28 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRM | Active | Polymeric | 120V | 5 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.417 Dia x 0.150 T (10.60mm x 3.80mm) | 0.610 (15.50mm) | - |
|

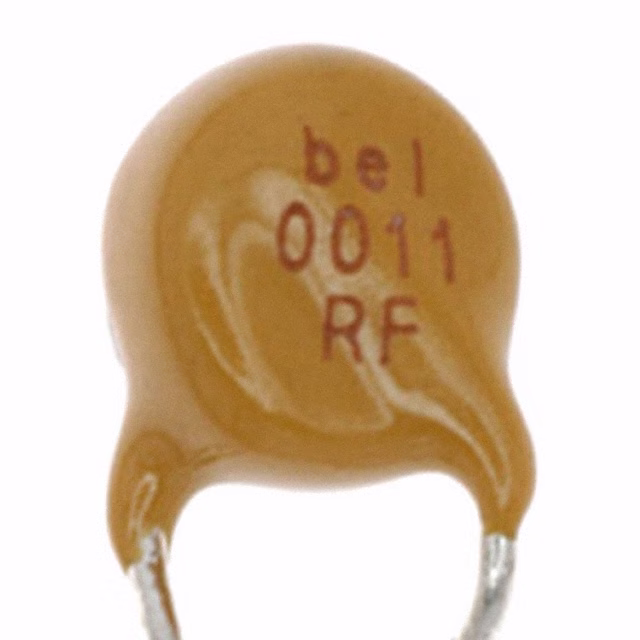

0ZRF0011FF1EPTC RESET FUSE 60V 110MA RADIAL |
3,282 | 0.28 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRF | Active | Polymeric | 60V | 3 A | 110 mA | 400 mA | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.268 L x 0.181 W (6.80mm x 4.60mm) | 0.390 (9.90mm) | - |
|

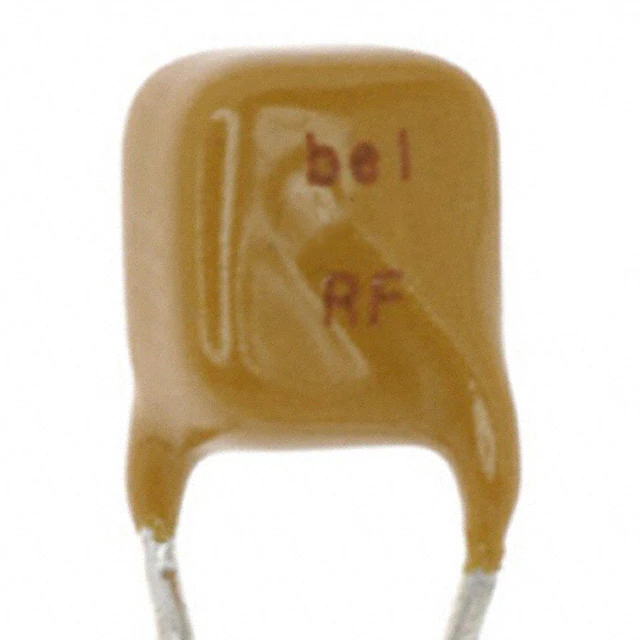

0ZRF0012FF1EPTC RESET FUSE 60V 120MA RADIAL |
2,848 | 0.28 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRF | Active | Polymeric | 60V | 3 A | 120 mA | 480 mA | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

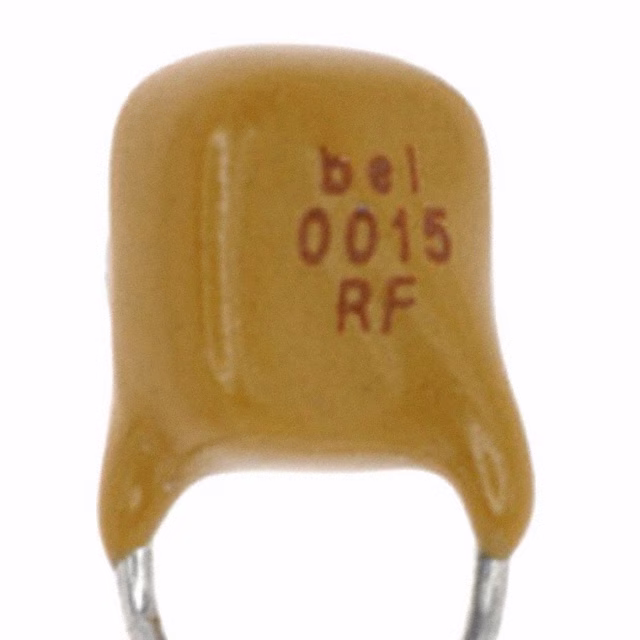

0ZRF0015FF1EPTC RESET FUSE 60V 150MA RADIAL |
2,397 | 0.28 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRF | Active | Polymeric | 60V | 3 A | 150 mA | 580 mA | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
0ZRM0075AF2BPTC RESET FUSE 120V 750MA RADIAL |
3,852 | 0.28 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRM | Active | Polymeric | 120V | 7 A | 750 mA | 1.5 A | 15 s | 250 mOhms | 690 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.429 L x 0.161 W (10.90mm x 4.10mm) | 0.669 (17.00mm) | - |
|

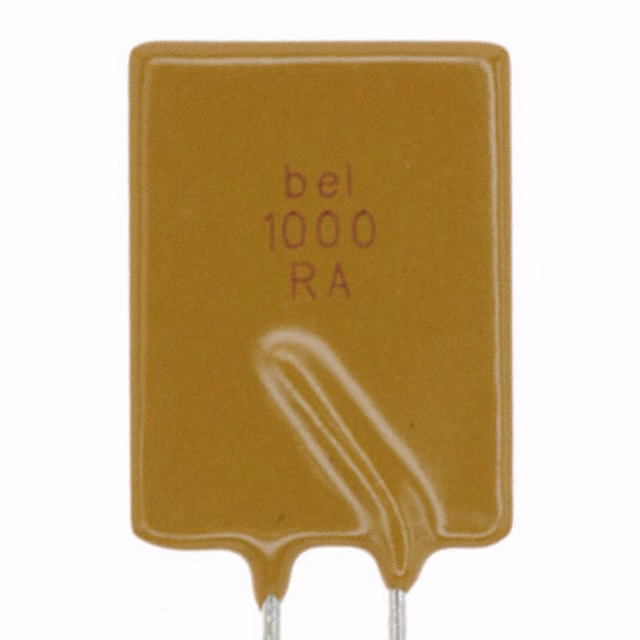

0ZRA1000FF1APTC RESET FUSE 16V 10A RADIAL |
2,728 | 0.29 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRA | Active | Polymeric | 16V | 100 A | 10 A | 17 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.949 (24.10mm) | - |
|
0ZRF0011FF2BPTC RESET FUSE 60V 110MA RADIAL |
3,862 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRF | Active | Polymeric | 60V | 3 A | 110 mA | 400 mA | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.268 L x 0.181 W (6.80mm x 4.60mm) | 0.390 (9.90mm) | - |
|
|
0ZRF0012FF2BPTC RESET FUSE 60V 120MA RADIAL |
3,445 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRF | Active | Polymeric | 60V | 3 A | 120 mA | 480 mA | 2 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

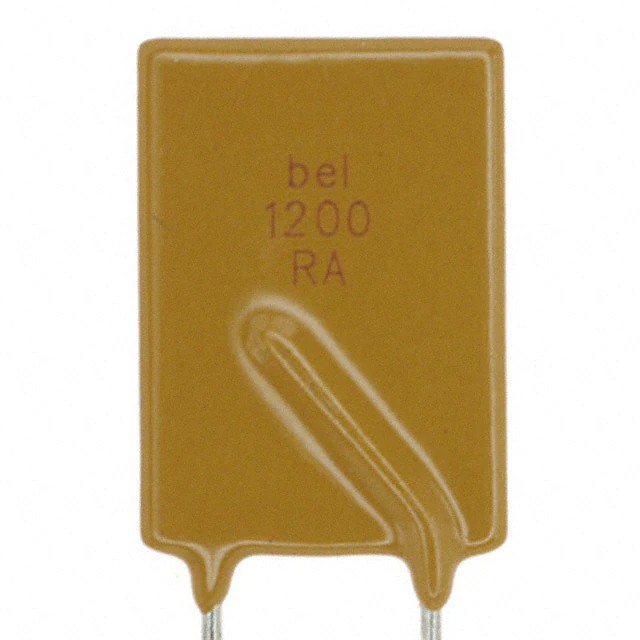

0ZRA1200FF1APTC RESET FUSE 16V 12A RADIAL |
2,751 | 0.36 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRA | Active | Polymeric | 16V | 100 A | 12 A | 20.4 A | 16 s | 2 mOhms | 9 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 L x 0.142 W (17.50mm x 3.60mm) | 1.102 (28.00mm) | - |
|
|
0ZRF0015FF2BPTC RESET FUSE 60V 150MA RADIAL |
2,388 | 0.32 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRF | Active | Polymeric | 60V | 3 A | 150 mA | 580 mA | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
0ZRN0070FF2DPTC RESET FUSE 30V 700MA RADIAL |
3,786 | 0.32 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRN | Active | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
0ZRN0300FF2DPTC RESET FUSE 16V 3A RADIAL |
2,557 | 0.32 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRN | Active | Polymeric | 16V | 100 A | 3 A | 6 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.346 L x 0.118 W (8.80mm x 3.00mm) | 0.543 (13.80mm) | - |
|
0ZRP0300FF2APTC RESET FUSE 60V 3A RADIAL |
2,137 | 0.33 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRP | Active | Polymeric | 60V | 40 A | 3 A | 6 A | 19.8 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.835 (21.20mm) | - |
|

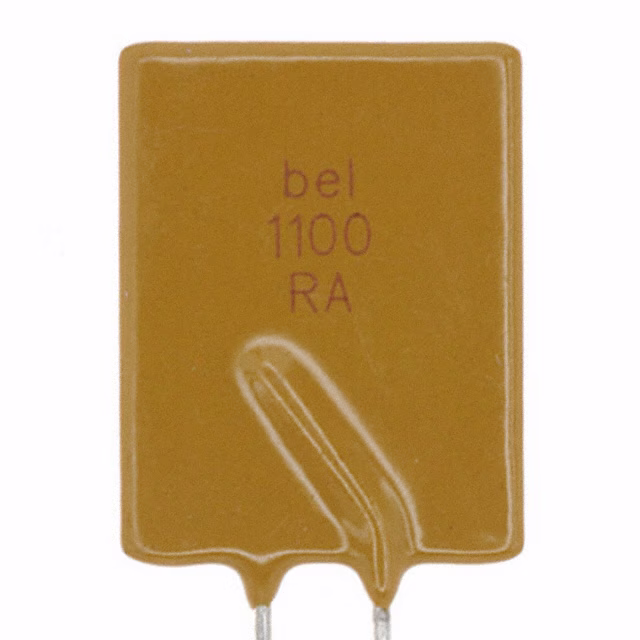

0ZRA1100FF1APTC RESET FUSE 16V 11A RADIAL |
2,742 | 0.33 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRA | Active | Polymeric | 16V | 100 A | 11 A | 18.7 A | 13.5 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.024 (26.00mm) | - |
|
0ZRM0090FF2BPTC RESET FUSE 120V 900MA RADIAL |
3,213 | 0.34 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRM | Active | Polymeric | 120V | 5 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.469 Dia x 0.150 T (11.90mm x 3.80mm) | 0.626 (15.90mm) | - |
|
0ZRP0375FF2APTC RESET FUSE 60V 3.75A RADIAL |
2,927 | 0.35 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRP | Active | Polymeric | 60V | 40 A | 3.75 A | 7.5 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.992 (25.20mm) | - |
|
0ZRS0050FF2DPTC RESET FUSE 32V 500MA RADIAL |
2,493 | 0.35 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRS | Active | Ceramic | 32V | 100 A | 500 mA | 1 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
|
0ZRS0070FF2DPTC RESET FUSE 32V 700MA RADIAL |
3,101 | 0.35 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRS | Active | Ceramic | 32V | 100 A | 700 mA | 1.4 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
|
0ZRS0100FF2BPTC RESET FUSE 32V 1A RADIAL |
3,850 | 0.36 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | 0ZRS | Active | Ceramic | 32V | 100 A | 1 A | 1.9 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.382 Dia x 0.118 T (9.70mm x 3.00mm) | 0.535 (13.60mm) | - |
|

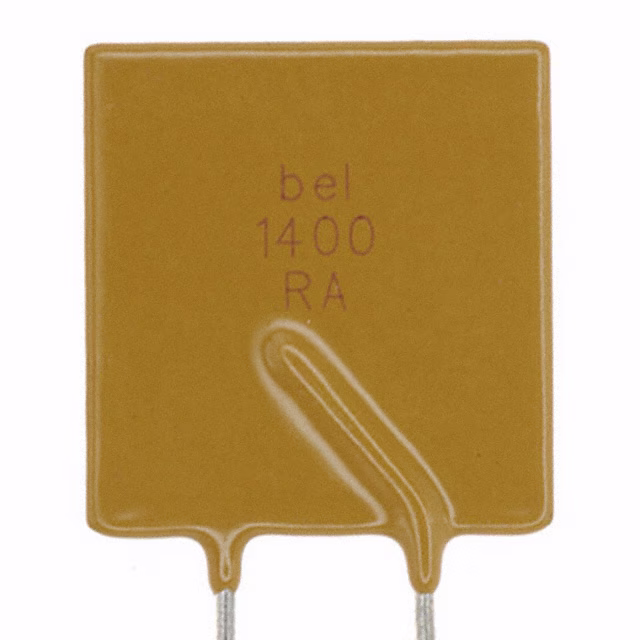

0ZRA1400FF1APTC RESET FUSE 16V 14A RADIAL |
2,908 | 0.38 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRA | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 20 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 1.098 L x 0.142 W (27.90mm x 3.60mm) | 1.098 (27.90mm) | - |
