| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

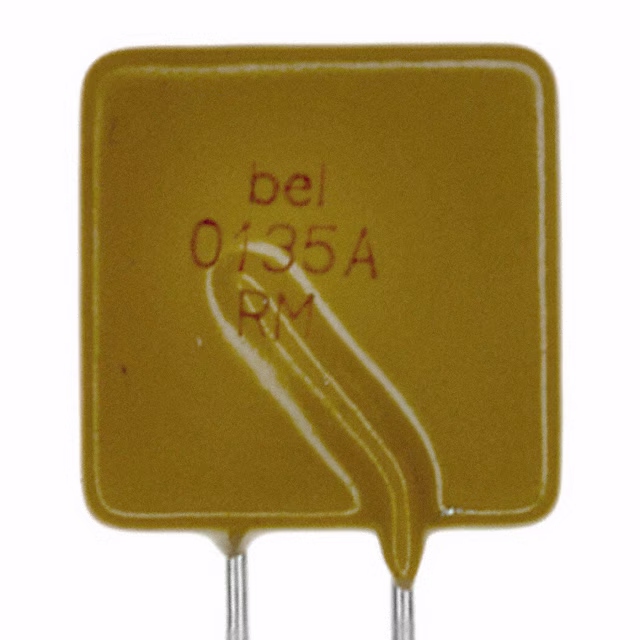

0ZRM0135AF1APTC RESET FUSE 120V 1.35A RADIAL |
799 | 1.03 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 13.5 A | 1.35 A | 2.7 A | 20 s | 110 mOhms | 300 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.610 L x 0.161 W (15.50mm x 4.10mm) | 0.811 (20.60mm) | - |
|
0ZRR0017FF1EPTC RESET FUSE 60V 170MA RADIAL |
310 | 0.34 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRR | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
0ZRN0700FF1APTC RESET FUSE 16V 7A RADIAL |
677 | 1.28 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 7 A | 13 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.862 (21.90mm) | - |
|
0ZRN1000FF1APTC RESET FUSE 16V 10A RADIAL |
610 | 1.51 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 10 A | 18.5 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
|

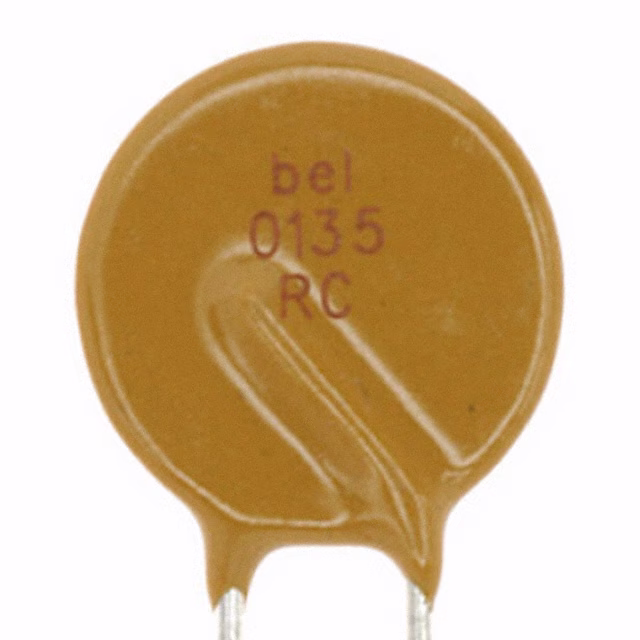

0ZRC0135FF1APTC RESET FUSE 90V 1.35A RADIAL |
441 | 0.38 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.571 L x 0.122 W (14.50mm x 3.10mm) | 0.772 (19.60mm) | - |
|

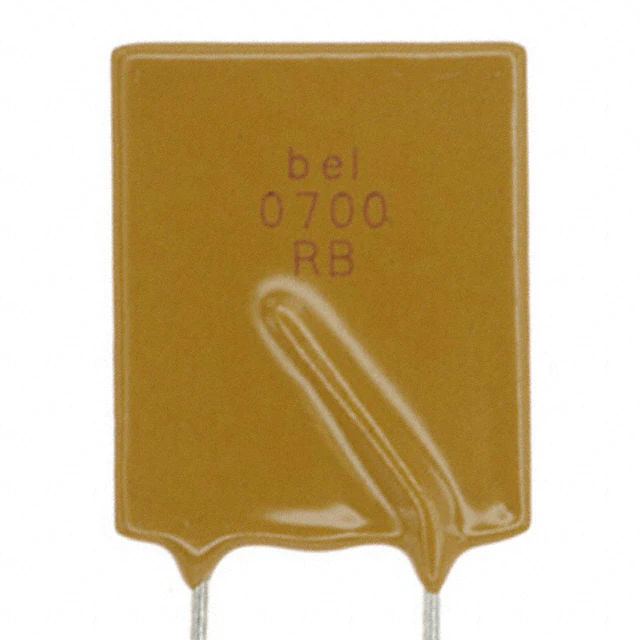

0ZRB0700FF1APTC RESET FUSE 30V 7A RADIAL |
680 | 0.69 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.051 (26.70mm) | - |
|

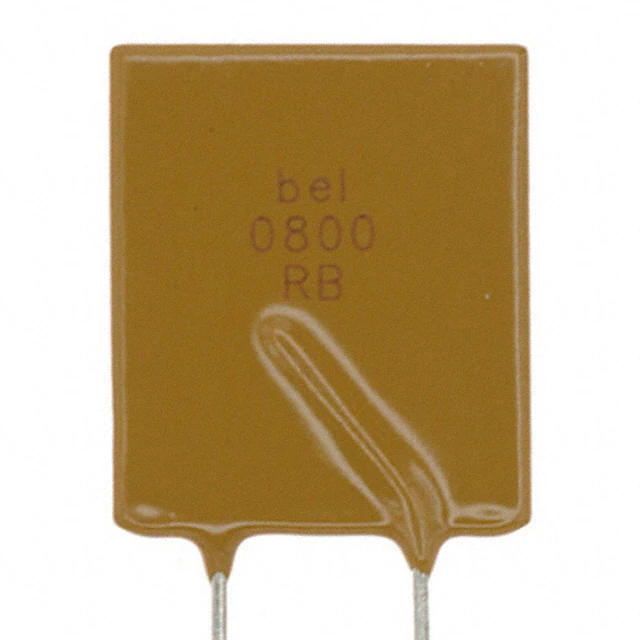

0ZRB0800FF1APTC RESET FUSE 30V 8A RADIAL |
585 | 0.72 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.150 (29.20mm) | - |
|
0ZCH0175FF2EPTC RESET FUSE 6V 1.75A 1210 |
901 | 0.30 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZCH | Active | Polymeric | 6V | 100 A | 1.75 A | 3.5 A | 600 ms | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) |
|
0ZRR0020FF2EPTC RESET FUSE 60V 200MA RADIAL |
940 | 0.35 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRR | Active | Polymeric | 60V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
0ZTJ0010FF2EPTC RESET FUSE 100MA 30V 1206 |
875 | 0.68 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZTJ | Active | Polymeric | 30V | 10 A | 100 mA | 350 mA | 100 ms | 1.1 Ohms | 10 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.047 (1.20mm) |
|

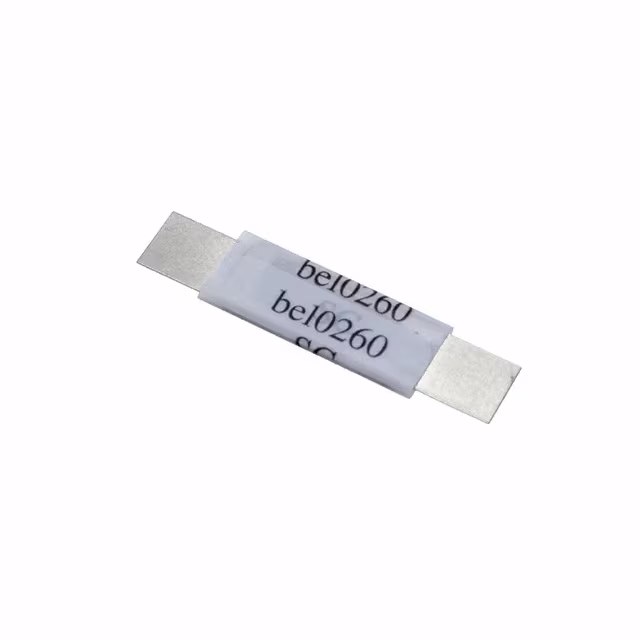

0ZSC0260FF1EPTC RESET FUSE 20V 2.6A STRAP |
872 | 0.79 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 2.6 A | 5.8 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.205 W (22.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|

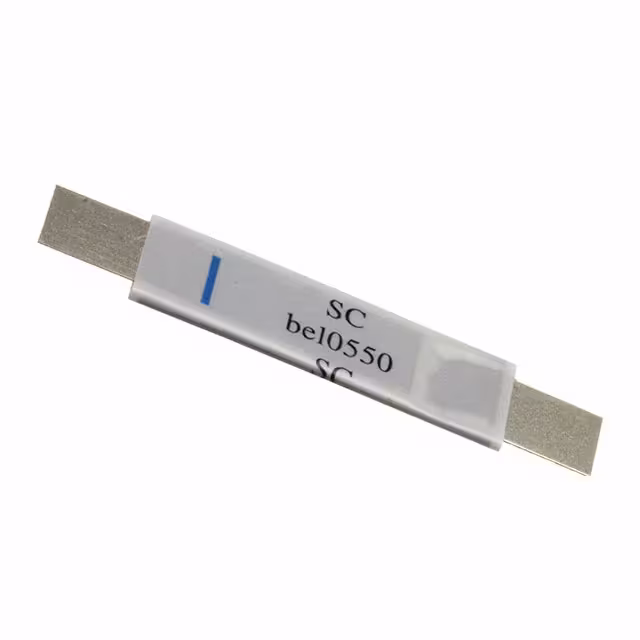

0ZSC0550FF1EPTC RESET FUSE 20V 5.5A STRAP |
970 | 0.94 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 5.5 A | 10.5 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.417 L x 0.283 W (36.00mm x 7.20mm) | - | 0.039 (1.00mm) |
|

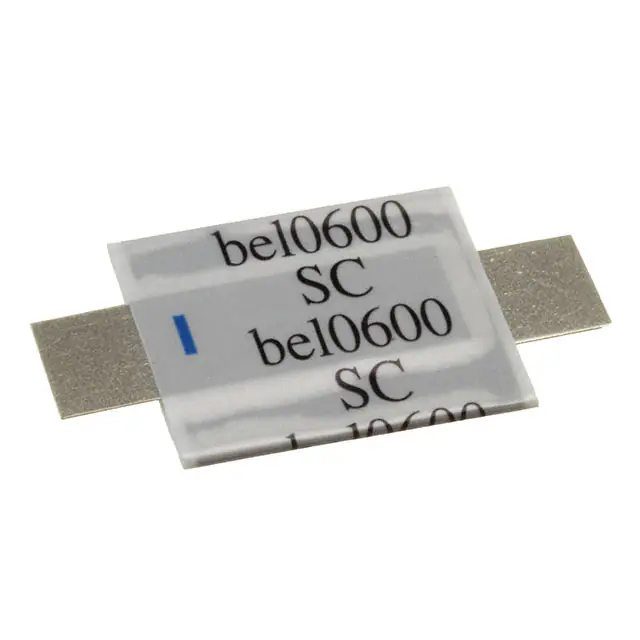

0ZSC0600FF1EPTC RESET FUSE 20V 6A STRAP |
137 | 1.12 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 6 A | 11.7 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.559 W (25.00mm x 14.20mm) | - | 0.039 (1.00mm) |
|

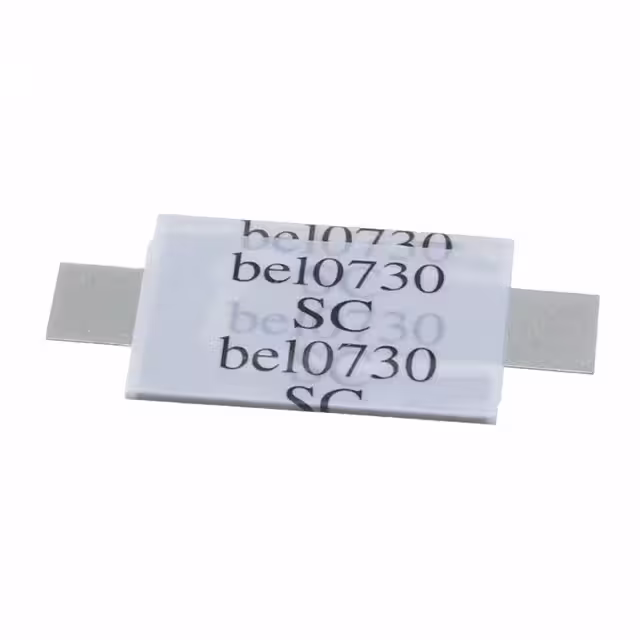

0ZSC0730FF1EPTC RESET FUSE 20V 7.3A STRAP |
942 | 1.21 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 7.3 A | 14.1 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.106 L x 0.559 W (28.10mm x 14.20mm) | - | 0.039 (1.00mm) |
|

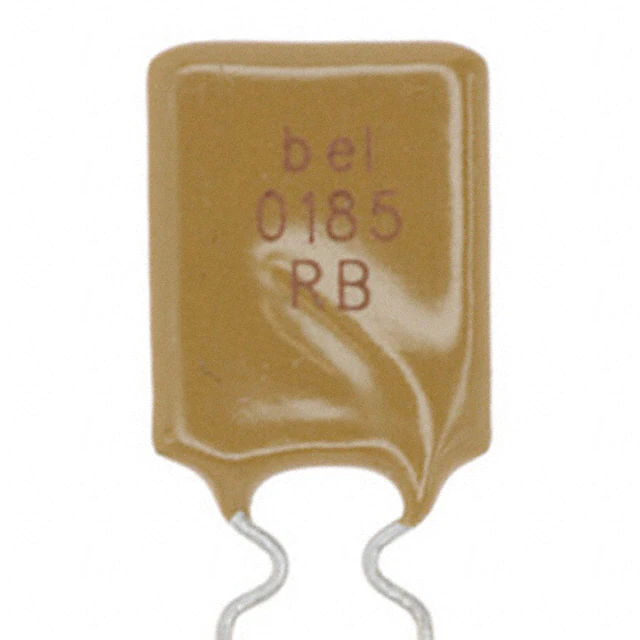

0ZRB0185FF1EPTC RESET FUSE 30V 1.85A RADIAL |
3,566 | 0.34 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|

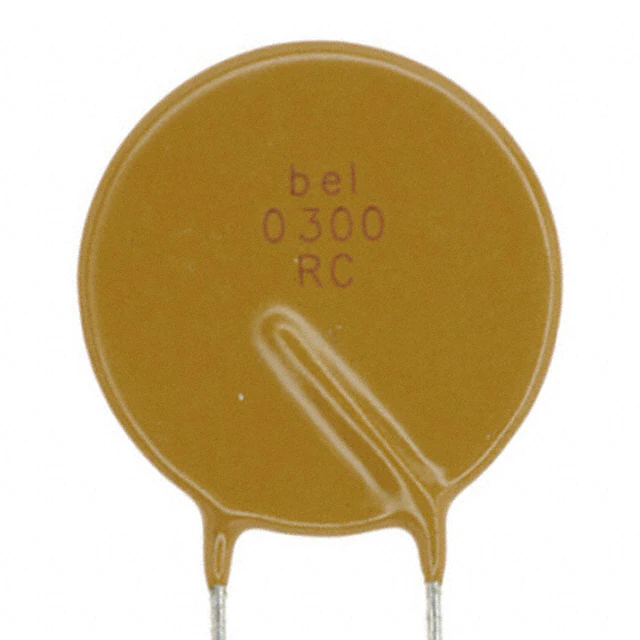

0ZRC0300FF1APTC RESET FUSE 90V 3A RADIAL |
3,398 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRC | Active | Polymeric | 90V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.980 L x 0.122 W (24.90mm x 3.10mm) | 1.181 (30.00mm) | - |
|
0ZRE0012FF2CPTC RESET FUSE 240V 120MA RADIAL |
3,480 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRE | Active | Polymeric | 240V | 2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.327 L x 0.150 W (8.30mm x 3.80mm) | 0.421 (10.70mm) | - |
|

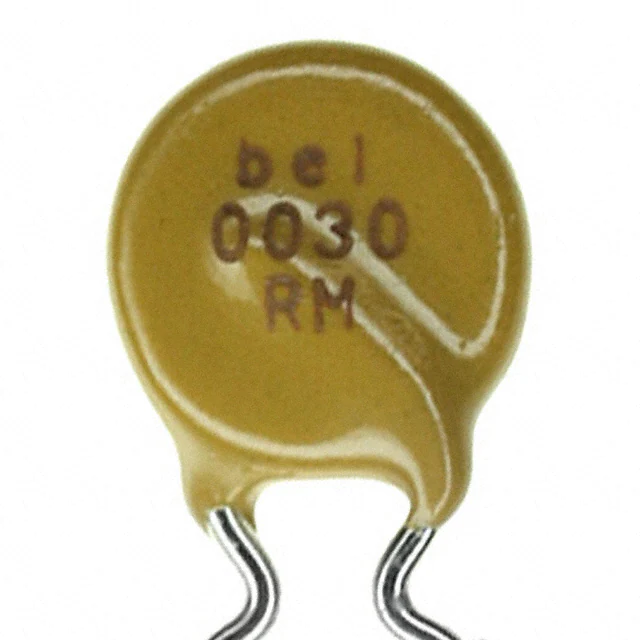

0ZRM0030FF1EPTC RESET FUSE 120V 300MA RADIAL |
2,846 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 3 A | 300 mA | 600 mA | 8.5 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.311 Dia x 0.150 T (7.90mm x 3.80mm) | 0.512 (13.00mm) | - |
|
0ZRN0600FF1APTC RESET FUSE 16V 6A RADIAL |
3,854 | 1.10 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 6 A | 10.8 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.827 (21.00mm) | - |
|

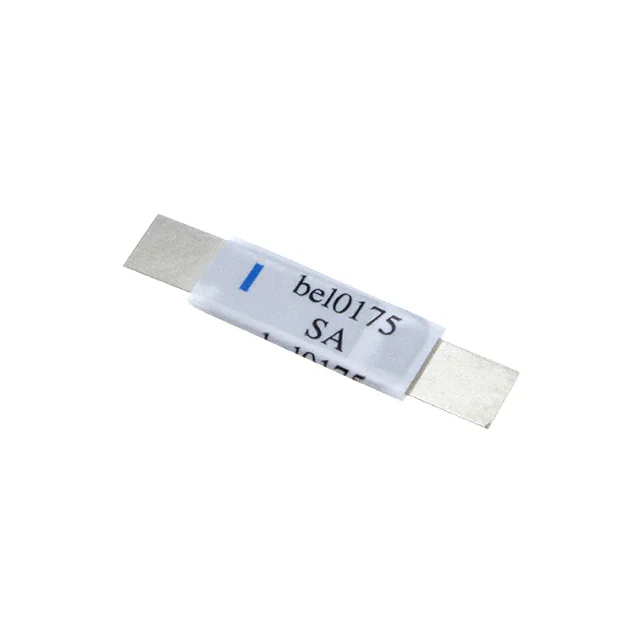

0ZSA0175FF1EPTC RESET FUSE 15V 1.75A STRAP |
2,740 | 0.57 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSA | Active | Polymeric | 15V | 100 A | 1.75 A | 3.8 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) |
