| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRF0018FF1APTC RESET FUSE 60V 180MA RADIAL |
2,027 | 0.73 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRF | Active | Polymeric | 60V | 3 A | 180 mA | 580 mA | 11 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.429 L x 0.181 W (10.90mm x 4.60mm) | 0.496 (12.60mm) | - |
|
0ZRP0375FF1APTC RESET FUSE 60V 3.75A RADIAL |
1,409 | 0.73 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRP | Active | Polymeric | 60V | 40 A | 3.75 A | 7.5 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.142 W (16.50mm x 3.60mm) | 0.992 (25.20mm) | - |
|
0ZRN0070FF1EPTC RESET FUSE 30V 700MA RADIAL |
2,414 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
0ZRN0300FF1EPTC RESET FUSE 16V 3A RADIAL |
1,595 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 3 A | 6 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.346 L x 0.118 W (8.80mm x 3.00mm) | 0.543 (13.80mm) | - |
|

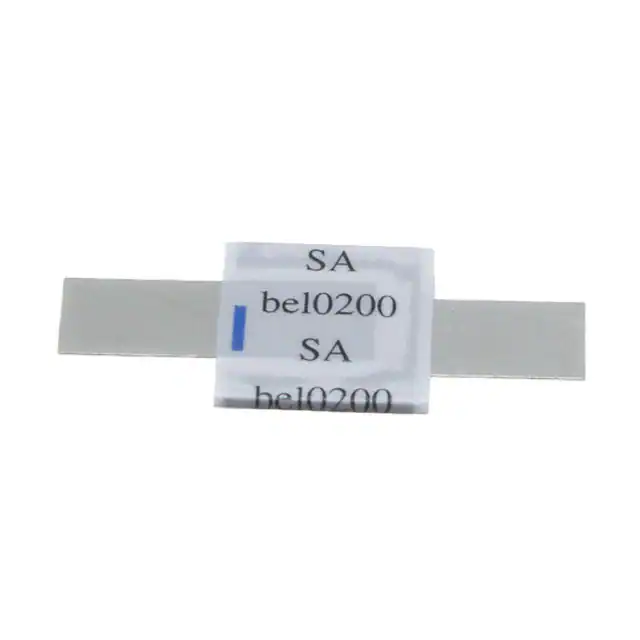

0ZSA0200FF1EPTC RESET FUSE 30V 2A STRAP |
9,378 | 0.78 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSA | Active | Polymeric | 30V | 100 A | 2 A | 4.4 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.880 L x 0.417 W (22.35mm x 10.60mm) | - | 0.043 (1.10mm) |
|

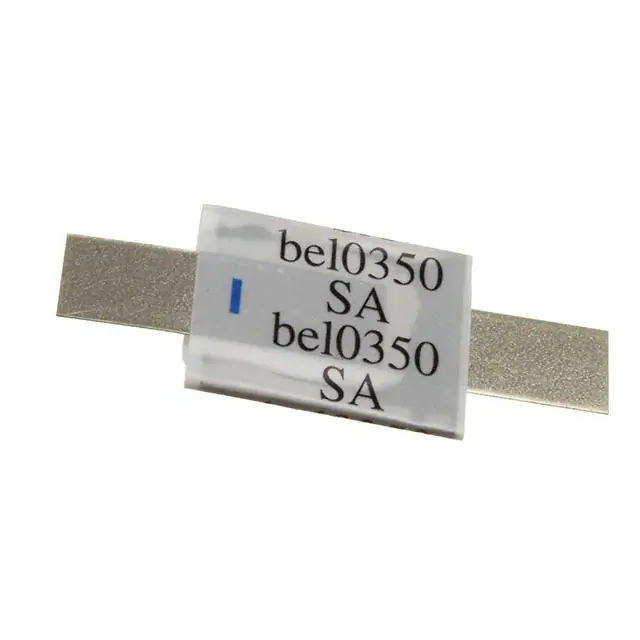

0ZSA0350FF1EPTC RESET FUSE 30V 3.5A STRAP |
2,995 | 0.78 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSA | Active | Polymeric | 30V | 100 A | 3.5 A | 6.3 A | 3 s | 17 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.185 L x 0.522 W (30.10mm x 13.25mm) | - | 0.043 (1.10mm) |
|

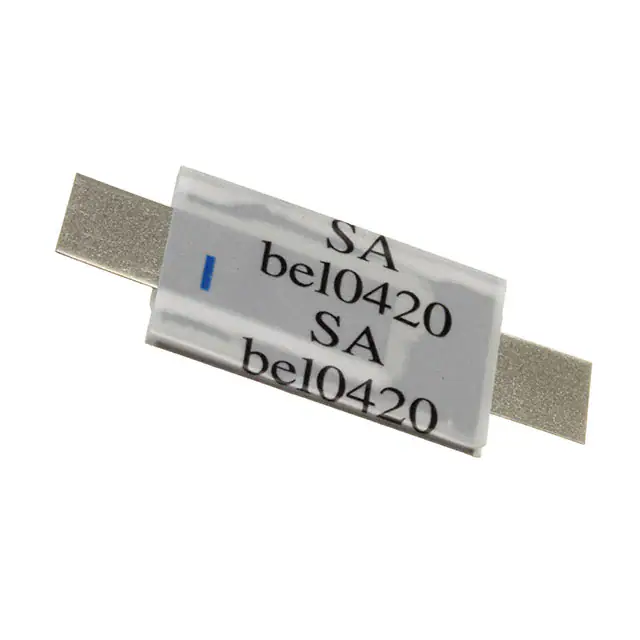

0ZSA0420FF1EPTC RESET FUSE 30V 4.2A STRAP |
1,253 | 0.78 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSA | Active | Polymeric | 30V | 100 A | 4.2 A | 7.6 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.240 L x 0.522 W (31.50mm x 13.25mm) | - | 0.043 (1.10mm) |
|

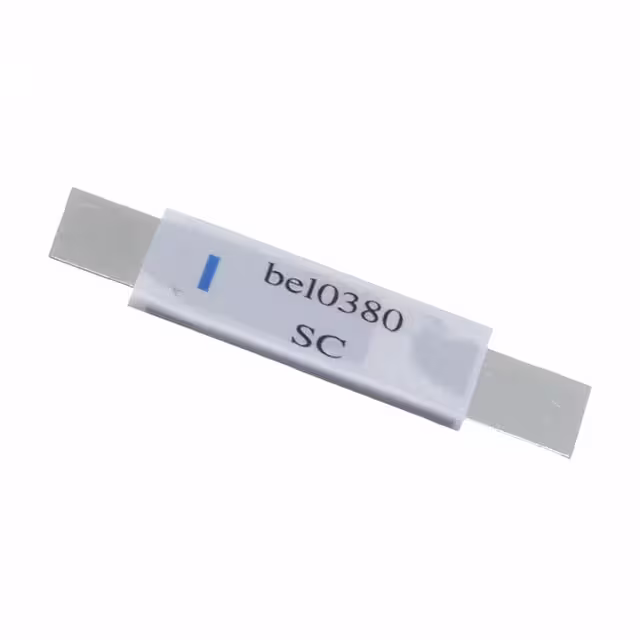

0ZSC0380FF1EPTC RESET FUSE 20V 3.8A STRAP |
4,910 | 0.81 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 3.8 A | 8.3 A | 5 s | 13 mOhms | 37 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.283 W (25.00mm x 7.20mm) | - | 0.039 (1.00mm) |
|

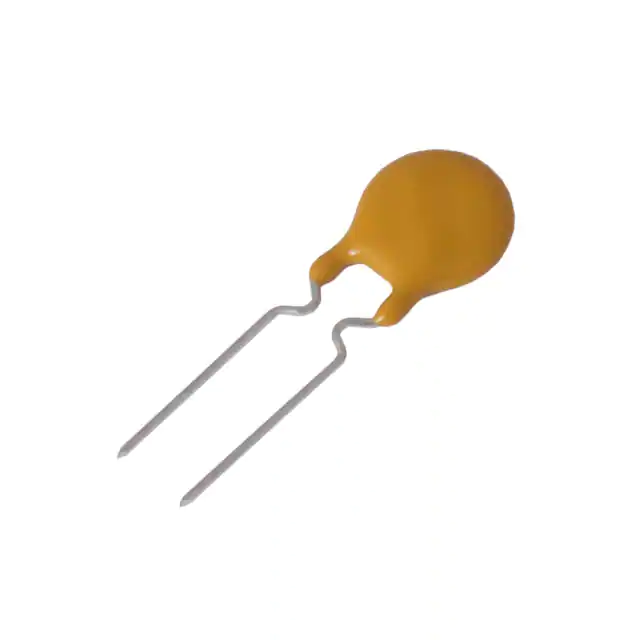

0ZRS0070FF1EPTC RESET FUSE 32V 700MA RADIAL |
2,549 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRS | Active | Ceramic | 32V | 100 A | 700 mA | 1.4 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
0ZRS0050FF1EPTC RESET FUSE 32V 500MA RADIAL |
2,110 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRS | Active | Ceramic | 32V | 100 A | 500 mA | 1 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|

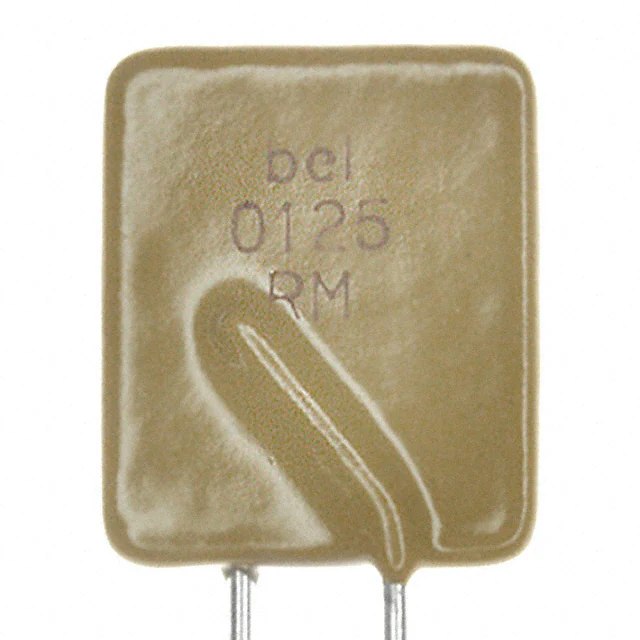

0ZRM0125FF1APTC RESET FUSE 120V 1.25A RADIAL |
6,234 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 12.5 A | 1.25 A | 2.5 A | 20 s | 110 mOhms | 330 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.854 (21.70mm) | - |
|

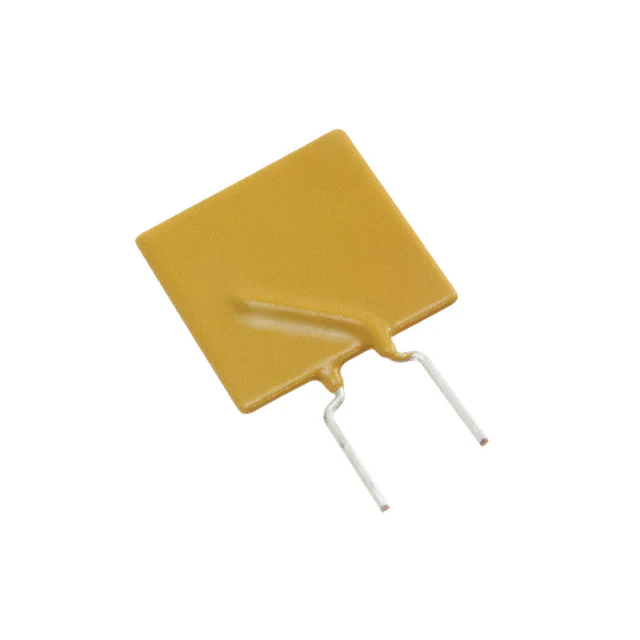

0ZRN1500FF1APTC RESET FUSE 16V 15A RADIAL |
8,024 | 2.09 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - |
|
0ZRC0075FF2EPTC RESET FUSE 90V 750MA RADIAL |
3,000 | 0.36 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRC | Active | Polymeric | 90V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.409 L x 0.122 W (10.40mm x 3.10mm) | 0.598 (15.20mm) | - |
|
0ZRE0008FF2CPTC RESET FUSE 240V 80MA RADIAL |
3,450 | 0.37 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRE | Active | Polymeric | 240V | 1.5 A | 80 mA | 190 mA | 15 s | 7.4 Ohms | 26 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.327 L x 0.150 W (8.30mm x 3.80mm) | 0.421 (10.70mm) | - |
|
|
0ZRC0010FF2EPTC RESET FUSE 90V 100MA RADIAL |
5,386 | 0.39 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | 0ZRC | Active | Polymeric | 90V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.291 L x 0.122 W (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
0ZRG0160FF1EPTC RESET FUSE 30V 1.6A RADIAL |
2,725 | 0.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRG | Active | Polymeric | 30V | 40 A | 1.6 A | 3.2 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
|
0ZRG0250FF1EPTC RESET FUSE 30V 2.5A RADIAL |
1,252 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRG | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 40 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
0ZRN0400FF1EPTC RESET FUSE 16V 4A RADIAL |
2,942 | 0.92 |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 4 A | 7 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.591 (15.00mm) | - |
|

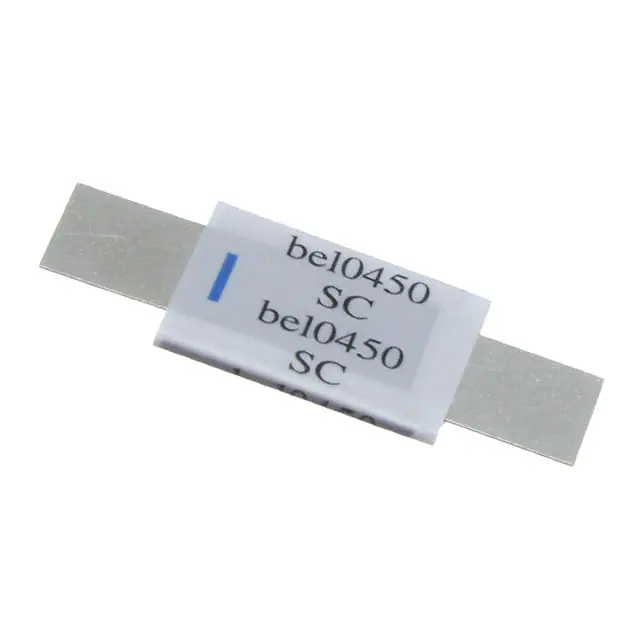

0ZSC0450FF1EPTC RESET FUSE 20V 4.5A STRAP |
1,389 | 0.94 |
RFQ |
Datasheet |
Strap | Bulk | 0ZSC | Active | Polymeric | 20V | 100 A | 4.5 A | 8.9 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.402 W (25.00mm x 10.20mm) | - | 0.039 (1.00mm) |
|
0ZCJ0035AF2EPTC RESET FUSE 30V 350MA 1206 |
544,488 | 0.23 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZCJ | Active | Polymeric | 30V | 40 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.051 (1.30mm) |
