| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1865-02G-KDNSENSOR FORCE/PRES 0-10PSIG 10VDC |
2,444 | 143.98 |
RFQ |
Datasheet |
8-DIP Module | Bulk,Tray | 1865 | Active | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 30PSI (206.84kPa) | -28°C ~ 54°C |
|
|
1865-02G-LDNSENSOR FORCE/PRES 0-10PSIG 1.5MA |
2,884 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1865 | Active | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.25% | - | - | No Port | Temperature Compensated | - | 30PSI (206.84kPa) | -28°C ~ 54°C |
|
|
1865-03G-KDNSENSOR FORCE/PRES 0-15PSIG 10VDC |
2,461 | 134.68 |
RFQ |
Datasheet |
8-DIP Module | Bulk,Tray | 1865 | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 45PSI (310.26kPa) | -28°C ~ 54°C |
|
|
1865-03G-LDNSENSOR FORCE/PRES 0-15PSIG 1.5MA |
2,619 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1865 | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.25% | - | - | No Port | Temperature Compensated | - | 45PSI (310.26kPa) | -28°C ~ 54°C |
|
|
1865-05G-KDNSENSOR FORCE/PRES 0-25PSIG 10VDC |
2,441 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1865 | Obsolete | Board Mount | Vented Gauge | 25PSI (172.37kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C |
|
|
1865-05G-LDNSENSOR FORCE/PRES 0-25PSIG 1.5MA |
2,350 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1865 | Active | Board Mount | Vented Gauge | 25PSI (172.37kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.25% | - | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C |
|
|
1865-07G-KDNSENSOR FORCE/PRES 0-30PSIG 10VDC |
2,424 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1865 | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 V ~ 7.5 V | ±0.25% | 15V | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C |
|
|
1865-07G-LDNSENSOR FORCE/PRES 0-30PSIG 1.5MA |
2,358 | 143.63 |
RFQ |
Datasheet |
8-DIP Module | Bulk,Tray | 1865 | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.25% | - | - | No Port | Temperature Compensated | - | 60PSI (413.69kPa) | -28°C ~ 54°C |
|

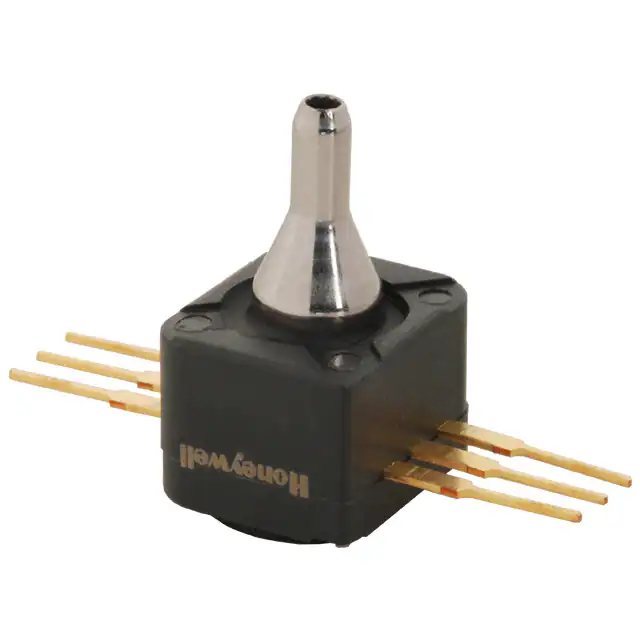

40PC001B1ASENSOR AMP DIFFERENTIAL 50MM HG |
3,072 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Compound | ±0.97PSI (±6.69kPa) | Analog Voltage | 2.5 V ~ 6.5 V | ±0.8% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | ±3.29PSI (±22.68kPa) | -45°C ~ 125°C |
|

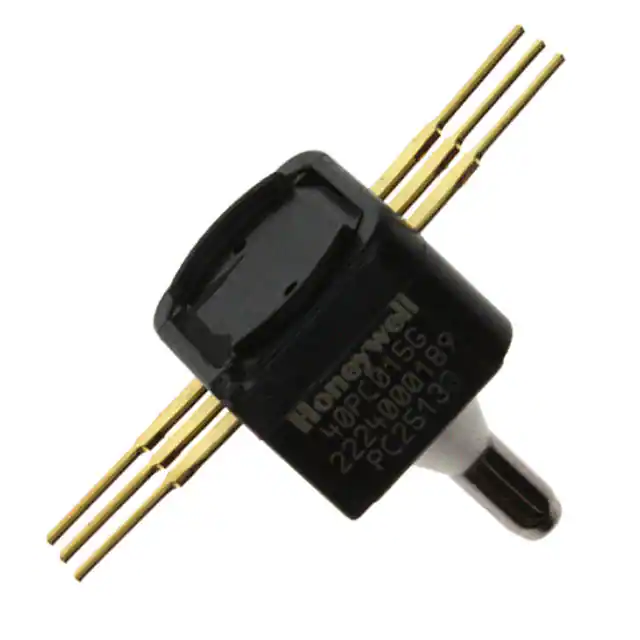

40PC015G1ASENSOR AMP 15PSI GAUGE |
2,088 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±4% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 45PSI (310.26kPa) | -45°C ~ 125°C |
|

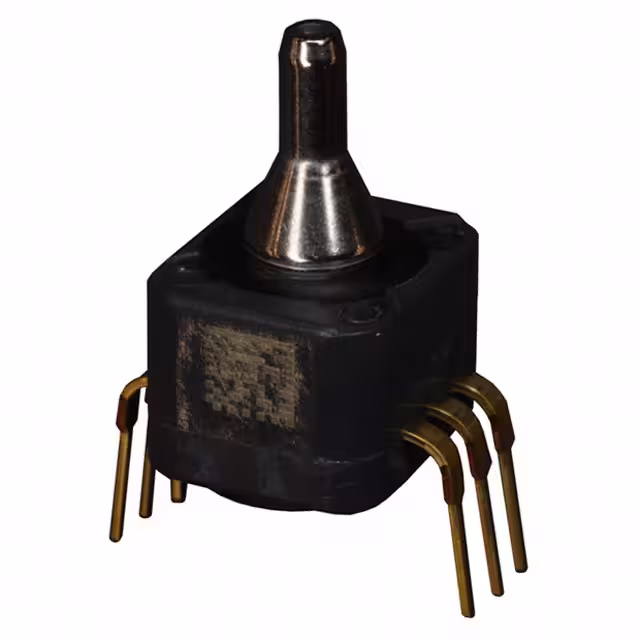

40PC015V2ASENSOR AMP -15PSI VACUUM GAUGE |
3,223 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Bulk | 40PC | Active | Board Mount | Vacuum | -15PSI (-103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.25% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | -15PSI (-103.42kPa) | -45°C ~ 125°C |
|

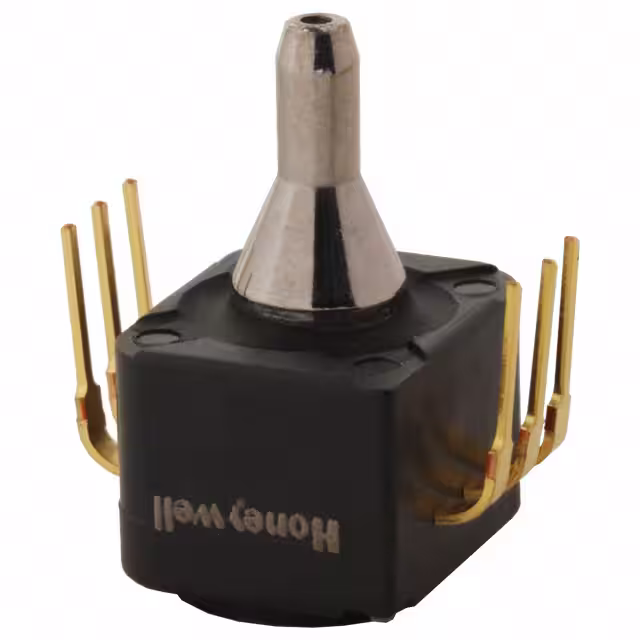

40PC015V3ASENSOR AMP -15PSI VACUUM GAUGE |
3,849 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Vacuum | -15PSI (-103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.25% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | -15PSI (-103.42kPa) | -45°C ~ 125°C |
|

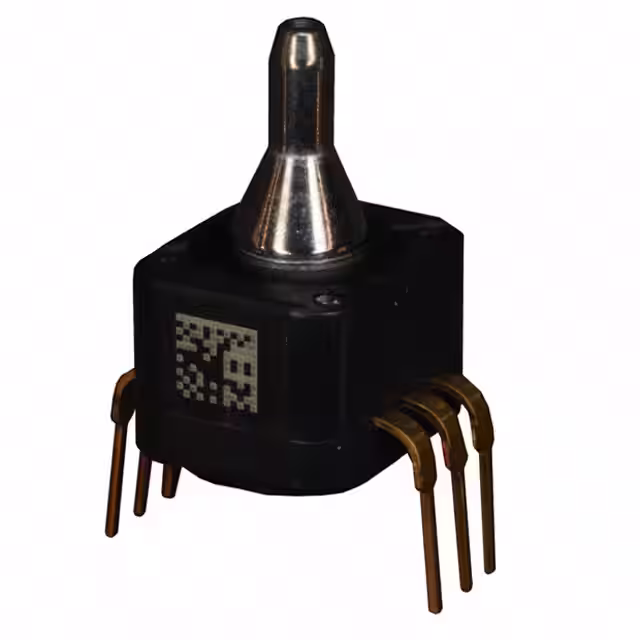

40PC150G2ASENSOR AMP 150PSI GAUGE |
3,580 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 300PSI (2068.43kPa) | -45°C ~ 125°C |
|

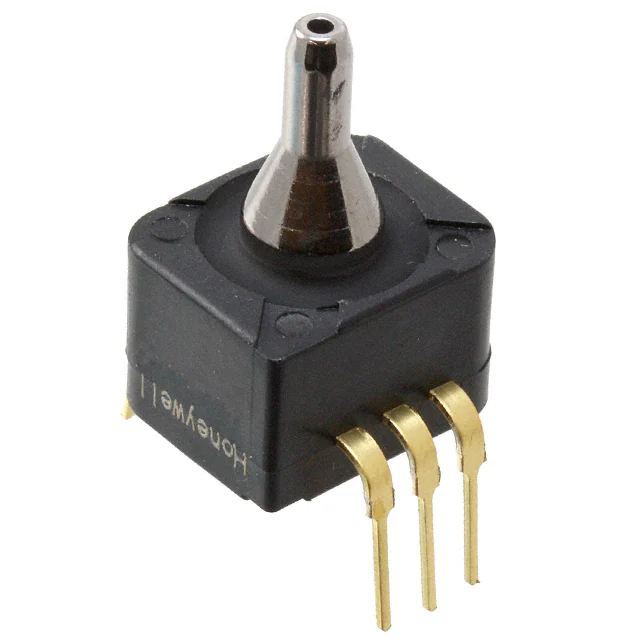

40PC250G2ASENSOR AMP 250PSI GAUGE |
2,733 | 163.80 |
RFQ |
Datasheet |
6-DIP Module | Bulk,Bulk | 40PC | Active | Board Mount | Vented Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 500PSI (3447.38kPa) | -45°C ~ 125°C |
|

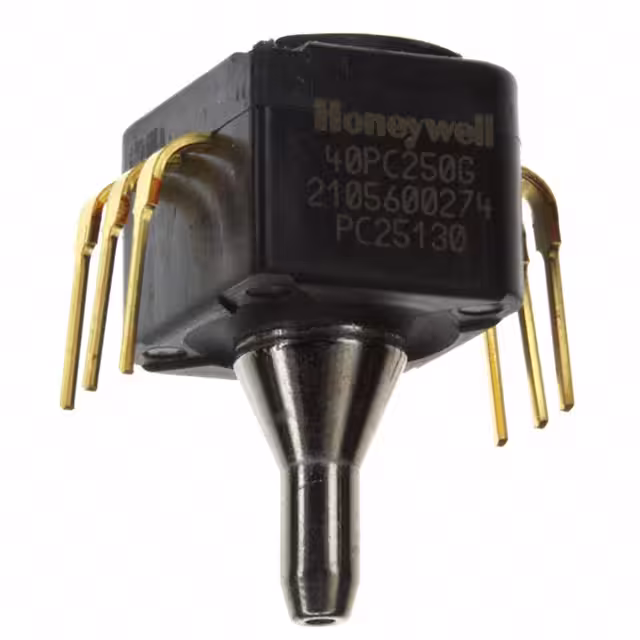

40PC250G3ASENSOR AMP 250PSI GAUGE |
2,350 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Vented Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 500PSI (3447.38kPa) | -45°C ~ 125°C |
|
40PC500G2ASENSOR AMP 500PSI GAUGE |
3,010 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Tube | 40PC | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18 (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 1000PSI (6894.76kPa) | -45°C ~ 125°C |
|

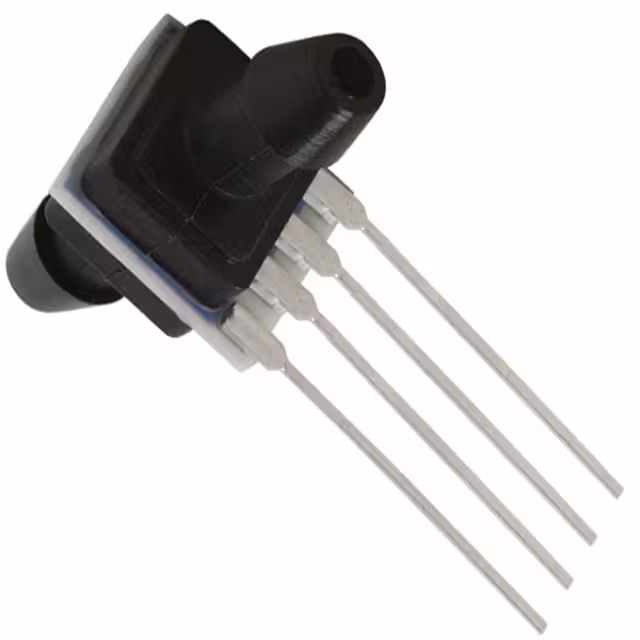

CPC0.3DFHSENSOR DIFF VACUUM GAUGE .3PSI |
3,999 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Differential | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
CPC0.3GFHSENSOR VACUUM GAUGE .3PSI |
2,965 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Bulk | CPC | Obsolete | Board Mount | Vented Gauge | 0.3PSI (2.07kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
CPC01DFCSENSOR DIFF VACUUM GAUGE 1PSI |
2,827 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16 (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
|
|
CPC01GFHSENSOR VACUUM GAUGE 1PSI |
3,243 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Tube | CPC | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 5PSI (34.47kPa) | -25°C ~ 85°C |
