| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

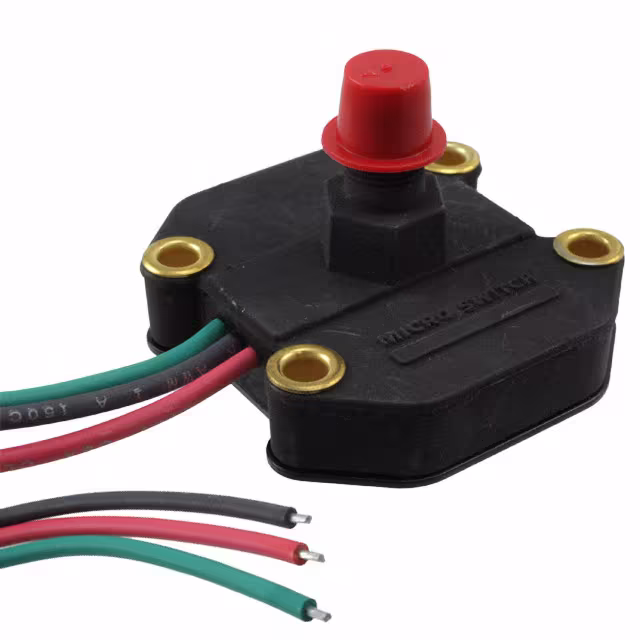

243PC15MSENSOR PRESSURE 15PSI GAUGE |
2,678 | 0.00 |
RFQ |
Datasheet |
Module | Bulk | 240PC | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 1 V ~ 6 V | ±1.5% | 7V ~ 16V | Male - 1/8 (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Wire Leads | ±50PSI (±344.74kPa) | -40°C ~ 85°C |
|
ASDX005D44DSENSOR AMP 5PSI DIFF 4V OUT |
2,250 | 0.00 |
RFQ |
Datasheet |
8-DIP Module | Bulk | ASDX | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2% | 4.75V ~ 5.25V | Male - 0.09 (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -20°C ~ 105°C |
|

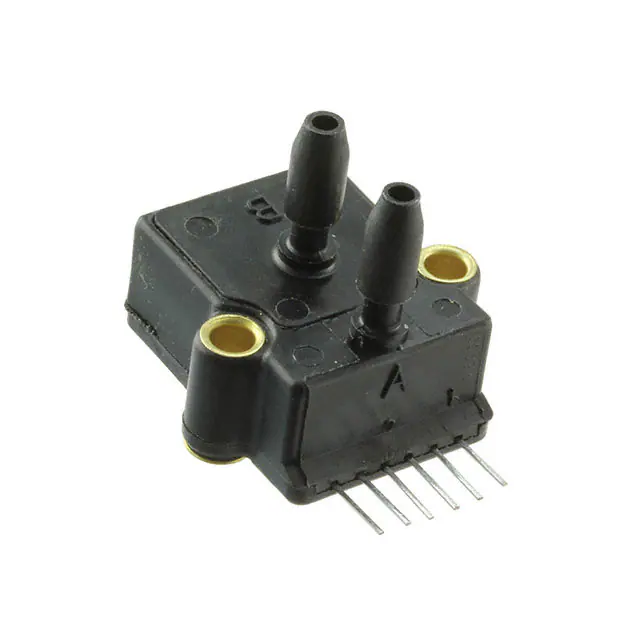

SCX100DNCTEMP COMP C-GRADE 100 PSI |
3,744 | 0.00 |
RFQ |
Datasheet |
6-SIP Module | Bulk | SCX | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±5% | 20V | Male - 0.19 (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C |
|
|
SCC100DPRESSURE SENSOR 0-5 PSI |
2,622 | 0.00 |
RFQ |
5-DIP Module | Bulk | SCC | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±0.5% | - | - | No Port | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | |
|

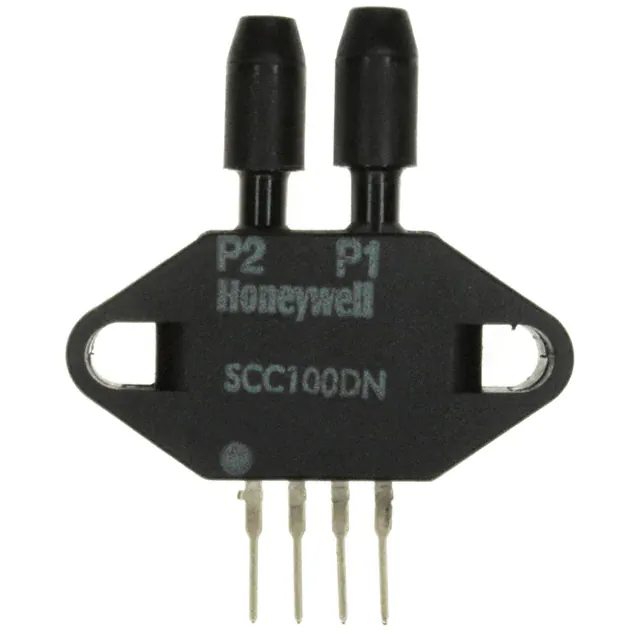

SCC100DNPRESSURE SENSOR 0-100-PSI |
3,195 | 0.00 |
RFQ |
5-DIP Module | Bulk | SCC | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±0.5% | - | Male - 0.19 (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | |
|
SDX005IND4SENSOR PRESSURE DIFF 5 H2O 6DIP |
2,112 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Bulk | SDX IND | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±1% | 20V | Male - 0.09 (2.3mm) Tube | Barbless | Temperature Compensated | PC Pin | 6.97PSI (48.09kPa) | -40°C ~ 85°C |
|
|
SDX010IND4SENSOR PRESSURE DIFF 10 H2O |
2,974 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Bulk | SDX IND | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (12V) | ±1% | 20V | Male - 0.09 (2.3mm) Tube | Barbless | Temperature Compensated | PC Pin | 6.97PSI (48.09kPa) | -40°C ~ 85°C |
|
SX15GSMTSENSOR GAUGE 0-15PSIG SMT |
2,535 | 0.00 |
RFQ |
Datasheet |
8-SMD Module | Tube | SX SMT | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
|
SX100GSMTSENSOR GAUGE 0-100PSIG SMT |
3,160 | 0.00 |
RFQ |
8-SMD Module | Tube | SX SMT | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | |
|
|
SX30ANSENSOR HIGH-IMP 30PSIA N PKG |
2,541 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Bulk | - | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.19 (4.8mm) Tube, Dual | Barbed | - | - | 90PSI (620.53kPa) | -40°C ~ 85°C |
|
|
SLP004DD4PRESSURE SENSOR, 0-4 IN. H20 |
3,225 | 0.00 |
RFQ |
6-DIP Module | Bulk | SLP | Active | Board Mount | Differential | 0.15PSI (1kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (5V) | ±1% | 7.5V | - | No Port | - | PC Pin | 0.36PSI (2.49kPa) | 0°C ~ 50°C | |
|
|
SCX30ANCSENSOR TEMP COMP 30PSIA |
2,842 | 0.00 |
RFQ |
Datasheet |
6-SIP Module | Bulk,Bulk | SCX | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 20V | Male - 0.19 (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C |
|

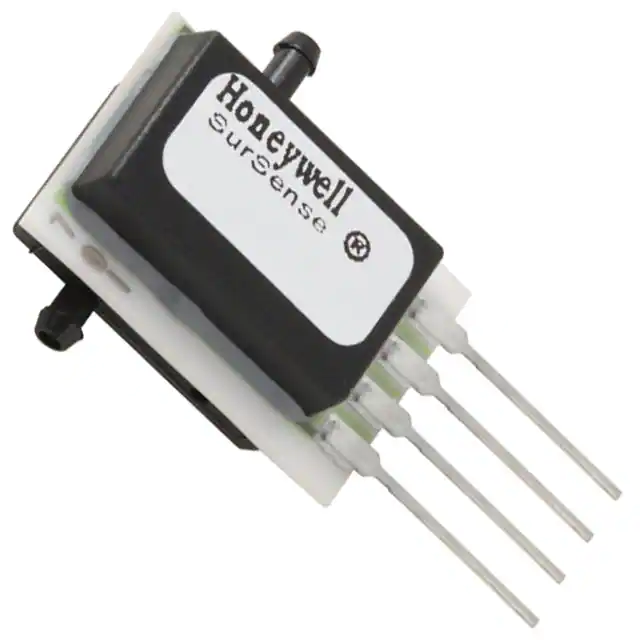

DUXL30DSENSOR PRESS DIFF 30 H2O 4SIP |
2,962 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Tube | DUXL | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08 (2.03mm) Tube, Dual | Barbed | - | PC Pin | 10.84PSI (74.75kPa) | -25°C ~ 85°C |
|
|
1800-10G-L4L-BSENSOR PRESSURE TRANSDUCER |
2,718 | 0.00 |
RFQ |
- | - | - | Active | Board Mount | Gauge | 0 ~ 150PSI (0 ~ 1034.21kPa) | Wheatstone Bridge | - | - | 15V | - | - | - | - | 50PSI (344.74kPa) | -40°C ~ 121°C | |
|
|
19U100PA7KPRESSURE SENSOR 100PSI 5V |
2,705 | 0.00 |
RFQ |
Cylinder, Threaded | Bulk | 19 mm | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 40 mV (5V) | ±0.25% | 15V | Male - 1/4 (6.35mm) BSPP | Threaded | - | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | |
|
|
SCX100DN-90SENSOR TEMP COMP 100PSID 90 DEG |
3,370 | 0.00 |
RFQ |
Datasheet |
- | - | - | Active | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SX15ASMTSENSOR HI-IMP 15 PSIA SMT |
2,737 | 0.00 |
RFQ |
8-SMD Module | - | SX SMT | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.05% | 12V | Male - 0.08 (2.05mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | |
|
|
SPTMV0300PA4W02PRESSURE TRANSDUCER SS ABSOLETE |
3,575 | 0.00 |
RFQ |
Cylinder | Bulk | SPT | Obsolete | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.25% | 12.5V ~ 24V | Male - 1/8 (3.18mm) NPT | Threaded | Temperature Compensated | Wire Leads | 900PSI (6205.28kPa) | -40°C ~ 85°C | |
|
|
SDX05D4-ASENSOR TEMP COMP 5PSID DIP |
2,757 | 0.00 |
RFQ |
Datasheet |
6-DIP Module | Bulk | SDX | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.25% | 20V | Male - 0.09 (2.28mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C |
|
|
CPC15AFCPRESSURE SENSOR UNAMP 2-15 PSIA |
2,116 | 0.00 |
RFQ |
Datasheet |
4-SIP Module | Bulk | CPC | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.15 (3.8mm) Tube | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C |
