| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
369GXPPWR XFMR LAMINATED 50VA CHAS MT |
2,905 | 288.87 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 450V, 6.3V | 74mA, 2.5A | Dual, Multiple Taps | Triple | Yes | 50VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms |
|
|
373XPPWR XFMR LAMINATED 125VA CHAS MT |
2,154 | 315.69 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 700V, 6.3V, 5V | 127mA, 4A, 2A | Dual, Multiple Taps | Triple | Yes | 125VA | Chassis Mount | Wire Leads | 95.25mm L x 79.50mm W | 96.77mm | 2000Vrms |
|
373JXPWR XFMR LAMINATED 403VA CHAS MT |
2,055 | 444.86 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 700V, 6.3V, 5V | 863mA, 12A, 6A | Dual, Multiple Taps | Four | Yes | 403VA | Chassis Mount | Wire Leads | 167.54mm L x 134.14mm W | 161.54mm | 2000Vrms |
|
|
374XPPWR XFMR LAMINATED 141VA CHAS MT |
3,813 | 454.98 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 750V, 6.3V, 5V | 127mA, 5A, 3A | Dual, Multiple Taps | Four | Yes | 141VA | Chassis Mount | Wire Leads | 99.82mm L x 79.50mm W | 96.52mm | 2000Vrms |
|
|
372HXPPWR XFMR LAMINATED 191VA CHAS MT |
2,901 | 467.20 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Triple | Yes | 191VA | Chassis Mount | Wire Leads | 101.60mm L x 95.25mm W | 115.90mm | 2000Vrms |
|
732PWR XFMR LAMINATED 500VA CHAS MT |
2,626 | 500.63 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 115V | 2500V | 200mA | Single | Single | Yes | 500VA | Chassis Mount | Wire Leads | 127.00mm L x 133.35mm W | 165.10mm | - |
|
|
733APWR XFMR LAMINATED 750VA CHAS MT |
3,934 | 549.55 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 2500V | 300mA | Single | Single | Yes | 750VA | Chassis Mount | Wire Leads | 152.40mm L x 127.00mm W | 165.10mm | - |
|
|
735PWR XFMR LAMINATED 735VA CHAS MT |
3,967 | 572.26 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 115V | 3000V | 250mA | Single | Single | Yes | 735VA | Chassis Mount | Wire Leads | 127.00mm L x 152.40mm W | 165.10mm | - |
|
|
735APWR XFMR LAMINATED 735VA CHAS MT |
3,790 | 611.71 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 3000V | 250mA | Single | Single | Yes | 735VA | Chassis Mount | Wire Leads | 152.40mm L x 127.00mm W | 165.10mm | - |
|

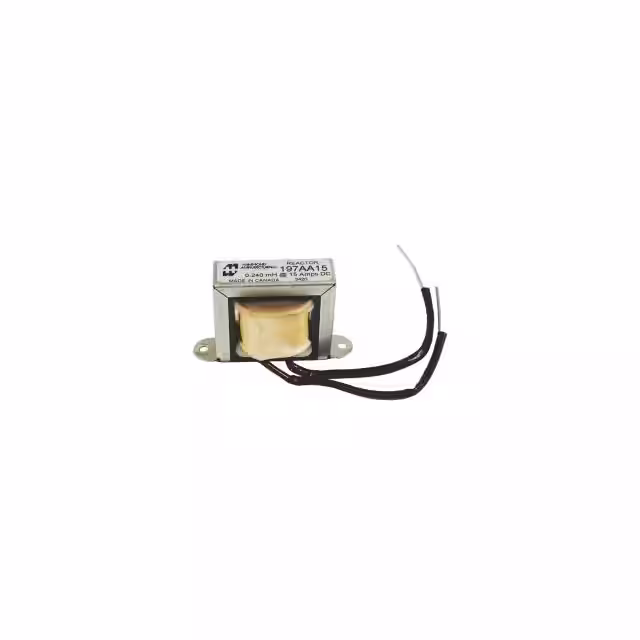

197AA15HIGH FREQUENCY REACTOR, 0.24 MH |
2,542 | 5.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 15A | Single | Single | No | - | Chassis Mount | Wire Leads | 82.55mm L x 40.77mm W | 50.67mm | |
|
197AB25HIGH FREQUENCY REACTOR, 0.15 MH |
3,060 | 2.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 25A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 86.36mm L x 76.2mm W | 84.15mm | |
|

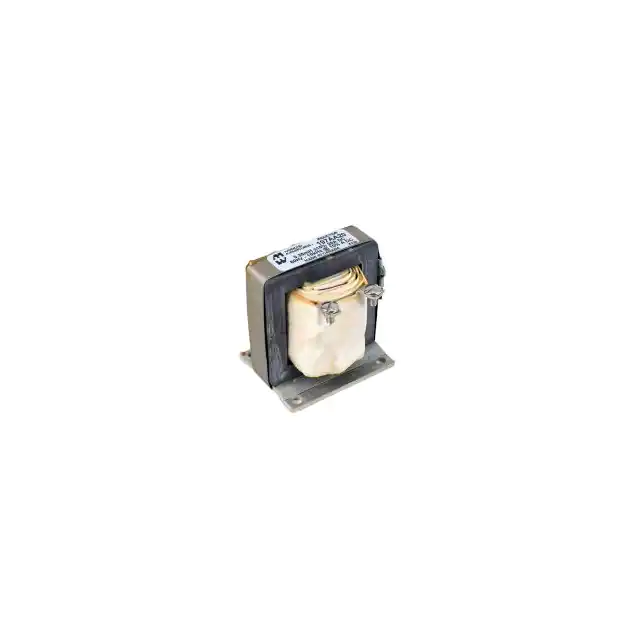

197AA20HIGH FREQUENCY REACTOR, 0.25 MH |
2,362 | 3.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 20A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 86.36mm L x 76.2mm W | 84.15mm | |
|
197E5HIGH FREQUENCY REACTOR, 4 MH, 5A |
3,665 | 62.90 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 5A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 86.36mm L x 68.28mm W | 84.15mm | 2500Vrms |
|

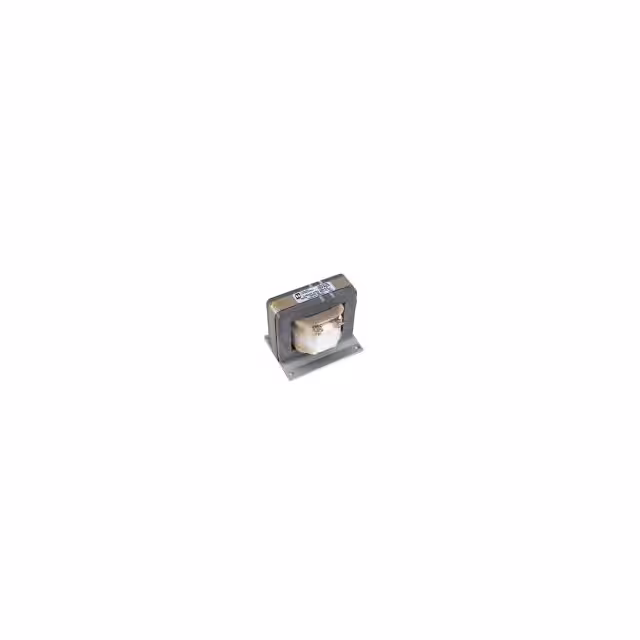

197A25HIGH FREQUENCY REACTOR, 0.48 MH |
2,983 | 1.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 25A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 121.92mm L x 79.25mm W | 100.33mm | |
|
167J33PWR XFMR LAMINATED 33VA CHAS MT |
2,202 | 38.28 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 33V | 1A | Single | Single | Yes | 33VA | Chassis Mount | Wire Leads | 47.75mm L x 61.98mm W | 63.50mm | 2000Vrms |
|
|
167G80PWR XFMR LAMINATED 40VA CHAS MT |
3,737 | 43.54 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 80V | 500mA | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms |
|
166L25BPWR XFMR LAMINATED 50.4VA CHAS |
2,079 | 43.68 |
RFQ |
Bulk | 166 | Active | Laminated Core | 117V | 25.2V | 2A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 102.36mm L x 57.15mm W | 66.80mm | 2000Vrms | |
|
PWDA13076XFRMR JOHNSON RANGER T3 AUDIO |
3,186 | 49.70 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PWDI13014CHOKE LV DC JOHNSON 22.749 P1501 |
3,694 | 51.50 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
167J60PWR XFMR LAMINATED 60VA CHAS MT |
2,910 | 51.54 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 60V | 1A | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
