| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290LXPWR XFMR LAMINATED CHAS MT |
2,562 | 182.92 |
RFQ |
Datasheet |
Box | 290 | Active | Laminated Core | 120V, 240V | 600V, 6.3V, 5V | 230mA, 4A,2A | Dual | Triple | Yes | - | Chassis Mount | Wire Leads | 96.01mm L x 102.87mm W | 81.86mm | - |
|
|
290JXPWR XFMR LAMINATED CHAS MT |
2,792 | 184.34 |
RFQ |
Datasheet |
Box | 290 | Active | Laminated Core | 120V, 240V | 361V, 43.3V, 7V | 150mA, 100mA, 7A | Dual | Triple | Yes | - | Chassis Mount | Wire Leads | 95.50mm L x 101.09mm W | 81.10mm | - |
|
|
290NXPWR XFMR LAMINATED CHAS MT |
2,277 | 188.83 |
RFQ |
Datasheet |
Box | 290 | Active | Laminated Core | 100V, 120V, 220V, 230V, 240V | 580V, 6.3V, 5V | 262mA, 3.42A, 6.8A | Single, Multiple Taps | Triple | Yes | - | Chassis Mount | Wire Leads | 111.51mm L x 119.38mm W | 135.20mm | - |
|
378XPWR XFMR LAMINATED 237VA CHAS MT |
3,006 | 199.32 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 800V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Triple | Yes | 237VA | Chassis Mount | Wire Leads | 95.25mm L x 106.43mm W | 115.82mm | 2000Vrms |
|

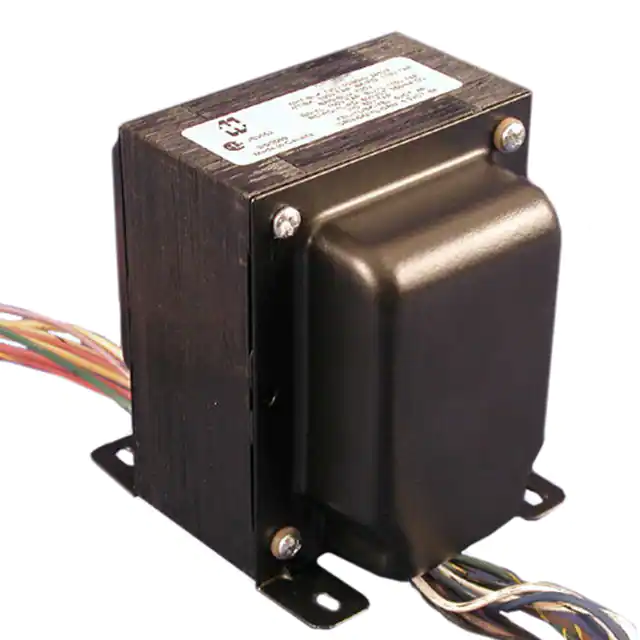

300BXPWR XFMR LAMINATED 280VA CHAS MT |
2,202 | 209.78 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 800V, 6.3V, 5V, 5V | 288mA, 6A, 1.2A, 3A | Dual, Multiple Taps | Four | Yes | 280VA | Chassis Mount | Wire Leads | 95.25mm L x 127.00mm W | 115.82mm | 2000Vrms |
|
|
370LXPWR XFMR LAMINATED 340VA CHAS MT |
3,991 | 212.23 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Four | Yes | 340VA | Chassis Mount | Wire Leads | 123.09mm L x 111.13mm W | 134.62mm | 2000Vrms |
|
|
370MXPWR XFMR LAMINATED 403VA CHAS MT |
3,349 | 215.68 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 575mA, 9A, 6A | Dual, Multiple Taps | Four | Yes | 403VA | Chassis Mount | Wire Leads | 129.44mm L x 111.13mm W | 134.62mm | 2000Vrms |
|
382XPWR XFMR LAMINATED 283VA CHAS MT |
2,772 | 219.58 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 1000V, 6.3V, 5V | 230mA, 6A, 3A | Dual, Multiple Taps | Four | Yes | 283VA | Chassis Mount | Wire Leads | 125.37mm L x 96.25mm W | 115.90mm | 2000Vrms |
|
|
373EXPWR XFMR LAMINATED 311VA CHAS MT |
3,575 | 220.75 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 650V, 6.3V, 5V | 345mA, 9A, 6A | Dual, Multiple Taps | Four | Yes | 311VA | Chassis Mount | Wire Leads | 123.09mm L x 111.13mm W | 134.62mm | 2000Vrms |
|
|
375XPWR XFMR LAMINATED 171VA CHAS MT |
3,812 | 224.81 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 800V, 6.3V, 5V | 155mA, 5A, 3A | Dual, Multiple Taps | Four | Yes | 171VA | Chassis Mount | Wire Leads | 106.32mm L x 79.38mm W | 96.52mm | 2000Vrms |
|
|
372LXPWR XFMR LAMINATED 520VA CHAS MT |
2,746 | 261.62 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V | 690mA, 12A, 6A | Dual, Multiple Taps | Four | Yes | 520VA | Chassis Mount | Wire Leads | 142.14mm L x 111.13mm W | 134.62mm | 2000Vrms |
|
369AXPPWR XFMR LAMINATED 40VA CHAS MT |
2,293 | 289.01 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 250V, 6.3V | 115mA, 2A | Dual, Multiple Taps | Triple | Yes | 40VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms |
|
|
374BXPPWR XFMR LAMINATED 200VA CHAS MT |
3,228 | 471.40 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 750V, 6.3V, 5V | 201mA, 5A, 3A | Dual, Multiple Taps | Triple | Yes | 200VA | Chassis Mount | Wire Leads | 99.95mm L x 95.25mm W | 115.90mm | 2000Vrms |
|
732APWR XFMR LAMINATED 500VA CHAS MT |
3,261 | 521.47 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 2500V | 200mA | Single | Single | Yes | 500VA | Chassis Mount | Wire Leads | 133.35mm L x 127.00mm W | 165.10mm | - |
|
|
737APWR XFMR LAMINATED 1200VA CHAS |
2,745 | 651.85 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 3000V | 400mA | Single | Single | Yes | 1200VA | Chassis Mount | Wire Leads | 177.80mm L x 127.00mm W | 165.10mm | - |
|

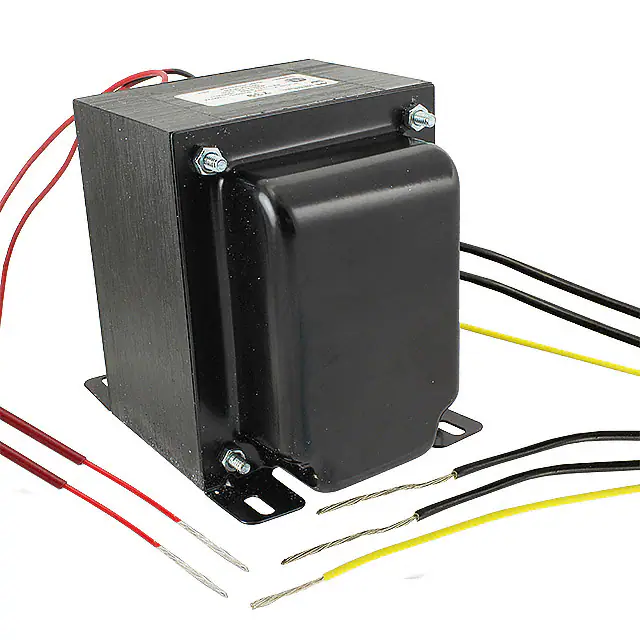

739PWR XFMR LAMINATED 1400VA CHAS |
2,102 | 680.02 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 115V | 3500V | 400mA | Single | Single | Yes | 1400VA | Chassis Mount | Wire Leads | 127.00mm L x 193.80mm W | 165.10mm | - |
|
|
739APWR XFMR LAMINATED 1400VA CHAS |
2,623 | 720.02 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 3500V | 400mA | Single | Single | Yes | 1400VA | Chassis Mount | Wire Leads | 193.80mm L x 127.00mm W | 165.10mm | - |
|
164D28PWR XFMR LAMINATED 1.1VA TH |
3,821 | 11.31 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 33.32mm | 2500Vrms |
|
|
164D20PWR XFMR LAMINATED 1.1VA TH |
2,555 | 11.31 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 33.32mm | 2500Vrms |
|
161E56XFRMR LAMINATED 1.2VA THRU HOLE |
3,280 | 11.61 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms |
