| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166D25PWR XFMR LAMINATED 2.5VA CHAS MT |
2,881 | 28.33 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 25V | 100mA | Single | Single | Yes | 2.5VA | Chassis Mount | Wire Leads | 53.32mm L x 35.05mm W | 30.23mm | 2000Vrms |
|
|
166E20XFRMR LAMINATED 3VA CHAS MOUNT |
2,701 | 28.42 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 20V | 150mA | Single | Single | Yes | 3VA | Chassis Mount | Wire Leads | 52.32mm L x 35.05mm W | 30.23mm | 2000Vrms |
|
|
166F30PWR XFMR LAMINATED 7.5VA CHAS MT |
3,011 | 28.43 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 30V | 250mA | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms |
|
|
166J28PWR XFMR LAMINATED 28VA CHAS MT |
3,994 | 28.43 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 28V | 1A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms |
|
|
166E36XFRMR LAMINATED 5.4VA CHAS MOUNT |
2,905 | 28.43 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 36V | 150mA | Single | Single | Yes | 5.4VA | Chassis Mount | Wire Leads | 60.45mm L x 38.10mm W | 35.05mm | 2000Vrms |
|
187D28PWR XFMR LAMINATED 30VA CHAS MT |
2,257 | 18.73 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 28V | 1.07A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|

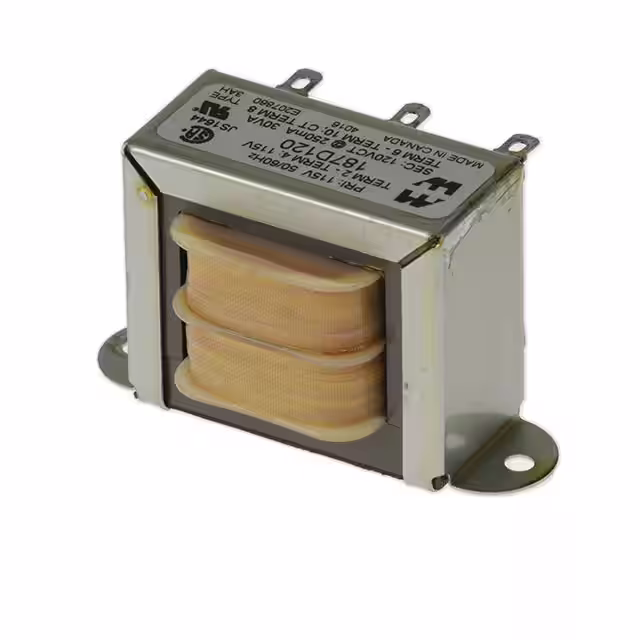

187D120PWR XFMR LAMINATED 30VA CHAS MT |
2,327 | 18.73 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 120V | 250mA | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
|
187D20PWR XFMR LAMINATED 30VA CHAS MT |
3,257 | 18.73 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 20V | 1.5A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|
162H36PWR XFMR LAMINATED 20VA TH |
3,030 | 19.26 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
162H28PWR XFMR LAMINATED 20VA TH |
2,248 | 19.26 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|

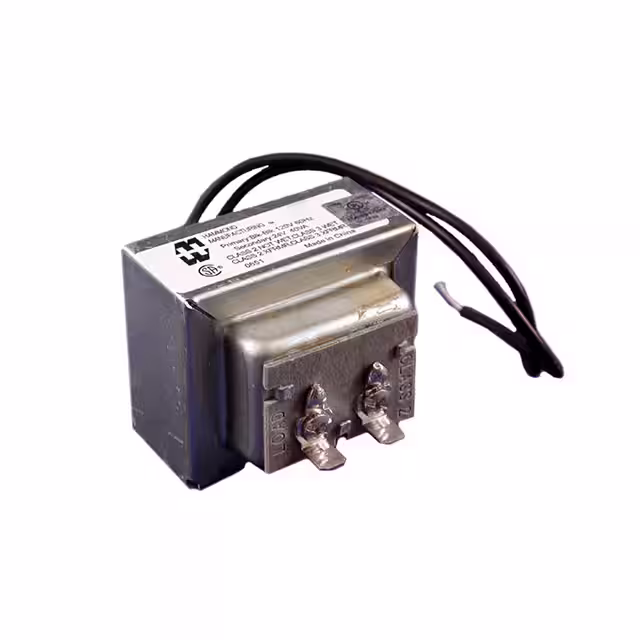

BA2DAPWR XFMR LAMINATED 5VA CHAS MT |
2,899 | 19.33 |
RFQ |
Datasheet |
Bulk | BA | Active | Laminated Core | 120V | 10V | 500mA | Single | Single | No | 5VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - |
|

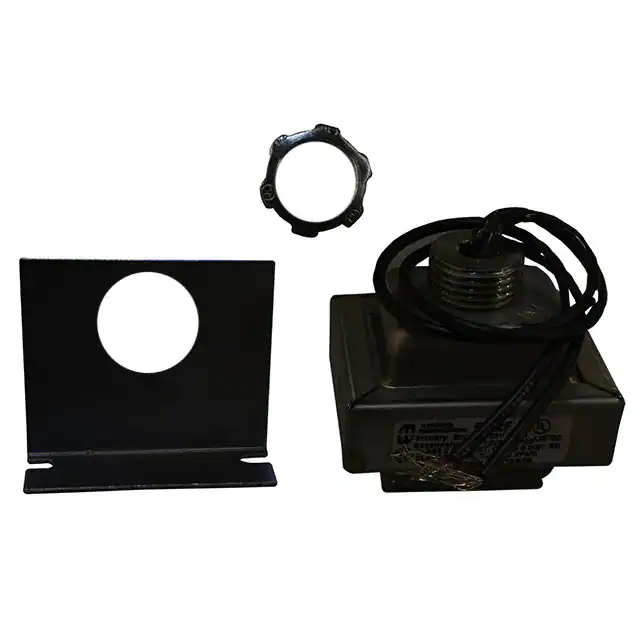

BC2FPWR XFMR LAMINATED 12VA CHAS MT |
3,982 | 19.33 |
RFQ |
Datasheet |
Bulk | BC | Active | Laminated Core | 120V | 16V | 750mA | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - |
|
|
BC2GPWR XFMR LAMINATED 12VA CHAS MT |
2,544 | 19.33 |
RFQ |
Datasheet |
Bulk | BC | Active | Laminated Core | 120V | 24V | 500mA | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - |
|
187E12XFRMR LAMINATED 50.4VA CHAS MNT |
3,061 | 21.33 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 50.4VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
|
187E120XFRMR LAMINATED 60VA CHAS MOUNT |
2,149 | 21.33 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 60VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
|
187E56XFRMR LAMINATED 56VA CHAS MOUNT |
2,702 | 21.33 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 56V | 1A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
|
166L8PWR XFMR LAMINATED 17VA CHAS MT |
2,196 | 28.45 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 8.5V | 2A | Single | Single | Yes | 17VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms |
|
266JB24PWR XFMR CHAS MT |
3,655 | 28.69 |
RFQ |
Datasheet |
Bulk | 266 | Active | - | - | - | - | - | - | - | - | Chassis Mount | - | - | - | - |
|
|
166G50PWR XFMR LAMINATED 25VA CHAS MT |
3,967 | 29.74 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 50V | 500mA | Single | Single | Yes | 25VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms |
|
|
187F28PWR XFMR LAMINATED 100VA CHAS MT |
3,568 | 30.65 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 28V | 3.57A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms |
