| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
229C40PWR XFMR SEMI-TORO 24VA TH |
3,198 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
|
229C24PWR XFMR SEMI-TORO 24VA TH |
3,510 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
|
229C12PWR XFMR SEMI-TORO 24VA TH |
2,677 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.8A, Series 1.9A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
186E20XFRMR LAMINATED 56VA CHAS MOUNT |
2,664 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
|
186E16XFRMR LAMINATED 56VA CHAS MOUNT |
3,689 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
|
186E28XFRMR LAMINATED 56VA CHAS MOUNT |
3,628 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
|
186E24XFRMR LAMINATED 57.6VA CHAS MNT |
2,136 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 24V | 2.4A | Dual | Single | Yes | 57.6VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
266JA12PWR XFMR LAMINATED 12VA CHAS MT |
2,095 | 24.42 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Chassis Mount | Wire Leads | 73.15mm L x 43.94mm W | 60.20mm | 2000Vrms |
|
183K36PWR XFMR LAMINATED 56VA TH |
3,121 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|

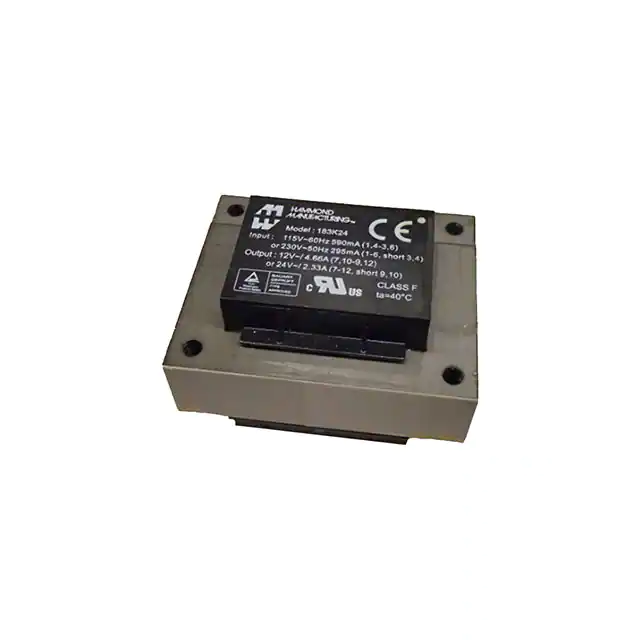

183K24PWR XFMR LAMINATED 56VA TH |
2,056 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
183K10PWR XFMR LAMINATED 56VA TH |
3,343 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 11.2A, Series 5.6A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
183K20PWR XFMR LAMINATED 56VA TH |
2,175 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
183K28PWR XFMR LAMINATED 56VA TH |
3,341 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 4A, Series 2A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
183K16PWR XFMR LAMINATED 56VA TH |
2,275 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 7A, Series 3.5A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
183K12PWR XFMR LAMINATED 56VA TH |
2,652 | 24.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 8.8A, Series 4.4A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
161H120PWR XFMR LAMINATED 24VA TH |
3,450 | 25.65 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 400mA, Series 200mA | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
161H40PWR XFMR LAMINATED 24VA TH |
2,734 | 25.65 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
166J10PWR XFMR LAMINATED 10VA CHAS MT |
2,062 | 25.86 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 10V | 1A | Single | Single | Yes | 10VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms |
|
|
166G16PWR XFMR LAMINATED 8VA CHAS MT |
3,200 | 25.86 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 16V | 500mA | Single | Single | Yes | 8VA | Chassis Mount | Wire Leads | 71.38mm L x 38.10mm W | 42.93mm | 2000Vrms |
|
162J20PWR XFMR LAMINATED 36VA TH |
3,831 | 25.94 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
