| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3FS-328PWR XFMR LAMINATED 2.4VA TH |
2,528 | 5.25 |
RFQ |
Datasheet |
Tube | 3FS-3xx | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|
|
3FS-336PWR XFMR LAMINATED 2.4VA TH |
3,425 | 5.25 |
RFQ |
Datasheet |
Tube | 3FS-3xx | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|
3FD-336PWR XFMR LAMINATED 2.4VA TH |
3,545 | 5.61 |
RFQ |
Datasheet |
Tube | 3FD-3xx | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|
|

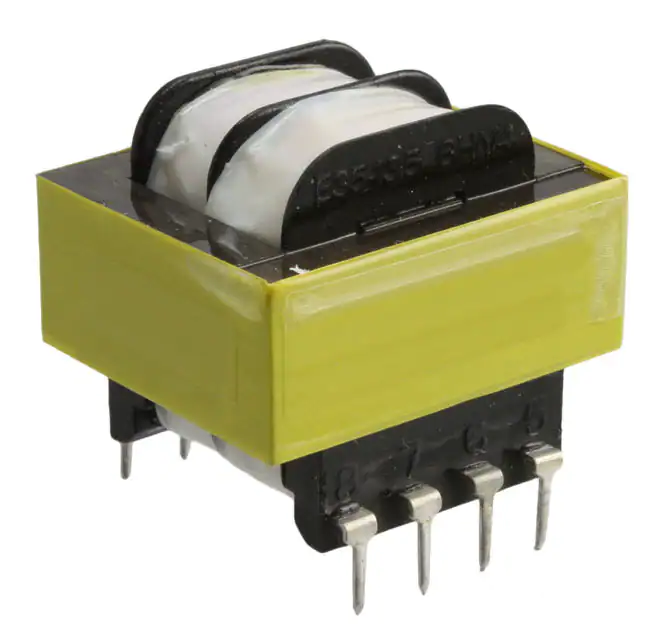

3FD-310PWR XFMR LAMINATED 2.4VA TH |
168 | 5.61 |
RFQ |
Datasheet |
Tube | 3FD-3xx | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 32.10mm | 2500Vrms |
|
3FD-256PWR XFMR LAMINATED 1.1VA TH |
2,594 | 5.62 |
RFQ |
Datasheet |
Tube | 3FD-2xx | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms |
|
|
3FD-216PWR XFMR LAMINATED 1.1VA TH |
3,447 | 5.62 |
RFQ |
Datasheet |
Tube | 3FD-2xx | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 38.00mm | 2500Vrms |
|
3FD-220PWR XFMR LAMINATED 1.1VA TH |
2,035 | 5.62 |
RFQ |
Datasheet |
Tube | 3FD-2xx | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 35.56mm L x 31.00mm W | 25.40mm | 2500Vrms |
|
PL5.0-10-130BPWR XFMR LAMINATED 5VA TH |
1,088 | 8.05 |
RFQ |
Datasheet |
Tube | PL5.0-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1A, Series 500mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms |
|
|
PL5.0-20-130BPWR XFMR LAMINATED 5VA TH |
2,660 | 8.05 |
RFQ |
Datasheet |
Tube | PL5.0-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 500mA, Series 250mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 35.60mm | 3500Vrms |
|
3FS-410PWR XFMR LAMINATED 6VA TH |
2,407 | 9.13 |
RFQ |
Datasheet |
Tube | 3FS-4xx | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms |
|
|
3FS-436PWR XFMR LAMINATED 6VA TH |
3,510 | 9.13 |
RFQ |
Datasheet |
Tube | 3FS-4xx | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.50mm L x 34.83mm W | 34.55mm | 2500Vrms |
|
PL2.5-10-130BPWR XFMR LAMINATED 2.5VA TH |
1,010 | 9.52 |
RFQ |
Datasheet |
Tube | PL2.5-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 36.37mm W | 28.60mm | 3500Vrms |
|
3FS-524PWR XFMR LAMINATED 12VA TH |
3,055 | 11.22 |
RFQ |
Datasheet |
Tube | 3FS-5xx | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
|
3FS-516PWR XFMR LAMINATED 12VA TH |
2,748 | 11.22 |
RFQ |
Datasheet |
Tube | 3FS-5xx | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
|
3FS-520PWR XFMR LAMINATED 12VA TH |
2,573 | 11.22 |
RFQ |
Datasheet |
Tube | 3FS-5xx | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
|
3FS-528PWR XFMR LAMINATED 12VA TH |
2,619 | 11.22 |
RFQ |
Datasheet |
Tube | 3FS-5xx | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
|
3FS-536PWR XFMR LAMINATED 12VA TH |
3,380 | 11.22 |
RFQ |
Datasheet |
Tube | 3FS-5xx | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
3FL34-170PWR XFMR LAMINATED 6VA TH |
124 | 11.63 |
RFQ |
Datasheet |
Bulk | 3FL | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.60mm L x 39.60mm W | 21.60mm | 1500Vrms |
|
3FD-548PWR XFMR LAMINATED 12VA TH |
150 | 12.67 |
RFQ |
Datasheet |
Tube | 3FD-5xx | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
|
|
3FD-512PWR XFMR LAMINATED 12VA TH |
2,584 | 14.13 |
RFQ |
Datasheet |
Tube | 3FD-5xx | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.50mm L x 41.52mm W | 38.00mm | 2500Vrms |
