Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
372XPWR XFMR LAMINATED 75VA CHAS MT |
3,483 | 117.64 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 620V, 6.3V, 5V | 81mA, 2.4A, 2A | Dual, Multiple Taps | Four | Yes | 75VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms |
|
710APWR XFMR LAMINATED 259VA CHAS MT |
3,372 | 118.20 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 117V, 234V | 750V | 345mA, 518mA | Single | Single | Yes | 259VA | Chassis Mount | Wire Leads | 104.90mm L x 95.25mm W | 114.30mm | - |
|
167T36PWR XFMR LAMINATED 432VA CHAS MT |
2,898 | 118.76 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 36V | 12A | Single | Single | Yes | 432VA | Chassis Mount | Wire Leads | 95.25mm L x 127.00mm W | 115.82mm | 2000Vrms |
|

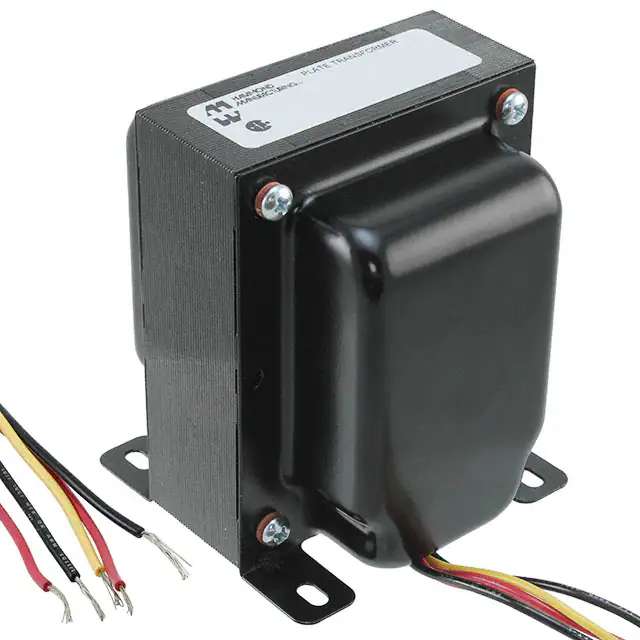

712PWR XFMR LAMINATED 130VA CHAS MT |
2,485 | 119.29 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 115V | 850V | 215mA | Single | Single | Yes | 130VA | Chassis Mount | Wire Leads | 95.25mm L x 117.60mm W | 114.30mm | - |
|
1182N117PWR XFMR TORO 500VA CHAS MT |
2,792 | 122.11 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 117V, Series 234V | Parallel 4.28A, Series 2.14A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms |
|
|
1182N60PWR XFMR TORO 500VA CHAS MT |
2,044 | 122.11 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 60V, Series 120V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms |
|
|
1182R30PWR XFMR TORO 500VA CHAS MT |
3,472 | 122.11 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 30V, Series 60V | Parallel 16.66A, Series 8.33A | Dual | Dual | No | 500VA | Chassis Mount | Wire Leads | 139.70mm Dia | 57.15mm | 4000Vrms |
|
|
373AZPWR XFMR LAMINATED 49VA CHAS MT |
3,524 | 123.23 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 650V, 6.3V, 5V | 46mA, 2A, 2A | Dual, Multiple Taps | Four | Yes | 49VA | Chassis Mount | Wire Leads | 71.37mm L x 57.15mm W | 85.67mm | 2000Vrms |
|
290CEXPWR XFMR LAMINATED CHAS MT |
3,906 | 124.70 |
RFQ |
Datasheet |
Box | 290 | Active | Laminated Core | 240V | 650V, 6.3V, 5V | 207mA, 4A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 79.38mm L x 103.20mm W | 96.85mm | - |
|

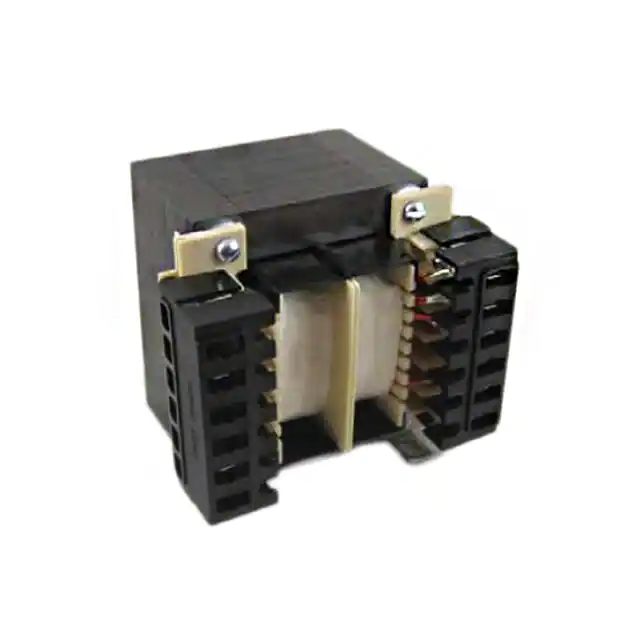

SLT-300PWR XFMR LAMINATED 300VA CHAS MT |
3,038 | 126.70 |
RFQ |
Datasheet |
Bulk | SLT | Active | Laminated Core | 277V | 120V | 2.5A | Single | Single | Yes | 300VA | Chassis Mount | Terminal Block | 106.68mm L x 103.51mm W | 95.30mm | 4000Vrms |
|
272HXPWR XFMR LAMINATED 186VA CHAS MT |
3,488 | 126.94 |
RFQ |
Datasheet |
Bulk | 272 | Active | Laminated Core | 115V | 600V, 6.3V, 5V | 230mA, 6A, 3A | Single | Triple | Yes | 186VA | Chassis Mount | Wire Leads | 79.50mm L x 101.60mm W | 96.77mm | 2000Vrms |
|
260GPWR XFMR LAMINATED 175VA CHAS MT |
3,111 | 129.84 |
RFQ |
Datasheet |
Box | 260 | Active | Laminated Core | 100V, 120V, 220V, 240V | 550V, 6.3V, 5V | 230mA, 5A, 3A | Dual, Multiple Taps | Triple | Yes | 175VA | Chassis Mount | Wire Leads | 95.25mm L x 88.90mm W | 82.55mm | - |
|
|
1182P117PWR XFMR TORO 625VA CHAS MT |
3,845 | 131.50 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 117V, Series 234V | Parallel 5.34A, Series 2.67A | Dual | Dual | No | 625VA | Chassis Mount | Wire Leads | 152.40mm Dia | 60.45mm | 4000Vrms |
|
|
1182P60PWR XFMR TORO 625VA CHAS MT |
2,848 | 131.50 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 60V, Series 120V | Parallel 10.42A, Series 5.21A | Dual | Dual | No | 625VA | Chassis Mount | Wire Leads | 152.40mm Dia | 60.45mm | 4000Vrms |
|
|
1182T24PWR XFMR TORO 625VA CHAS MT |
2,705 | 131.50 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 24V, Series 48V | Parallel 26.04A, Series 13.02A | Dual | Dual | No | 625VA | Chassis Mount | Wire Leads | 152.40mm Dia | 60.45mm | 4000Vrms |
|
|
372DXPWR XFMR LAMINATED 127VA CHAS MT |
2,870 | 131.64 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 600V, 6.3V, 5V | 144mA, 4A, 3A | Dual, Multiple Taps | Four | Yes | 127VA | Chassis Mount | Wire Leads | 95.25mm L x 79.50mm W | 96.77mm | 2000Vrms |
|
|
718PWR XFMR LAMINATED 235VA CHAS MT |
2,979 | 134.09 |
RFQ |
Datasheet |
Bulk | 700 | Active | Laminated Core | 115V | 1250V | 200mA | Single | Single | Yes | 235VA | Chassis Mount | Wire Leads | 95.25mm L x 111.25mm W | 114.30mm | - |
|
|
276XPWR XFMR LAMINATED 150VA CHAS MT |
2,783 | 134.29 |
RFQ |
Datasheet |
Bulk | 276 | Active | Laminated Core | 115V | 640V, 6.3V, 5V | 172mA, 5A, 3A | Single | Triple | Yes | 150VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms |
|
|
290EXPWR XFMR LAMINATED CHAS MT |
3,884 | 134.37 |
RFQ |
Datasheet |
Box | 290 | Active | Laminated Core | 120V | 660V, 6.5V | 276mA, 3.15A | Single | Dual | Yes | - | Chassis Mount | Wire Leads | 87.33mm L x 103.20mm W | 106.38mm | - |
|
374XPWR XFMR LAMINATED 141VA CHAS MT |
3,067 | 134.44 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 750V, 6.3V, 5V | 127mA, 5A, 3A | Dual, Multiple Taps | Four | Yes | 141VA | Chassis Mount | Wire Leads | 99.82mm L x 79.50mm W | 96.52mm | 2000Vrms |
