Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
161H12PWR XFMR LAMINATED 24VA TH |
2,451 | 22.15 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
161H20PWR XFMR LAMINATED 24VA TH |
3,377 | 22.15 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
160H10PWR XFMR LAMINATED 24VA TH |
3,498 | 22.15 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
161H10PWR XFMR LAMINATED 24VA TH |
3,904 | 22.15 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
ADH20028PWR XFMR LAMINATED 1.1VA TH |
2,984 | 2.90 |
RFQ |
Datasheet |
Box | ADH200 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual, Multiple Taps | Dual, Multiple Taps | No | 1.1VA | Through Hole | PC Pin | 35.5mm L x 30mm W | 24.00mm | 2500V |
|
BV301S06020-ZUPWR XFMR LAMINATED 2VA TH |
3,025 | 3.15 |
RFQ |
Datasheet |
Box | EI30-15.5 | Active | Laminated Core | 115V | 6V | 333mA | Single | Single | No | 2VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 27.40mm | 4200Vrms |
|
BV302S09020-ZUPWR XFMR LAMINATED 2VA TH |
3,005 | 3.20 |
RFQ |
Datasheet |
Box | EI30-15.5 | Active | Laminated Core | 230V | 9V | 222mA | Single | Single | No | 2VA | Through Hole | PC Pin | 32.80mm L x 27.80mm W | 27.40mm | 4200Vrms |
|
|
ADH30028PWR XFMR LAMINATED 2.4VA TH |
2,944 | 3.20 |
RFQ |
Datasheet |
Box | ADH300 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual, Multiple Taps | Dual, Multiple Taps | No | 2.4VA | Through Hole | PC Pin | 35.2mm L x 29.8mm W | 30.20mm | 2500V |
|
164J20PWR XFMR LAMINATED 36VA TH |
3,675 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
164J12PWR XFMR LAMINATED 36VA TH |
3,476 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
164J28PWR XFMR LAMINATED 36VA TH |
2,223 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
164J16PWR XFMR LAMINATED 36VA TH |
2,895 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
164J36PWR XFMR LAMINATED 36VA TH |
3,984 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
|
164J48PWR XFMR LAMINATED 36VA TH |
2,526 | 22.27 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|

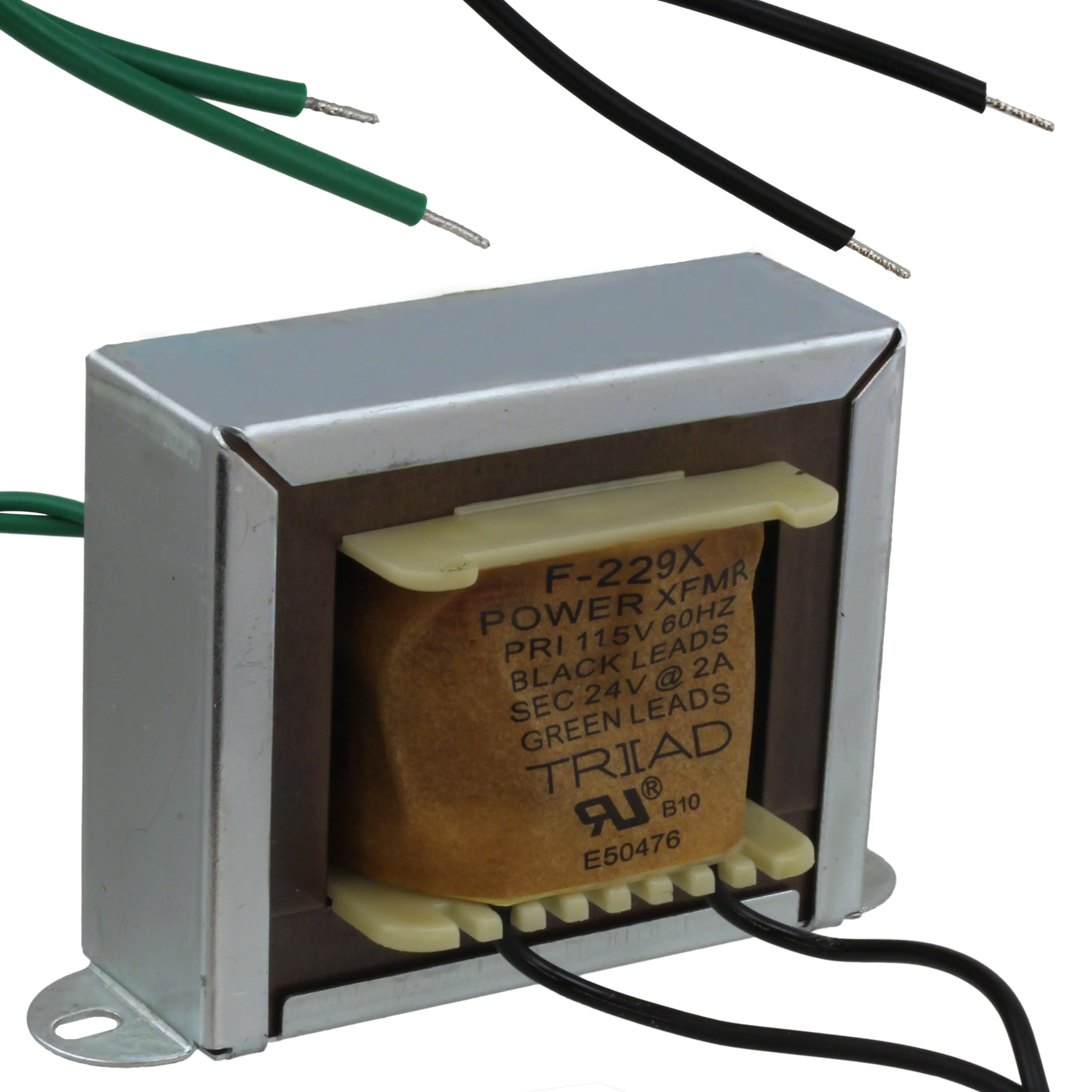

F-229XPWR XFMR LAMINATED 48VA CHAS MT |
2,657 | 23.04 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 2A | Single | Single | No | 48VA | Chassis Mount | Wire Leads | 101.60mm L x 50.80mm W | 65.07mm | 1500Vrms |
|
266K18PWR XFMR LAMINATED 27VA CHAS MT |
2,358 | 22.82 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 9V, Series 18V | Parallel 3A, Series 1.5A | Dual | Dual | No | 27VA | Chassis Mount | Wire Leads | 93.73mm L x 50.04mm W | 58.67mm | 2000Vrms |
|
166J25CPWR XFMR LAMINATED 25VA CHAS MT |
3,520 | 23.01 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 117V | 25V | 1A | Single | Single | No | 25VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms |
|
187E16XFRMR LAMINATED 56VA CHAS MOUNT |
2,200 | 23.49 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
|
187E24XFRMR LAMINATED 57.6VA CHAS MNT |
2,117 | 23.49 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 57.6VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
162J56PWR XFMR LAMINATED 36VA TH |
2,245 | 23.57 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
