Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
229A30PWR XFMR SEMI-TORO 6VA TH |
3,598 | 17.01 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms |
|
|
229A120PWR XFMR SEMI-TORO 6VA TH |
2,541 | 17.01 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms |
|
|
229A40PWR XFMR SEMI-TORO 6VA TH |
3,777 | 17.01 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 300mA, Series 150mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 21.59mm | 1750Vrms |
|
160G34PWR XFMR LAMINATED 10VA TH |
2,550 | 17.43 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 600mA, Series 300mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
|
160G20PWR XFMR LAMINATED 10VA TH |
2,350 | 17.43 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1A, Series 500mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
|
160K12PWR XFMR LAMINATED 10VA TH |
3,442 | 17.43 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.26mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
|
160G16PWR XFMR LAMINATED 10VA TH |
3,618 | 17.43 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.28A, Series 640mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
162H56PWR XFMR LAMINATED 20VA TH |
3,707 | 17.50 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 700mA, Series 350mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
186D48PWR XFMR LAMINATED 30VA CHAS MT |
2,924 | 17.65 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 48V | 620mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms |
|

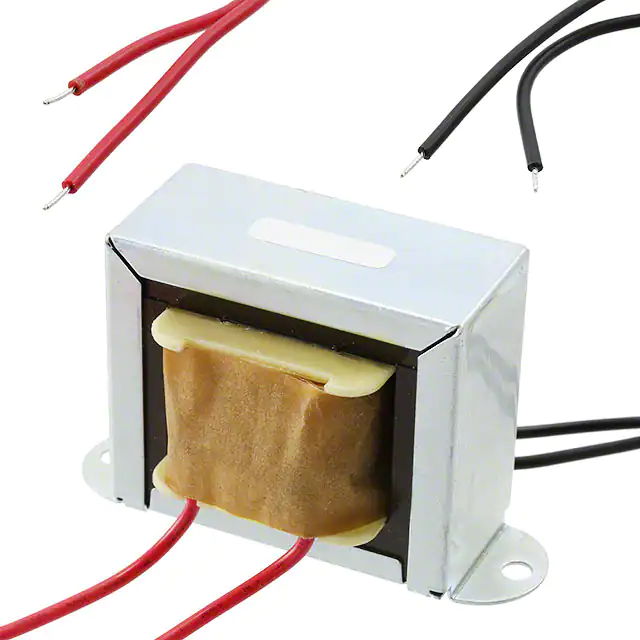

F-218XPWR XFMR LAMINATED 24VA CHAS MT |
2,342 | 17.92 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 2A | Single | Single | No | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 47.63mm W | 50.80mm | 1500Vrms |
|
164H28PWR XFMR LAMINATED 20VA TH |
2,955 | 17.96 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|

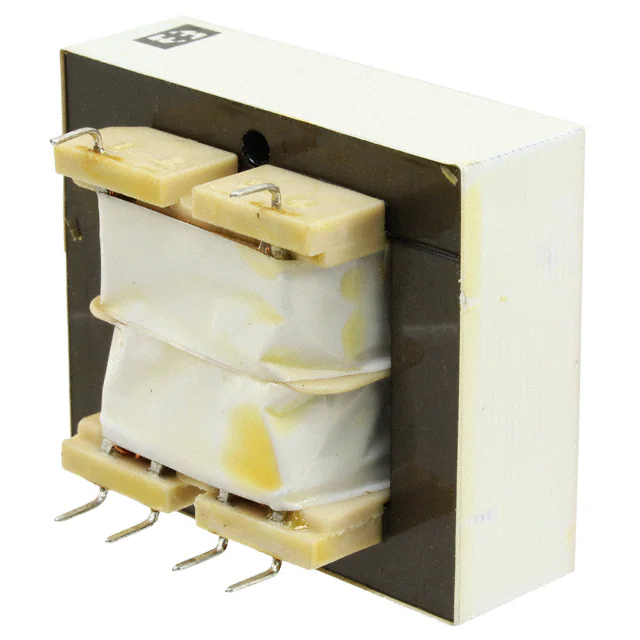

164H16PWR XFMR LAMINATED 20VA TH |
3,650 | 17.96 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
|
164H36PWR XFMR LAMINATED 20VA TH |
2,712 | 17.96 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms |
|
186C12PWR XFMR LAMINATED 12.6VA CHAS |
2,605 | 18.11 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 12.6V | 1A | Dual | Single | Yes | 12.6VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms |
|
|
186C20PWR XFMR LAMINATED 12VA CHAS MT |
3,597 | 18.11 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 20V | 600mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms |
|
BD2EEPWR XFMR LAMINATED 20VA CHAS MT |
2,498 | 18.11 |
RFQ |
Datasheet |
Bulk | BD | Active | Laminated Core | 120V | 14V | 1.43A | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - |
|
162G36PWR XFMR LAMINATED 12VA TH |
105 | 18.22 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
|
162G20PWR XFMR LAMINATED 12VA TH |
2,677 | 18.22 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
|
229B24PWR XFMR SEMI-TORO 12VA TH |
3,304 | 18.25 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms |
|
|
229B230PWR XFMR SEMI-TORO 12VA TH |
2,347 | 18.25 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms |
