Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
162G56PWR XFMR LAMINATED 12VA TH |
3,331 | 16.57 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 440mA, Series 220mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
160G40PWR XFMR LAMINATED 10VA TH |
2,144 | 16.60 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 500mA, Series 250mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
|
160G56PWR XFMR LAMINATED 10VA TH |
3,520 | 16.60 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 360mA, Series 180mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
|
160J10PWR XFMR LAMINATED 10VA TH |
3,757 | 16.60 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2A, Series 1A | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.26mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
F6-10PWR XFMR LAMINATED 30VA CHAS MT |
2,965 | 16.62 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 10V | 3A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
14A-20-10PWR XFMR LAMINATED 20VA TH |
3,427 | 16.65 |
RFQ |
Datasheet |
Bulk | One-4-All™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.30mm | 4000Vrms |
|

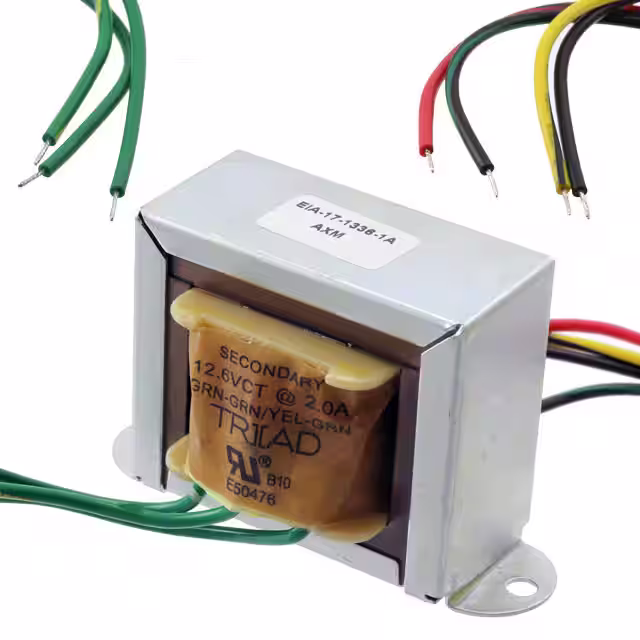

F-344XPWR XFMR LAMINATED 25.2VA CHAS |
3,257 | 17.14 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 12.6V | 2A | Dual | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
F-345XPWR XFMR LAMINATED 24VA CHAS MT |
3,080 | 17.14 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 24V | 1A | Dual | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
FS48-750-C2PWR XFMR LAMINATED 36VA TH |
2,368 | 17.27 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
LP-30-400PWR XFMR SEMI-TORO 12VA TH |
3,915 | 17.52 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 800mA, Series 400mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms |
|
|
LP-40-300PWR XFMR SEMI-TORO 12VA TH |
3,558 | 17.52 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 600mA, Series 300mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 27.10mm | 1500Vrms |
|
40-150-LPIPWR XFMR SEMI-TORO 6VA TH |
2,448 | 17.69 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 300mA, Series 150mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 60.20mm L x 42.10mm W | 22.70mm | 4000Vrms |
|
CL2-30-24PWR XFMR LAMINATED 30VA TH |
3,216 | 18.02 |
RFQ |
Datasheet |
Bulk | CL2 | Active | Laminated Core | 115V, 230V | 24V | 1.25A | Dual | Single | No | 30VA | Through Hole | PC Pin | 66.70mm L x 55.50mm W | 39.70mm | 4000Vrms |
|
186C16PWR XFMR LAMINATED 12.8VA CHAS |
2,695 | 18.11 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 16V | 800mA | Dual | Single | Yes | 12.8VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms |
|
F28-1300PWR XFMR LAMINATED 36VA TH |
2,070 | 18.11 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 2.6A, Series 1.3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
PC-34-700PWR XFMR LAMINATED 24VA TH |
2,686 | 18.14 |
RFQ |
Datasheet |
Box | PC | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms |
|
FD6-16PWR XFMR LAMINATED 30VA CHAS MT |
3,889 | 18.20 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 16V | 2A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-28PWR XFMR LAMINATED 30VA CHAS MT |
3,883 | 18.20 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 28V | 1.1A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-120PWR XFMR LAMINATED 30VA CHAS MT |
2,186 | 18.20 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 120V | 250mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
L01-6302PWR XFMR TORO 1.6VA TH |
3,252 | 18.45 |
RFQ |
Datasheet |
Tray | L01 | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 134mA, Series 67mA | Dual | Dual | No | 1.6VA | Through Hole | PC Pin | 39.60mm L x 39.60mm W | 18.50mm | 4000Vrms |
