Power Transformers(6768)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
161G34PWR XFMR LAMINATED 10VA TH |
2,922 | 15.98 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 600mA, Series 300mA | Single | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms |
|
LP-20-300PWR XFMR SEMI-TORO 6VA TH |
216 | 16.06 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.50mm L x 39.60mm W | 21.60mm | 1500Vrms |
|
DPC-34-300PWR XFMR LAMINATED 10VA TH |
2,664 | 16.09 |
RFQ |
Datasheet |
Box | DPC | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 600mA, Series 300mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.60mm L x 36.50mm W | 41.27mm | 1500Vrms |
|
PL20-12-130BPWR XFMR LAMINATED 20VA TH |
2,050 | 16.11 |
RFQ |
Datasheet |
Bulk | PL20-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms |
|
|
PL20-24-130BPWR XFMR LAMINATED 20VA TH |
2,396 | 16.11 |
RFQ |
Datasheet |
Bulk | PL20-xx-130B | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 41.28mm | 3500Vrms |
|
VPS28-900PWR XFMR LAMINATED 25VA CHAS MT |
2,706 | 16.44 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.8A, Series 900mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
|
VPS12-2000PWR XFMR LAMINATED 25VA CHAS MT |
3,468 | 16.44 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
|
VPS16-1600PWR XFMR LAMINATED 25VA CHAS MT |
3,946 | 16.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 33.27mm W | 58.67mm | 4000Vrms |
|

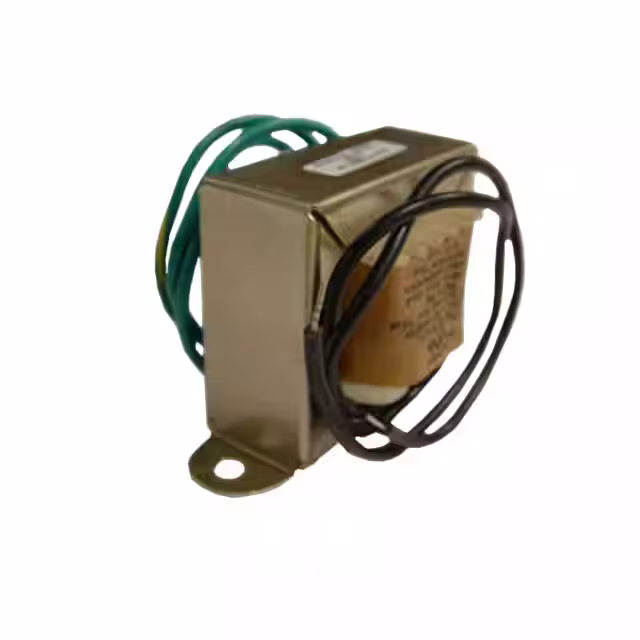

F-44XPWR XFMR LAMINATED 25.2VA CHAS |
2,698 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 2A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
FP20-600PWR XFMR LAMINATED 12VA TH |
2,972 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
ST-6-24PWR XFMR LAMINATED 20VA TH |
2,235 | 16.40 |
RFQ |
Datasheet |
Box | ST | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.20mm L x 47.60mm W | 36.90mm | 2500Vrms |
|
|
VPS24-1000PWR XFMR LAMINATED 25VA CHAS MT |
2,966 | 16.44 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
|
VPS10-2500PWR XFMR LAMINATED 25VA CHAS MT |
2,478 | 16.44 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 5A, Series 2.5A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
186C56PWR XFMR LAMINATED 12.3VA CHAS |
3,665 | 16.46 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 56V | 210mA | Dual | Single | Yes | 12.3VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms |
|
F-59XPWR XFMR LAMINATED 24VA CHAS MT |
3,965 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 60V | 400mA | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
F-43XPWR XFMR LAMINATED 25.2VA CHAS |
2,468 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 6.3V | 4A | Single | Single | No | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|

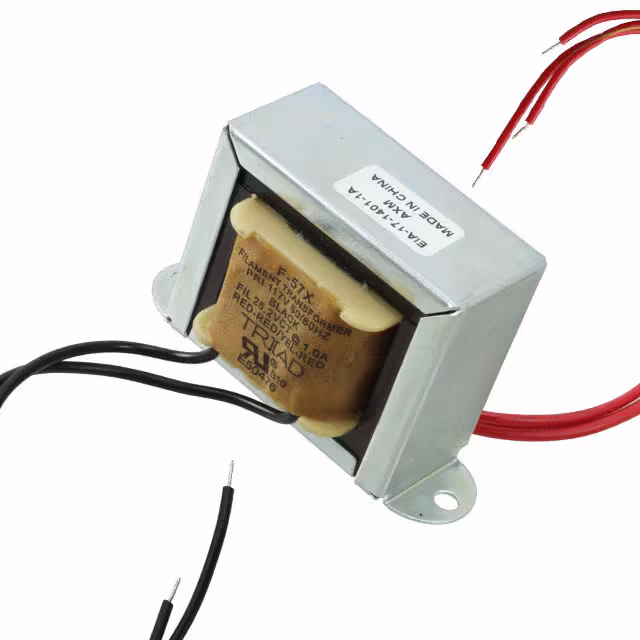

F-57XPWR XFMR LAMINATED 25.2VA CHAS |
2,450 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 117V | 25.2V | 1A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 80.56mm L x 50.80mm W | 49.20mm | 1500Vrms |
|

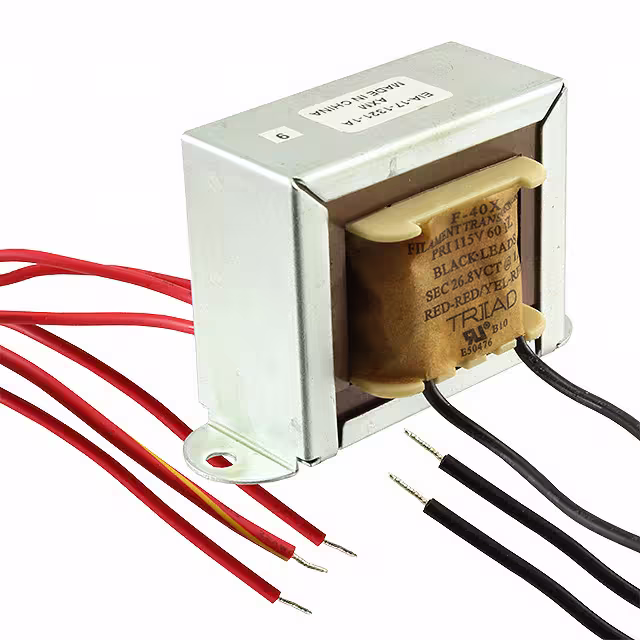

F-40XPWR XFMR LAMINATED 26.8VA CHAS |
2,923 | 16.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 26.8V | 1A | Single | Single | Yes | 26.8VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
|
FP12-950PWR XFMR LAMINATED 12VA TH |
3,157 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 1.9A, Series 950mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP34-340PWR XFMR LAMINATED 12VA TH |
2,723 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 680mA, Series 340mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
