| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14A-56-10PWR XFMR LAMINATED 56VA TH |
2,212 | 16.64 |
RFQ |
Datasheet |
Bulk | One-4-All™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 11.2A, Series 5.6A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms |
|

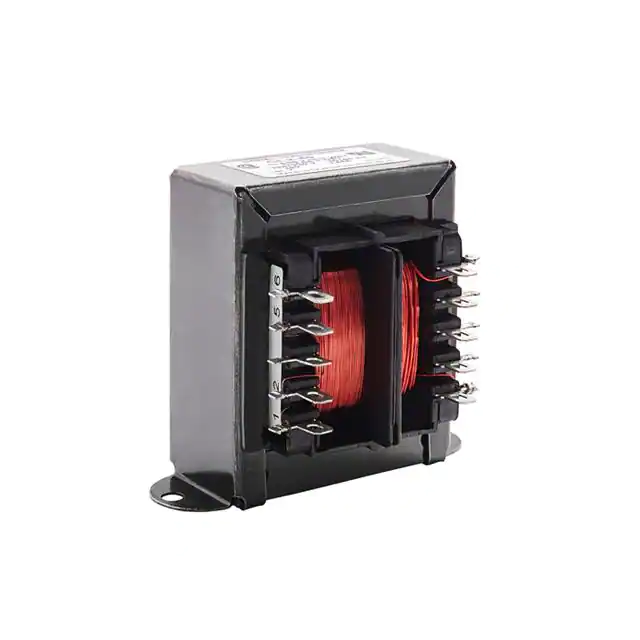

CL2-40-24PWR XFMR LAMINATED 40VA CHAS MT |
2,697 | 16.64 |
RFQ |
Datasheet |
Bulk | CL2 | Active | Laminated Core | 115V, 230V | 24V | 1.66A | Dual | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms |
|
DP-241-7-12PWR XFMR LAMINATED 56VA CHAS MT |
2,156 | 16.69 |
RFQ |
Datasheet |
Box | Two-4-One™ | Active | Laminated Core | 115V, 230V | 12.6V | 4A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-120PWR XFMR LAMINATED 56VA CHAS MT |
2,231 | 16.69 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 120V | 500mA | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-56PWR XFMR LAMINATED 56VA CHAS MT |
2,686 | 16.69 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 56V | 1A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|

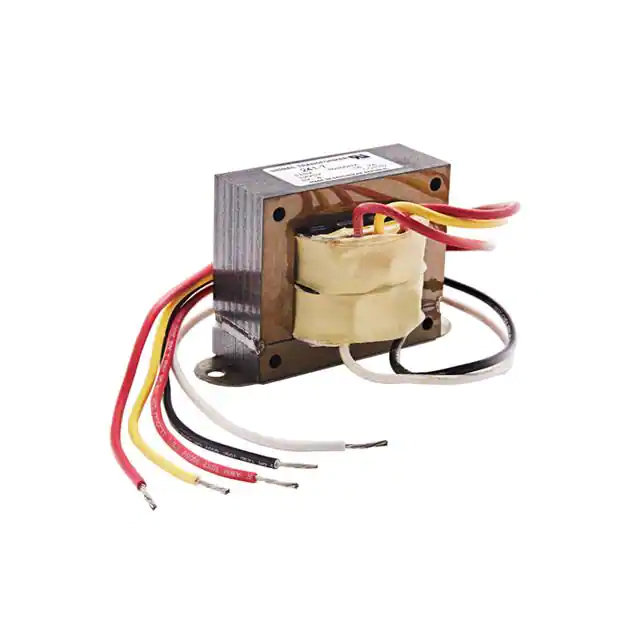

241-7-10LPWR XFMR LAMINATED 56VA CHAS MT |
3,142 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 10V | 5A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-120LPWR XFMR LAMINATED 56VA CHAS MT |
3,157 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-12LPWR XFMR LAMINATED 56VA CHAS MT |
2,360 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-16LPWR XFMR LAMINATED 56VA CHAS MT |
2,329 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 16V | 3.5A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-20LPWR XFMR LAMINATED 56VA CHAS MT |
2,566 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
241-7-24LPWR XFMR LAMINATED 56VA CHAS MT |
3,843 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-36LPWR XFMR LAMINATED 56VA CHAS MT |
3,518 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 36V | 1.5A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-48LPWR XFMR LAMINATED 56VA CHAS MT |
2,060 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 48V | 1.2A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
241-7-56LPWR XFMR LAMINATED 56VA CHAS MT |
3,747 | 17.30 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V | 56V | 1A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-10LPWR XFMR LAMINATED 56VA CHAS MT |
3,004 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 10V | 5A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
DP-241-7-120LPWR XFMR LAMINATED 56VA CHAS MT |
2,455 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 120V | 500mA | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-12LPWR XFMR LAMINATED 56VA CHAS MT |
3,265 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 12.6V | 4A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-16LPWR XFMR LAMINATED 56VA CHAS MT |
2,959 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-20LPWR XFMR LAMINATED 56VA CHAS MT |
2,998 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 20V | 2.8A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
|
DP-241-7-24LPWR XFMR LAMINATED 56VA CHAS MT |
2,114 | 17.52 |
RFQ |
Datasheet |
Bulk | Two-4-One™ | Active | Laminated Core | 115V, 230V | 24V | 2.4A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
