Home > Products > Transformers > Power Transformers

Power Transformers(6768)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

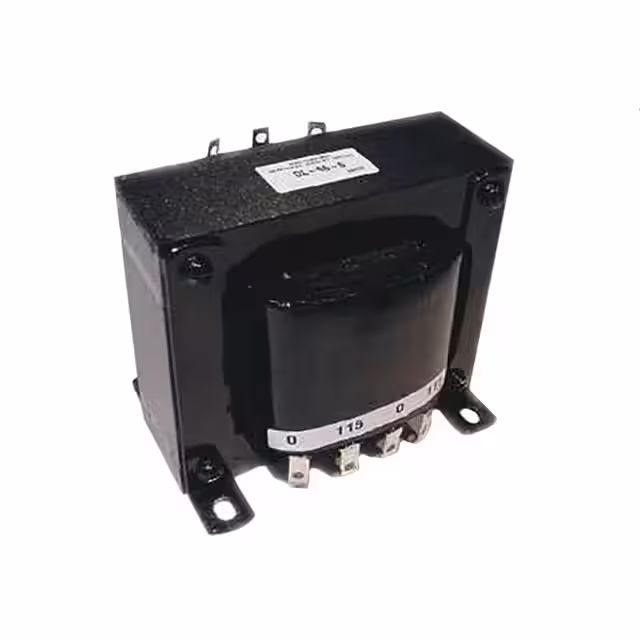

12.8-2 PWR XFMR LAMINATED 25.6VA CHAS Signal Transformer	2,336	71.22	RFQ	PDF	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 6.4V, Series 12.8V	Parallel 4A, Series 2A	Single, Multiple Taps	Single, Multiple Taps	Yes	25.6VA	Chassis Mount	Solder, Quick Connect	76.20mm L x 63.50mm W	63.50mm	1500Vrms
ECO-105-230 PWR XFMR LAMINATED 105VA CHAS MT Signal Transformer	3,071	77.66	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 910mA, Series 450mA	Dual	Dual	No	105VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	96.00mm	4000Vrms
ECO-105-24 PWR XFMR LAMINATED 105VA CHAS MT Signal Transformer	2,099	77.81	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 8.7A, Series 4.3A	Dual	Dual	No	105VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	96.00mm	4000Vrms
36-4 PWR XFMR LAMINATED 144VA CHAS MT Signal Transformer	2,535	83.53	RFQ	PDF	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 18V, Series 36V	Parallel 8A, Series 4A	Single, Multiple Taps	Dual	Yes	144VA	Chassis Mount	Solder, Quick Connect	104.80mm L x 85.70mm W	87.30mm	1500Vrms
24-4 PWR XFMR LAMINATED 96VA CHAS MT Signal Transformer	2,275	83.93	RFQ	PDF	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 12V, Series 24V	Parallel 8A, Series 4A	Single, Multiple Taps	Dual	Yes	96VA	Chassis Mount	Solder, Quick Connect	95.30mm L x 79.40mm W	79.40mm	1500Vrms
ECO-140-230 PWR XFMR LAMINATED 140VA CHAS MT Signal Transformer	2,798	86.61	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.2A, Series 610mA	Dual	Dual	No	140VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	106.00mm	4000Vrms
M4L-1-3 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	3,770	130.31	RFQ	PDF	Bulk	M4L	Active	Laminated Core	125V, 115V, 105V	115V	2.6A	Single, Multiple Taps	Single	No	300VA	Chassis Mount	Terminal Block	106.68mm L x 103.51mm W	95.30mm	4000Vrms
ECO-330-48 PWR XFMR LAMINATED 330VA CHAS MT Signal Transformer	2,024	130.81	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 13.7A, Series 6.8A	Dual	Dual	No	330VA	Chassis Mount	Terminal Block	126.00mm L x 136.00mm W	114.30mm	4000Vrms
MPI-200-48 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	2,520	137.30	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 24V, Series 48V	Parallel 8.3A, Series 4.2A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
MPI-200-10 PWR XFMR LAMINATED 200VA CHAS MT Signal Transformer	2,811	137.30	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 5V, Series 10V	Parallel 40A, Series 20A	Dual, Multiple Taps	Dual	No	200VA	Chassis Mount	Terminal Block	95.30mm L x 113.30mm W	93.10mm	4000Vrms
ECO-450-24 PWR XFMR LAMINATED 450VA CHAS MT Signal Transformer	3,982	142.61	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 37.5A, Series 18.7A	Dual	Dual	No	450VA	Chassis Mount	Terminal Block	126.00mm L x 136.00mm W	124.50mm	4000Vrms
ECO-450-48 PWR XFMR LAMINATED 450VA CHAS MT Signal Transformer	3,476	143.09	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 18.8A, Series 9.4A	Dual	Dual	No	450VA	Chassis Mount	Terminal Block	126.00mm L x 136.00mm W	124.50mm	4000Vrms
MPI-250-48 PWR XFMR LAMINATED 250VA CHAS MT Signal Transformer	3,437	148.42	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 24V, Series 48V	Parallel 10.4A, Series 5.2A	Dual, Multiple Taps	Dual	No	250VA	Chassis Mount	Terminal Block	104.80mm L x 104.90mm W	98.20mm	4000Vrms
MPI-300-24 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	2,757	149.78	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 25A, Series 12.5A	Dual, Multiple Taps	Dual	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 113.10mm W	98.20mm	4000Vrms
MPI-300-28 PWR XFMR LAMINATED 300VA CHAS MT Signal Transformer	3,473	149.78	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 14V, Series 28V	Parallel 21.4A, Series 10.7A	Dual, Multiple Taps	Dual	No	300VA	Chassis Mount	Terminal Block	104.80mm L x 113.10mm W	98.20mm	4000Vrms
36-12 PWR XFMR LAMINATED 432VA CHAS MT Signal Transformer	3,095	159.88	RFQ	PDF	Box	-	Active	Laminated Core	105V, 115V, 125V	Parallel 18V, Series 36V	Parallel 24A, Series 12A	Single, Multiple Taps	Dual	Yes	432VA	Chassis Mount	Solder, Quick Connect	133.40mm L x 127.00mm W	111.10mm	1500Vrms
MPI-650-24 PWR XFMR LAMINATED 650VA CHAS MT Signal Transformer	3,056	234.64	RFQ	PDF	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 12V, Series 24V	Parallel 54.2A, Series 27.1A	Dual, Multiple Taps	Dual	No	650VA	Chassis Mount	Terminal Block	133.30mm L x 119.40mm W	117.80mm	4000Vrms
24-100 PWR XFMR LAMINATED 2400VA CHAS Signal Transformer	3,993	549.03	RFQ	PDF	Box	-	Active	Laminated Core	105V, 115V, 125V, 230V	Parallel 12V, Series 24V	Parallel 200A, Series 100A	Dual	Dual	Yes	2400VA	Chassis Mount	Solder, Quick Connect	190.50mm L x 177.80mm W	162.00mm	1500Vrms
IF-14-30 PWR XFMR SEMI-TORO 14VA TH Signal Transformer	2,424	24.83	RFQ	PDF	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 940mA, Series 470mA	Dual	Dual	No	14VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	24.30mm	4000Vrms
LP-56-45 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	3,190	9.78	RFQ	PDF	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	16.50mm	1500Vrms
