| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSP1A-DC3VRELAY GEN PURPOSE SPST 8A 3V |
3,950 | 4.62 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

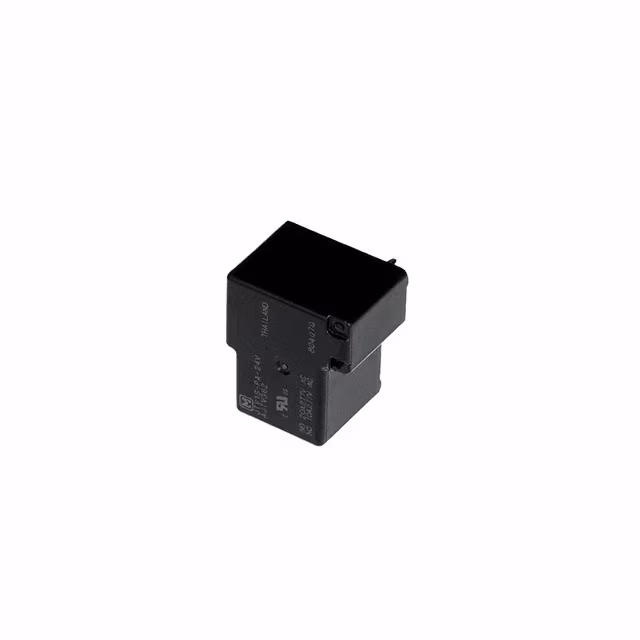

JTV1S-PA-24VRELAY GEN PURPOSE SPST 20A 24V |
2,075 | 4.90 |
RFQ |
Datasheet |
Bulk | JT-V | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
JVN1A-9V-FRELAY GEN PURPOSE SPST 16A 9V |
3,663 | 5.13 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.45 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JVN1AF-18V-FRELAY GEN PURPOSE SPST 16A 18V |
2,858 | 5.13 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 11.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 13.5 VDC | 0.9 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JVN1AF-6V-FRELAY GEN PURPOSE SPST 16A 6V |
3,300 | 5.13 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.3 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
JVN1AF-5V-FRELAY GEN PURPOSE SPST 16A 5V |
3,926 | 5.13 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
DSP1-L2-DC9V-FRELAY GEN PURPOSE DPST 5A 9V |
3,731 | 5.22 |
RFQ |
Datasheet |
Tube | DSP | Active | Through Hole | 9VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC, 30VDC - Max | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 5 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) |
|
|
JVN1AF-9V-FRELAY GEN PURPOSE SPST 16A 9V |
3,297 | 5.60 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
ADJ11012RELAY GEN PURPOSE SPDT 16A 12V |
2,772 | 5.87 |
RFQ |
Datasheet |
Tube | ADJ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 12.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
ADJ21005RELAY GEN PURPOSE SPST 16A 5V |
3,062 | 5.87 |
RFQ |
Datasheet |
Tube | ADJ | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 30 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
|
ADJ21024RELAY GEN PURPOSE SPST 16A 24V |
2,994 | 5.87 |
RFQ |
Datasheet |
Tube | ADJ | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 6.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
ADJ22012RELAY GEN PURPOSE SPST 16A 12V |
3,784 | 5.87 |
RFQ |
Datasheet |
Tube | ADJ | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 12.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
HC1-HP-DC6V-FRELAY GEN PURPOSE SPDT 10A 6V |
3,745 | 5.99 |
RFQ |
Datasheet |
Tray | HC | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 150 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free |
|
|
JVN1AF-48V-FRELAY GEN PURPOSE SPST 16A 48V |
3,841 | 6.12 |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 36 VDC | 2.4 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
ADY10006RELAY GEN PURPOSE SPST 10A 6V |
3,549 | 6.32 |
RFQ |
Datasheet |
Box | ADY | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) |
|
|
DSP1A-L-DC24VRELAY GEN PURPOSE SPST 8A 24V |
2,870 | 6.38 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 6.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
DSP1A-L-DC6VRELAY GEN PURPOSE SPST 8A 6V |
3,041 | 6.38 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 25 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4.8 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

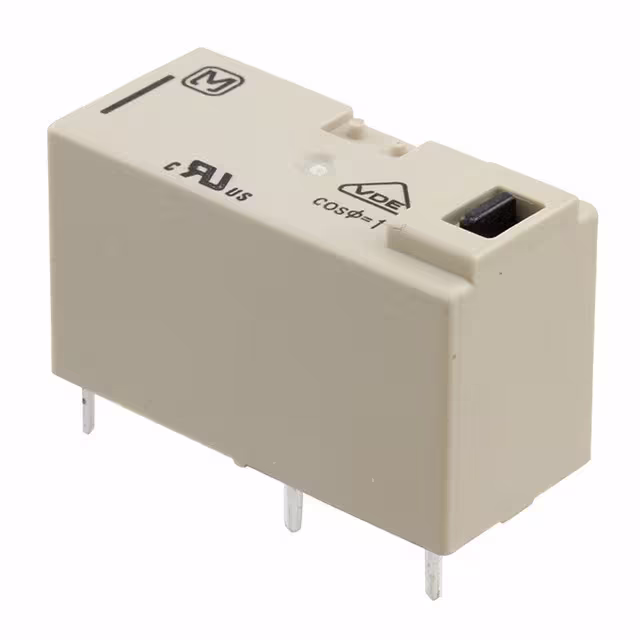

ADJ11112RELAY GEN PURPOSE SPDT 16A 12V |
3,477 | 6.79 |
RFQ |
Datasheet |
Tube | ADJ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 12.5 mA | Latching, Single Coil | Test Button | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
ADW1224WRELAY GEN PURPOSE SPST 8A 24V |
3,829 | 6.80 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
DSP1A-L-DC9VRELAY GEN PURPOSE SPST 8A 9V |
2,712 | 6.38 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
