| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

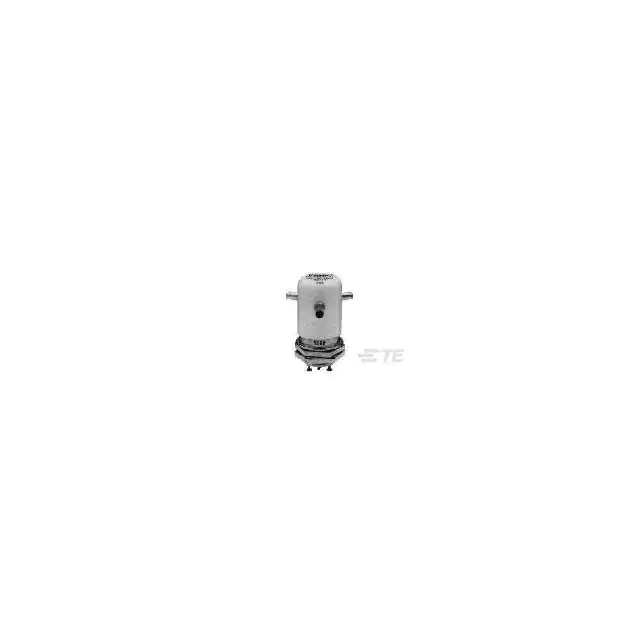

1-1618278-8RELAY GEN PURPOSE SPDT 30A 12V |
3,858 | 1263.78 |
RFQ |
Datasheet |
Box | KC-2, KILOVAC | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 30 A | 15kVDC - Max | 250 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 8 VDC | 0.5 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - |
|
FCA-210-1024MRELAY GEN PURPOSE DPDT 10A 28V |
2,764 | 206.87 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/10, FCA, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCA-410-1624MRELAY GEN PURPOSE 4PDT 10A 28V |
3,901 | 246.77 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/16, FCA, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
KC-16RELAY GEN PURPOSE SPDT 12A 26.5V |
2,078 | 1033.68 |
RFQ |
Bulk | KC-16, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 12 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - | |
|
3-1618276-5RELAY GEN PURPOSE SPDT 10A 26.5V |
3,261 | 2008.45 |
RFQ |
Bulk | K61, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 35000VDC - Max | - | Non Latching | - | Solder Turret, Wire Leads | - | - | 18 VDC | 1 VDC | 15 ms | 15 ms | -55°C ~ 85°C | - | |
|
FCA-210-0926MRELAY GEN PURPOSE DPDT 10A 28V |
2,639 | 191.73 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/9, FCA, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCA-210-1026MRELAY GEN PURPOSE DPDT 10A 28V |
2,797 | 206.87 |
RFQ |
Datasheet |
Tray | FCA, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
HFW5A1201L00RELAY GEN PURPOSE DPDT 5A 5V |
3,948 | 229.44 |
RFQ |
Datasheet |
Bulk | HFW5A, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 5 A | 28VDC - Max | 185 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy |
|
K81AB47RELAY GEN PURPOSE SPST 10A 26.5V |
3,383 | 381.77 |
RFQ |
Bulk | K81, KILOVAC | Active | Chassis Mount | 26.5VDC | SPST-NO (1 Form A) | 10 A | 10000VDC - Max | - | Non Latching | - | Wire Leads | Sealed - Fully | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|

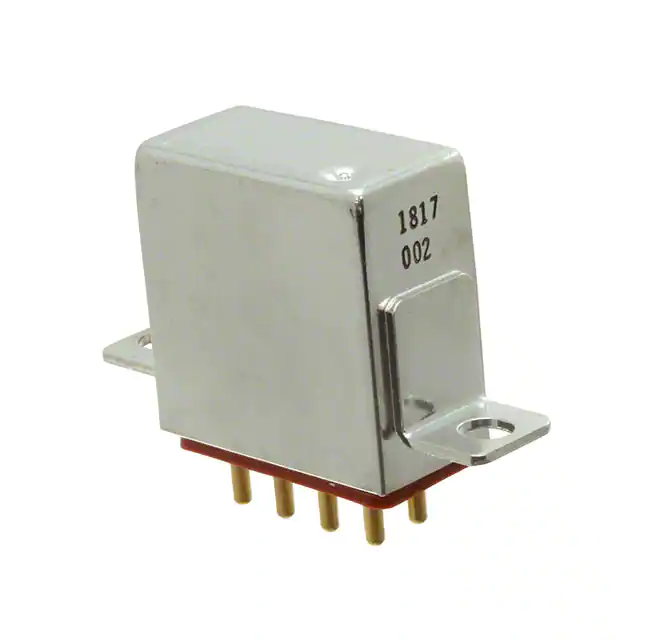

FCA-210-0924MRELAY GEN PURPOSE DPDT 10A 28V |
2,783 | 188.01 |
RFQ |
Datasheet |
Bulk | FCA-210 | Active | Socketable | 28VDC | DPDT (2 Form C) | 10 A | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 5.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCA-210-0923MRELAY GEN PURPOSE DPDT 10A 28V |
3,109 | 191.73 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/9, FCA, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCA-210-0917MRELAY GEN PURPOSE DPDT 10A 12V |
3,197 | 191.73 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/9, FCA, CII | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|

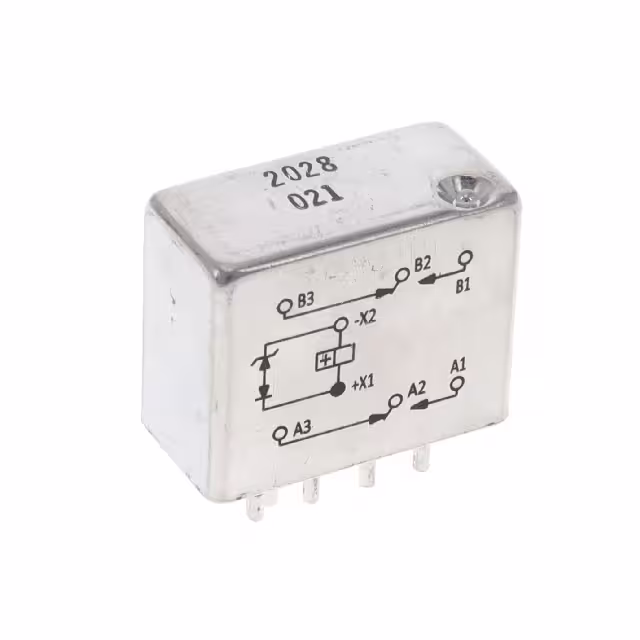

FCB-205-0219MRELAY GEN PURPOSE DPDT 5A 28V |
3,700 | 199.31 |
RFQ |
Datasheet |
Bulk | FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 28VDC - Nom | 56 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 5 ms | 5 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|

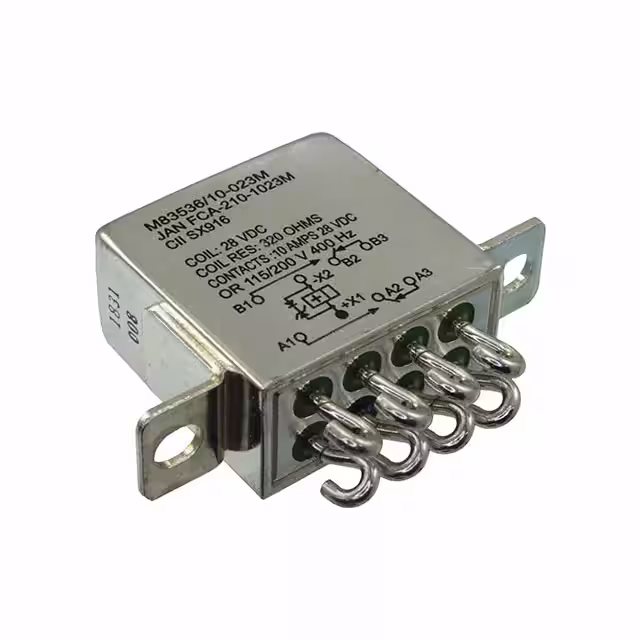

FCA-210-1023MRELAY DPDT 10A 28V |
2,527 | 206.87 |
RFQ |
Datasheet |
Bulk | FCA-210 | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | - | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
FCA-410-1620MRELAY GEN PURPOSE 4PDT 10A 28V |
2,084 | 246.77 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/16, FCA, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCA-410-1622MRELAY GEN PURPOSE 4PDT 10A 28V |
3,820 | 246.77 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/16, FCA, CII | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | - | Non Latching | - | Plug In | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
B07D634BC2-0051RELAY GEN PURPOSE DPDT 10A 26.5V |
2,848 | 270.66 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-5757/23, 07, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
PD10AB57RELAY GEN PURPOSE SPST 10A 24V |
2,781 | 438.34 |
RFQ |
Bulk | PD10, KILOVAC | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 10 A | 320VDC - Max | - | Non Latching | - | Screw Terminal | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|

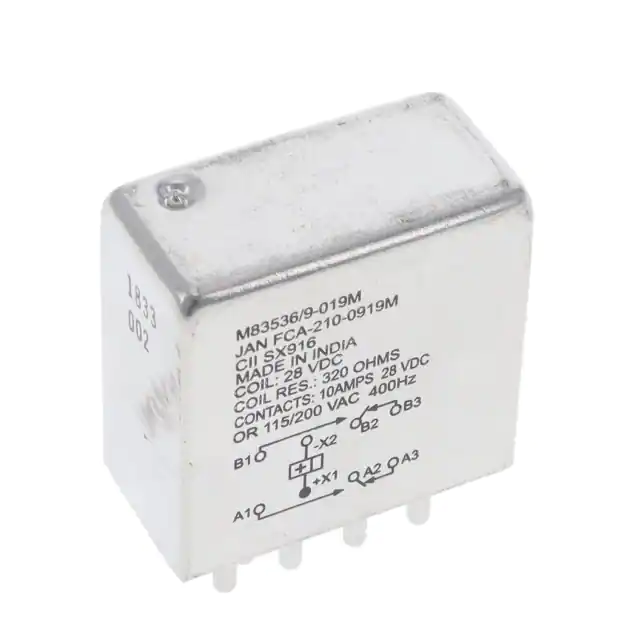

FCA-210-0919MRELAY GEN PURPOSE DPDT 10A 28V |
2,390 | 188.01 |
RFQ |
Datasheet |
Bulk | FCA, CII | Active | Through Hole | 28VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 87.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
FCB-205-0227MRELAY GEN PURPOSE DPDT 5A 28V |
3,834 | 195.44 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/2, FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
