| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K81AB57RELAY GEN PURPOSE SPST 10A 26.5V |
102 | 381.77 |
RFQ |
Bulk | K81, KILOVAC | Active | Chassis Mount | 26.5VDC | SPST-NO (1 Form A) | 10 A | 10000VDC - Max | - | Non Latching | - | Stud | Sealed - Fully | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|
FCB-405-BZ4RELAY GEN PURPOSE 4PDT 5A 28V |
2,133 | 226.92 |
RFQ |
Datasheet |
Bulk | FCB, CII | Active | Through Hole | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - |
|

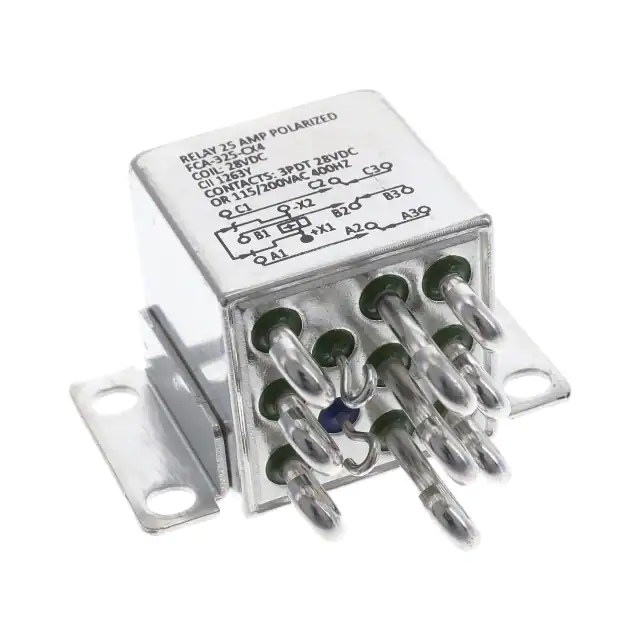

FCA-325-CX4RELAY GEN PURPOSE 3PDT 25A 28V |
2,794 | 261.43 |
RFQ |
Datasheet |
Bulk | FCA, CII | Active | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 71.8 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
B07D034BC2-0053RELAY GEN PURPOSE DPDT 10A 26.5V |
212 | 270.66 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-5757/23, 07, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
CAW-1C-24BRELAY GEN PURPOSE SPDT 10A 26.5V |
3,403 | 627.46 |
RFQ |
Datasheet |
Bulk | - | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|
FC-325-8RELAY GEN PURPOSE 3PST 25A 28V |
3,682 | 1041.85 |
RFQ |
Datasheet |
Bulk | FC-325, CII | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 25 A | - | - | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - |
|
B07D034BB2-0120RELAY GEN PURPOSE DPDT 10A 12V |
3,276 | 260.35 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-5757/23, 07, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 160 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.5 VDC | 0.8 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
HC-3RELAY GEN PURPOSE SPDT 18A 26.5V |
154 | 537.69 |
RFQ |
Bulk | HC-3, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | |
|

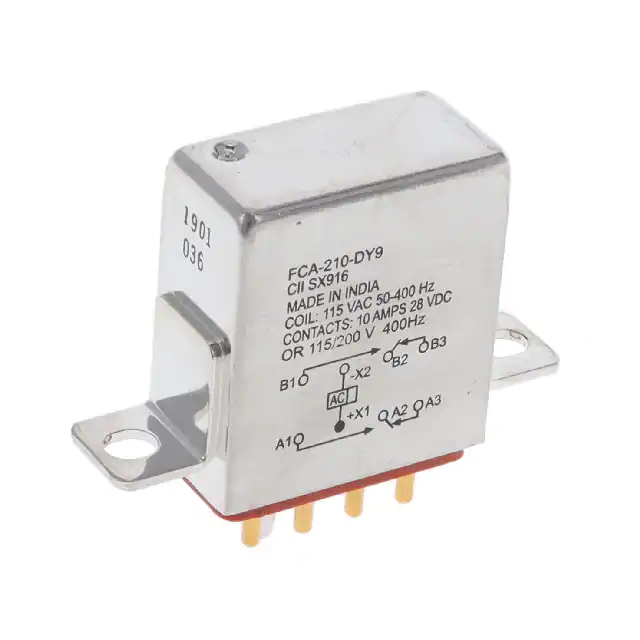

FCA-210-DY9RELAY GEN PURPOSE SPDT 10A 115V |
124 | 326.38 |
RFQ |
Datasheet |
Bulk | FCA, CII | Active | Chassis Mount | 115VAC | SPDT (1 Form C) | 10 A | 115VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 70 VAC | 8 VAC | 15 ms | 50 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|

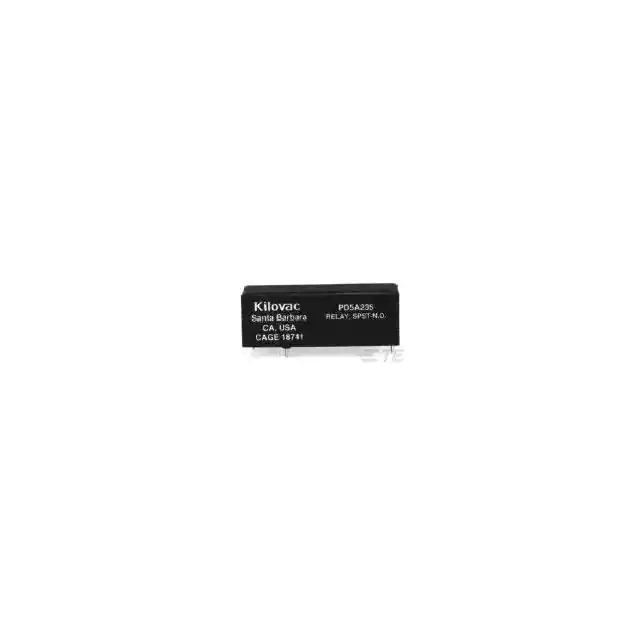

1-1618256-9RELAY GEN PURPOSE SPST 5A 24V |
2,335 | 562.84 |
RFQ |
Datasheet |
Box | PD5, KILOVAC | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 1800VDC - Max | - | Non Latching | - | PC Pin | Sealed - Vacuum | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - |
|

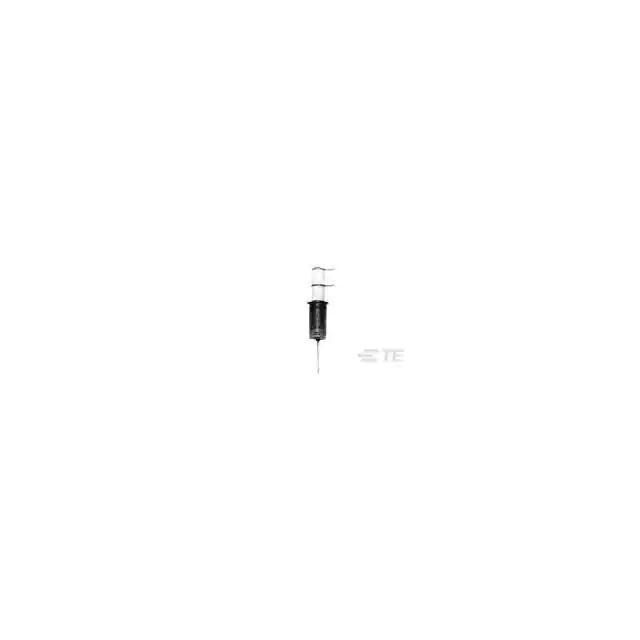

9-1618239-1RELAY GEN PURPOSE SPST 25A 12V |
2,365 | 567.96 |
RFQ |
Datasheet |
Box | K43, KILOVAC | Active | Panel Mount | 12VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - |
|
FCAC-150-KR4RELAY GEN PURPOSE SPST 50A 28V |
2,913 | 624.01 |
RFQ |
Datasheet |
Bulk | FCAC-150, CII | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | 115VAC, 28VDC - Max | - | Non Latching | - | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - |
|
K81A235RELAY GEN PURPOSE SPST 5A 12V |
3,657 | 381.77 |
RFQ |
Bulk | K81, KILOVAC | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|

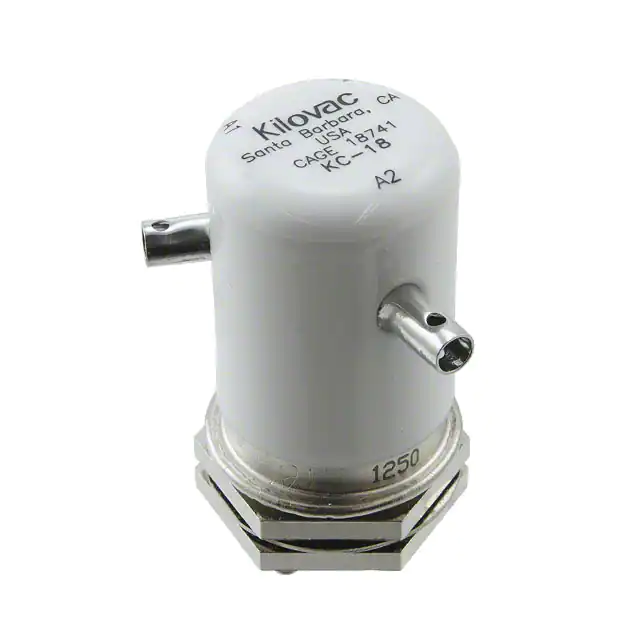

KC-18RELAY GEN PURPOSE 30A 26.5V |
2,697 | 1055.83 |
RFQ |
Bulk | KC-18, KILOVAC | Active | Panel Mount | 26.5VDC | - | 30 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | - | - | - | - | - | - | |
|

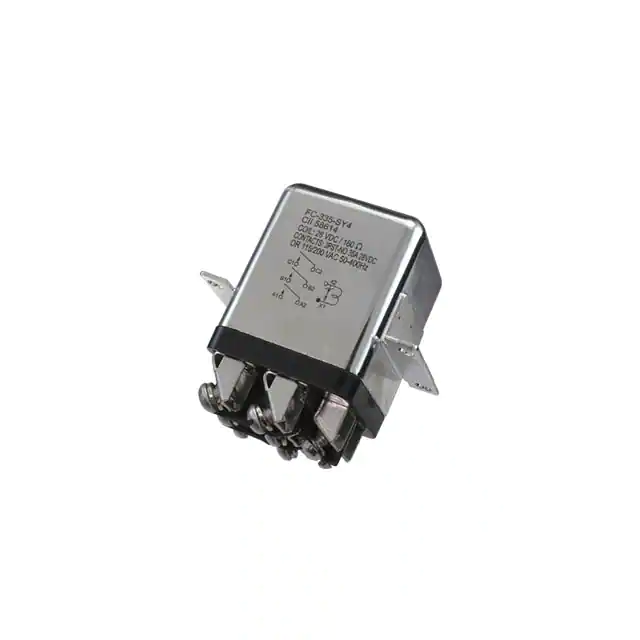

FC-335-SY4RELAY GEN PURPOSE 3PST 35A 28V |
3,023 | 1124.21 |
RFQ |
Datasheet |
Bulk | FC-335, CII | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 35 A | 115VAC, 28VDC - Nom | - | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - |
|
EV500-4BRELAY GEN PURPOSE SPST 750A 24V |
2,393 | 3012.53 |
RFQ |
Bulk | EV500, KILOVAC | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 750 A | 1800VDC - Max | - | Non Latching | - | Stud | Sealed - Hermetically | - | 19.7 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | |
|

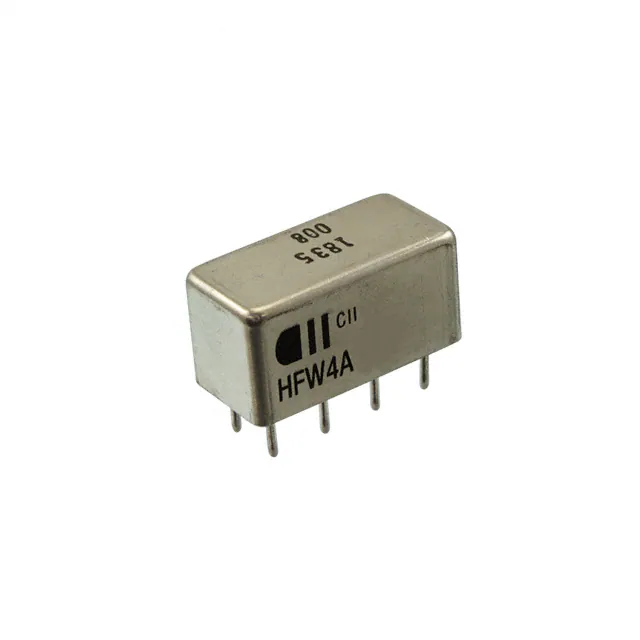

HFW4A1201D00RELAY GEN PURPOSE DPDT 4A 26.5V |
2,619 | 189.25 |
RFQ |
Datasheet |
Bulk | FCB, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 4 A | 28VDC - Nom | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - |
|
FCA-215-CY4RELAY DPDT 15A 28V |
2,261 | 206.87 |
RFQ |
Datasheet |
Bulk | FCA-210 | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 15 A | - | - | Non Latching | - | Solder Hook | - | - | 18 VDC | 11.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | - |
|

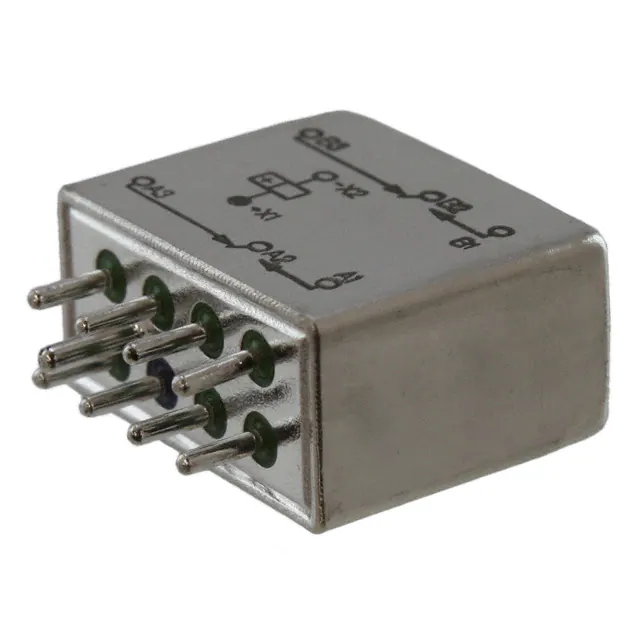

FCB-205-0119MRELAY GEN PURPOSE DPDT 5A 28V |
2,656 | 191.78 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-83536/1, FCB, CII | Active | Through Hole | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
|
FCB-205-0127MRELAY GEN PURPOSE DPDT 5A 28V |
2,190 | 191.78 |
RFQ |
Datasheet |
Bulk | FCB, CII | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 5 ms | 5 ms | -70°C ~ 125°C | - |
