| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DrivenConfiguration | ChannelType | NumberofDrivers | GateType | Voltage-Supply | LogicVoltage-VILVIH | Current-PeakOutput(SourceSink) | InputType | HighSideVoltage-Max(Bootstrap) | Rise/FallTime(Typ) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2108SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,578 | 2.68 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Inverting, Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRS2153DPBFIC GATE DRVR HALF-BRIDGE 8DIP |
407 | 3.01 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.4V | - | 180mA, 260mA | RC Input Circuit | 600 V | 120ns, 50ns | -40°C ~ 125°C (TJ) | Through Hole |
|
|
IRS2302SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
762 | 2.40 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Non-Inverting | 600 V | 130ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRS21844PBFIC GATE DRVR HALF-BRIDGE 14DIP |
2,292 | 5.89 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A | Non-Inverting | 600 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IRS4426SPBFIC GATE DRVR LOW-SIDE 8SOIC |
747 | 1.93 |
RFQ |
Datasheet |
Tube | - | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A | Inverting | - | 25ns, 25ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2153DPBFIC GATE DRVR HALF-BRIDGE 8DIP |
793 | 2.87 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | - | RC Input Circuit | 600 V | 80ns, 45ns | -40°C ~ 125°C (TJ) | Through Hole |
|
|
IRS2106PBFIC GATE DRV HI-SIDE/LO-SIDE 8DIP |
2,649 | 3.91 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | Through Hole |
|

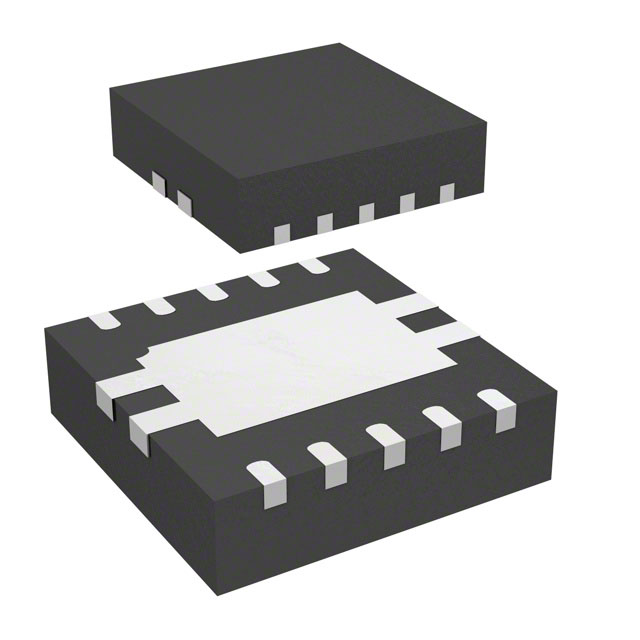

IR3537MTRPBFIC GATE DRVR HALF-BRIDGE 10DFN |
923 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 13.2V | - | 3A, 4A | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | Surface Mount |
|
IRS2304PBFIRS2304 - GATE DRIVER |
849 | 1.32 |
RFQ |
Datasheet |
Bulk | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.3V | 290mA, 600mA | Non-Inverting | 600 V | 70ns, 35ns | -40°C ~ 150°C (TJ) | Through Hole |
|
|
2EDN7523FXTMA1IC GATE DRVR LOW-SIDE DSO8 |
597 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A | Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
2EDN7524GXTMA1IC GATE DRVR LOW-SIDE 8WSON |
164 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A | Non-Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2103STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
590 | 2.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Inverting, Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2108STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
482 | 3.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR1167ASTRPBFIC GATE DRVR LOW-SIDE 8SOIC |
2,892 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SmartRectifier™ | Active | Low-Side | Single | 1 | N-Channel MOSFET | 12V ~ 18V | 2V, 2.15V | 2A, 7A | Non-Inverting | - | 18ns, 10ns | -25°C ~ 125°C (TJ) | Surface Mount |
|
2EDL23I06PJXUMA1IC GATE DRVR HALF-BRIDGE DSO14 |
110 | 3.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Half-Bridge | Independent | 2 | IGBT | 10V ~ 25V | 1.1V, 1.7V | 2.3A, 2.3A | Non-Inverting | 600 V | 48ns, 37ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
6ED003L02F2XUMA1IC GATE DRVR HALF-BRIDGE 28TSSOP |
3,098 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | - | Inverting | 620 V | 60ns, 26ns | -40°C ~ 125°C (TJ) | Surface Mount |
|
IR2132STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
2,939 | 11.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
IR2235PBFIR2235 - GATE DRIVER |
470 | 18.64 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
1EDN8511BXUSA1IC GATE DRV HALF BRD/LOW SOT23-6 |
3,064 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Half-Bridge, Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 8V ~ 20V | 1.2V, 1.9V | 4A, 8A | Inverting, Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRS10752LTRPBFIC GATE DRVR HIGH-SIDE SOT23-6 |
3,649 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | µHVIC™ | Active | High-Side | Single | 1 | N-Channel MOSFET | 10V ~ 18V | 0.8V, 2.2V | 160mA, 240mA | Non-Inverting | 100 V | 85ns, 40ns | -40°C ~ 125°C (TJ) | Surface Mount |
