| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DrivenConfiguration | ChannelType | NumberofDrivers | GateType | Voltage-Supply | LogicVoltage-VILVIH | Current-PeakOutput(SourceSink) | InputType | HighSideVoltage-Max(Bootstrap) | Rise/FallTime(Typ) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2121PBFIC GATE DRVR LOW-SIDE 8DIP |
2,577 | 4.98 |
RFQ |
Datasheet |
Tube | - | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A | Non-Inverting | - | 43ns, 26ns | -40°C ~ 150°C (TJ) | Through Hole |
|
IR2113PBFIC GATE DRVR HALF-BRIDGE 14DIP |
2,943 | 5.35 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | Through Hole |
|
IR2213SPBFIC GATE DRVR HALF-BRIDGE 16SOIC |
3,634 | 8.57 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12V ~ 20V | 6V, 9.5V | 2A, 2.5A | Non-Inverting | 1200 V | 25ns, 17ns | -55°C ~ 150°C (TJ) | Surface Mount |
|
IR2130SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
3,132 | 13.06 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|

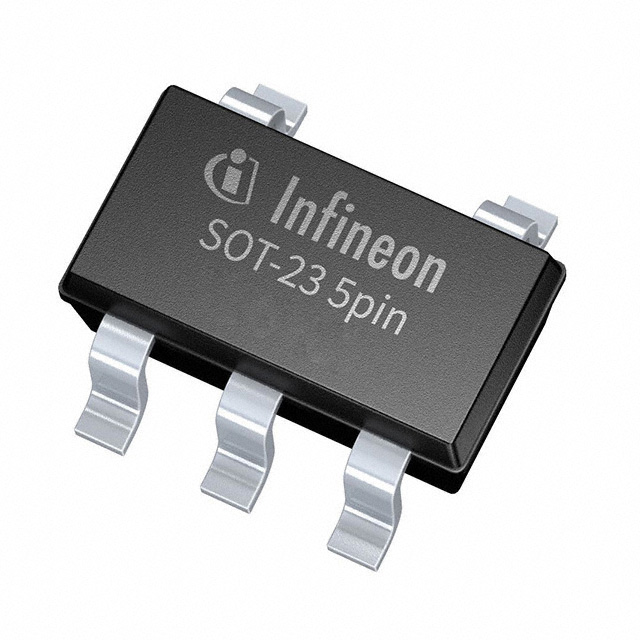

1EDN7512BXTSA1IC GATE DRVR LOW-SIDE SOT23-5 |
3,207 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A | Inverting, Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | Surface Mount |
|

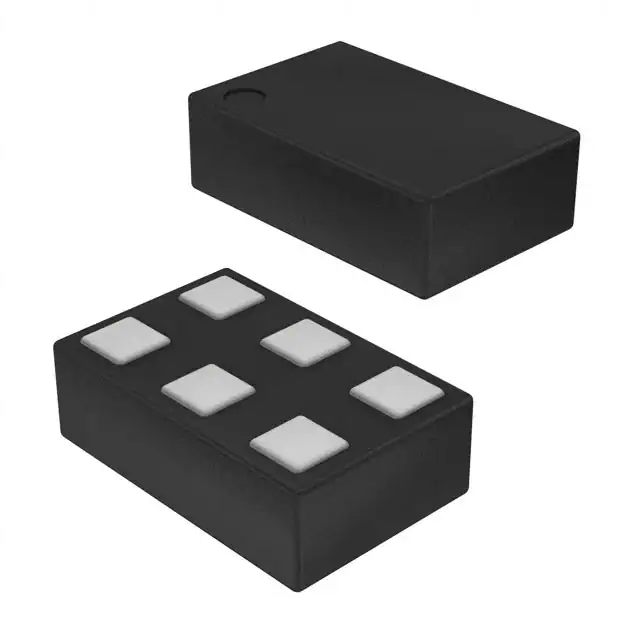

1EDN7550UXTSA1IC GATE DRVR HALF-BRIDGE TSNP-6 |
2,183 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EiceDriver™ | Active | High-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 4A, 8A | Non-Inverting | - | 6.5ns, 4.5ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRS2004STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,075 | 1.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 200 V | 70ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRS2153DSTRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,369 | 1.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.4V | - | 180mA, 260mA | RC Input Circuit | 600 V | 120ns, 50ns | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
IR2304STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
2,511 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA | Non-Inverting | 600 V | 200ns, 100ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2111STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,712 | 3.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRS2308SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,333 | 1.77 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2304SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
2,999 | 1.93 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA | Non-Inverting | 600 V | 200ns, 100ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2011STRPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
3,391 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A | Inverting | 200 V | 35ns, 20ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2301SPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
3,855 | 2.24 |
RFQ |
Datasheet |
Tube | - | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 130ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2101SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,402 | 2.46 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2136STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
2,597 | 4.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2117SPBFIC GATE DRVR HIGH-SIDE 8SOIC |
2,779 | 2.69 |
RFQ |
Datasheet |
Tube | - | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR2104SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
2,420 | 3.04 |
RFQ |
Datasheet |
Tube | - | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IR21531DPBFIC GATE DRVR HALF-BRIDGE 8DIP |
2,772 | 3.08 |
RFQ |
Datasheet |
Tube | - | Not For New Designs | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | - | RC Input Circuit | 600 V | 80ns, 45ns | -40°C ~ 125°C (TJ) | Through Hole |
|
|
IR2127SPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
796 | 3.08 |
RFQ |
Datasheet |
Tube | - | Active | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | Surface Mount |
